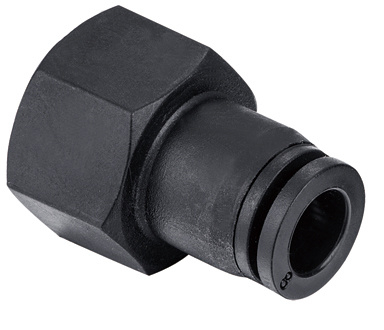

Black Push in Fitting Manufacturer

Model NO.: PCF8-02Thread: M5,M6, 1/8, 1/4, 3/8, 1/2Trademark: XHnotionTransport Package: Plastic BagSpecification: ROHS, REACH, CEOrigin: ChinaHS Code: 39174100Standard: DIN, GBMaterial: PlasticConnection: FemaleSurface Treatment: Nickel-PlatedHead Type: HexagonSize: 3mm-16mm
Availability:
Quantity:
  • PCF8-02

  • XHNOTION

  • L/C, T/T, Western Union, Paypal, Money Gram

  • Ningbo, China

  • 10000 PCS Per Day

  • PLASTIC BAG AND CARTON

  • PCF8-02

  • M5,M6, 1/8, 1/4, 3/8, 1/2

  • XHnotion

  • Plastic Bag

  • ROHS, REACH, CE

  • China

  • 39174100

  • DIN, GB

  • Plastic

  • Female

  • Nickel-Plated

  • Hexagon

  • 3mm-16mm

Product Description

FEATURES

1. Designed for Polyurethane or Nylon tubing.
2. Quick and reliable connections.
3. Reusable: multiple connections / disconnections.
4. Convenient elliptical / round sleeve configuration.
5. Metallic body made of non-corrosive Nickel-plated Brass.
6. Pre-coated threads are ready to use without additional sealing.
7. Outside (and Inside where applicable) hexagonal wrench tightening.
8. Available over 60 different models in imperial, metric sizes and hybrid.
9. Conform ISO7.1, BS21, DIN2999 standard.

MATERIAL CONSTRUCTION

Black Push in Fitting Manufacturer

Plastic Body PBT
Metal Body Nickel Plated Brass or Brass
Release Button POM
Grip Ring Stainless Steel
Thread Sealant Teflon
O-Ring NBR



SPECIFICATIONS

Operating Pressure 0 - 150 PSI       0 - 990 kpa
Operating Temperature 0 - 60 °C         32 to 140°F
Application Air, water
Recommended Tubing Material Polyurethane, Nylon, Polyethylene, and Polypropylene
Types Straight, Elbow, Tee, X, Y, etc.
Capacity Over 1000000pcs/month
Marketing Area All over the world




FITTINGS ADVANTAGE

1) Raw Material conforms to ROHS standards.
2) Imported Teflon adhesive for pre-coated sealant.

3) Multiple color and shape for button and body
Blue and oval button with black body as regular,
Black or gray round button is available, too.

4) 5% tested by water at 10 bar, 100% tested by air and appearance test.

5) 1 year quality assurance after shipment.

6) Custom fitting as your drawing or we make drawing as your sample.

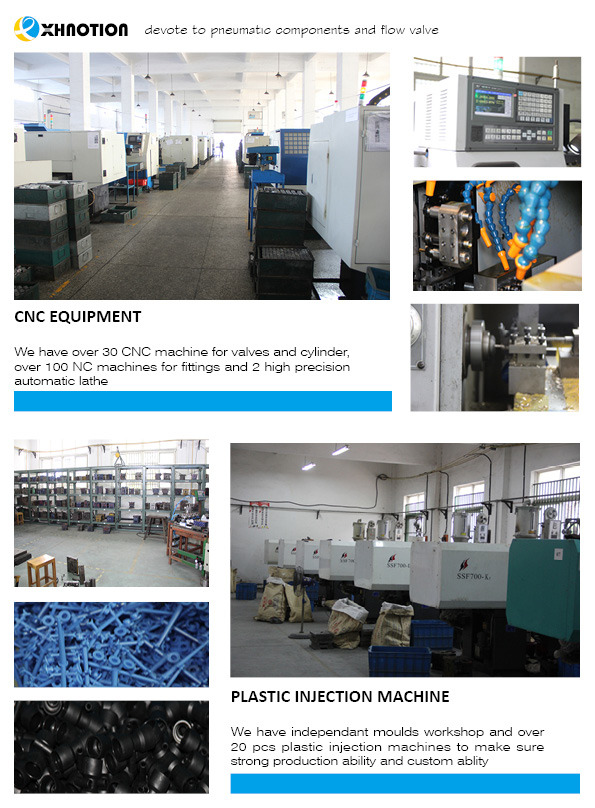

WORKSHOP SHOW
Black Push in Fitting Manufacturer
Black Push in Fitting Manufacturer

WHY CHOOSE US?

1) We offer one stop solution. Over 5000 items for you to save efforts and costs.

2)We have molds workshop, die-casting workshop, CNC workshop, plastic injection workshop to make sure each part exactly as the drawing and good function.

3) We will reply you within 24 hours.

4) Whatever quantity you are requesting, we always offer you the best quality.

5)3D drawing, cad drawing service for custom fittings, hose, valve, cylinder.


FAQ

Packing
Transparent plastic bag + white small box + neutral carton + pallet
Custom packaging are available, XHnotion brand packaging are available

Shipping
Export port: Ningbo or Shanghai, China
Shipping way: by sea, by air, by courier
Delivery time 3 days to 30 days depends on actual orders.

Payment Terms
We accept T/T, L/C, Paypal, western union,etc.

Samples Policy

For regular fittings below 20 pcs, free samples against your courier account or you pick up from us.
For custom items, we will discuss by email.

Return Policy
We assure you 1 year policy after shipment. If there is any problem during this period, please contact us for support.


For other size, please refer to below table.

Tube(Metric)-Thread(R) Tube(Inch)-Thread(R) Tube(Inch)-Thread(NPT)
PCF 4-M5 PCF 6-03 PCF 12-01 PCF 5/32-01 PCF 3/8-02 PCF 1/8-U10 PCF 3/16-N03 PCF 3/8-N02
PCF 4-M6 PCF 8-01 PCF 12-02 PCF 5/32-02 PCF 3/8-03 PCF 1/8-N01 PCF 1/4-U10 PCF 3/8-N03
PCF 4-01 PCF 8-02 PCF 12-03 PCF 1/4-01 PCF 3/8-04 PCF 1/8-N02 PCF 1/4-N01 PCF 3/8-N04
PCF 4-02 PCF 8-03 PCF 12-04 PCF 1/4-02 PCF 1/2-02 PCF 5/32-U10 PCF 1/4-N02 PCF 1/2-N02
PCF 4-03 PCF 8-04 PCF 14-03 PCF 1/4-03 PCF 1/2-03 PCF 5/32-N01 PCF 1/4-N03 PCF 1/2-N03
PCF 6-M5 PCF 10-01 PCF 14-04 PCF 5/16-01 PCF 1/2-04 PCF 5/32-N02 PCF 5/16-N01 PCF 1/2-N04
PCF 6-M6 PCF 10-02 PCF 16-03 PCF 5/16-02 PCF 3/16-U10 PCF 5/16-N02
PCF 6-01 PCF 10-03 PCF 16-04 PCF 5/16-03 PCF 3/16-N01 PCF 5/16-N03
PCF 6-02 PCF 10-04 PCF 3/8-01 PCF 3/16-N02 PCF 3/8-N01
