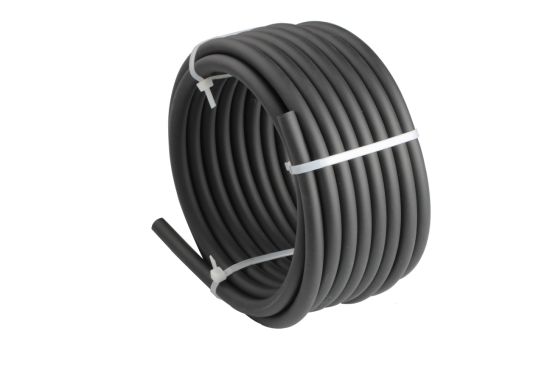

Black Flame Resistant Hose Anti-Spark Tubing Spatter Resistant

Quantity:
  • Ningbo, China
  • 10000 M Per Month
  • L/C, T/T, Western Union, Paypal, Money Gram
  • PUH-BK
  • 100m
  • XHnotion
  • Plastic Film Box Reel
  • UL94-V0
  • China
  • 3917290000
  • -20 - 80
  • 0-10 Bar
  • Polyurethane (Inner) + Retardant Synthetic Materia
  • Air
  • Round
  • Welding
Product Description
FEATURES
Product name Flame-Resistant Hose
Fluid Air
Color Black Blue Yellow Red Green White
Material Polyurethane (inner) + Retardant Synthetic Material (outer)
Working pressure 0-10bar
Bursting pressure 0-20bar
Temperature -20 -80
Hardness 95A-98A
Application In the occasions where spark occurs during welding work
Packing Plastic Film Box Reel
MOQ 2000 Meters

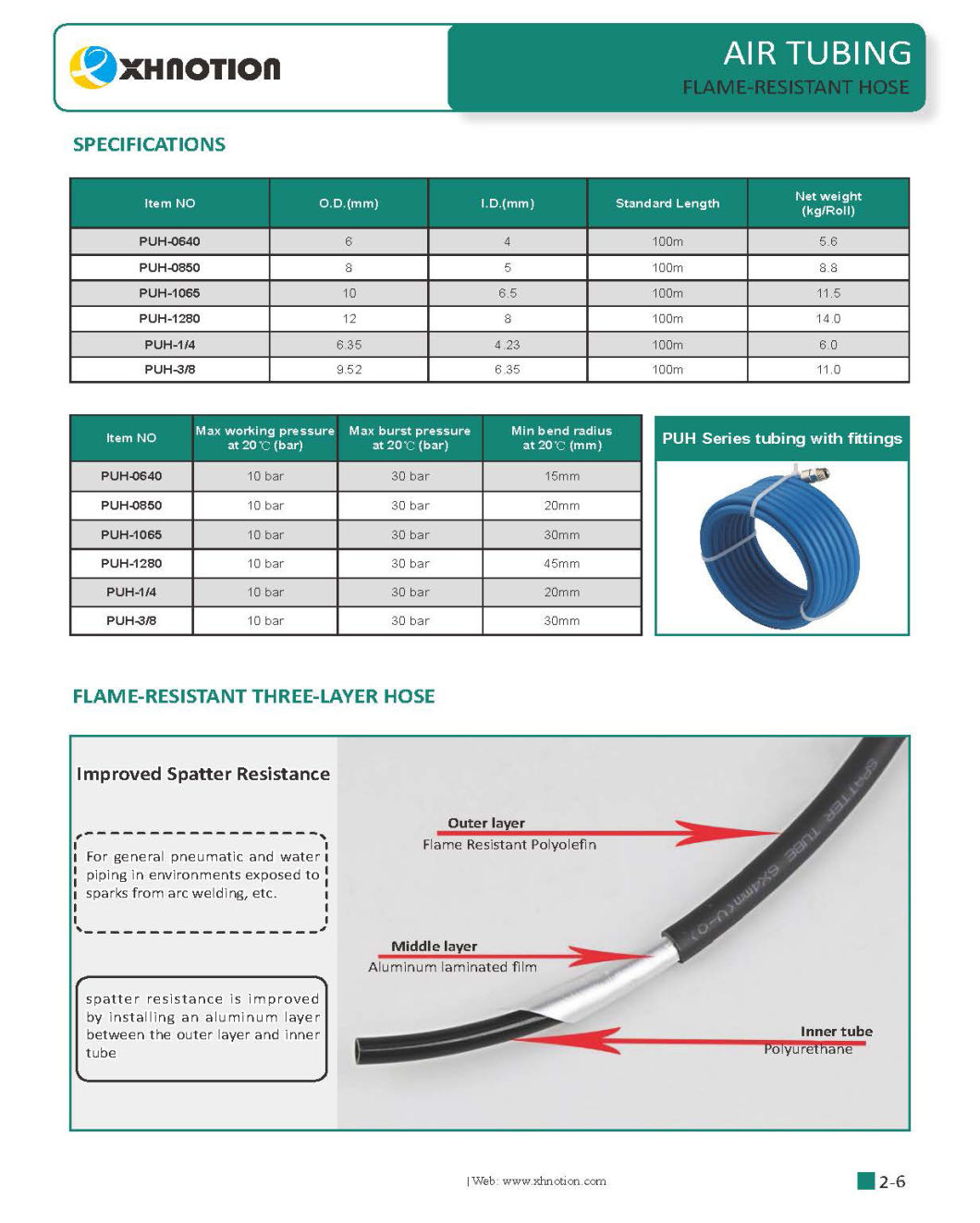

SPECIFICATIONS
Metric Size O.D.(mm) I.D.(mm) Total Length per Roll (meter) Max working pressure
at 20ºC (bar)
Max burst pressure
at 20ºC (bar)
Min bend radius
at 20ºC (mm)
PUH0640 6 4 100 10bar 30bar 15mm
PUH0850 8 5 100 10bar 30bar 20mm
PUH1065 10 6.5 100 10bar 30bar 30mm
PUH1280 12 8 100 10bar 30bar 45mm
PUH 1/4 6.35 4.23 100 10bar 30bar 20mm
PUH 3/8 9.52 6.35 100 10bar 30bar 30mm



Black Flame Resistant Hose Anti-Spark Tubing Spatter Resistant



Black Flame Resistant Hose Anti-Spark Tubing Spatter Resistant


TUBE ADVANTAGE

1) Polyurethane (inner) + Retardant Synthetic Material (outer)

2) Enough meters per roll and can mark meter on the tube as you request.

3) Print your logo above 3000 meter each size.

4) Conform to REACH, CE, ROHS certificate

5) Rich stock for every size and regular color.

6) One year quality assurance after shipment.

7) After-sales technique support



WHY CHOOSE US?

1)XHnotion offer one stop solution. Over 5000 items for you to save efforts and costs.

2)We have molds workshop, die-casting workshop, CNC workshop, plastic injection workshop to make sure each part exactly as the drawing and good function.

3) We will answer within 24 hours.

4) Whatever quantity you are requesting, we always offer you the best quality.

5)3D drawing, cad drawing service for custom fittings, hose, valve, cylinder

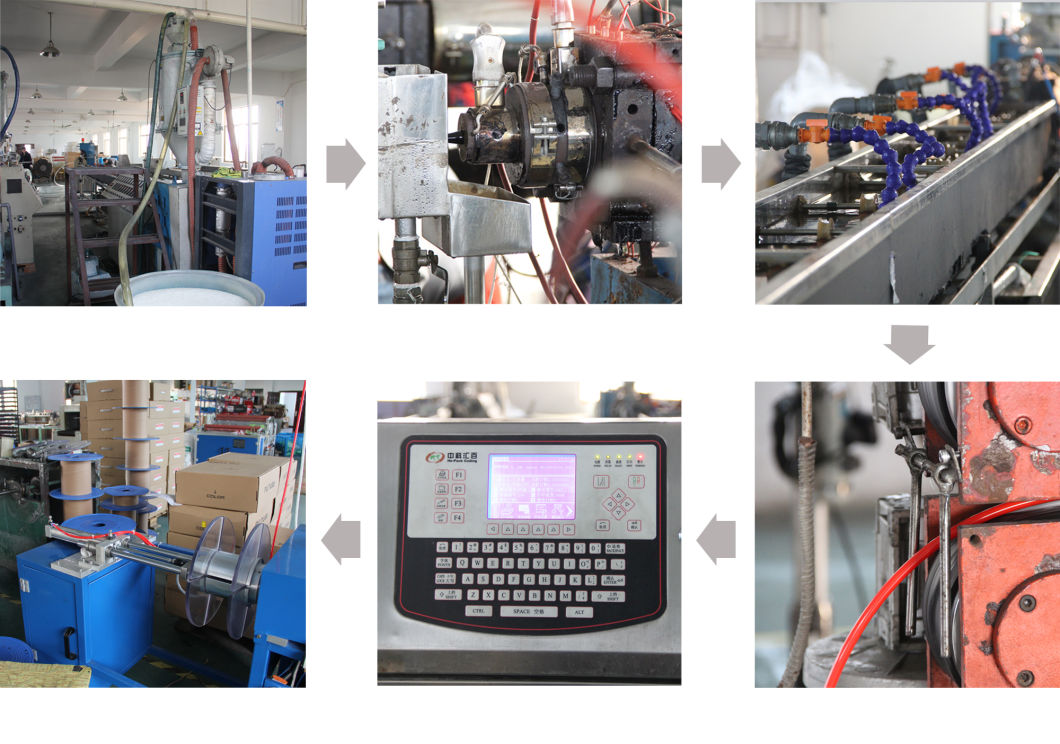

PRODUCTION PROCESS

Black Flame Resistant Hose Anti-Spark Tubing Spatter Resistant

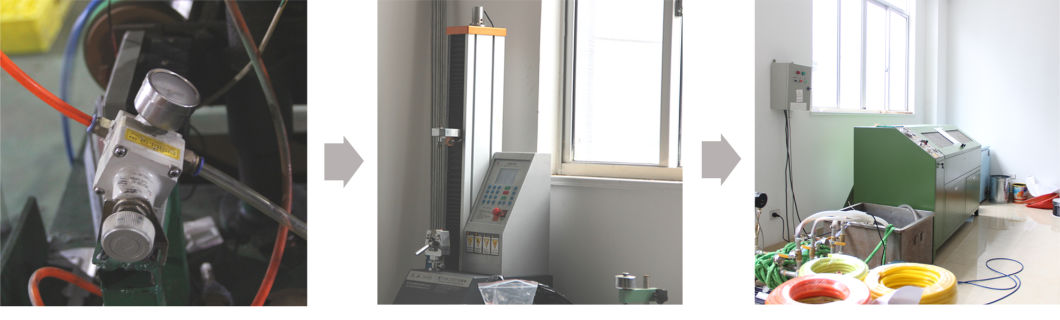

PERFORMANCE TESTING

Black Flame Resistant Hose Anti-Spark Tubing Spatter Resistant


PACKING AND DELIVERY

Black Flame Resistant Hose Anti-Spark Tubing Spatter Resistant



EXHIBITION
2015
PTC EXPO IN SHANGHA

Black Flame Resistant Hose Anti-Spark Tubing Spatter Resistant

2016
AIR-TECH EXPO IN BIRMINGHAM
Black Flame Resistant Hose Anti-Spark Tubing Spatter Resistant


2017
AAPEX EXPO IN LAS VEGAS

Black Flame Resistant Hose Anti-Spark Tubing Spatter Resistant


FAQ

Packing
Transparent plastic bag + neutral carton + neutral box + pallet
Custom packaging are available, XHnotion brand packaging are available

Shipping :
Export port: Ningbo or Shanghai, China
Shipping way: by sea, by air, by courier
Delivery time 3 days to 30 days depends on actual orders.

Payment Terms
We accept T/T, L/C, Paypal, western union,etc.

Samples Policy
For regular item1 piece, free samples against your courier account or you pick up from us.
For custom items, we will discuss by email.

Return Policy:
We assure you 1 year policy after shipment. If there is any problem during this period, please contact us for support.
