Bd Series 2/3 Way Solenoid Valve

Model NO.: BD1008Power Supply: DC Solenoid ValveUsage: Flow ControlStandard: DINApplication: Industrial Usage, Water Industrial Usage, Household UsageRegular Voltage: 12VDC, 24VDC, 110VAC, 220VACTrademark: XHnotionSpecification: ROHS, REACH, CEOrigin: ChinaHS Code: 8481804090Actuator: ElectricConnection Form: ThreadType: Direct ActingMaterial: BrassPressure: Ordinary PressureValve Structure: Direct Action Diaphragm Structure
  • BD1008


  • L/C, T/T, Paypal, Money Gram, Western Union

  • Ningbo, China

  • 10000 PCS Per Month

  • Paper Box

  • BD1008

  • DC Solenoid Valve

  • Flow Control

  • DIN

  • Industrial Usage, Water Industrial Usage, Household Usage

  • 12VDC, 24VDC, 110VAC, 220VAC

  • XHnotion


  • China

  • 8481804090

  • Electric

  • Thread

  • Direct Acting

  • Brass

  • Ordinary Pressure

  • Direct Action Diaphragm Structure

Product Description


1. Compact volume, large flow, widely use

2. Protection class: IP65

3. Seal material: NBR, VITON,  EPDM, SILICONE

4. Body material: brass, stainless steel

5. BD - direct acting, BP - pilot operated, BT - steam valve,  BH - high pressure valve, BD23 - 3 way valve

6. Some models Normally open is available


BD Series Compact Solenoid Valve Specifications

MODEL Orifice (mm) Thread
Working Pressure Medium Temp. Seals material CV Value Voltage
Brass SS304
BD0106 BD0106B 1 G1/8 0-40 bar 0~80ºC Regular seal:NBR   Viton        EPDM 0.06 220VAC     110VAC       24VDC         12VDC            make
Other voltage
as requested
BD0206 BD0206B 2 G1/8 0-16 bar 0.14
BD0306 BD0306B 3 G1/8 0-10 bar 0.27
BD0208 BD0208B 2 G1/4 0-16 bar 0.14
BD0308 BD0308B 3 G1/4 0-10 bar 0.27
BD0408 BD0408B 4 G1/4 0-6 bar 0.35
BD0608 BD0608B 6 G1/4 0-2 bar 0.64
BD0610 BD0610B 6 G3/8 0-2 bar 0.64
BD0615 BD0615B 6 G1/2 0-2 bar 0.64

BD Series Direct Acting Solenoid Valve Specifications

MODEL Orifice (mm) Thread
Working pressure Medium Temp. Seals material CV value Voltage
Brass SS304
10mm G1/4 0-10 Bar -10~80ºC Regular seal:NBR   Viton        EPDM 2.3 220VAC     110VAC       24VDC         12VDC            make
Other voltage
as requested
BD1408 BD1408B 14mm G1/4 4.2
BD1410 BD1410B G3//8
BD1415 BD1415B G1/2
BD1420 BD1420B G3/4
BD2020 BD2020B 20mm G3/4 10
BD2025 BD2025B G1


1) Raw Material conforms to China industry standard, bought from famous factory.

2) Insulation grade: H class, good resistance to high temperature;

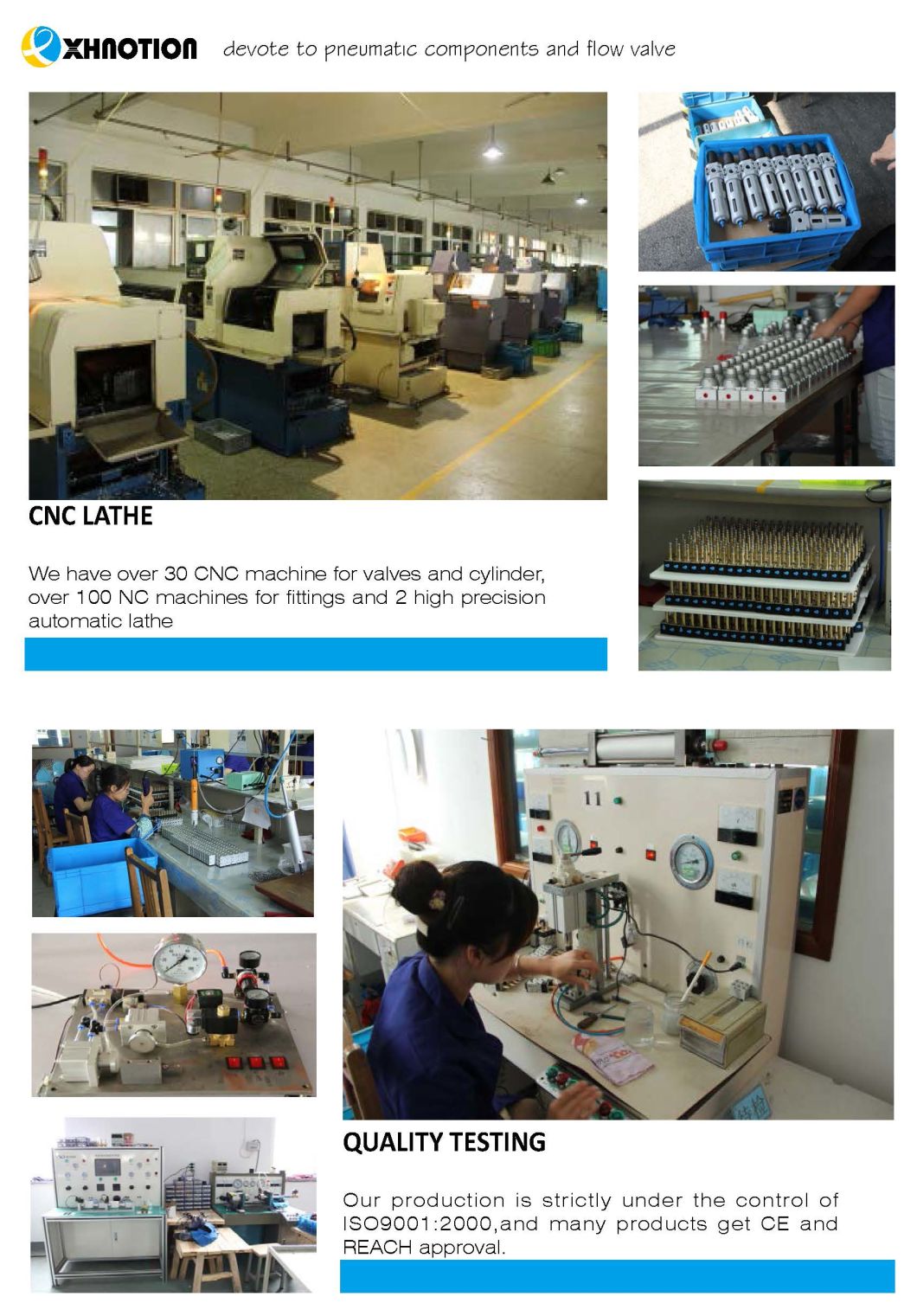

3) Machined by CNC to make sure the tolerance as the drawing

4) 100% leakage testing under low pressure and high pressure.

5) All kinds of valve and seals material to meet custom requirement.

6) 1 year quality assurance after shipment.

7) After sales technique support

Bd Series 2/3 Way Solenoid Valve
Bd Series 2/3 Way Solenoid Valve

1) We offer one stop solution. Over 5000 items for you to save efforts and costs.

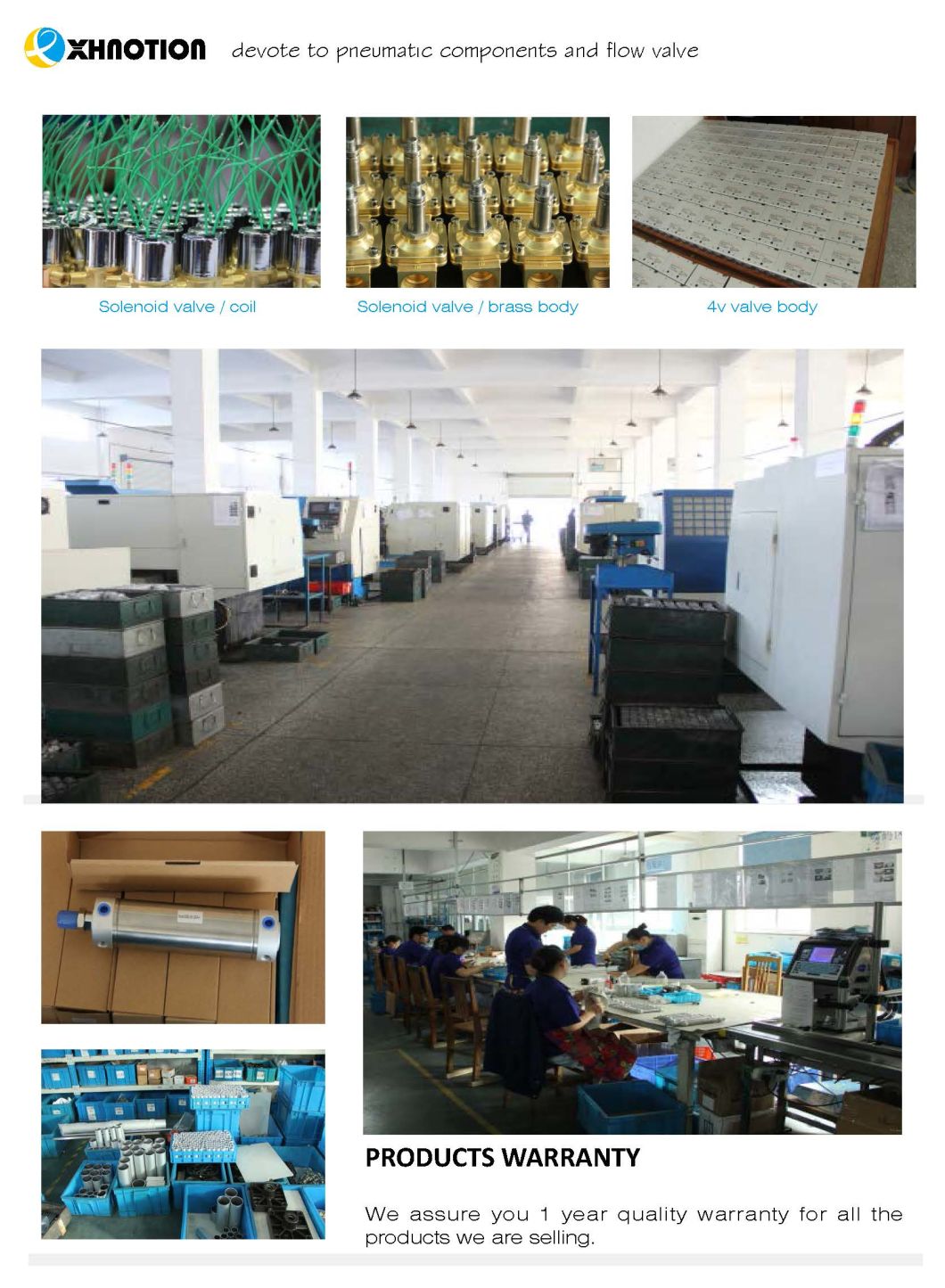

2)We have molds workshop, die-casting workshop, CNC workshop, plastic injection workshop to make sure each part exactly as the drawing and good function.

3) We will reply you within 24 hours.

4) Whatever quantity you are requesting, we always offer you the best quality.

5)3D drawing, cad drawing service for custom fittings, hose, valve, cylinder


Transparent plastic bag + white small box + neutral carton + pallet
Custom packaging are available, XHnotion brand packaging are available

Shipping :
Export port: Ningbo or Shanghai, China
Shipping way: by sea, by air, by courier
Delivery time 3 days to 30 days depends on actual orders.

Payment Terms
We accept T/T, L/C, Paypal, western union,etc.

Samples Policy
For regular fittings below 20 pcs, free samples against your courier account or you pick up from us.
For custom items, we will discuss by email.

Return Policy:
We assure you 1 year policy after shipment. If there is any problem during this period, please contact us for support.

We have thousands of solenoid valve in the stock. If you do not know how to order our valve, please tell us some necessary information, we will recommend you the most economical solenoid valve.

1. valve material
2. working pressure
3. temperature range
4 working environment
5. quantity

You can choose as below

Body Material: Plastic, brass, SS304, SS306, Steel.
Voltage: 12VDC, 24VDC, 24VAC, 220VAC, 280VAC
Size: M5-2", Flange connection
