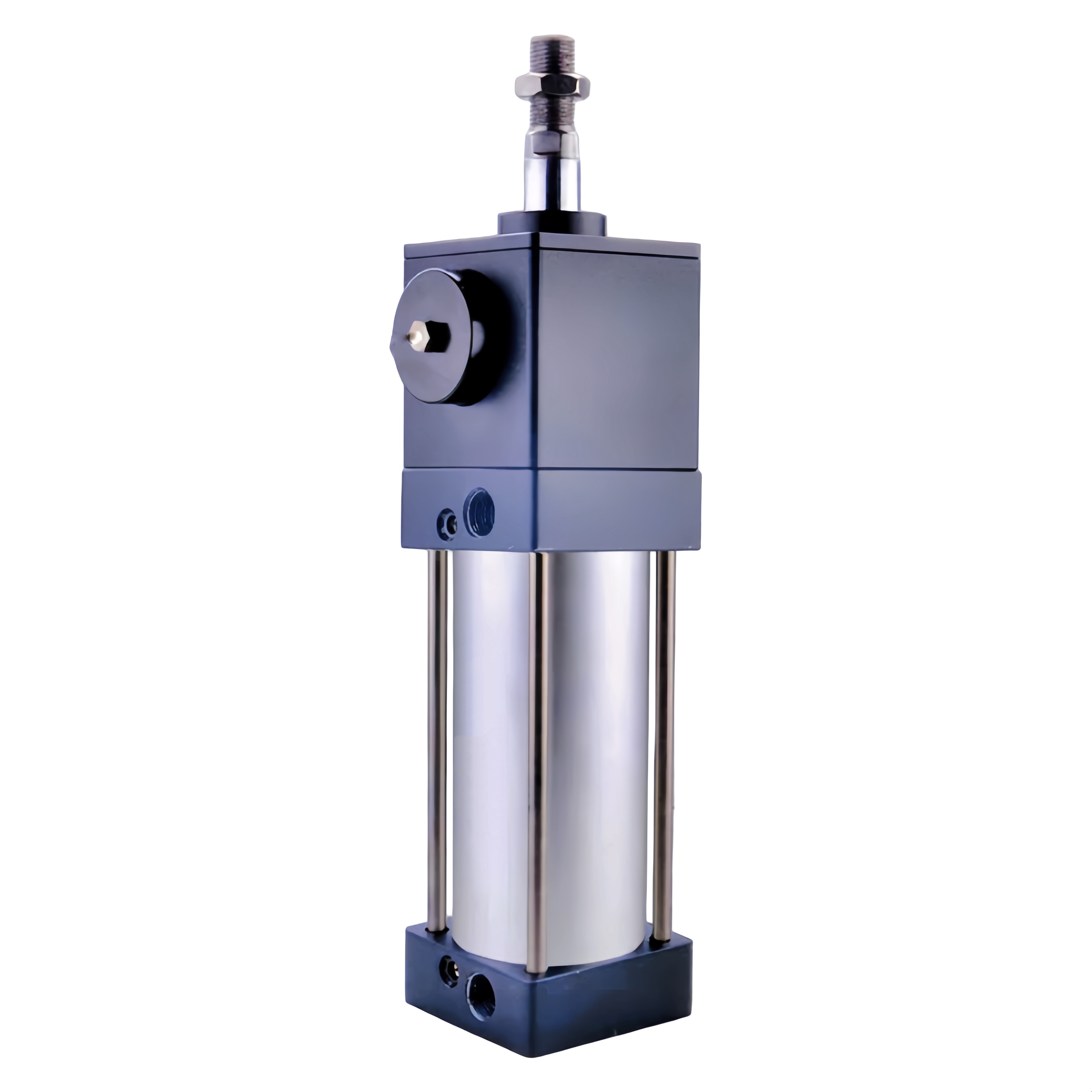

Feature

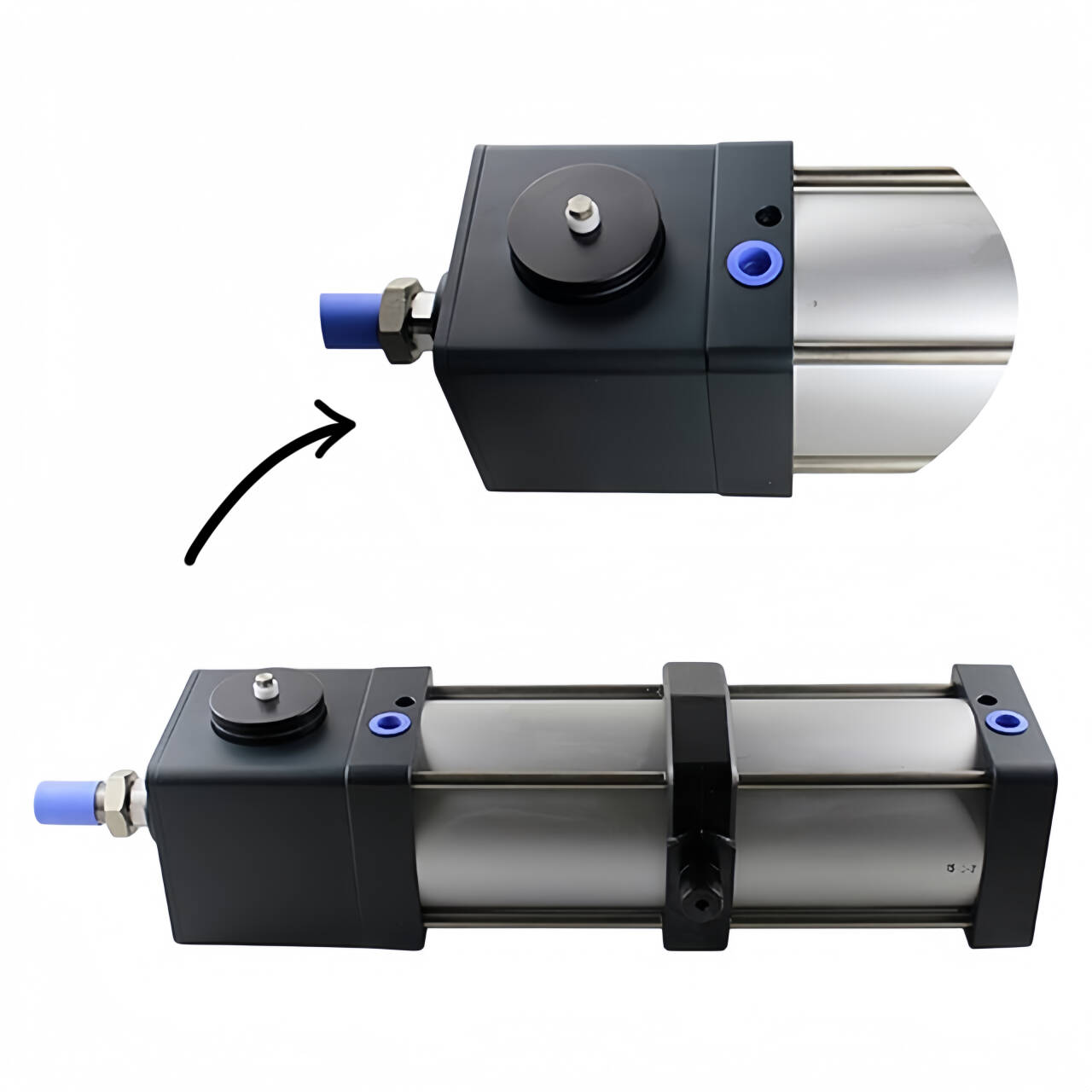

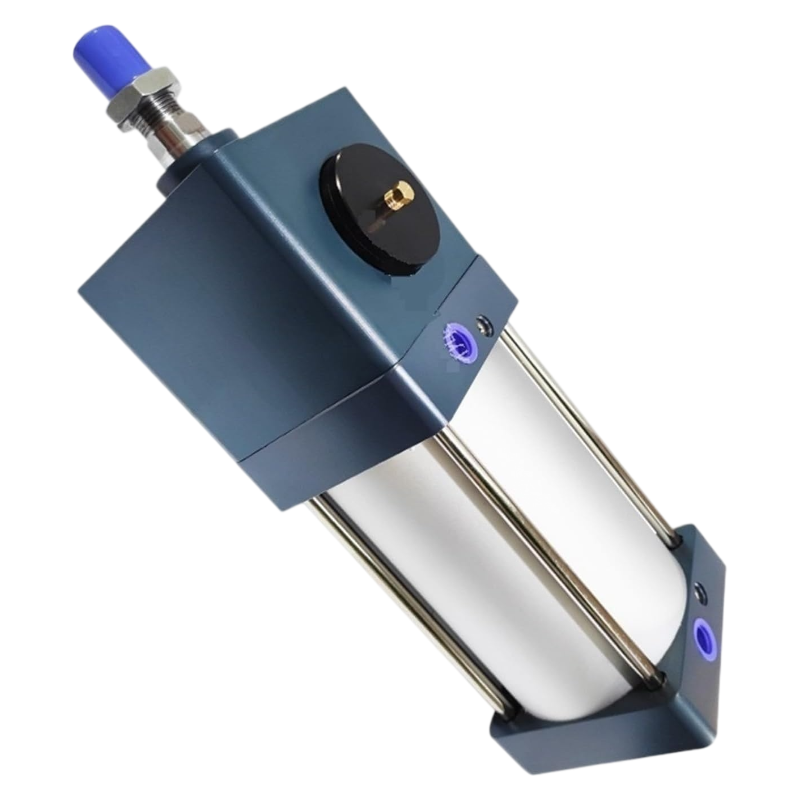

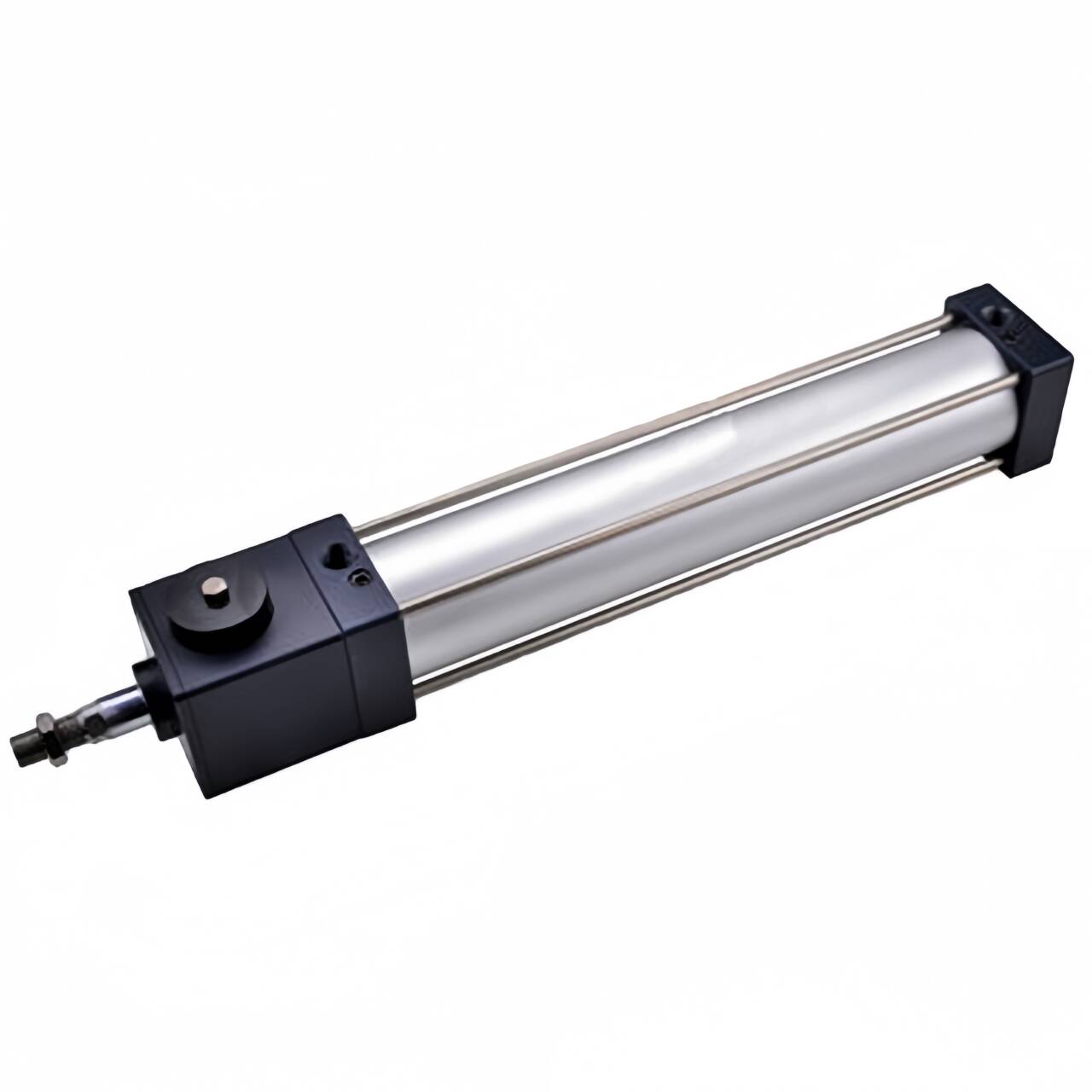

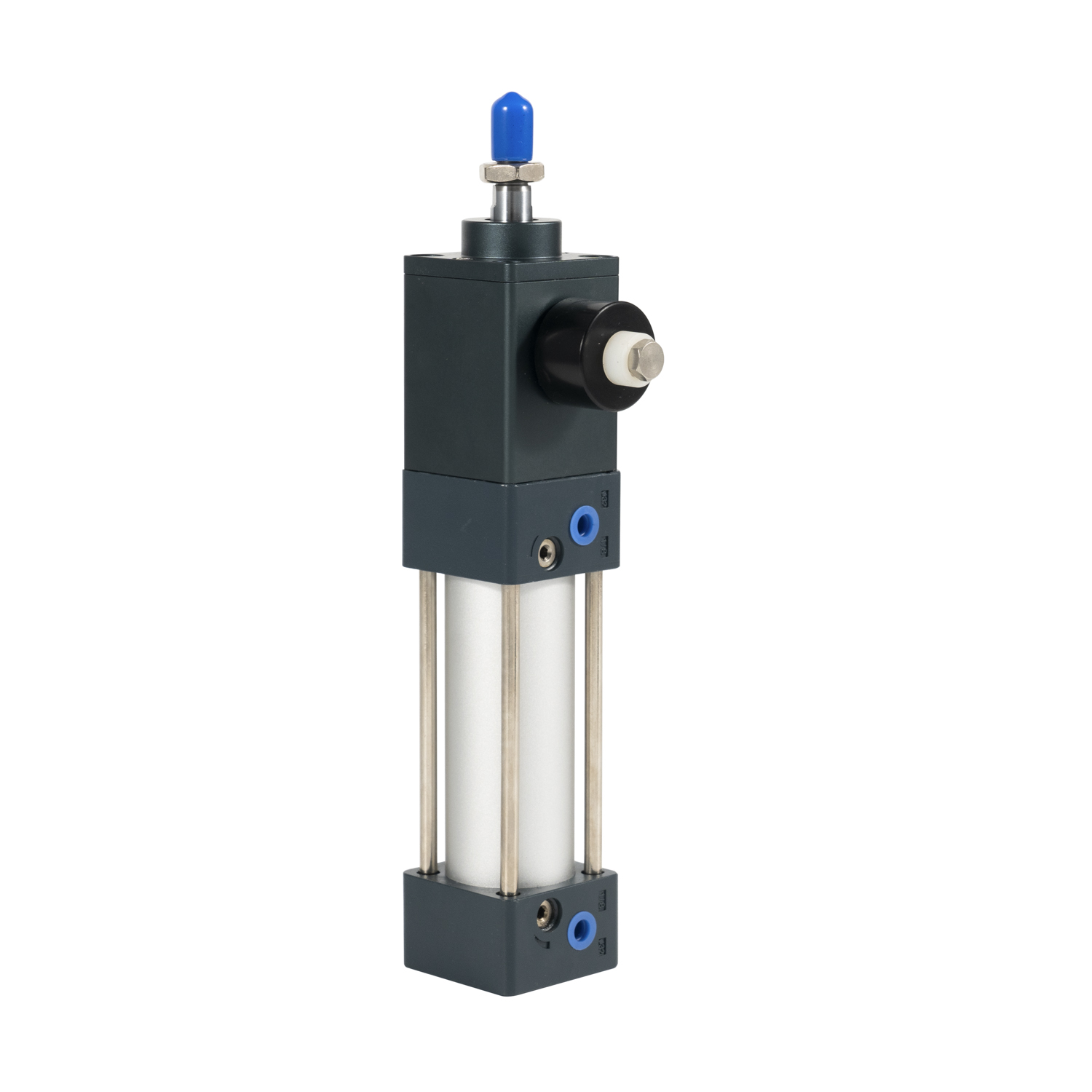

1. Conforms to ISO15552 standard, fully interchangeable with standard SC cylinder accessories
2. Built-in mechanical brake, auto locks instantly when air cut off to prevent workpiece falling
3. Supports stable holding at any stroke position, locking performance bidirectional stable
4. High static holding force, ideal for vertical heavy-load safety lifting scenarios

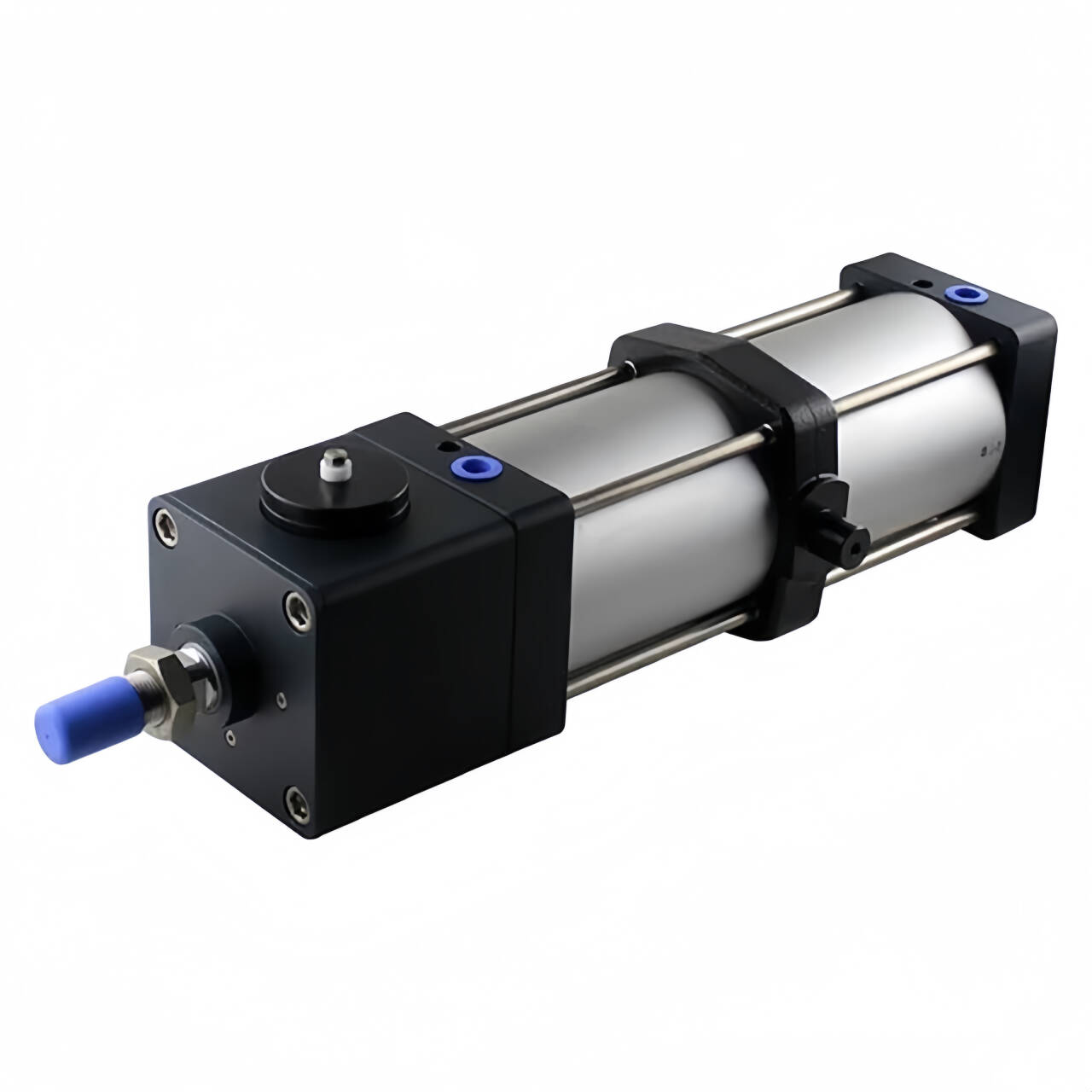

5. Multiple mounting methods: FA/FB/LB/TC/CA/CB for diverse equipment installation
6.Dual-end adjustable pneumatic cushion for low noise and low impact operation

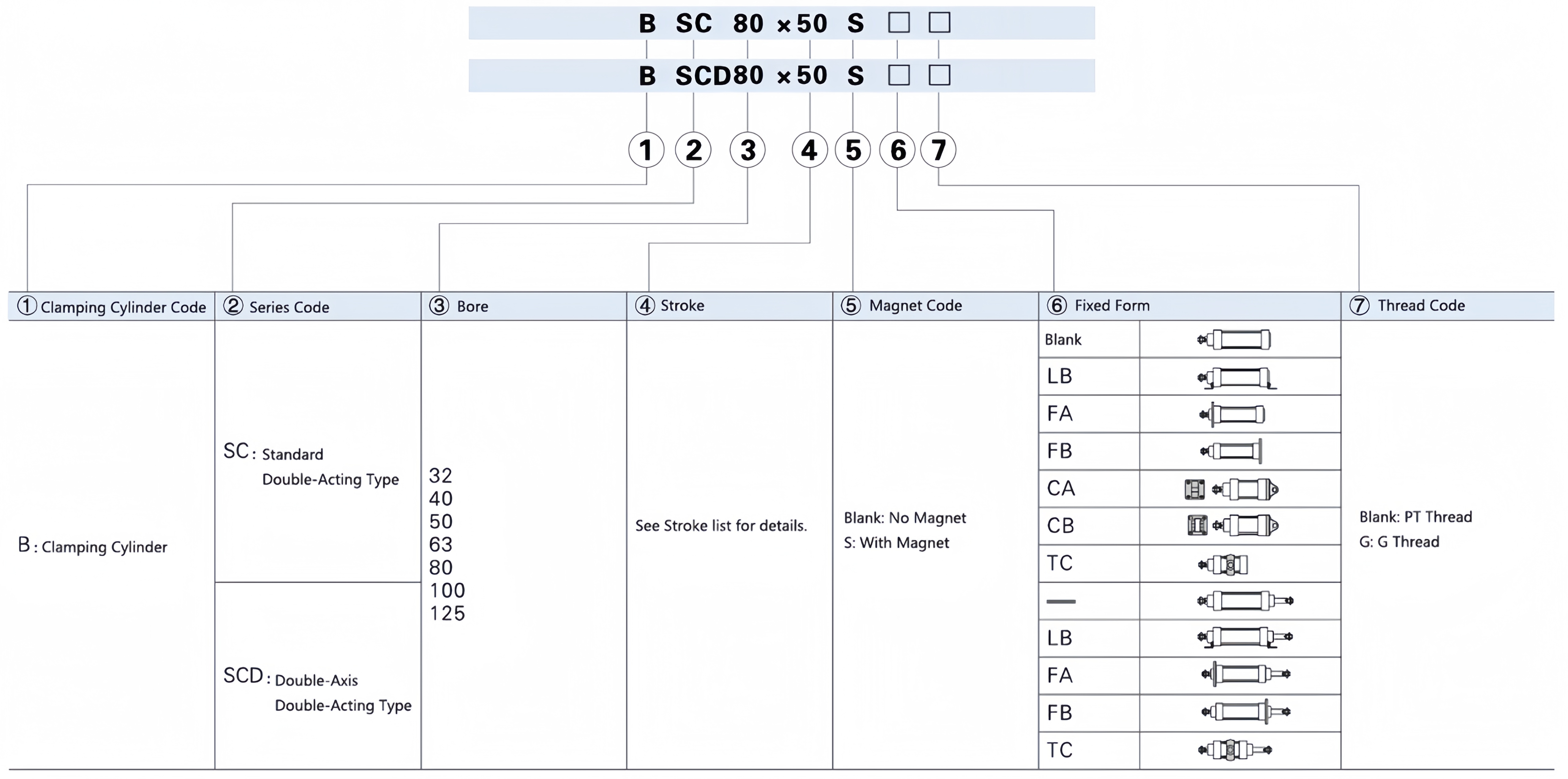

How to order

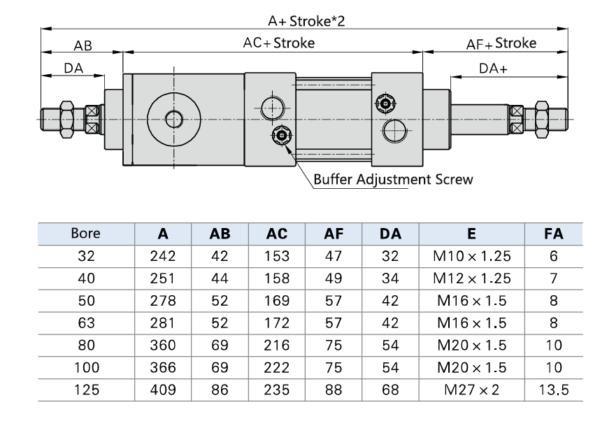

Drawings

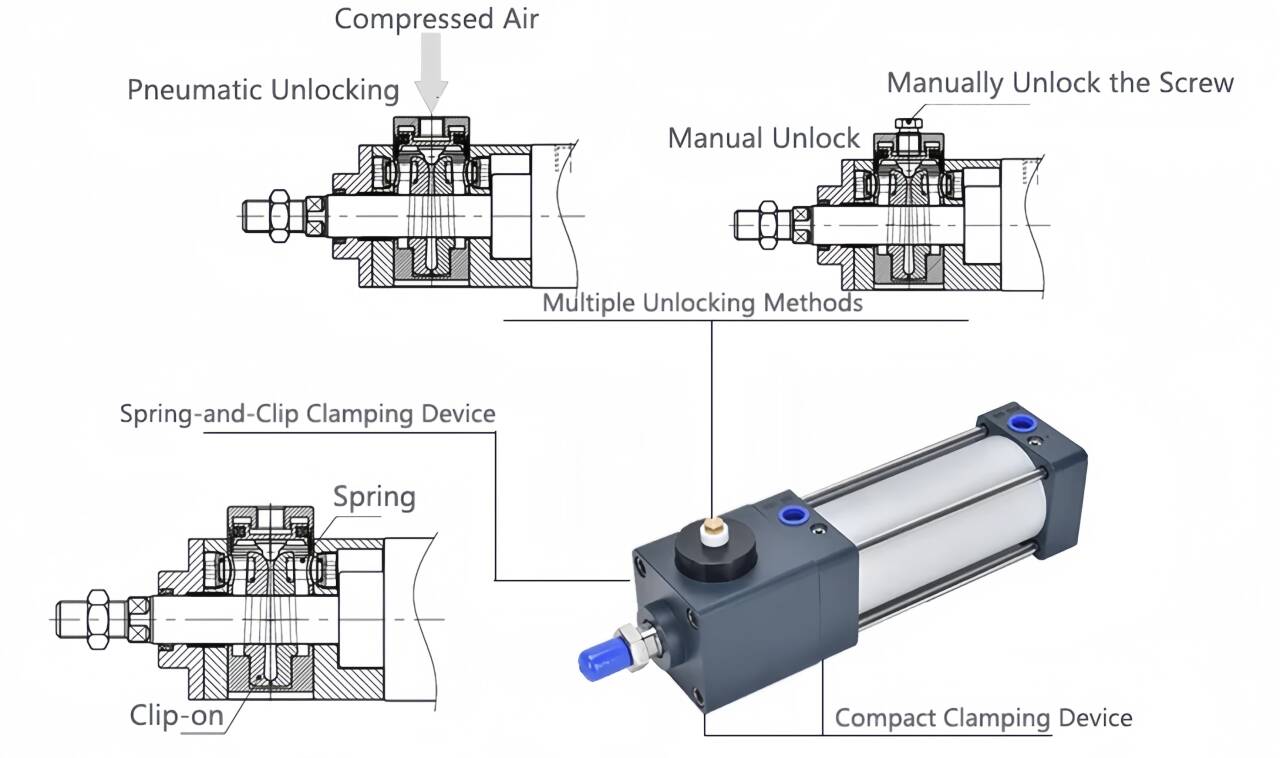

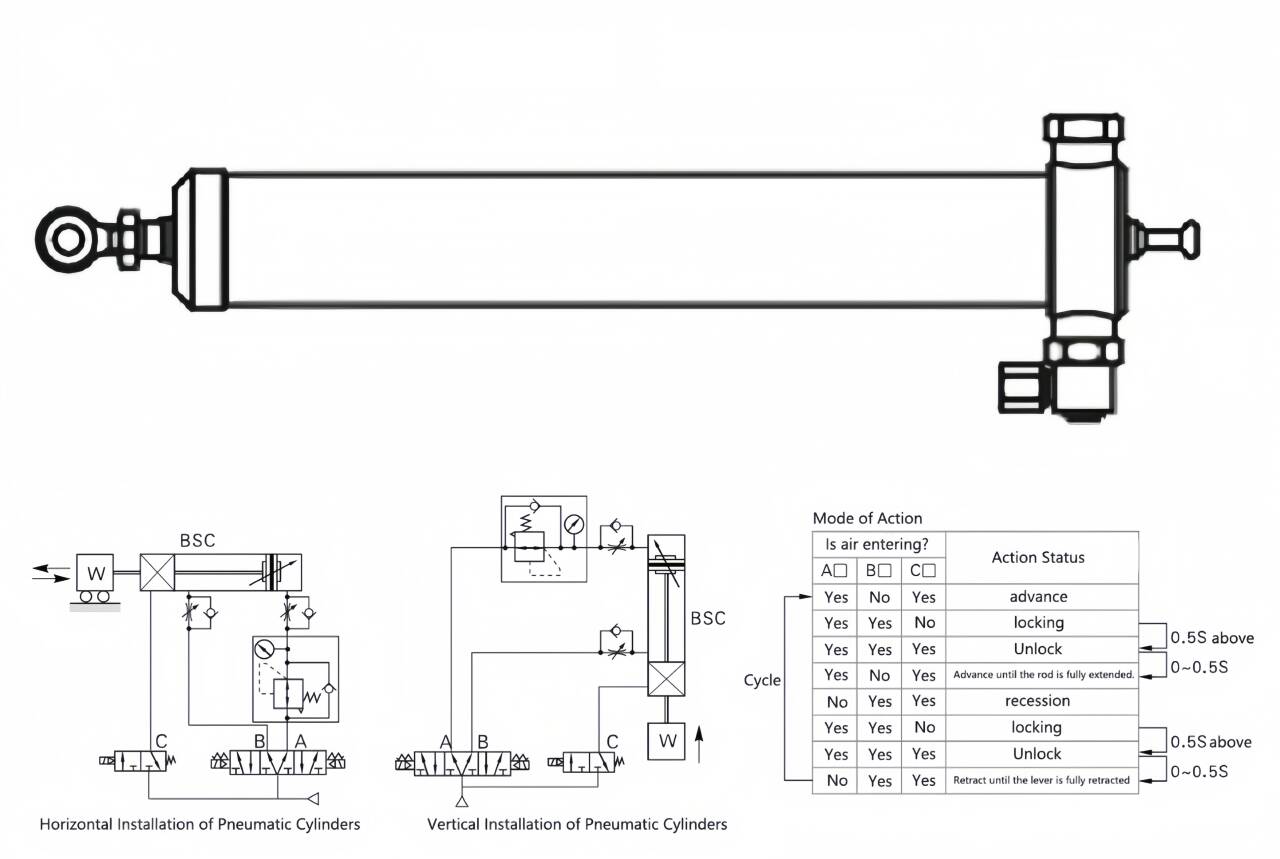

Structure and Installation
No. | Part Name | Material | No. | Part Name | Material |
1 | Piston Rod | S45C Hard Chrome Plated Grinding Bar | 8 | Unlock Piston | Aluminum Alloy |
2 | Wiper Seal | Plastic | 9 | Piston O-Ring | NBR |
3 | Wiper Housing | Aluminum Alloy | 10 | Spring Fixing Screw | Low Carbon Steel |
4 | Bimetallic Bearing | Low Carbon Steel + Sintered Bronze | 11 | Sleeve | Aluminum Alloy |
5 | Spring | Spring Steel | 12 | Chuck | Aluminum Bronze |
6 | End Cover | Aluminum Alloy | 13 | Fixing Base | Aluminum Alloy |
7 | Unlock Head | Wear-resistant Material | 14 | Standard SC Series Cylinder | — |
I.D. (mm) | Standard Stroke (mm) | Max Stroke(mm) |
32 | 25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 | 700 |
40 | 25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800 | 800 |
50 | 25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800 900 1000 | 1000 |
63 | 25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800 900 1000 | 1000 |
80 | 25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800 900 1000 | 1000 |
100 | 25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800 900 1000 | 1000 |
125 | 25 50 75 80 100 125 150 160 175 200 250 300 350 400 450 500 600 700 800 900 1000 | 1000 |
