BD Series Compact Solenoid Valve

Model NO.: BD0106Pressure: Ordinary PressureValve Structure: Direct Action Diaphragm StructurePower Supply: DC Solenoid ValveUsage: Flow ControlStandard: DINApplication: Industrial Usage, Water Industrial UsageRegular Voltage: 12VDC, 24VDC, 110VAC, 220VACFluid: Air, Water, Oil, Diesel, Ozone, SteamTrademark: XHnotionTransport Package: Paper BoxSpecification: ROHS, REACH, CEOrigin: ChinaHS Code: 8481804090Media: GasTemperature: Ordinary TemperatureActuator: ElectricConnection Form: ThreadType: Direct ActingMaterial: Brass
Availability:
Quantity:
  • BD0106

  • XHNOTION

  • L/C, T/T, Western Union, Paypal, Money Gram

  • Ningbo, China

  • 10000 PCS Per Month

  • CARTONS

  • BD0106

  • Ordinary Pressure

  • Direct Action Diaphragm Structure

  • DC Solenoid Valve

  • Flow Control

  • DIN

  • Industrial Usage, Water Industrial Usage

  • 12VDC, 24VDC, 110VAC, 220VAC

  • Air, Water, Oil, Diesel, Ozone, Steam

  • XHnotion

  • Paper Box

  • ROHS, REACH, CE

  • China

  • 8481804090

  • Gas

  • Ordinary Temperature

  • Electric

  • Thread

  • Direct Acting

  • Brass

Product Description

FEATURES

1. Compact volume, large flow, widely use

2. Protection class: IP65

3. Seal material: NBR, VITON,  EPDM, SILICONE

4. Body material: brass, stainless steel

5. BD - direct acting, BP - pilot operated, BT - steam valve,  BH - high pressure valve, BD23 - 3 way valve

6. Some models Normally open is available


SPECIFICATIONS

MODEL Orifice (mm) Thread
(G)
Working Pressure Medium Temp. Seals material CV Value Voltage
Brass SS304
BD0106 BD0106B 1 G1/8 0-40 bar 0~80ºC Regular seal:NBR   Viton        EPDM 0.06 220VAC     110VAC       24VDC         12VDC            make
Other voltage
as requested
BD0206 BD0206B 2 G1/8 0-16 bar 0.14
BD0306 BD0306B 3 G1/8 0-10 bar 0.27
BD0208 BD0208B 2 G1/4 0-16 bar 0.14
BD0308 BD0308B 3 G1/4 0-10 bar 0.27
BD0408 BD0408B 4 G1/4 0-6 bar 0.35
BD0608 BD0608B 6 G1/4 0-2 bar 0.64
BD0610 BD0610B 6 G3/8 0-2 bar 0.64
BD0615 BD0615B 6 G1/2 0-2 bar 0.64




 ADVANTAGE

1) Raw Material conforms to China industry standard, bought from famous factory.

2) Insulation grade: H class, good resistance to high temperature;

3) Machined by CNC to make sure the tolerance as the drawing

4) 100% leakage testing under low pressure and high pressure.

5) All kinds of valve and seals material to meet custom requirement.

6) 1 year quality assurance after shipment.

7) After sales technique support



WHY CHOOSE US?

1) We offer one stop solution. Over 5000 items for you to save efforts and costs.

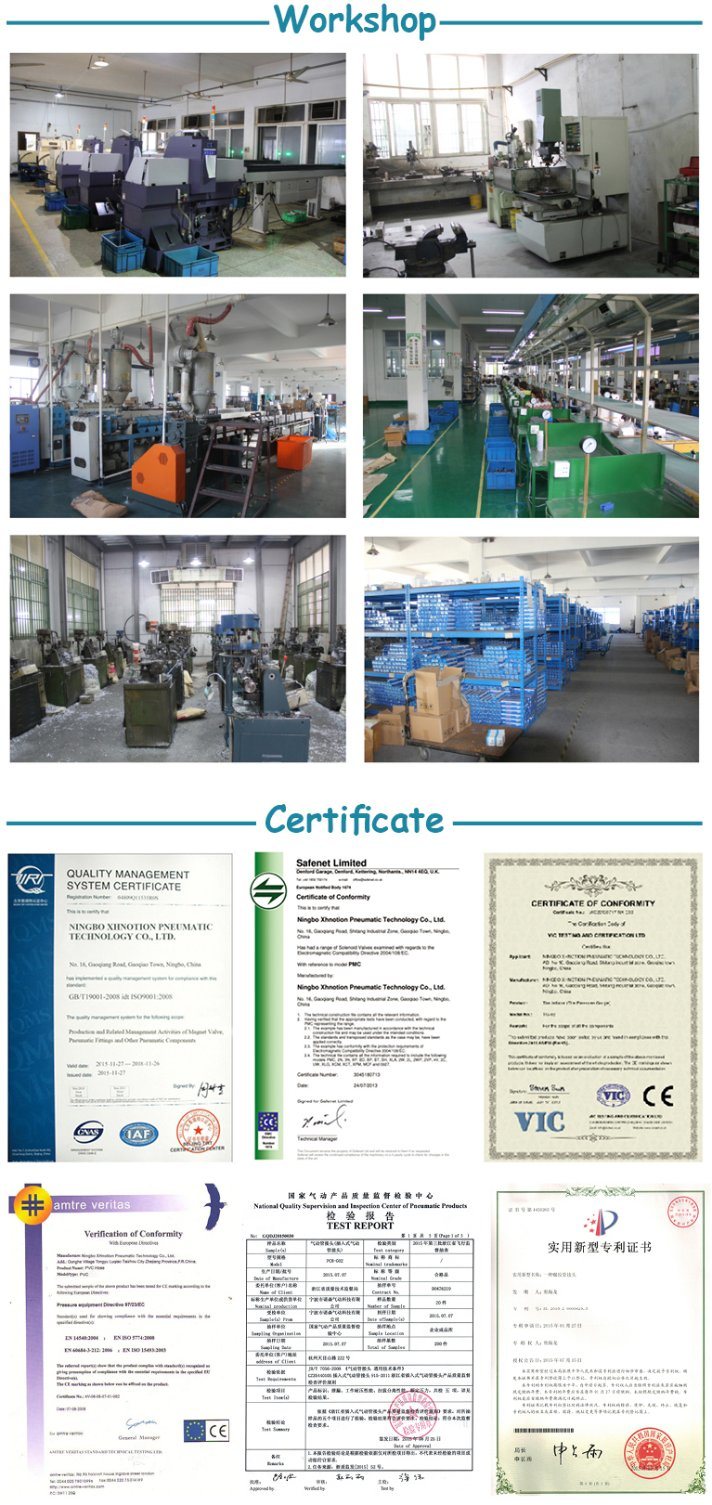

2)We have molds workshop, die-casting workshop, CNC workshop, plastic injection workshop to make sure each part exactly as the drawing and good function.

3) We will reply you within 24 hours.

4) Whatever quantity you are requesting, we always offer you the best quality.

5)3D drawing, cad drawing service for custom fittings, hose, valve, cylinder




FAQ

Packing
Transparent plastic bag + white small box + neutral carton + pallet
Custom packaging are available, XHnotion brand packaging are available

Shipping :
Export port: Ningbo or Shanghai, China
Shipping way: by sea, by air, by courier
Delivery time 3 days to 30 days depends on actual orders.

Payment Terms
We accept T/T, L/C, Paypal, western union,etc.

Samples Policy
For regular fittings below 20 pcs, free samples against your courier account or you pick up from us.
For custom items, we will discuss by email.

Return Policy:
We assure you 1 year policy after shipment. If there is any problem during this period, please contact us for support.


============================================================
We have thousands of solenoid valve in the stock. If you do not know how to order our valve, please tell us some necessary information, we will recommend you the most economical solenoid valve.

1. valve material
2. working pressure
3. temperature range
4 working environment
5. quantity

You can choose as below

Body Material: Plastic, brass, SS304, SS306, Steel.
Seal Material: NBR, VITON, PTFE, EPDM, SILICONE
Voltage: 12VDC, 24VDC, 24VAC, 220VAC, 280VAC
Size: M5-2", Flange connection

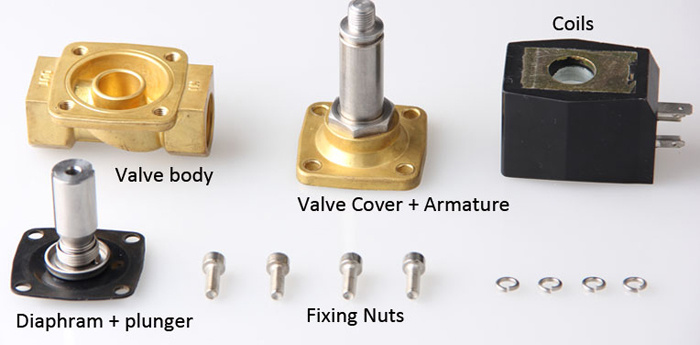

BD Series Compact Solenoid Valve

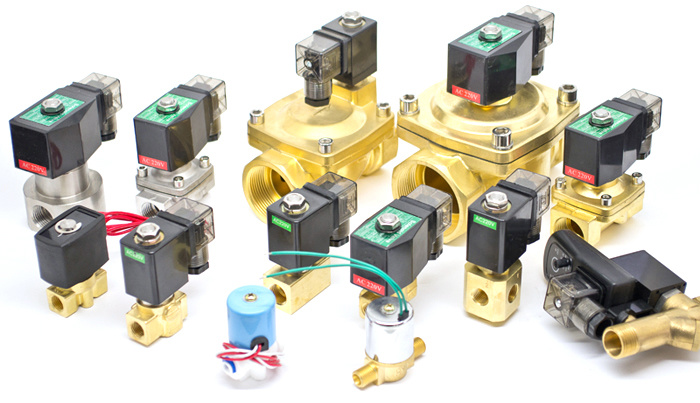

BD Series Compact Solenoid Valve
