Home » Products » PU Tubing / PE Tubing » Anti-Static PU Tubes

Anti-Static PU Tubes

Quantity:
  • Ningbo, China
  • 100000 Pieces Per Month
  • L/C, T/T, Western Union, Paypal, Money Gram
  • TPU
  • ASTM, GB
  • Medium Temperature Piping
  • Medium Pressure Piping
  • 3-12mm
  • Gas
  • Round
  • Socket
  • 1~30
  • XHnotion
  • Box
  • 4, 6, 8, 10, 12
  • China
  • 3917290000
  • Non-Customized
  • CE, RoHS, Reach
  • Industry, Agriculture, Chemical
  • Xhnotion
  • Normal Temperature
  • PU
Product Description
XHnotion High Pressure Air Tubing Plastic PU Tubes with Printing



Features

1. Tube Material: PU, NYLON, PE, PTFE, PVC.
2. Outer Diameter: millimeter or inch size.
3. Inner Diameter: millimeter or inch size.
4. Roll Length: meters.

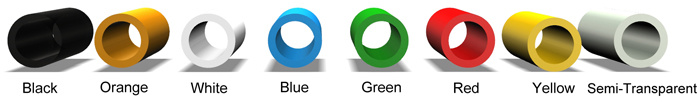

5. Tube Color: Transparent with blue or other colors are available; regular tube color: blue, transparent, black.
BK-Black O-Orange W-White B-Blue G-Green R-Red Y-Yellow C-Clear


Anti-Static PU Tubes





Specification

Technical Infomation
Product Name Polyurethane Tubing
Material Polyester (Polyether option)
Fluid Air, Water
Burst Pressure(20ºC) 400Psi
Working Pressure(20ºC) 0-150Psi
Operating Temperature -20~60 ºC
Shore 95A, 98A
Size Tolerance 3-8mm, +/-0.10 mm
10-16mm, +/-0.15 mm
Size
Metric Size O.D(mm) I.D(mm) Bending Radius(mm) Standard Length
PU0320 3 2 8 200mm
PU0425 4 2.5 10 200mm
PU0530 5 3 10 200mm
PU0640 6 4 15 200mm
PU0850 8 5 20 100mm
PU0860 8 6 20 100mm
PU1065 10 6.5 25 100mm
PU1280 12 8 35 100mm
PU1410 14 10 45 100mm
PU1612 16 12 70 100mm
Imperial Size O.D(Inch) I.D(Inch) Bending Radius(mm) Standard Length
PU1/8 1/8" 0.079" 8 200mm
PU5/32 5/32" 0.093" 10 200mm
PU3/16 3/16" 1/8" 10 200mm
PU1/4 1/4" 0.17" 15 100mm
PU5/16 5/16" 0.196" 20 100mm
PU3/8 3/8" 1/4" 25 100mm
PU1/2 1/2" 0.33" 35 100mm

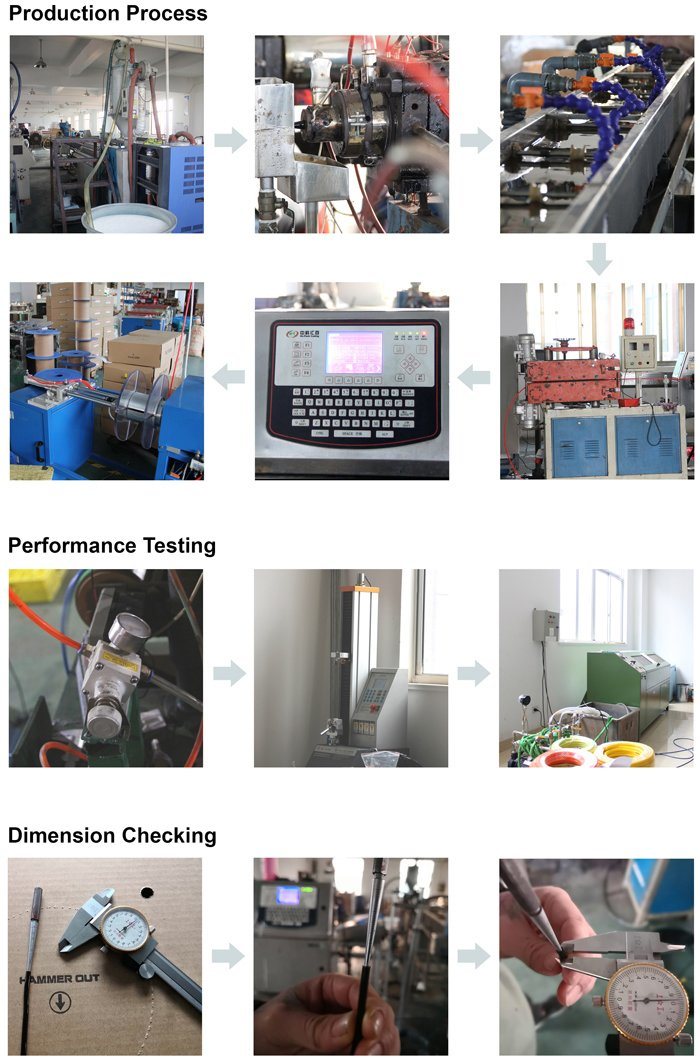

Procedure

Anti-Static PU Tubes

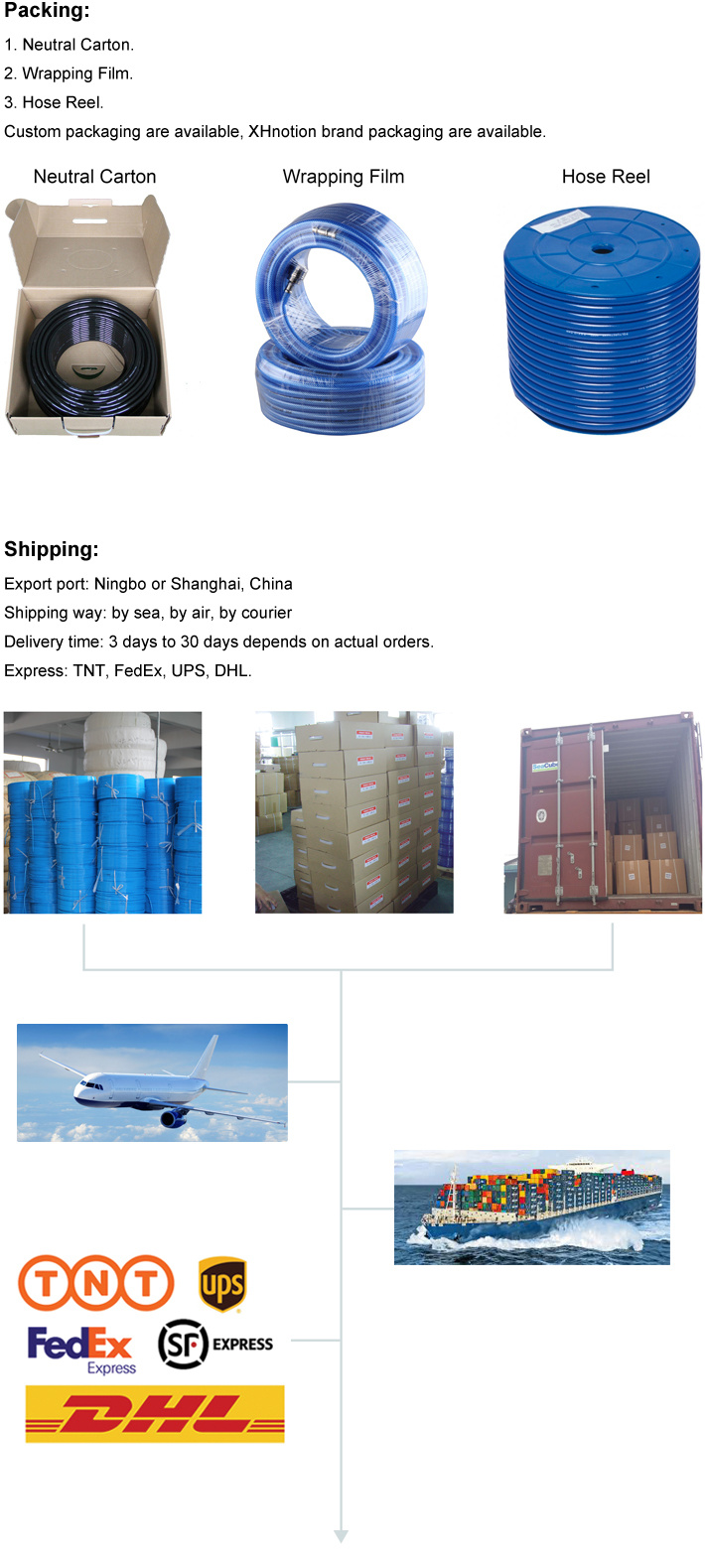

Packing & Shipping

Anti-Static PU Tubes

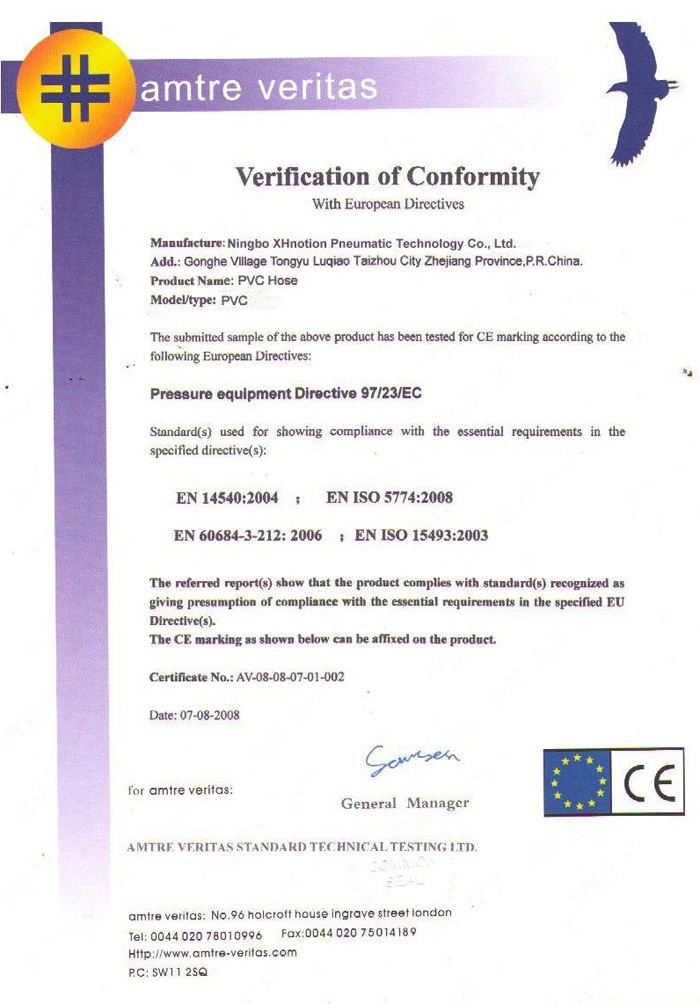

Certificate

Anti-Static PU Tubes









Tubing Advantage

1. 100% fresh material.
2. Enough meters per roll and can mark meter on the tube as you request.
3. Print your logo above 3000 meter each size.
4. Conform to REACH, CE, ROHS certificate
5. Rich stock for every size and regular color.
6. 1 year quality assurance after shipment.
7. After-sales technique support.

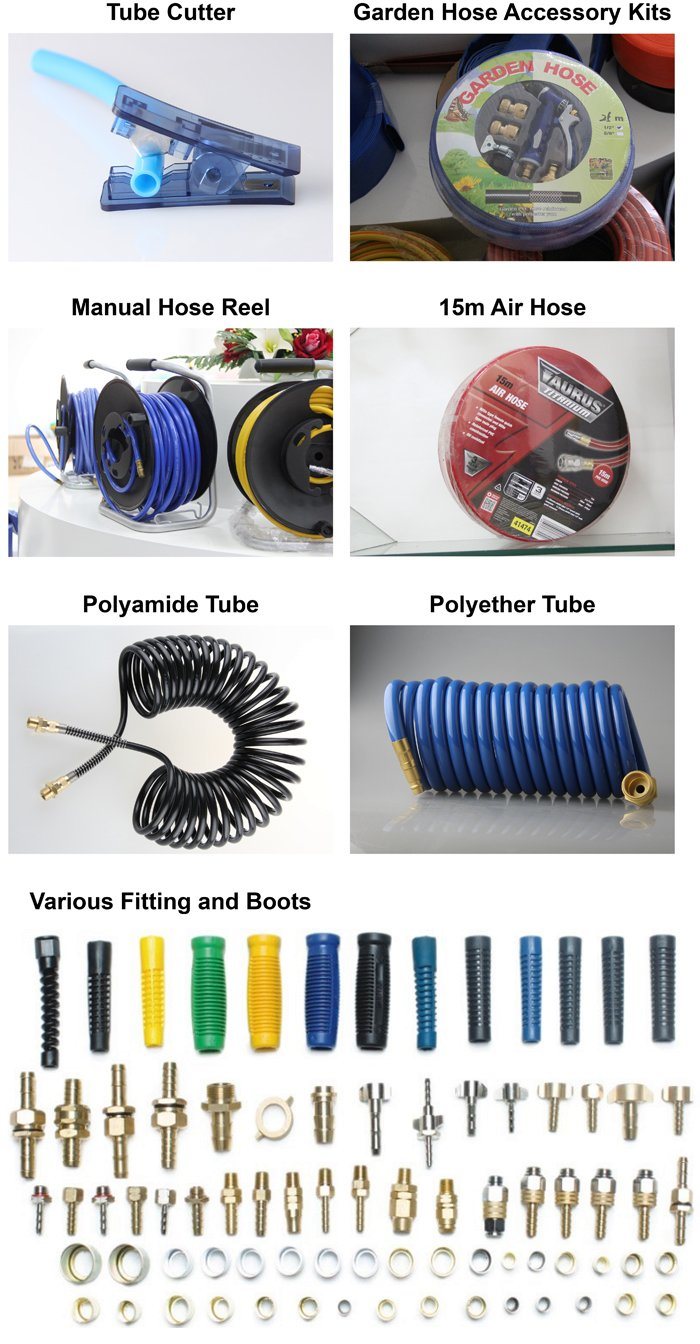

Related Products

Anti-Static PU Tubes

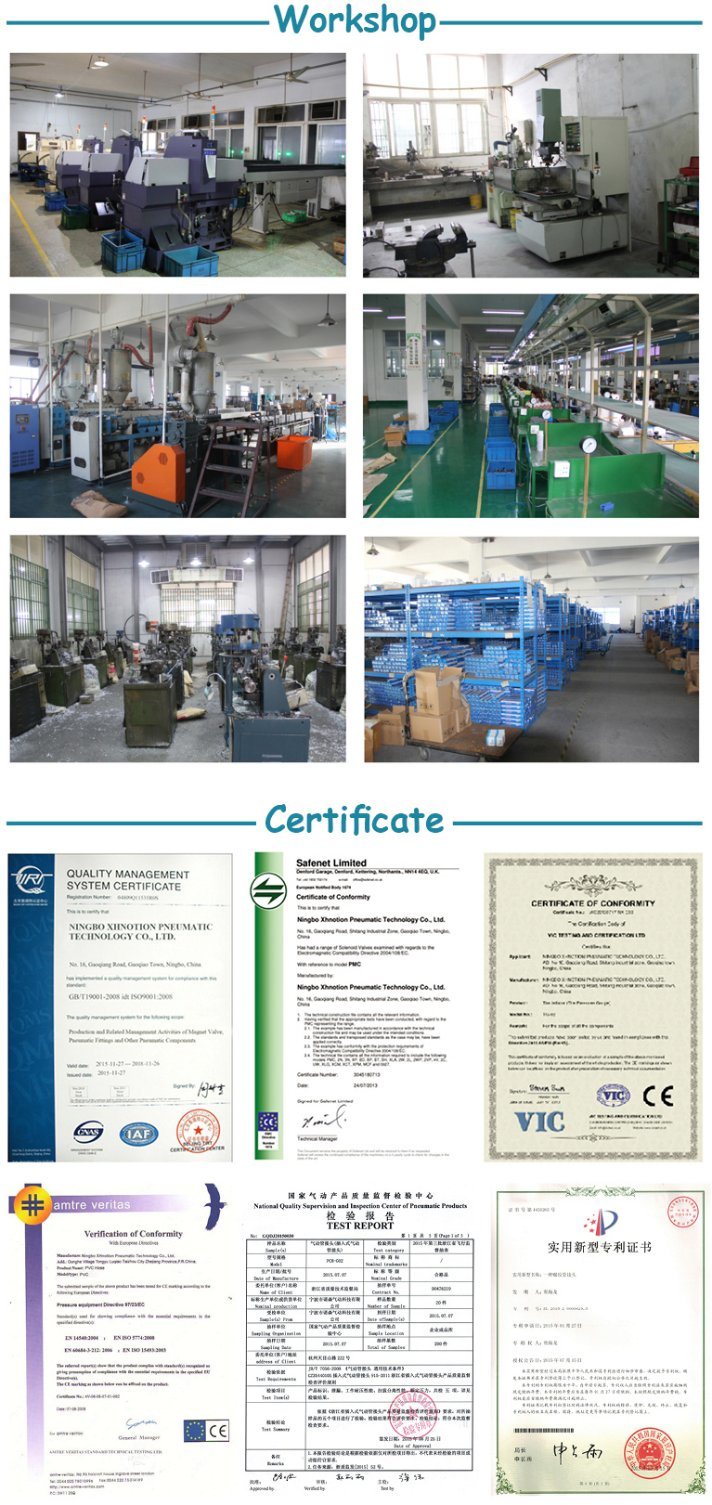

Our Company

XHnotion originate from notion between pneumatic power and human.

(X stands for winds, H stands for human)

In Chinese, XHnotion stands for 'we do, we promise' we read it 'X-notion'.
The company XHnotion Pneumatic was founded in 2007 and has developed with a steadily growing success to a reliable partner for international established clients.

This success of the company XHnotion Pneumatic is based on:

High class quality standard

Customer satisfaction

Fair price policy

Flexibility


The high-class quality standard of the products of company XHnotion is reflected in our quality management system, certificated ISO 9001:2008. And we got CE, RoHS, REACH certificate for international market. XHnotion Pneumatic manufactures below products:

Pneumatic Components: air cylinder, solenoid valve, FRL

Solenoid Calve: standard solenoid valve, multipurpose solenoid valve, pneumatic angle valve

Pneumatic Fittings: plastic pneumatic fittings, mental pneumatic fittings, pneumatic muffler, water push in fittings

Air Gun & Couplers: pneumatic couplers, air guns, air tool kits

Air Hoses: air tubing, PTFE tubes, tube cutter, pipes

Anti-Static PU Tubes








Why Choose US ?

1. We offer one stop solution. Over 5000 items for you to save efforts and costs.
2. We have molds workshop, die-casting workshop, CNC workshop, plastic injection workshop to
make sure each part exactly as the drawing and good function.
3. We will reply you within 24 hours.
4. Whatever quantity you are requesting, we always offer you the best quality.
5. 3D drawing, CAD drawing service for custom fittings, hose, valve, cylinder.










FAQ

Payment Terms:
We accept T/T, L/C, Paypal, Western Union,etc.

Samples Policy:
For regular tube, free samples against your courier account or you pick up from us.
For custom items, we will discuss by email.

Return Policy:
We assure you 1 year policy after shipment. If there is any problem during this period, please contact us for support.
