Anti-Spark PUR Hose, Flame Resistance Hose

Quantity:



Inquire Add to Basket

Port:
Ningbo, China
Production Capacity:
10000 Pieces Per Month
Payment Terms:
L/C, T/T, Western Union, Paypal, Money Gram
Model NO.:
PUH0640
Cross-Section Shape:
Round
Connection Type:
Socket
Total Length Per Roll (Meter):
1~30
Trademark:
XHnotion
Transport Package:
Box
Specification:
ROHS, REACH, CE
Origin:
China
HS Code:
3917290000
Temperature Classification:
Medium Temperature Piping
MPa Classfication:
Medium Pressure Piping
Material:
PU
Standard:
ASTM, GB
Diameter:
3-12mm
Medium:
Gas

Product Description

Material: Polyurethane(inner) +Retardant Synthetic Material(outer)
Hardness:95A-98A
Fluid: Air
Environment and fluid temperature : -20ºC~+8 0 ºC

Feature
Flame-retardant double -layer Polyurethane
Tube, suitable for welding workplace with sparks and under mining condition. Hose material is flame retardant polyurethane, flame retardant grade VO(UL94-VD). Long service life and outstanding aging abilities. Excellent resistance to oils, solvents, and other non-aqueous solutions

Application
In the occasions where spark occurs during welding wo rk

Specification

ITEM NO.	O.D.	I.D.	Length	Min.working pressure at 20ºC(bar)	Min.burst pressure at 20ºC(bar)	Min.bend radius at 20ºC(mm)
PUH-0640	6mm	4mm	100m	10bar	30bar	15mm
PUH-0850	8mm	5mm	100m	10bar	30bar	20mm
PUH-1065	10mm	6.5mm	100m	10bar	30bar	30mm
PUH-1280	12mm	8mm	100m	10bar	30bar	45mm
PUH-1/4	6.35mm	4.23mm	100m	10bar	30bar	20mm
PUH-3/8	9.52mm	6.35mm	100m	10bar	30bar	30mm

TUBE ADVANTAGE

1) 100% fresh material

2) Enough meters per roll and can mark meter on the tube as you request.

3) Print your logo above 3000 meter each size.

4) Conform to REACH, CE, ROHS certificate

5) Rich stock for every size and regular color.

6) 1 year quality assurance after shipment.

7) After sales technique support

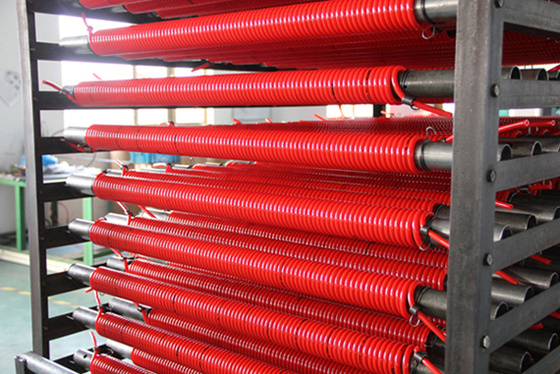

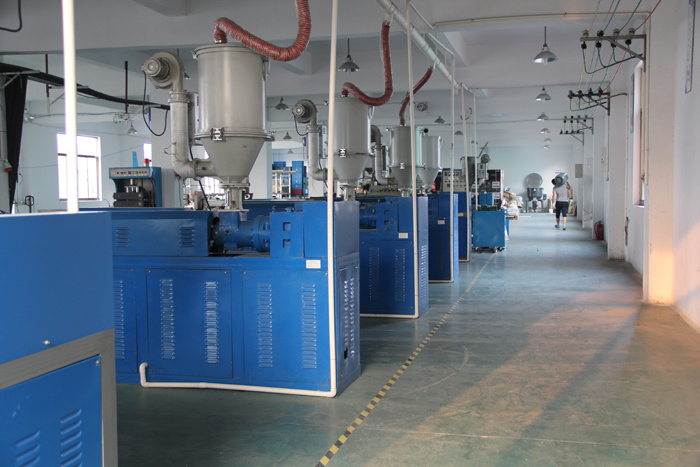

WORKSHOP SHOW
Anti-Spark PUR Hose, Flame Resistance Hose

WHY CHOOSE US?

1) We offer one stop solution. PU hose, PE hose, Nylon tubes, PVC braid hoses, PTFE pipe, silicone hose, rubber air hose are all available.

2)We have molds workshop, die-casting workshop, CNC workshop, plastic injection workshop to make sure each part exactly as the drawing and good function.

3) We will reply you within 24 hours.

4) Whatever quantity you are requesting, we always offer you the best quality.

5)3D drawing, cad drawing service for custom fittings, hose, valve, cylinder.

===========================================================

Meanwhile, we also manufacture below items.

pneumatic fittings, plastic, brass, stainless steel push in fittings

pneumatic quick coupling, air tool kits, air blow gun

pneumatic muffler, silencer, filter

air cylinder, air preparation, pneumatic directional valve

solenoid valve

Ball valve, brass connector

=========================================================
FAQ

Packing
neutral carton + big carton
Custom packaging are available, XHnotion brand packaging are available

Shipping :
Export port: Ningbo or Shanghai, China
Shipping way: by sea, by air, by courier
Delivery time 3 days to 30 days depends on actual orders.

Payment Terms
We accept T/T, L/C, Paypal, western union,etc.

Samples Policy
F ree samples against your courier account or you pick up from us.
For custom items, we will discuss by email.

Return Policy:
We assure you 1 year policy after shipment. If there is any problem during this period, please contact us for support.
