| Quantity: | |
|---|---|
PTFE
XHNOTION
L/C, T/T, Western Union, Paypal, Money Gram
Ningbo, China
100000 Pieces Per Month
CARTONS
PTFE
Medium Temperature Piping
Medium Pressure Piping
3-12mm
Gas
Round
Socket
1~30
Box
China
3917290000
CE, RoHS, Reach
Industry, Agriculture, Chemical
Xhnotion
Normal Temperature
PTFE
ASTM, GB
Features
1. Can be continuously used under -60ºC ~ 200ºC temperature.
2. Excellent elasticity, arc resistance, corona resistance, high pressure resistant, resistance to ozone, high tear resistance etc.
3. Environment friendly, non-toxic, tasteless, safe and reliable, good physical stability etc.
4. Standard color: Black, Red, Blue, White, Gray, Green, Transparent etc.
5. Used for many industries, such as aviation, electron, oil, chemical industry, machinery, electrical
equipment, medical treatment etc.
Specification
Technical Infomation
| Product Name | PTFE Tubing |
| Material | Teflon |
| Fluid | Air, Water, Oil, Corrosion Fuild, Steam |
| Burst Pressure(20ºC) | 400Psi |
| Working Pressure(20ºC) | 0-150Psi |
| Operating Temperature | -100~260 ºC |
| Density | 2.16 g/cc |
| Size Tolerance | 4-8mm, +/-0.10 mm |
| 10-16mm, +/-0.15 mm |
Size
| Metric Size | O.D(mm) | I.D(mm) | Length Per Roll |
| TF0201 | 2 | 1 | Upon Request |
| TF0320 | 3 | 2 | |
| TF0420 | 4 | 2 | |
| TF0640 | 6 | 4 | |
| TF0860 | 8 | 6 | |
| TF1080 | 10 | 8 | |
| TF1210 | 12 | 10 | |
| TF1411 | 14 | 11 | |
| TF1612 | 16 | 12 |
| Imperial Size | O.D.(Inch) | I.D.(Inch) | Length Per Roll(m) |
| TF1/16 | 1/16" | 1/32" | Upon Request |
| TF1/8 | 1/8" | 0.079" | |
| TF5/32 | 5/32" | 0.093" | |
| TF1/4 | 1/4" | 0.17" | |
| TF5/16 | 5/16" | 0.196" | |
| TF3/8 | 3/8" | 1/4" | |
| TF1/2 | 1/2" | 3/8" | |
| TF3/4 | 3/4" | 1/2" |

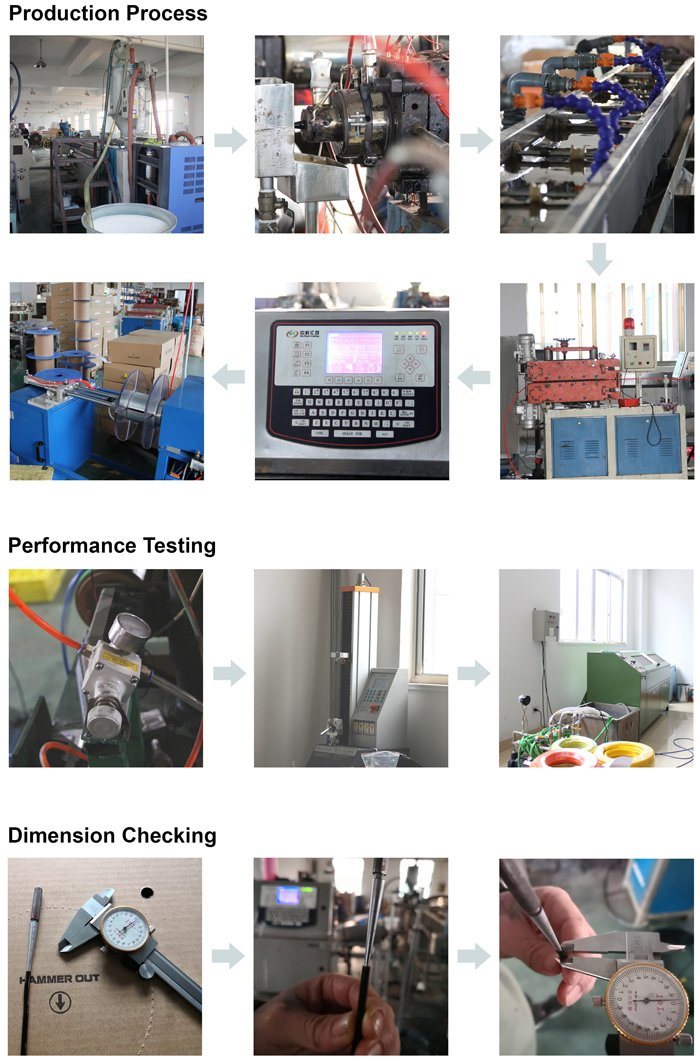

Procedure
Packing & Shipping

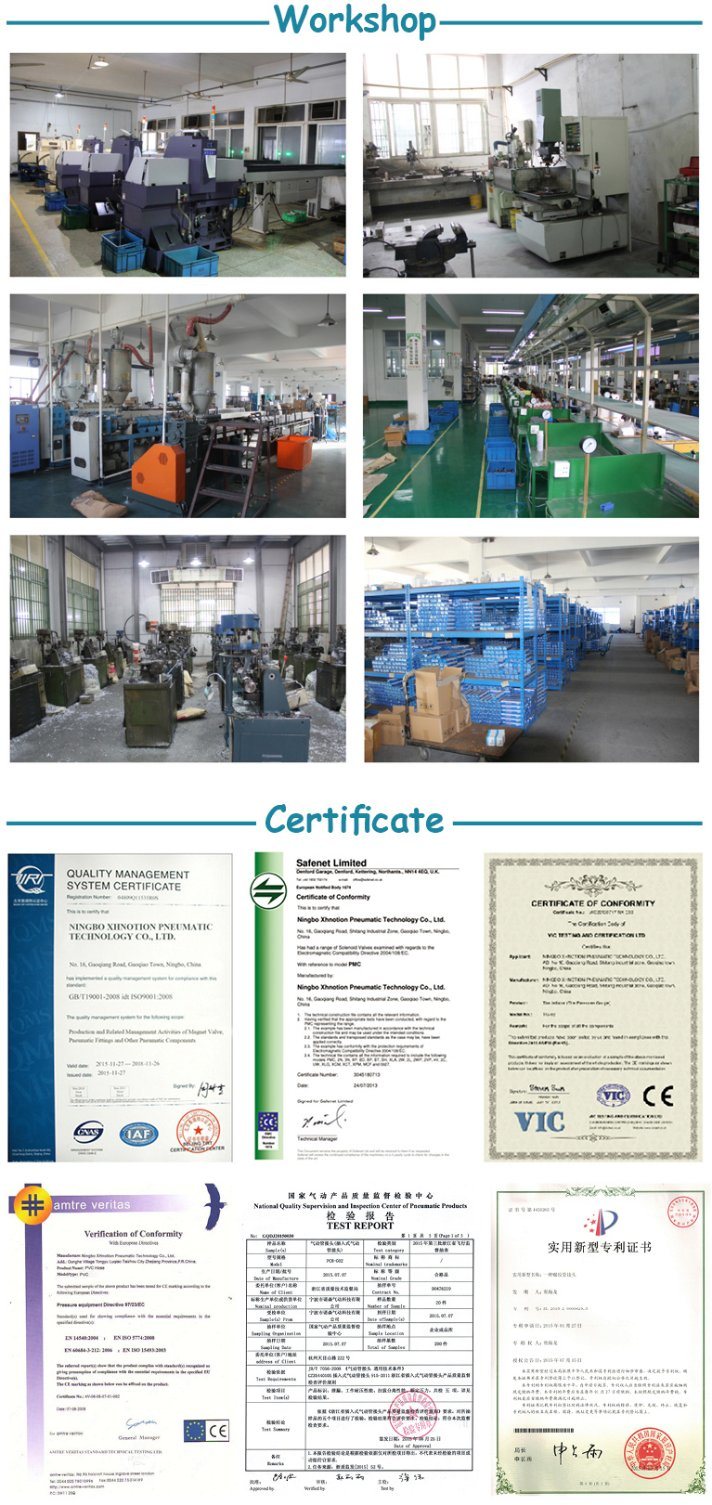

Certificate
Tubing Advantage
1. Raw Material conforms to ROHS standards.
2. 5% tested by water at 10 bar, 100% tested by air and appearance test.
3. 1 year quality assurance after shipment.
4. Custom fitting as your drawing or we make drawing as your sample.

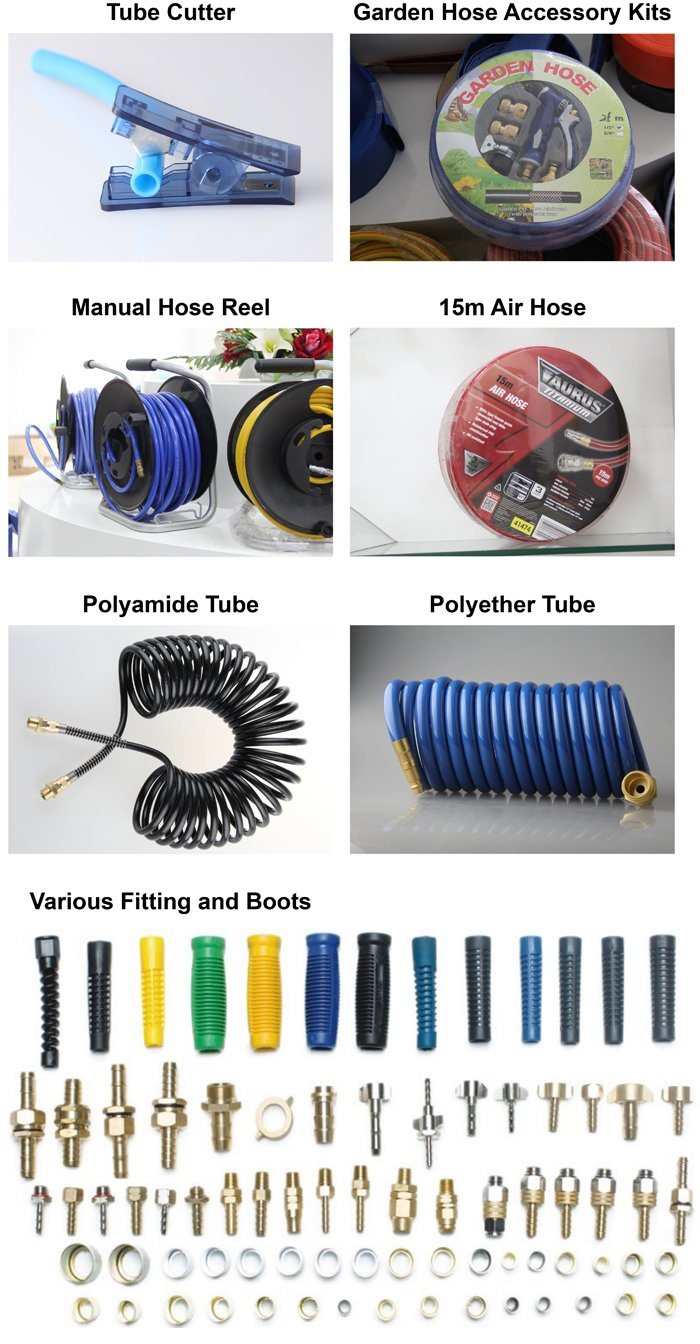

Related Products
Our Company
XHnotion originate from notion between pneumatic power and human.
(X stands for winds, H stands for human)
In Chinese, XHnotion stands for 'we do, we promise' we read it 'X-notion'.
The company XHnotion Pneumatic was founded in 2007 and has developed with a steadily growing success to a reliable partner for international established clients.
This success of the company XHnotion Pneumatic is based on:
High class quality standard
Customer satisfaction
Fair price policy
Flexibility
The high-class quality standard of the products of company XHnotion is reflected in our quality management system, certificated ISO 9001:2008. And we got CE, RoHS, REACH certificate for international market.
XHnotion Pneumatic manufactures below products:
Pneumatic Components: air cylinder, solenoid valve, FRL
Solenoid Calve: standard solenoid valve, multipurpose solenoid valve, pneumatic angle valve
Pneumatic Fittings: plastic pneumatic fittings, mental pneumatic fittings, pneumatic muffler, water push in fittings
Air Gun & Couplers: pneumatic couplers, air guns, air tool kits
Air Hoses: air tubing, PTFE tubes, tube cutter, pipes
Why Choose US ?
1. We offer one stop solution. Over 5000 items for you to save efforts and costs.
2. We have molds workshop, die-casting workshop, CNC workshop, plastic injection workshop to
make sure each part exactly as the drawing and good function.
3. We will reply you within 24 hours.
4. Whatever quantity you are requesting, we always offer you the best quality.
5. 3D drawing, CAD drawing service for custom fittings, hose, valve, cylinder.
FAQ
Payment Terms:
We accept T/T, L/C, Paypal, Western Union,etc.
Samples Policy:
For regular tube, free samples against your courier account or you pick up from us.
For custom items, we will discuss by email.
Return Policy:
We assure you 1 year policy after shipment. If there is any problem during this period, please contact us for support.
