| Quantity: | |
|---|---|
4V310
XHNOTION
L/C, T/T, Western Union, Paypal, Money Gram
Ningbo, China
10000 PCS Per Month
BOX AND CARTONS

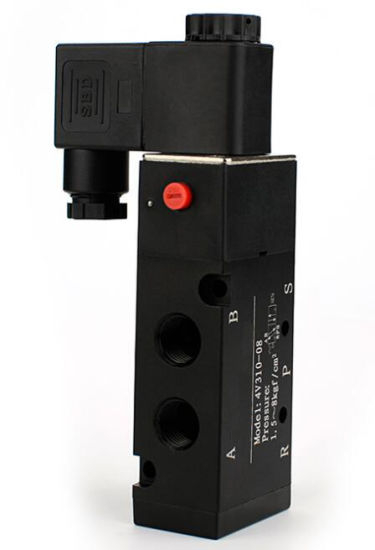

4V310-08
DC Solenoid Valve
Directional
DIN
Industrial Usage, Water Industrial Usage, Household Usage
1/4,1/8
12VDC, 24VDC, 110VAC, 220VAC
0.89
XHnotion
Bluk Packing or Blister Packing
CE
China
8481804090
Electric
Thread
Pilot Operated
Aluminum
Low Pressure
Pilot Piston Structure
FEATURES
Directional control valves are one of the most fundamental parts in hydraulic machinery as well and pneumatic machinery. They allow fluid flow into different paths from one or more sources.
Valve boies are mirror finished and Hard oxidation.
Low power consumption, fast response, import oils seals with longer service life.
Coils with DIN connection or flying leads
SPECIFICATIONS
| Drive Type | Pilot & Solenoid |
| Mount | Inline or Manifold |
| Wiring | DIN Connector with LED |
| Insulation | F Class |
| Water/Dust Protection | IP65 |
| Override | Manual, Locking (3V, 4V Series) |
| Pressure | 22 - 116 PSI (1.5 - 8 Bar) |
| Temperature | -5~50 Celsius degree (41 - 122 Fahrenheit degree) |
| Voltage Tolerance | ¡À10% of Rated Voltage |
| Highest Action Frequency | 6 cycles/sec |
| 4V210-06 | 5 way 2 position Single Head (Exh. 1/8) | 1/8 | 0.78 | DC 12V DC 24V AC 110V AC 220V |
| 4V210-08 | 5 way 2 position Single Head (Exh. 1/8) | 1/4 | 0.89 | |
| 4V220-06 | 5 way 2 position Double Head (Exh. 1/8) | 1/8 | 0.78 | |
| 4V220-08 | 5 way 2 position Double Head (Exh. 1/8) | 1/4 | 0.89 | |
| 4V230C-06 | 5 way 3 position Center Closed (Exh. 1/8) | 1/4 | 0.78 | |
| 4V230C-08 | 5 way 3 position Center Closed (Exh. 1/8) | 1/8 | 0.89 | |
| 4V230E-06 | 5 way 3 position Center Exhaust (Exh. 1/8) | 1/8 | 0.78 | |
| 4V230E-08 | 5 way 3 position Center Exhaust (Exh. 1/8) | 1/4 | 0.89 | |
| 4V230P-06 | 5 way 3 position Exh. Center Pressure (Exh. 1/8) | 1/8 | 0.78 | |
| 4V230P-08 | 5 way 3 position Exh. Center Pressure (Exh. 1/8) | 1/4 | 0.89 |
ADVANTAGE
1) Valve body is machined by Japan automatic CNC to make sure all the dimensions accurate.
2) Aluminum Surface is polished and hard anodized.
3) To import Germany grease to provide firm less-friction support
4) O-ring is imported from Taiwan.
5) 100% leakage testing under low pressure and high pressure.
6) 1 year quality assurance after shipment.
7) After sales technique support

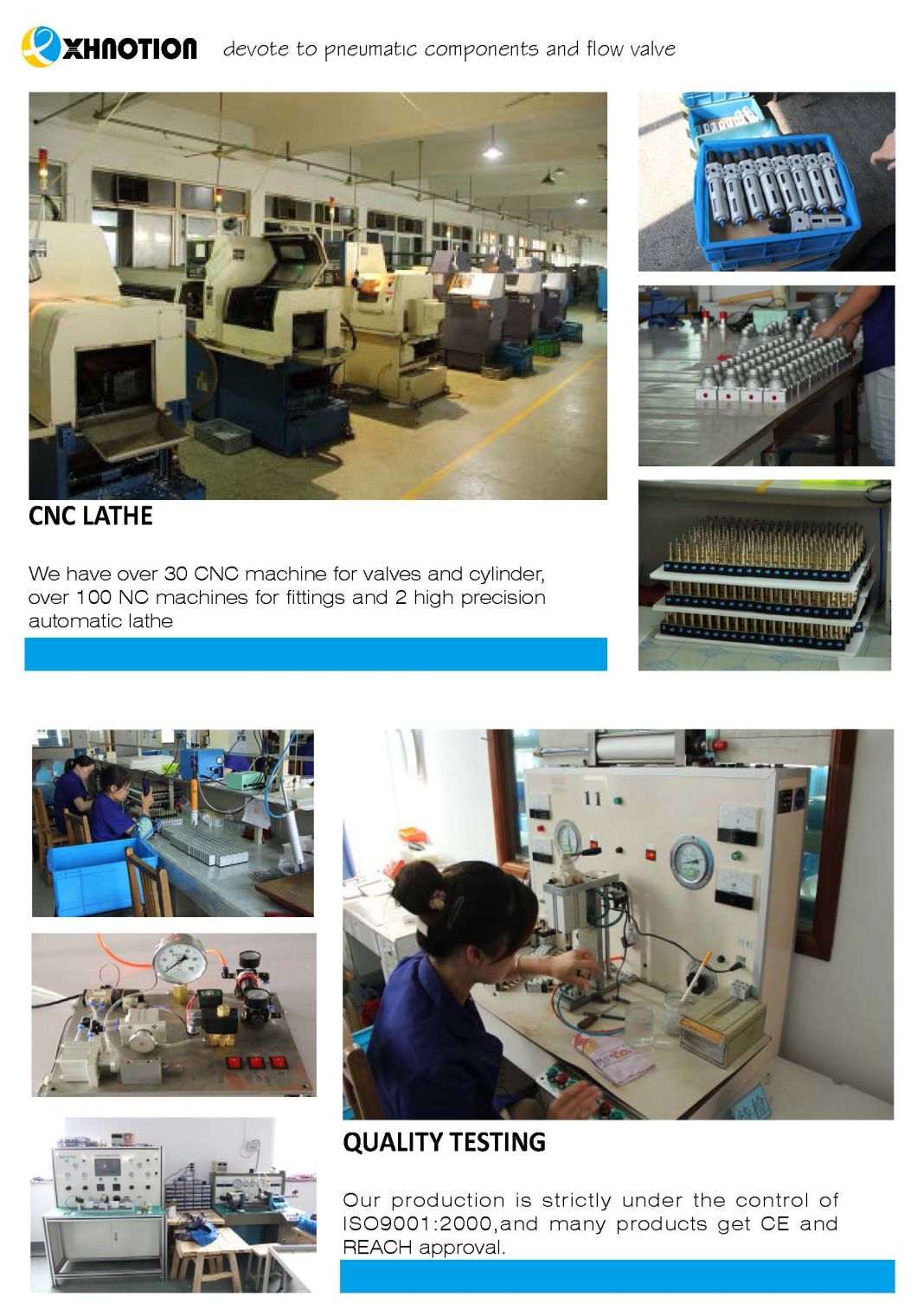

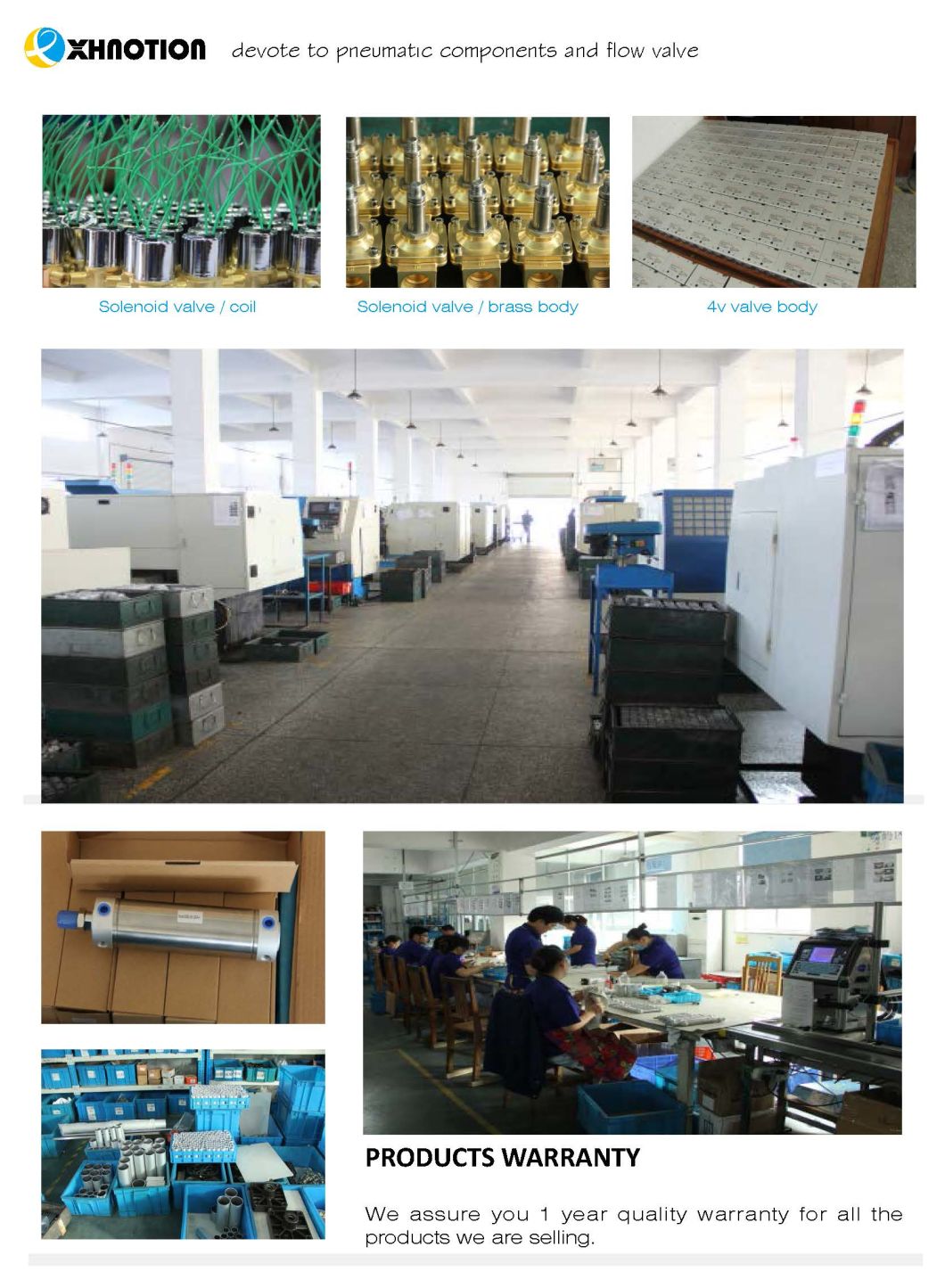

WORKSHOP SHOW
WHY CHOOSE US?
1) We offer one stop solution. Over 5000 items for you to save efforts and costs.
2)We have molds workshop, die-casting workshop, CNC workshop, plastic injection workshop to make sure each part exactly as the drawing and good function.
3) We will reply you within 24 hours.
4) Whatever quantity you are requesting, we always offer you the best quality.
5)3D drawing, cad drawing service for custom fittings, hose, valve, cylinder.
FAQ
Packing
Transparent plastic bag + white small box + neutral carton + pallet
Custom packaging are available, XHnotion brand packaging are available
Shipping :
Export port: Ningbo or Shanghai, China
Shipping way: by sea, by air, by courier
Delivery time 3 days to 30 days depends on actual orders.
Payment Terms
We accept T/T, L/C, Paypal, western union,etc.
Samples Policy
For regular valve 1 pcs, free samples against your courier account or you pick up from us.
For custom items, we will discuss by email.
Return Policy:
We assure you 1 year policy after shipment. If there is any problem during this period, please contact us for support.
