Air Braking Tubing PA Tube with Fitting M18X1.5

Availability:
Quantity:
  • L/C, T/T, Western Union, Paypal, Money Gram

  • Ningbo, China

  • 100000 Pieces Per Month

  • PA

  • Medium Temperature Piping

  • Medium Pressure Piping

  • 3-12mm

  • Gas

  • Round

  • Socket

  • 1~30

  • Box

  • China

  • 3917290000

  • CE, RoHS, Reach

  • Industry, Agriculture, Chemical

  • Xhnotion

  • Normal Temperature

  • Nylon

  • ASTM, GB

Product Description

Feature

1. Can be continuously used under -60ºF ~ 200ºF temperature.
2. Excellent elasticity, arc resistance, corona resistance, high pressure resistant, resistance to
   ozone, high tear resistance etc.
3. Environment friendly, non-toxic, tasteless, safe and reliable, good physical stability etc.
4. Standard color: Black, Red, Blue, White, Gray, Green, Transparent etc.
5. Used for many industries, such as aviation, electron, oil, chemical industry, machinery, electrical
   equipment, medical treatment etc.







Specification

Technical Infomation

Product Name Nylon Tubing (Polyamide Tube)
Material PA12, PA11, PA6
Fluid Air, Water, Oil
Burst Pressure(20ºC) 870Psi
Working Pressure(20ºC) 0-360Psi
Operating Temperature -40~120 ºC
Dentity 1.04 g/cc
Size Tolerance 3-8mm, +/-0.10 mm
10-20mm, +/-0.15 mm


Model Coil Number Coil Outer Diameter (mm) Working Length (mm) Fittings
QS-15 3 2 18 M18x1.5
M22x1.5
QS-18 4 2.5 20
QS-20 6 4 40
QS-22 8 6 50
QS-24 10 7.5 65
QS-26 10 8 65
QS-28 12 9 70
QS-30 14 11 80



Size

Metric Size O.D(mm) I.D(mm) Total Length per Roll (meter)
AHC0425 4 2.5 1~30
AHC0640 6 4 1~30
AHC0850 8 5 1~30
AHC1065 10 6.5 1~30
AHC1280 12 8 1~30
AHC1410 14 10 1~30
AHC1612 16 12 1~30

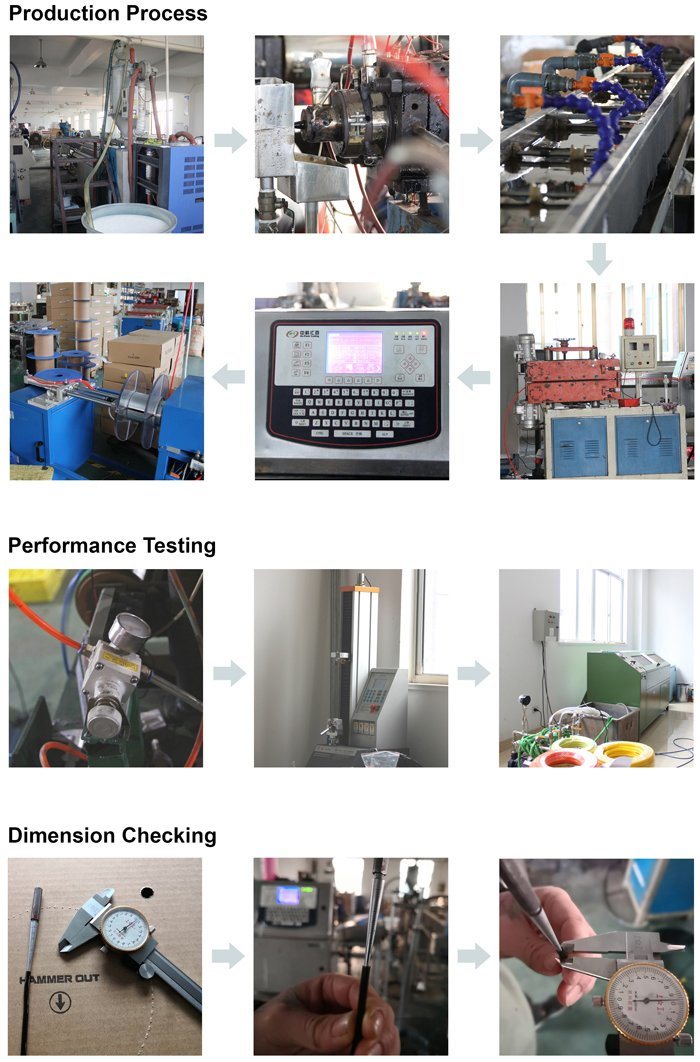

Procedure


Air Braking Tubing PA Tube with Fitting M18X1.5








Packing & Shipping

Air Braking Tubing PA Tube with Fitting M18X1.5

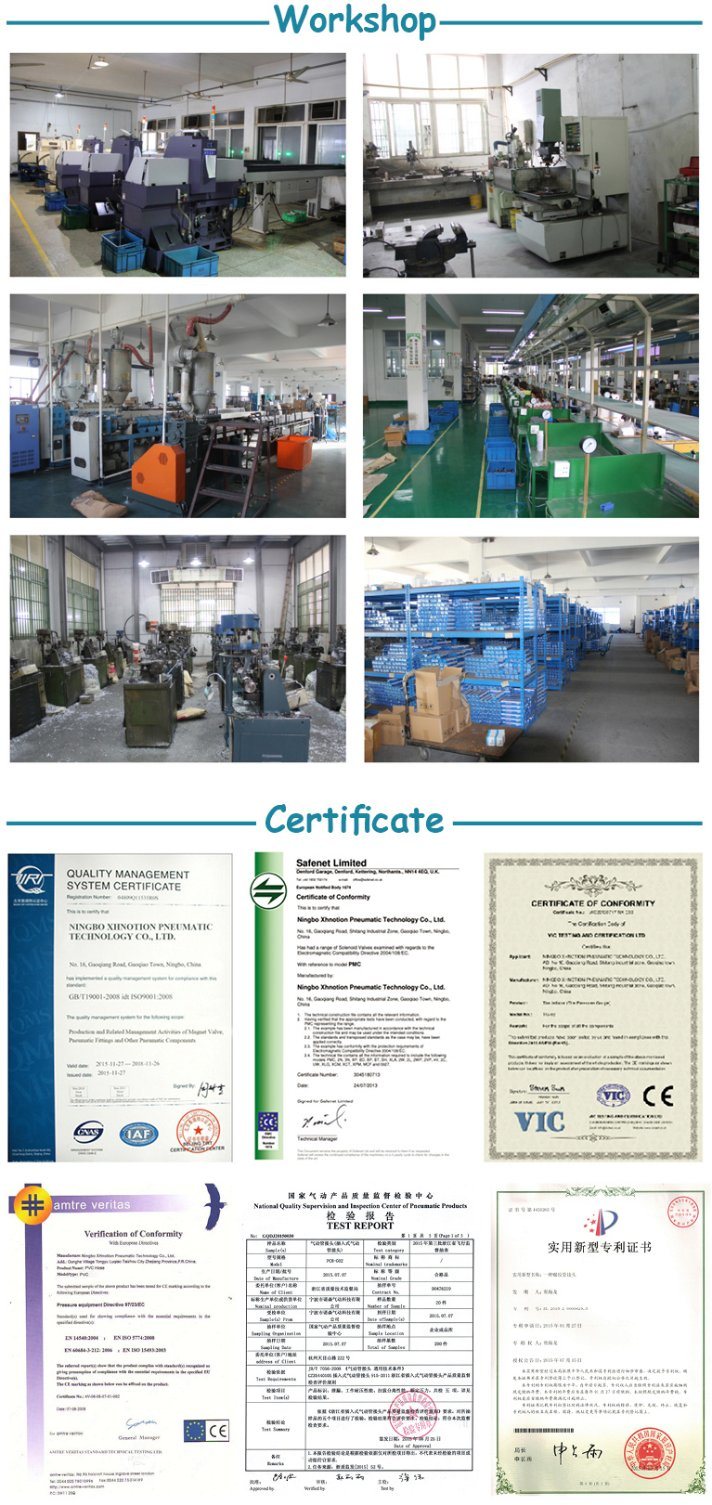

Certificate
Air Braking Tubing PA Tube with Fitting M18X1.5




Tubing Advantage

1. 100% fresh material.
2. Enough meters per roll and can mark meter on the tube as you request.
3. Print your logo above 3000 meter each size.
4. Conform to REACH, CE, ROHS certificate
5. Rich stock for every size and regular color.
6. 1 year quality assurance after shipment.
7. After-sales technique support.

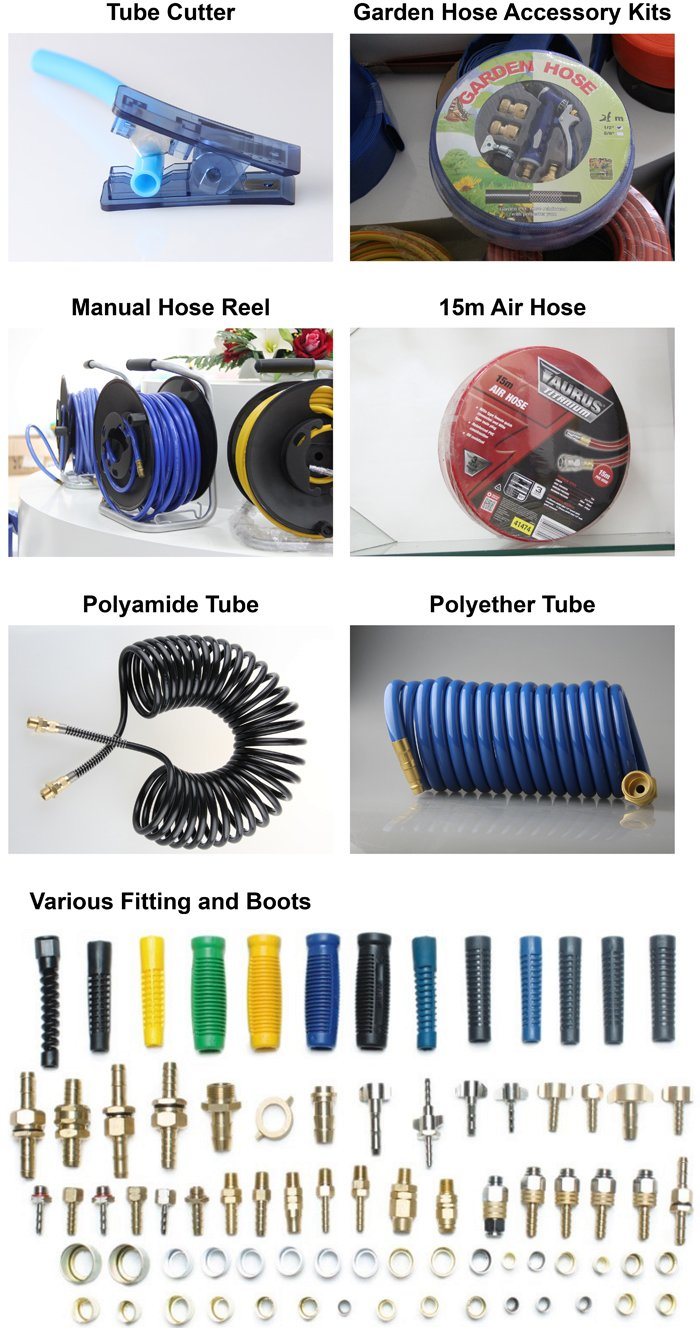

Related Products

Air Braking Tubing PA Tube with Fitting M18X1.5








Our Company


XHnotion originate from notion between pneumatic power and human.
(X stands for winds, H stands for human)

In Chinese, XHnotion stands for 'we do, we promise'  we read it 'X-notion'.
The company XHnotion Pneumatic was founded in 2007 and has developed with a steadily growing success to a reliable partner for international established clients.

This success of the company XHnotion Pneumatic is based on:

High class quality standard

Customer satisfaction

Fair price policy

Flexibility


The high-class quality standard of the products of company XHnotion is reflected in our quality management system, certificated ISO 9001:2008. And we got CE, RoHS, REACH certificate for international market. XHnotion Pneumatic manufactures below products:

Pneumatic Components: air cylinder, solenoid valve, FRL

Solenoid Calve: standard solenoid valve, multipurpose solenoid valve, pneumatic angle valve

Pneumatic Fittings: plastic pneumatic fittings, mental pneumatic fittings, pneumatic muffler, water push in fittings

Air Gun & Couplers: pneumatic couplers, air guns, air tool kits

Air Hoses: air tubing, PTFE tubes, tube cutter, pipes

Air Braking Tubing PA Tube with Fitting M18X1.5







Why Choose US?

1. We offer one stop solution. PU hose, PE hose, Nylon tubes, PVC braid hoses, PTFE pipe,
   silicone hose, rubber air hose are all available.
2. We have molds workshop, die-casting workshop, CNC workshop, plastic injection workshop to
   make sure each part exactly as the drawing and good function.
3. We will reply you within 24 hours.
4. Whatever quantity you are requesting, we always offer you the best quality.
5. 3D drawing, CAD drawing service for custom fittings, hose, valve, cylinder.









FAQ

Payment Terms:
We accept T/T, L/C, Paypal, Western Union,etc.

Samples Policy:
For regular tube, free samples against your courier account or you pick up from us.
For custom items, we will discuss by email.

Return Policy:
We assure you 1 year policy after shipment. If there is any problem during this period, please contact us for support.
