ARO ORION Pneumatic Two-Touch Female Safety Push Button Quick Coupler

ARO ORION Pneumatic Two-Touch Female Safety Push Button Quick Coupler

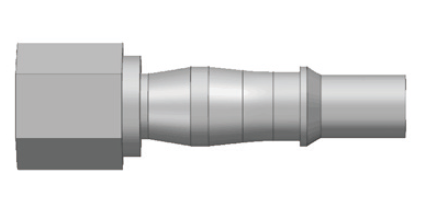

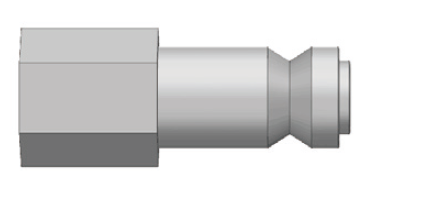

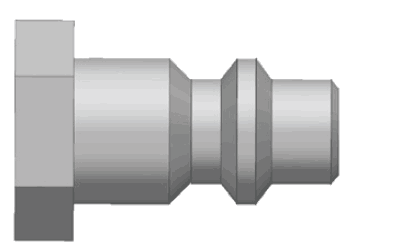

CORRESPONDENCE QUICK COUPLER

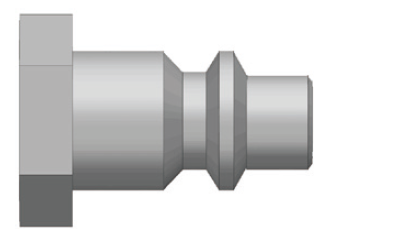

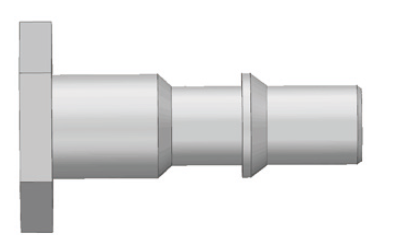

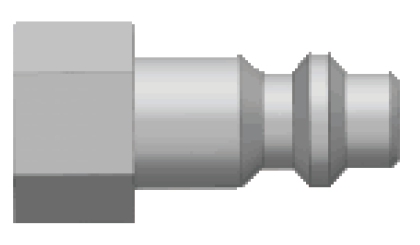

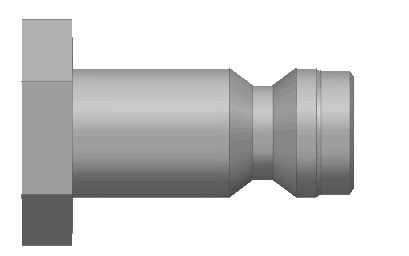

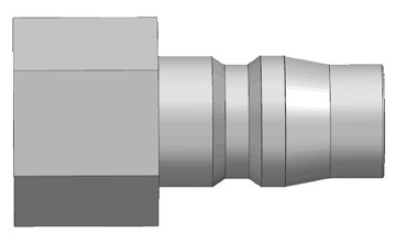

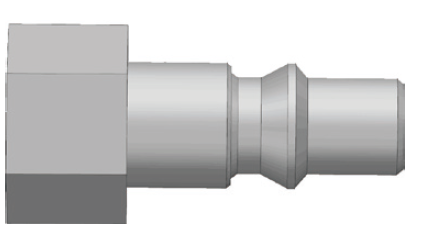

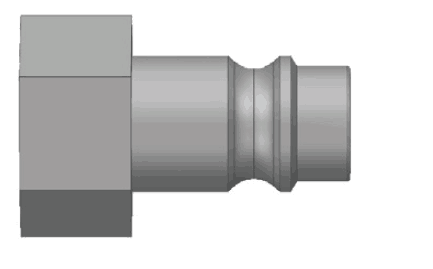

PROFILE	Series	DN	Standard
	EG	7,5	Profile Europe
	EC	5	MIGNON
	UM	5,5	ISO 6150 B-12 / Profile USA Industrial
	UA	5,5	Profile ARO
	JP	7,5	Profile Japan
	230	9	ISO 6150 B-15
	FR	5,5	ISO 6150 C-10
	IT	5	Profile Italy
	UK	5.5	Profile UK
	UT	5.5	Profile Truflate

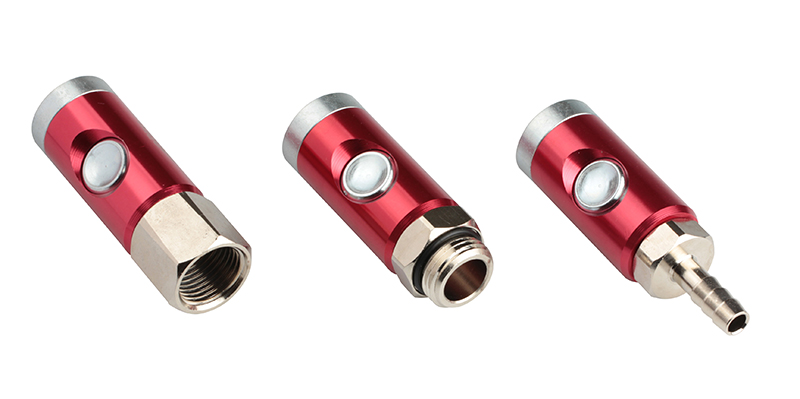

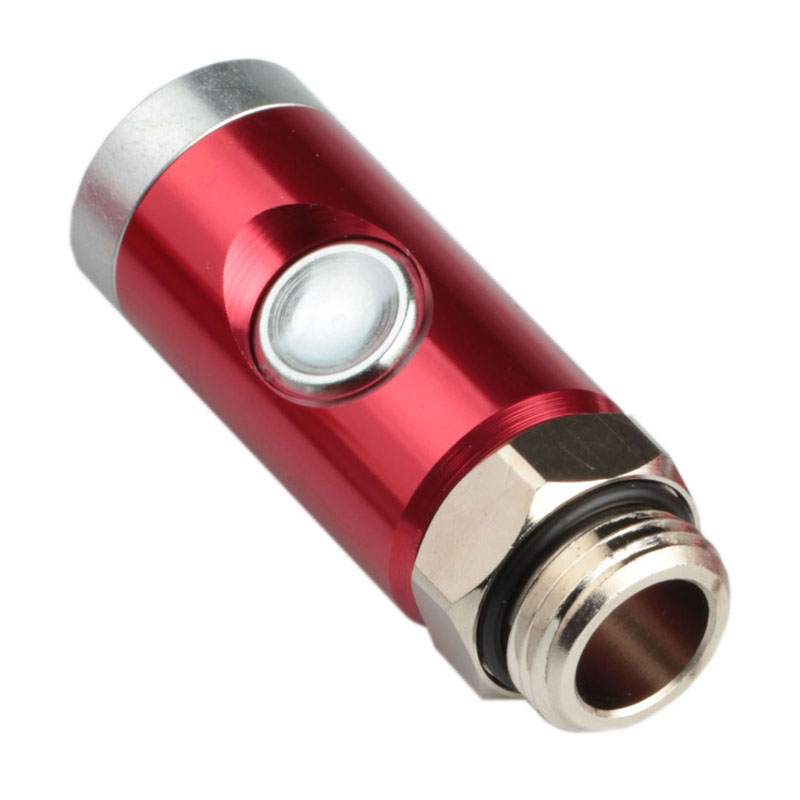

ARO ORION PUSH-BUTTON QUICK COUPLER

HOW TO WORK

Double click to engage properly.

Firstly click locks couplers and plug.

The second click engages the air pressure.

To disconnect push the button twice.

The first push relieve air pressure,

the second push disconnect coupler and plug.

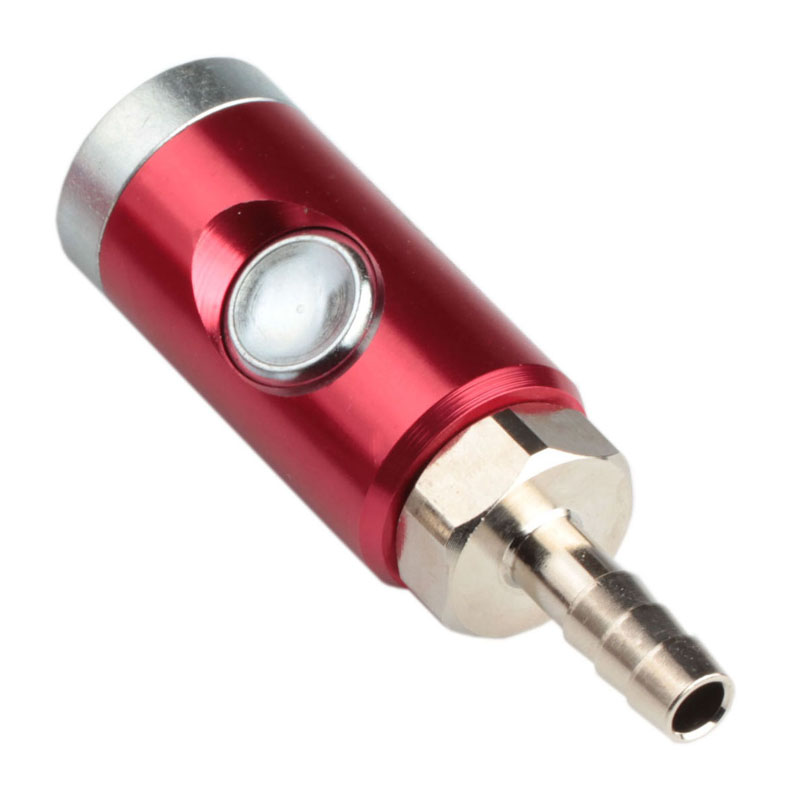

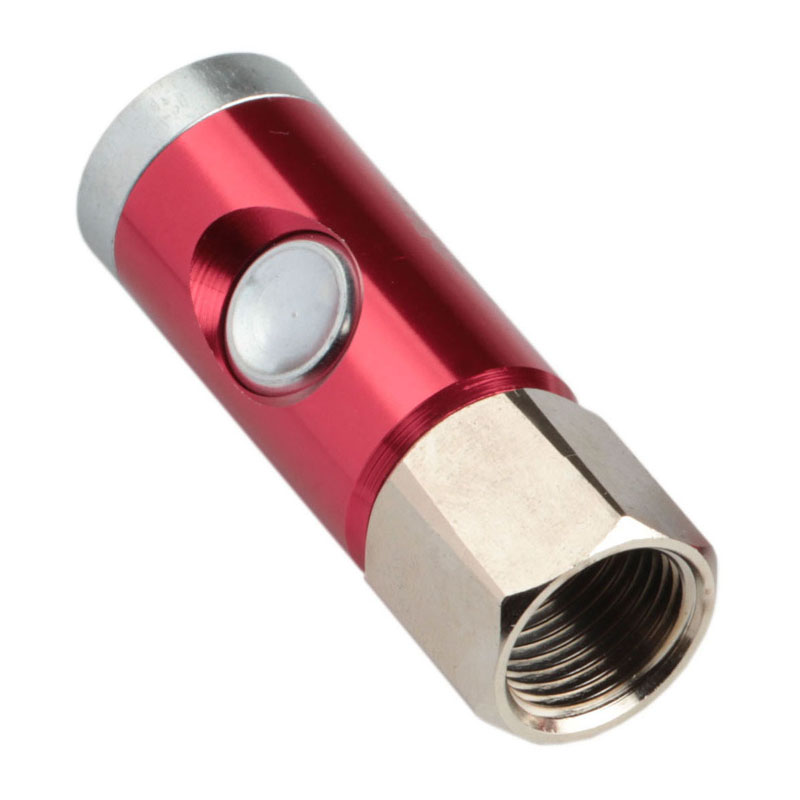

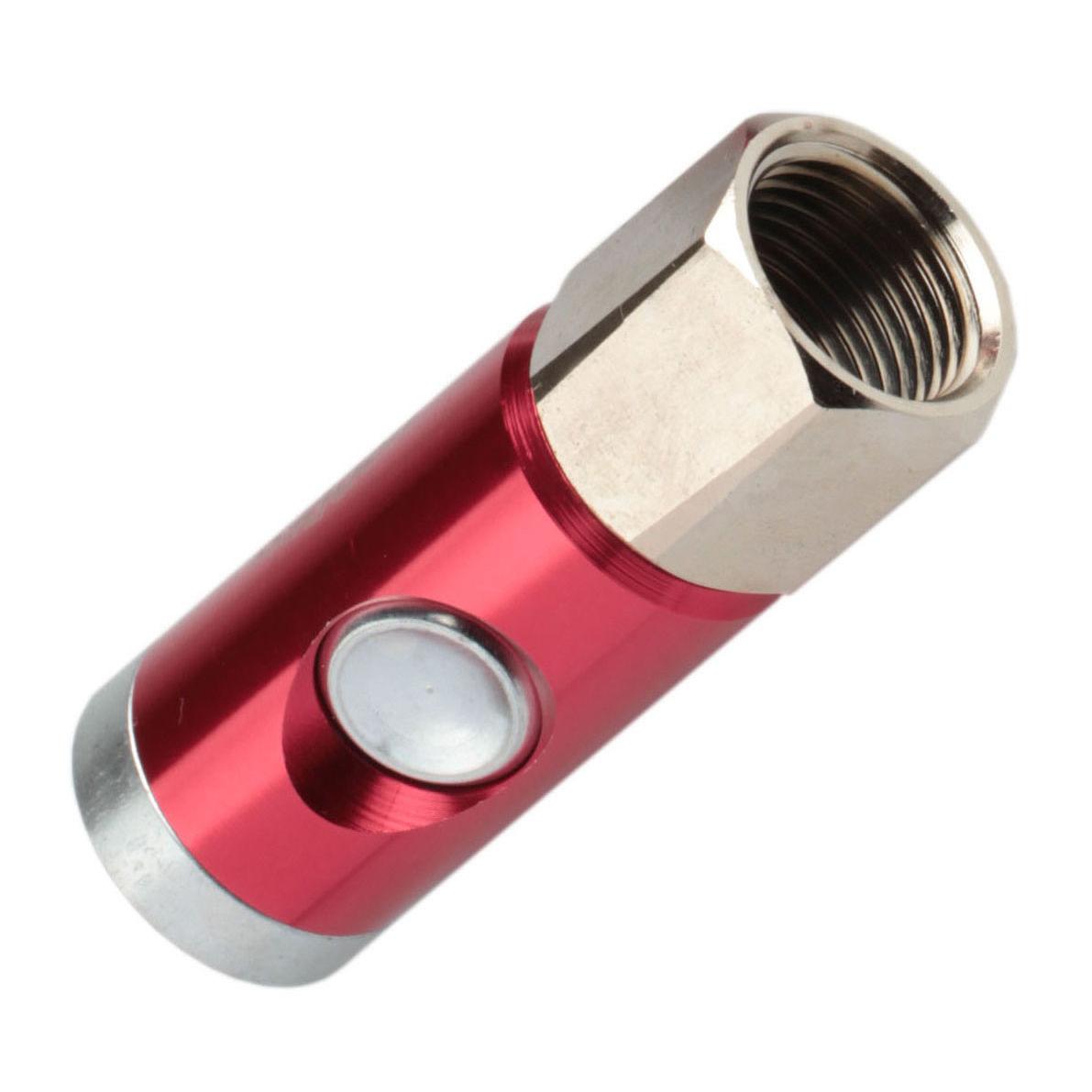

SAFETY PUSH BUTTON QUICK COUPLER

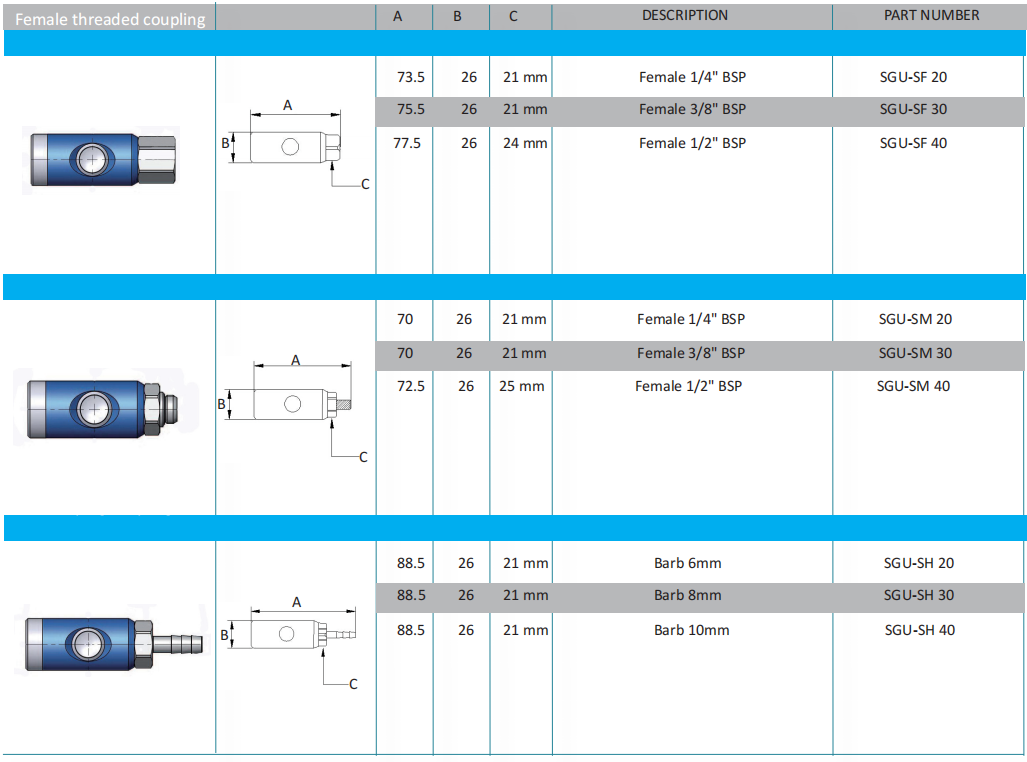

SPECIFICATIONS

ADVANTAGES

1. Safety connection and disconnection.

2. The coupler automatically vents pressure before release.

3. The coupler prevents accidental hose whip

4. Fit for compact space, good gripping.

PACKING & SHIPPING

Packing:
Transparent plastic bag + white small box + neutral carton + pallet
Custom packaging are available, XHnotion brand packagwe are available

Shipping:
Export port: Ningbo or Shanghai, China
Shipping way: by sea, by air, by courier
Express: TNT, DHL, UPS, FedEX, SF Express
Delivery time: 3 days to 30 days depends on actual orders.

FAQ

Payment Terms:
We accept T/T, L/C, Paypal, Western Union,etc.

Samples Policy:
For regular items, free samples against your courier account or you pick up from us.
For custom items, we will discuss by email.

Return Policy:
We assure you 1 year policy after shipment.
If there is any problem during this period, please contact us for support.
