| Quantity: | |
|---|---|

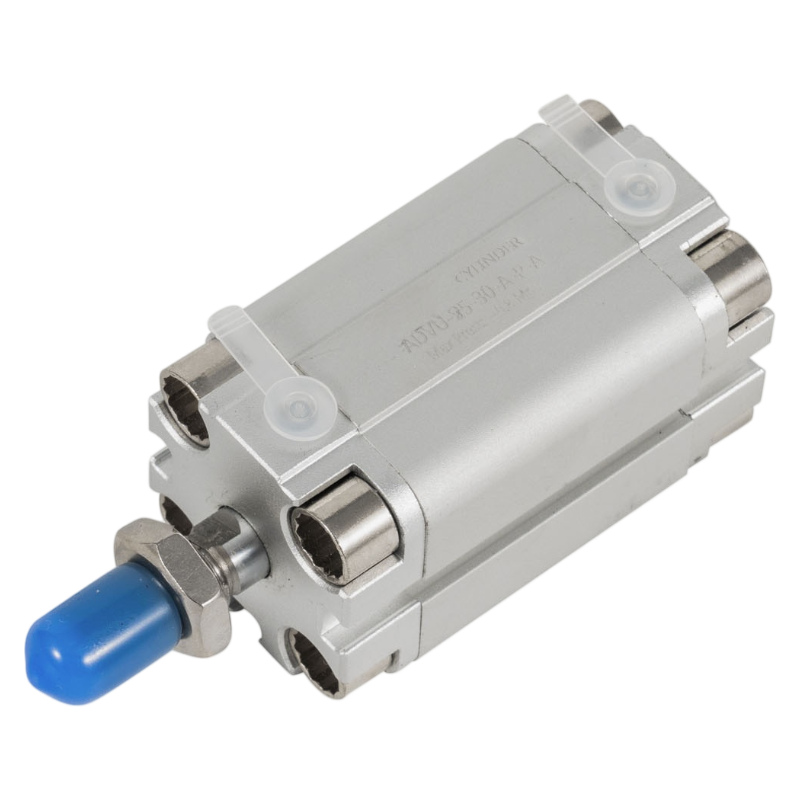

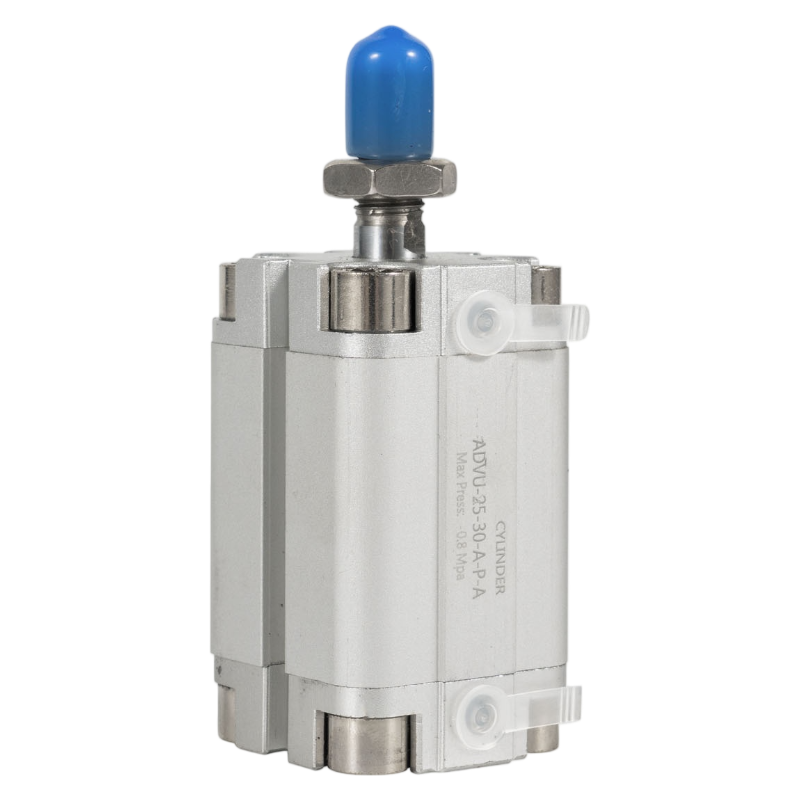

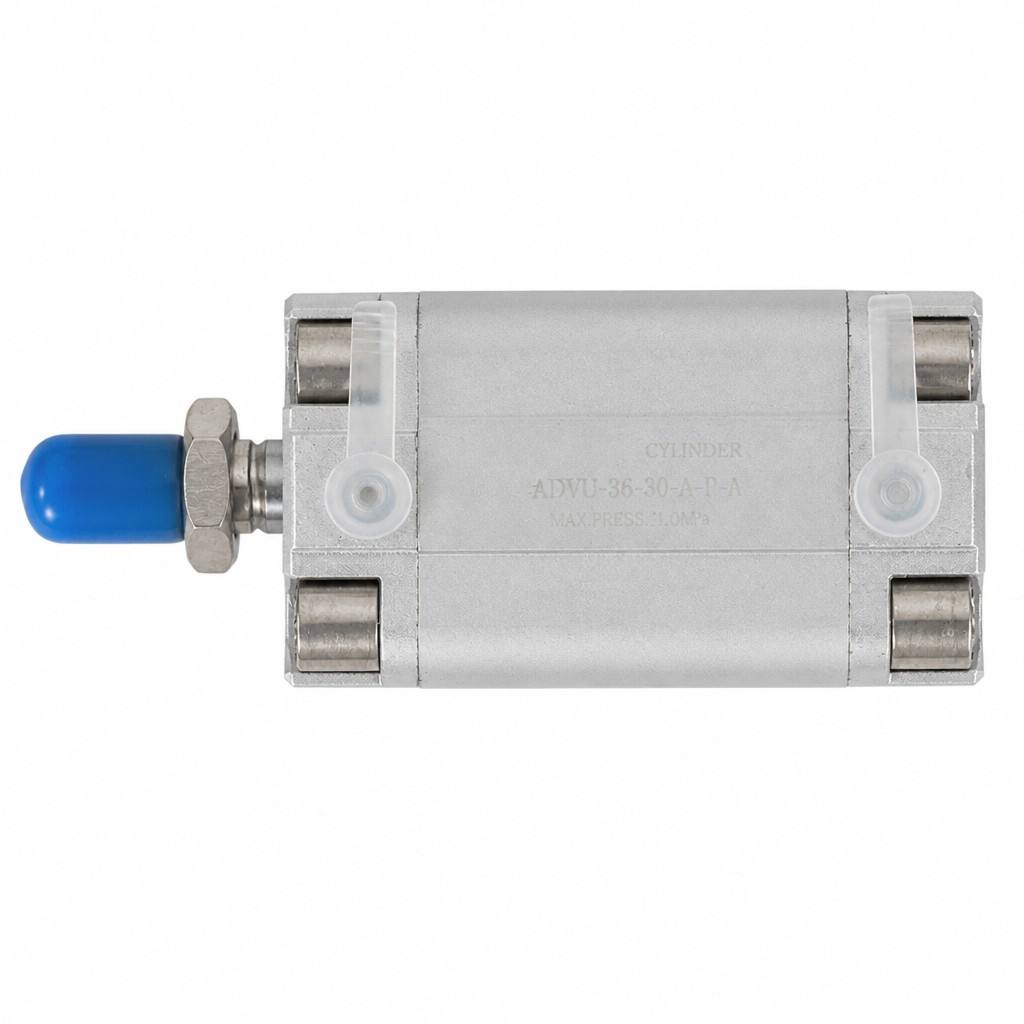

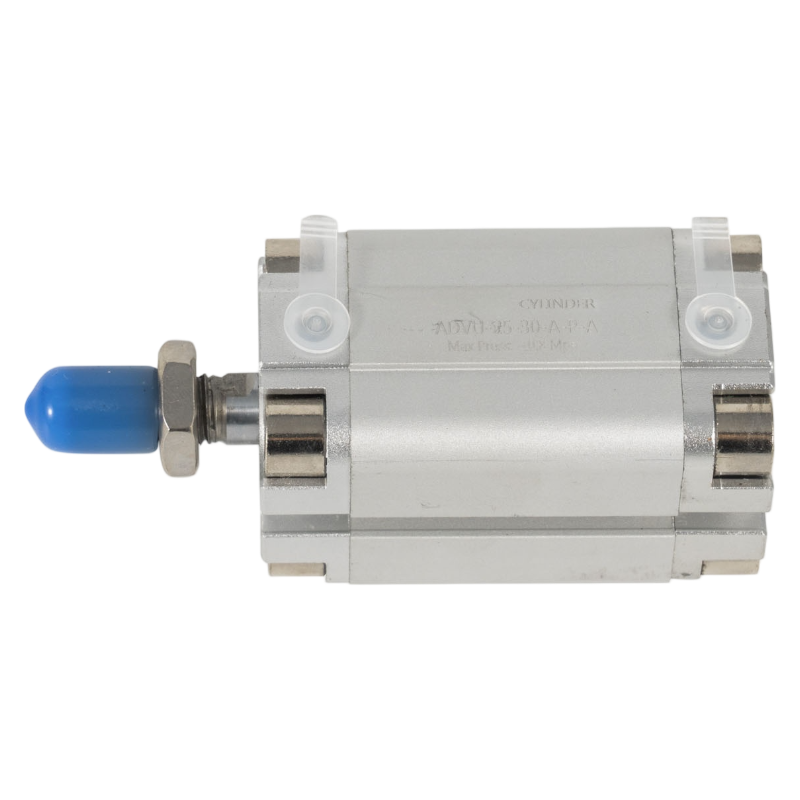

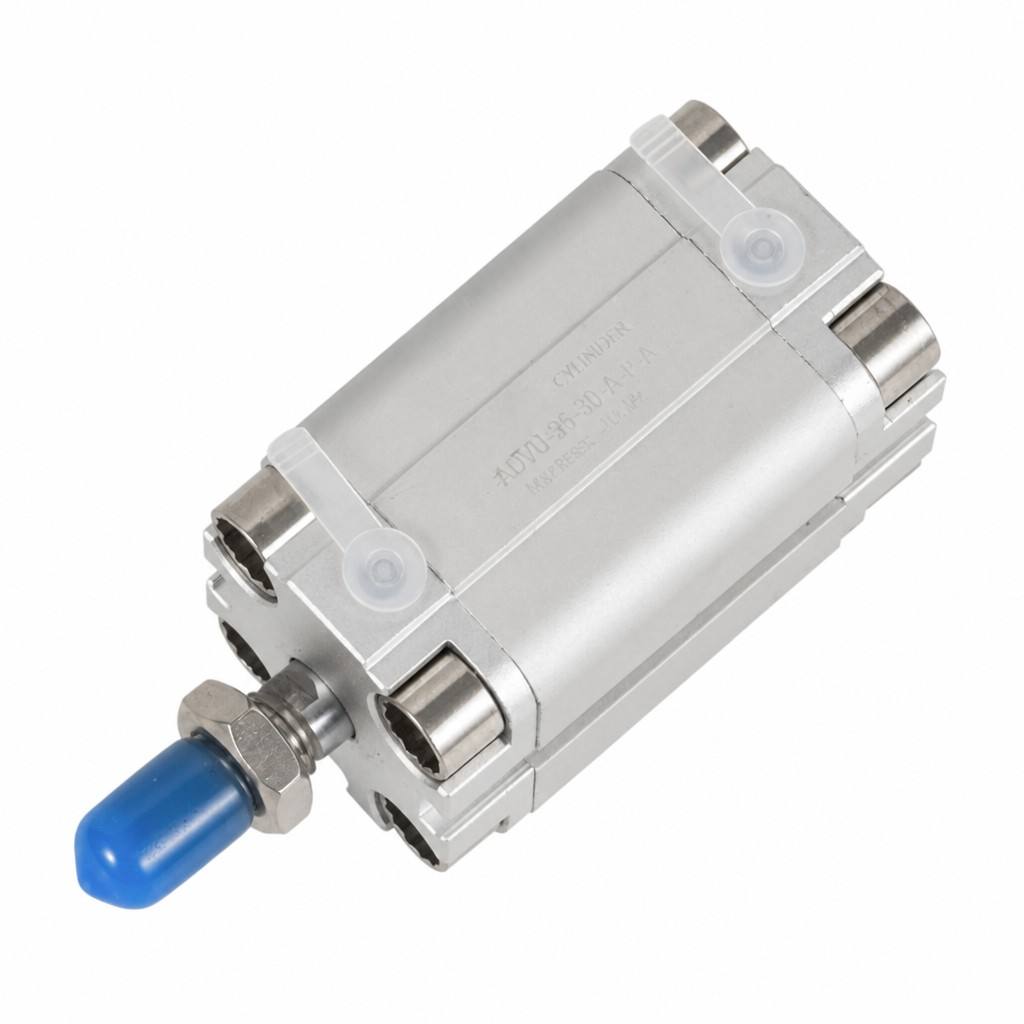

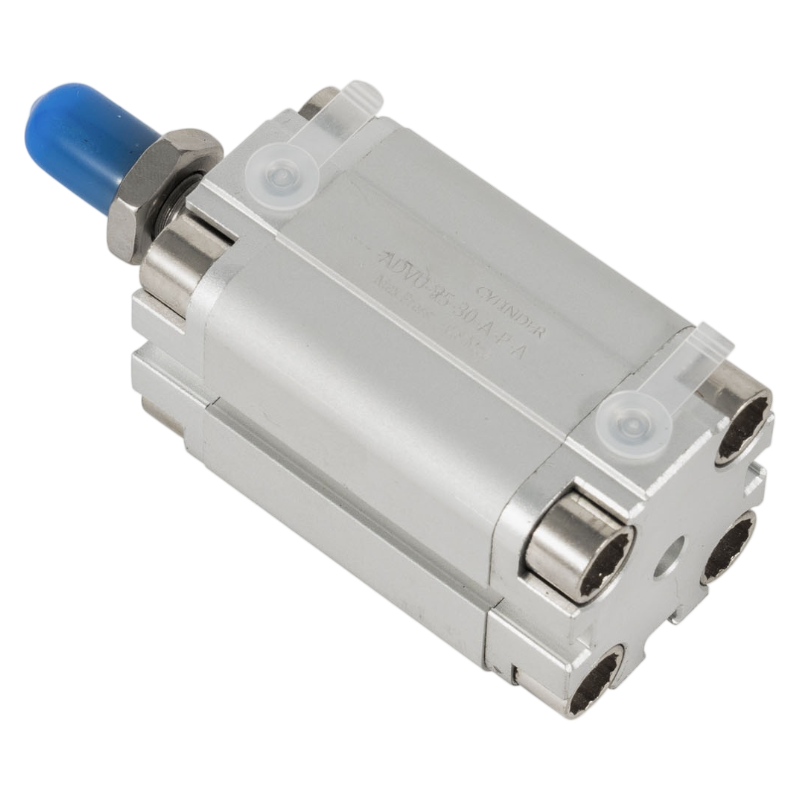

ADVU
XHNOTION
8412390090
L/C, T/T, Western Union, Paypal, Money Gram
Ningbo, China
10000 PCS Per Month
CARTON
20 PCS
Double-acting, single-rod/double - rod
Filtered compressed air
1.5 Mpa
-20-80℃(non-freezing)
Elastic cushioning pads at both ends
Piston rod, piston
With position sensing
Any
Feature
1.Compact ISO design: Conforms to ISO 21287 for seamless interchangeability and compact mounting.
2.Double-acting performance: Provides uniform force in both directions for fast and efficient operation.
3.Integrated cushioning: Equipped with elastic end-position cushioning for smooth and low-impact motion.
4.Wide size range: Bore sizes from 12 mm to 100 mm, with multiple stroke options.
5.Durable construction: High-strength aluminum alloy body with stainless steel piston rod ensures long service life.
6.Magnetic sensing slots: Compatible with proximity switches for non-contact piston position detection.
7.Easy mounting: Multiple mounting interfaces (threaded holes, foot brackets, flange options) for flexible installation.
8.Versatile applications: Used in machinery automation, electronics assembly, packaging equipment, and more.

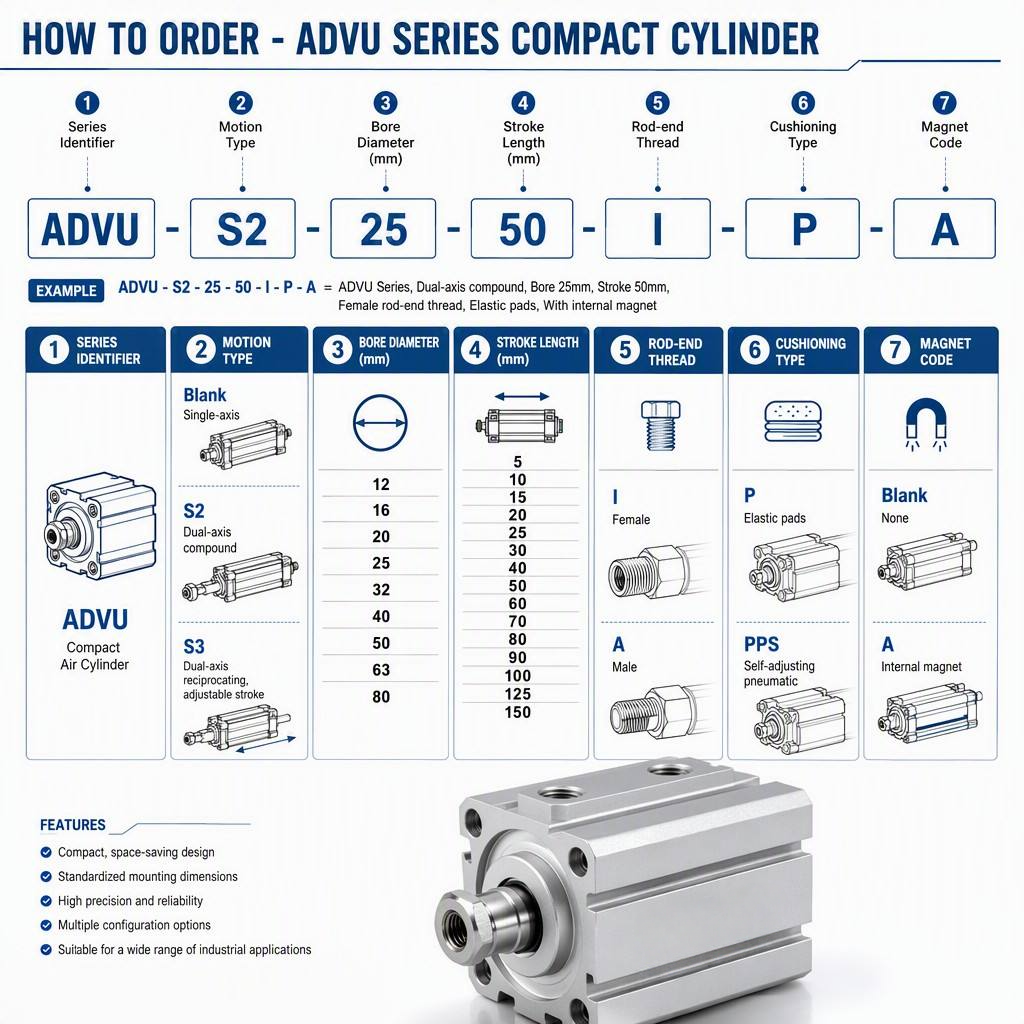

How to order
Specification
Specification Parameter | 12mm Bore | 16mm Bore | 20mm Bore | 25mm Bore | 32mm Bore | 40mm Bore | 50mm Bore | 63mm Bore | 80mm Bore | 100mm Bore | 125mm Bore |
Action Mode | Double - acting, single - rod/double - rod | ||||||||||
Fluid Used | Filtered compressed air | ||||||||||
Guaranteed Pressure Resistance | 1.5 Mpa | ||||||||||
Ambient and Fluid Temperature | -20 - 80℃ (non - freezing) | ||||||||||
Cushioning | Elastic cushioning pads at both ends | ||||||||||
Structural Features | Piston rod, piston | ||||||||||
Position Sensing | With position sensing | ||||||||||
Mounting Method | Through - hole, through internal thread, through accessories | ||||||||||
Mounting Position | Any | ||||||||||

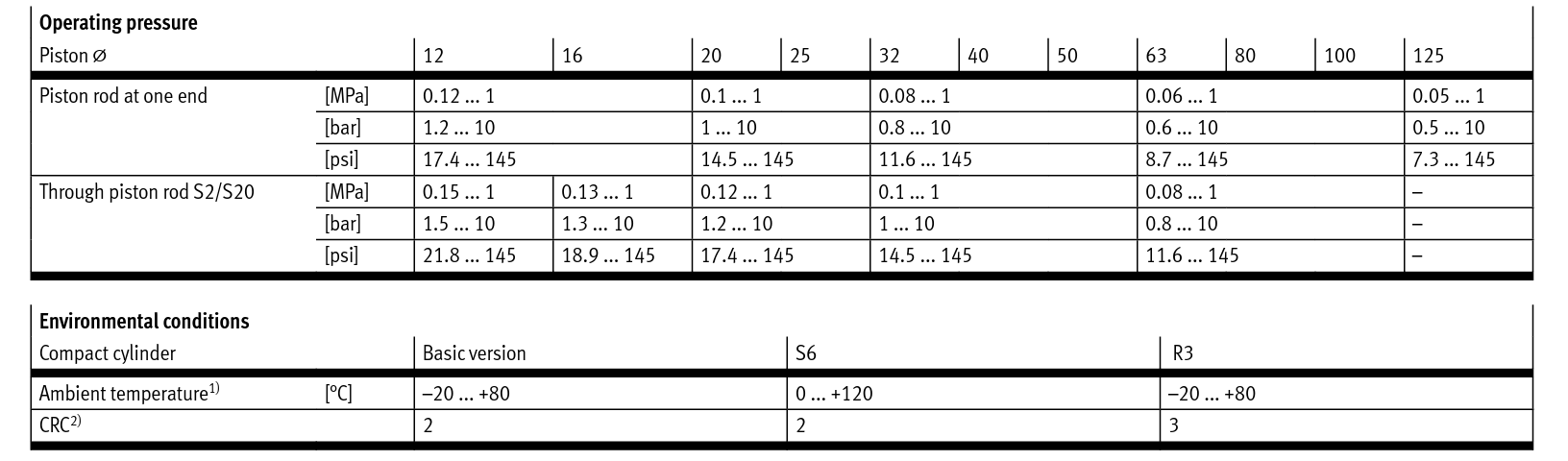

Operating pressure
