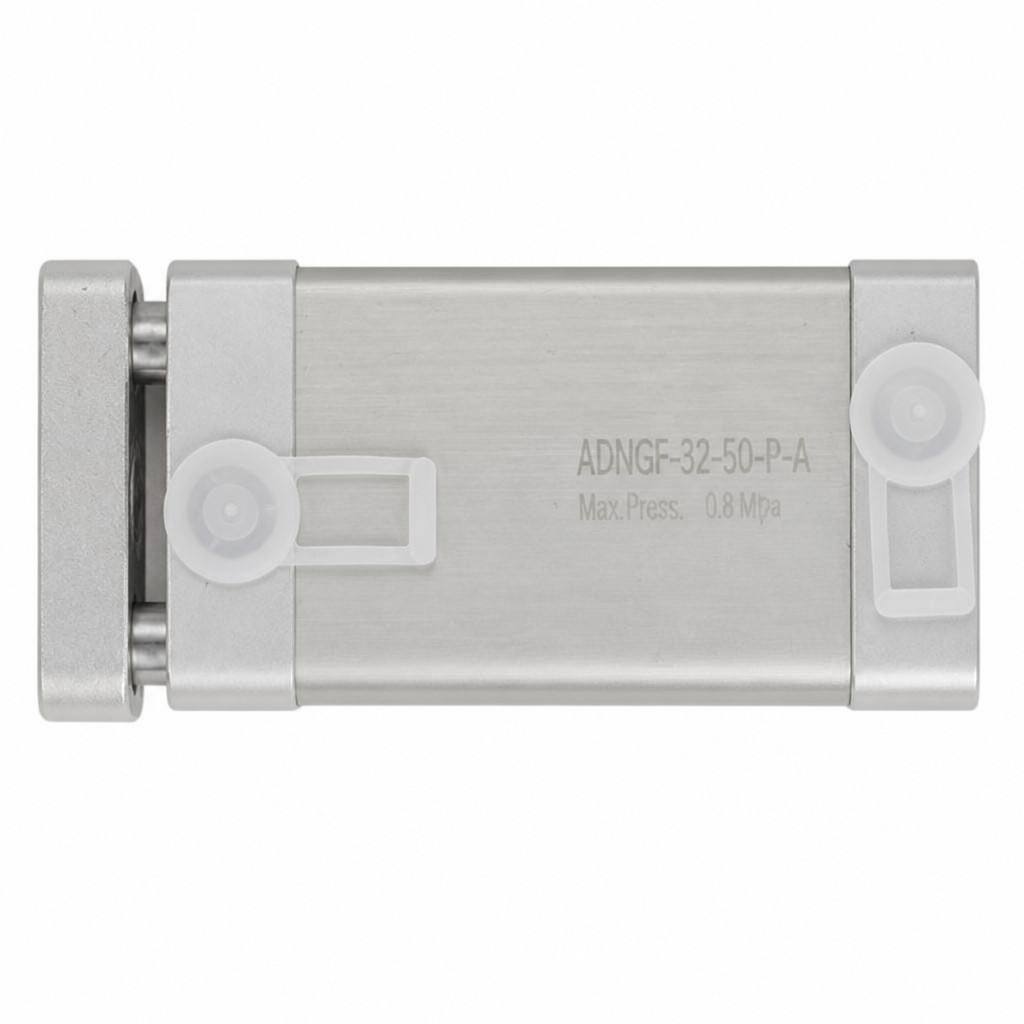

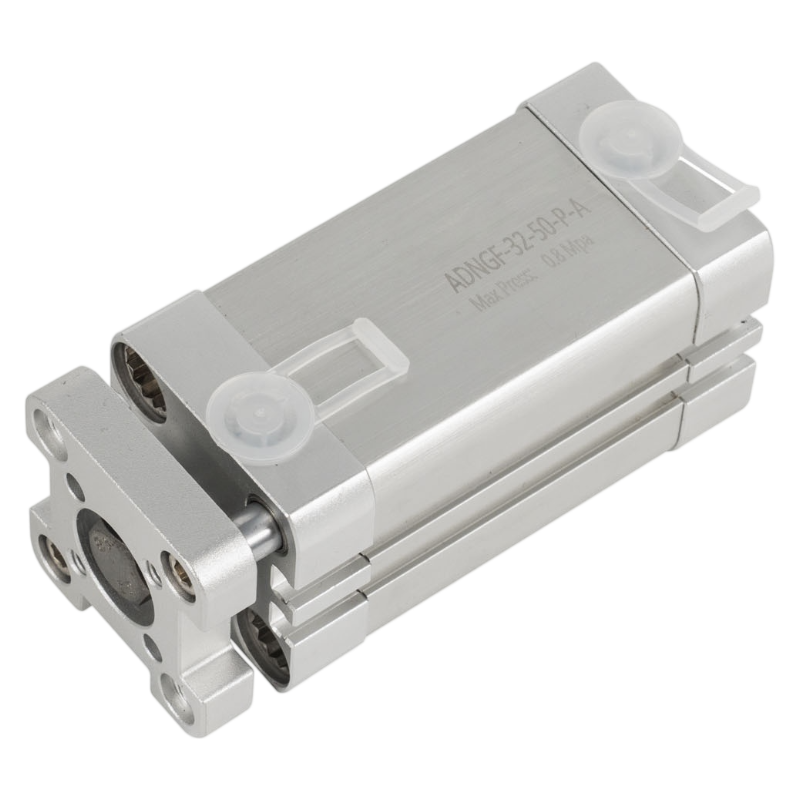

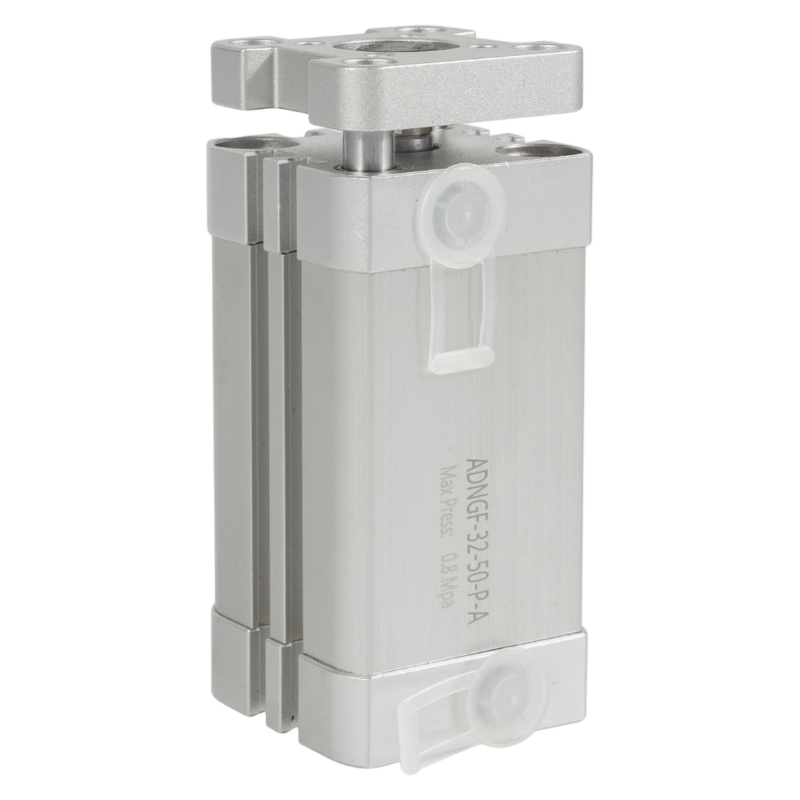

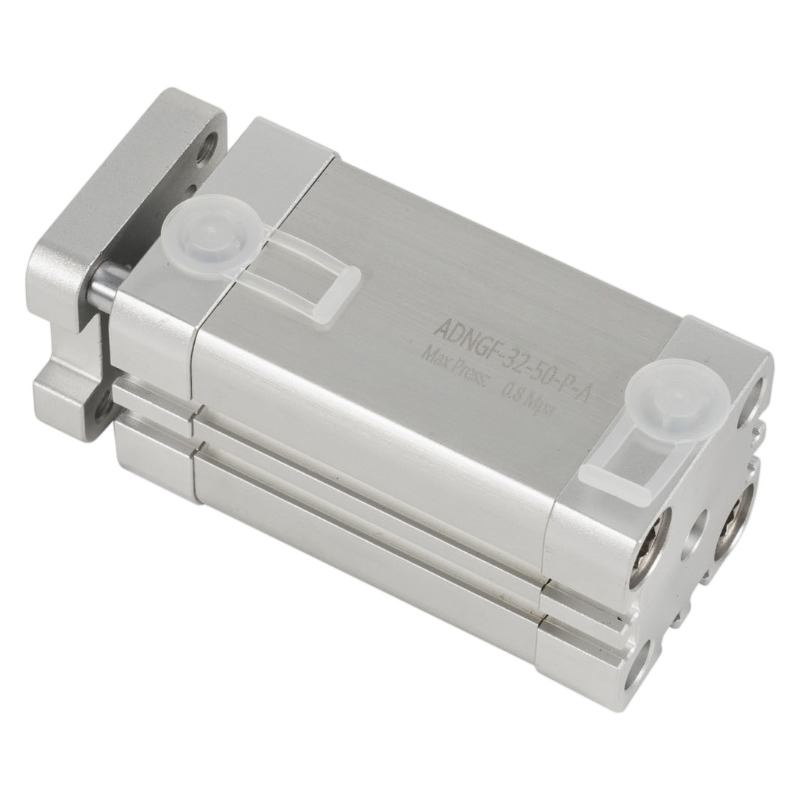

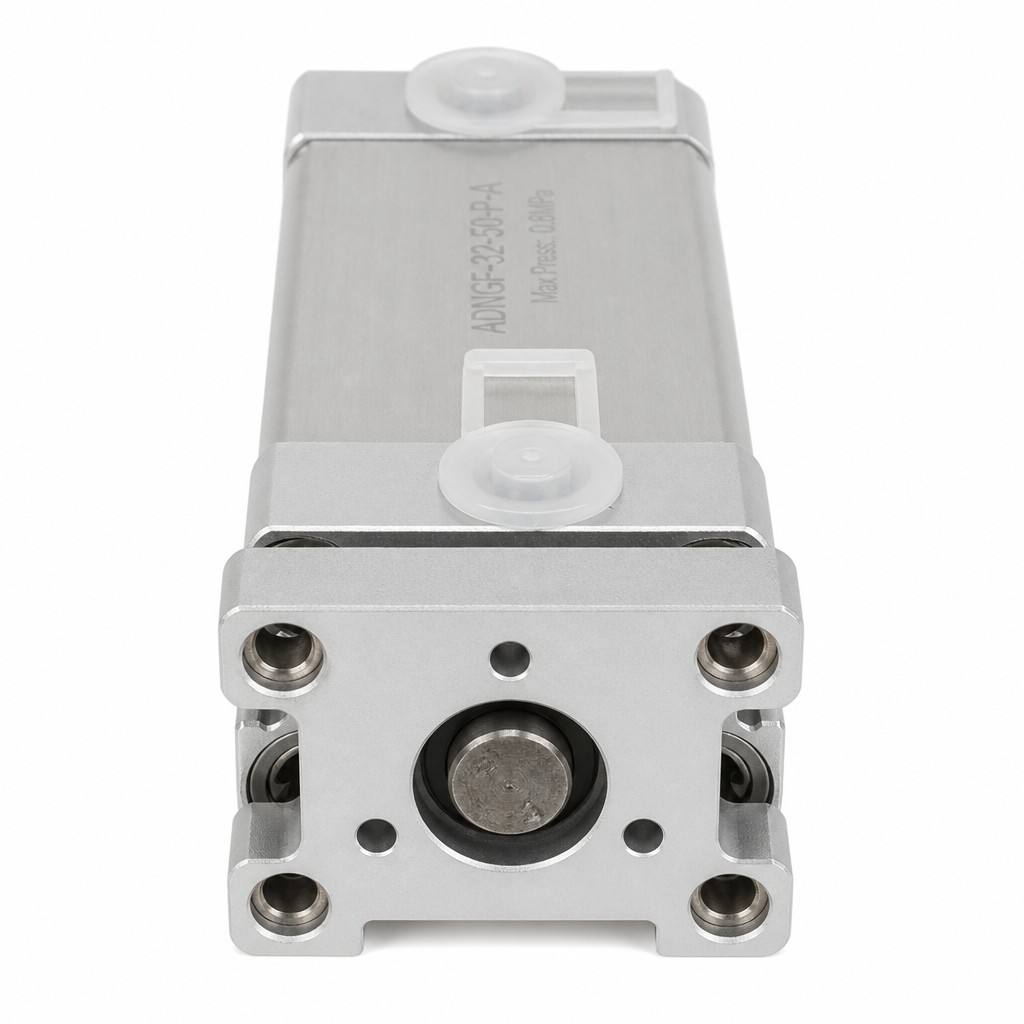

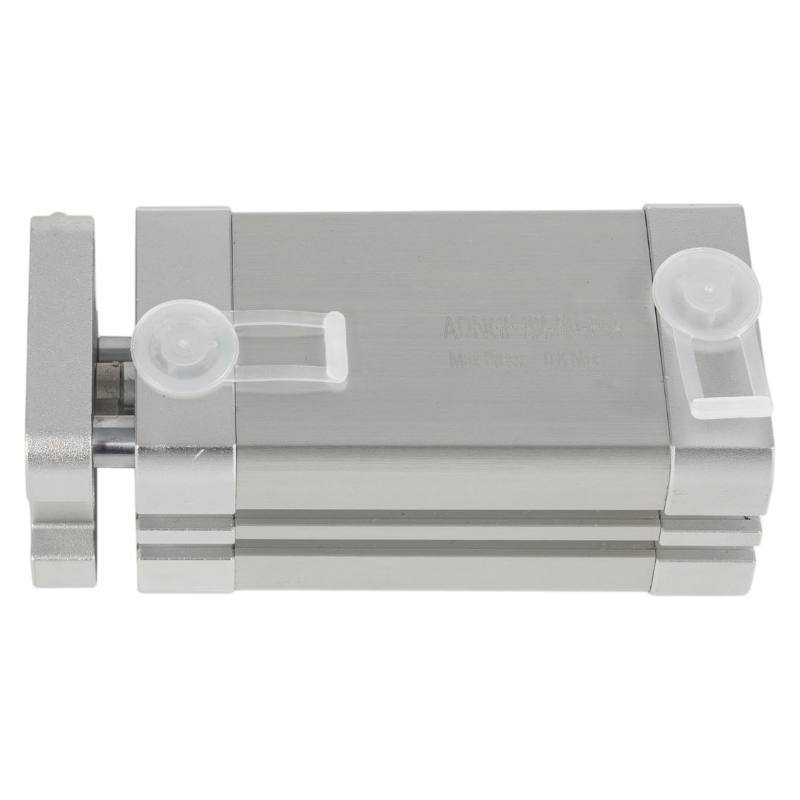

Double-acting, single/double rod
Filtered compressed air
1.5 MPa (15 bar)
0.15–1.0 MPa (1.5–10 bar)
-20 to 80°C (non-freezing); S6: -20 to 120°C
Feature
1. Manufactured strictly in accordance with ISO 21287 international standard, fully interchangeable with mainstream international brands of the same model
2. Built-in anti-rotation structure for piston rod, effectively prevents the piston rod from rotating during reciprocating movement, ensures accurate positioning and stable operation
3. Ultra-compact short-body design, greatly saves installation space, ideal for narrow and compact automation equipment layout
4. Double-acting working mode, stable thrust and pull force, suitable for clamping, pushing, lifting and positioning automation processes
5. High-precision aluminum alloy cylinder barrel with anodized surface, wear-resistant, corrosion-resistant and long service life
6. Hard chrome-plated piston rod, smooth movement, good wear resistance and bending resistance
7. High-quality composite sealing ring, low friction, airtight and durable, adapts to continuous cyclic operation
8. Multiple bore sizes & stroke options available, optional magnetic switch mounting groove for position signal detection

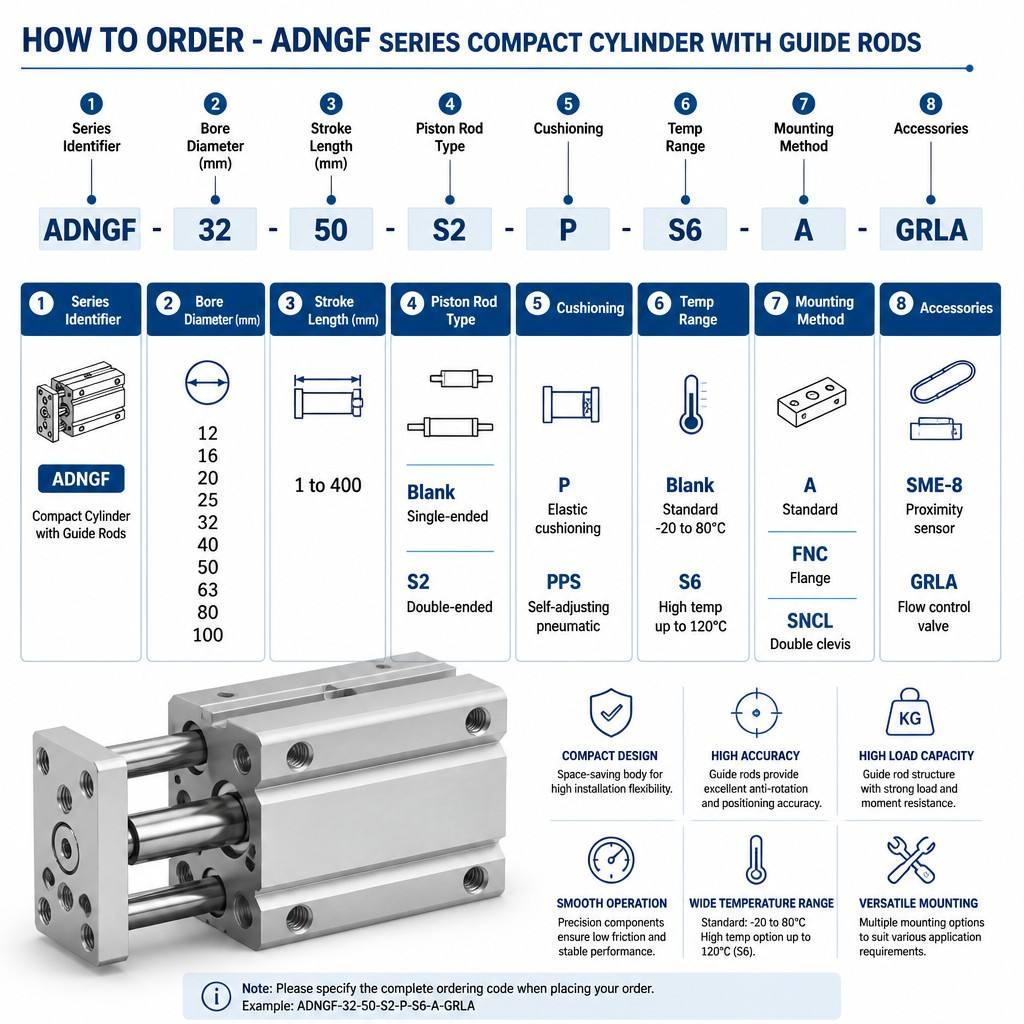

How to order
Specification
Specification | 12 mm Bore | 16 mm Bore | 20 mm Bore | 25 mm Bore | 32 mm Bore | 40 mm Bore | 50 mm Bore | 63 mm Bore | 80 mm Bore | 100 mm Bore |
Pneumatic connection | M5 | M5 | M5 | M5 | G1/8 | G1/8 | G1/8 | G1/8 | G1/8 | G1/8 |
Design | Piston | |||||||||
Piston rod | ||||||||||
Cylinder barrel | ||||||||||
PPS | - | 3 | 3.5 | 4 | 5 | 6 | 7 | 7.5 | 10 | |
Position sensing | Via proximity switch | |||||||||
Type of mounting | With through-hole / female thread / accessories | |||||||||
Mounting position | Any | |||||||||
Action Mode | Double-acting, single/double rod | |||||||||
Fluid Used | Filtered compressed air (ISO 8573-1:2010 Class 7:4:4) | |||||||||
Guaranteed Pressure Resistance | 1.5 MPa (15 bar) | |||||||||
Operating Pressure Range | 0.15–1.0 MPa (1.5–10 bar) | |||||||||
Ambient & Fluid Temperature | -20 to 80°C (non-freezing); S6: -20 to 120°C | |||||||||
