Double-acting
0.06~1.0 MPa (0.6~10 bar)
1.5 MPa (15 bar)
Filtered compressed air
-5~80°C (non-freezing)
-20~120°C
Anodized aluminum
High-grade alloy steel

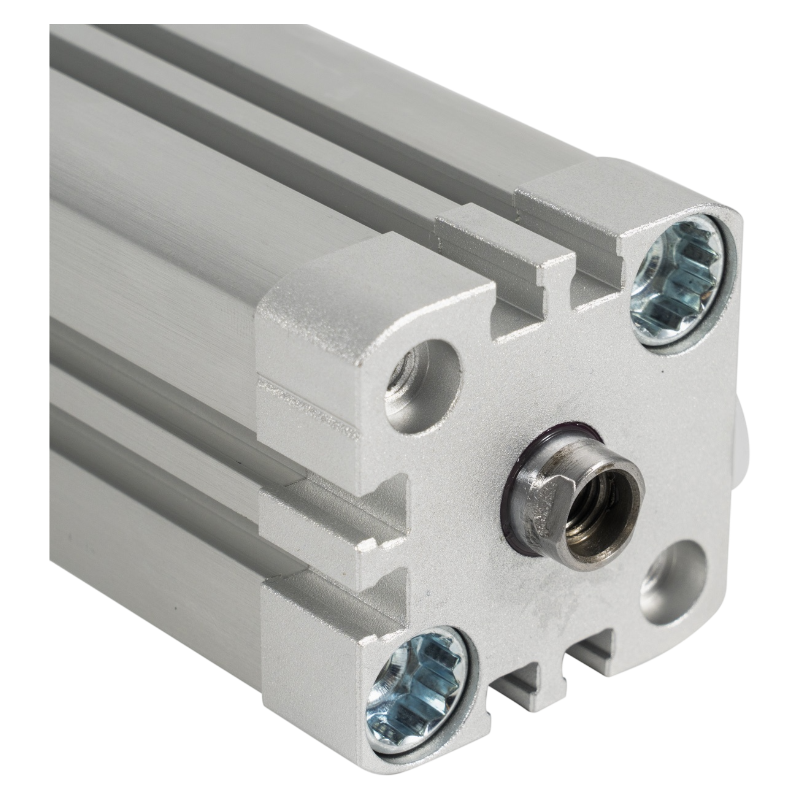

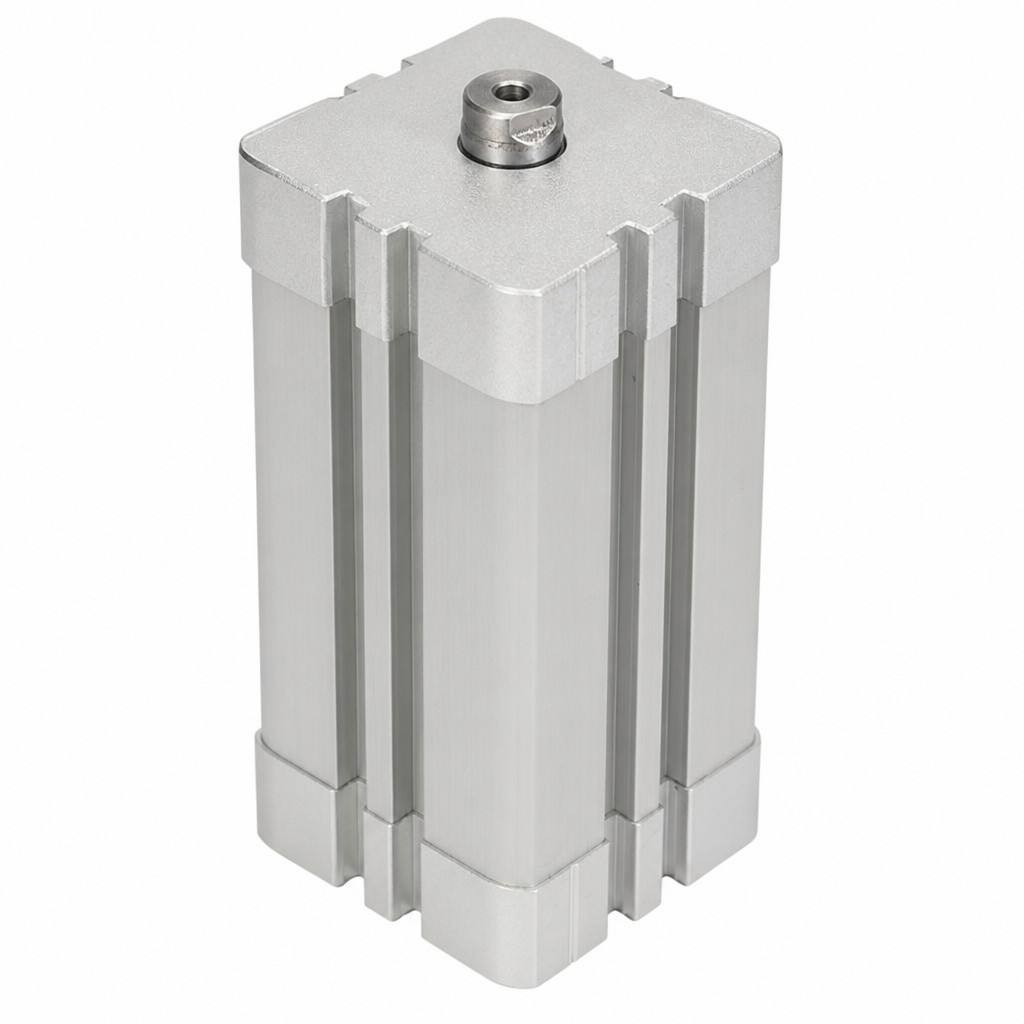

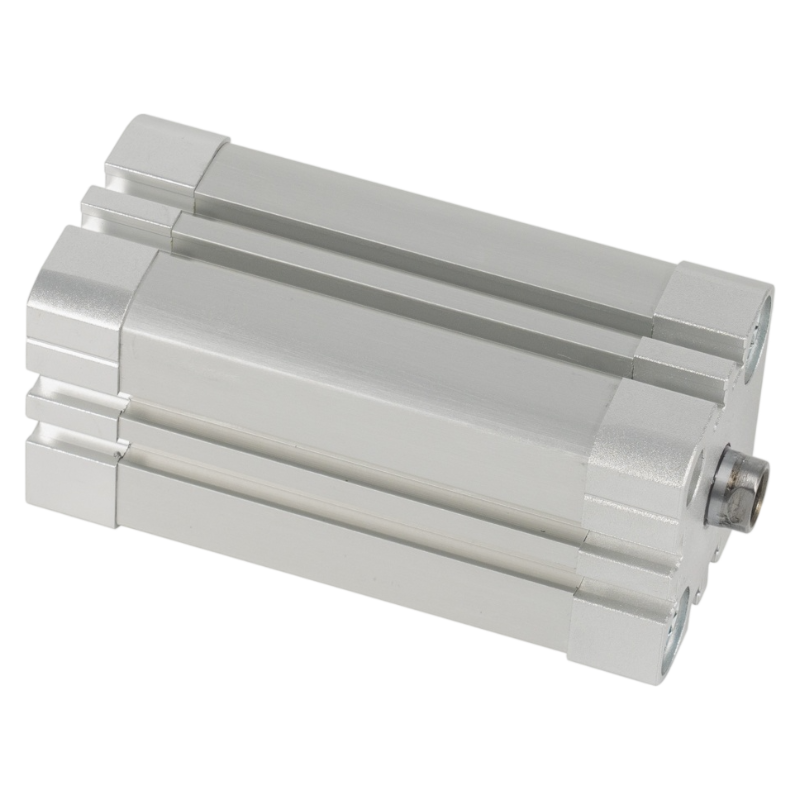

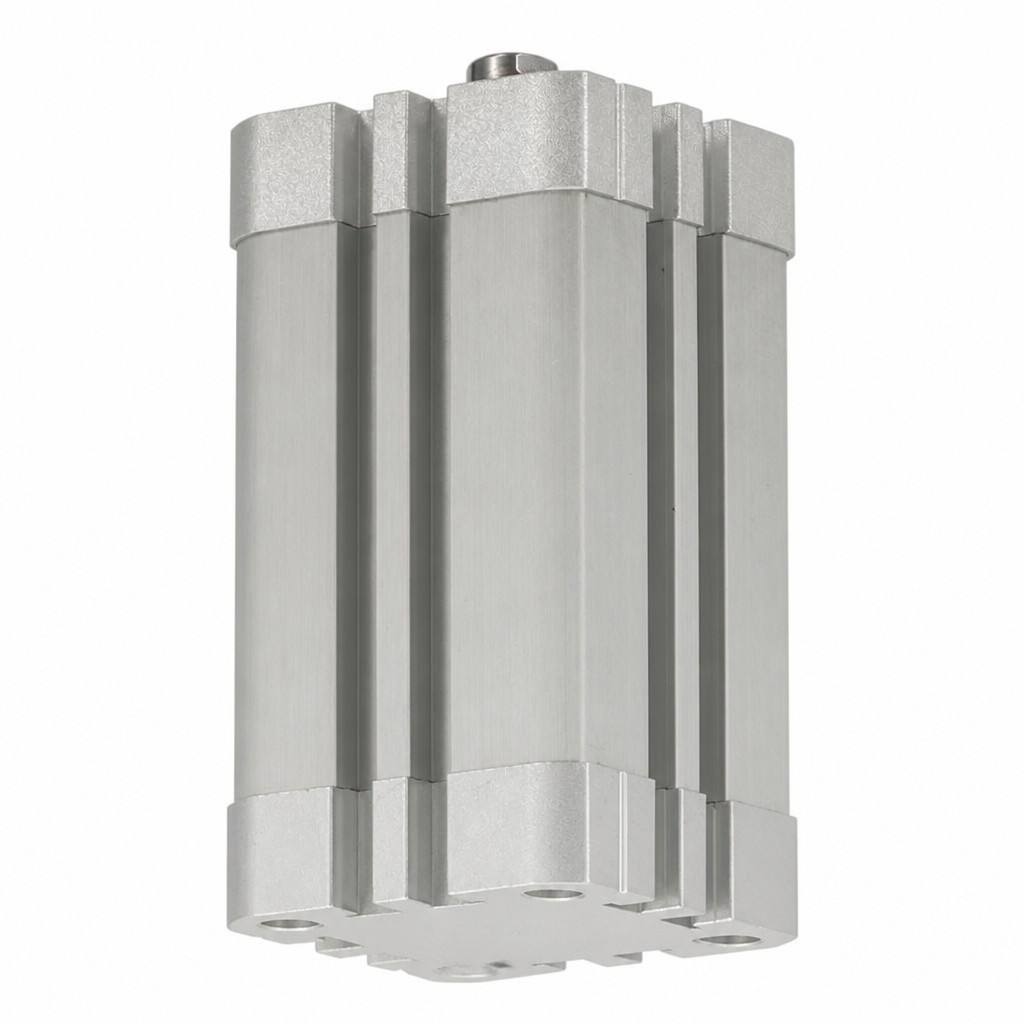

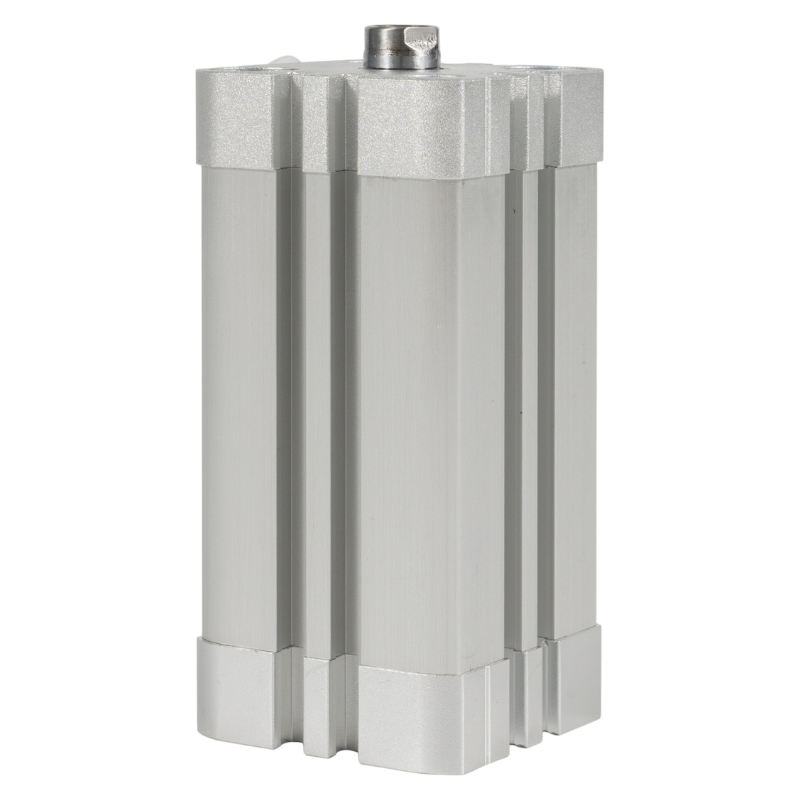

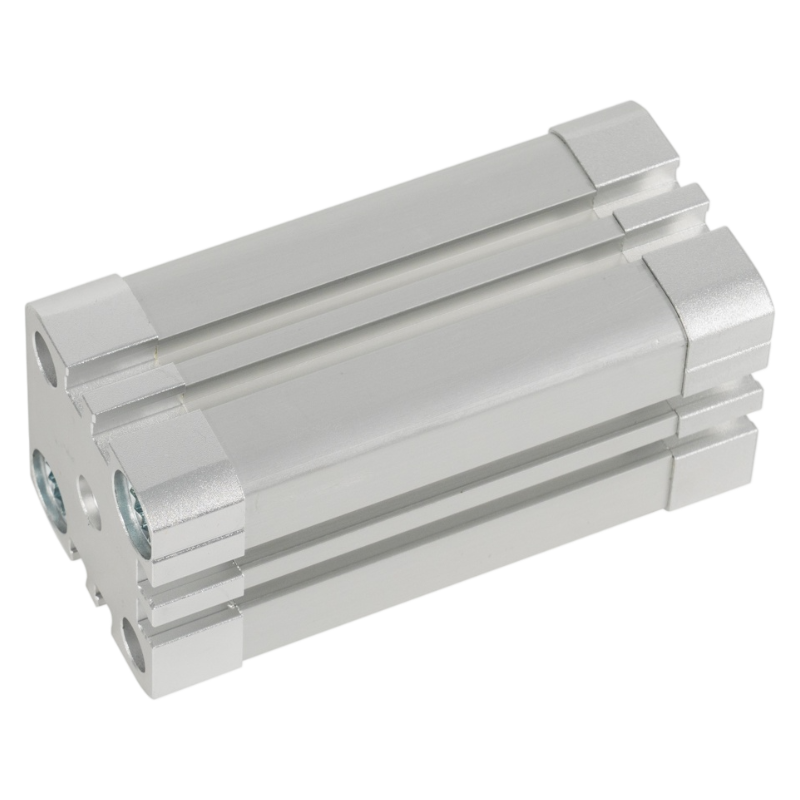

Feature
1.Compact Design: ADN cylinders are characterized by their condensed size and lightweight construction, making them suitable for installations in tight spaces, with some variants reducing installation space by up to 50%.
2.Double-Acting: Most ADN cylinders are double-acting, meaning they use compressed air for both extension and retraction of the piston rod.
3.ISO 21287 Compliant: They conform to or are based on the ISO 21287 standard.
4.Cushioning Options: ADN cylinders can come with elastic cushioning rings/plates at both ends, or for some models, self-adjusting pneumatic cushioning (PPS) for smooth operation and increased lifespan.
5.Position Sensing: Many models feature a magnetic piston for contactless position sensing using proximity switches.
6.Variants: The ADN series offers a wide array of variants, including different piston diameters, stroke lengths, and cushioning options, allowing for customization to various application needs. Piston rods are available with either internal or external threading.

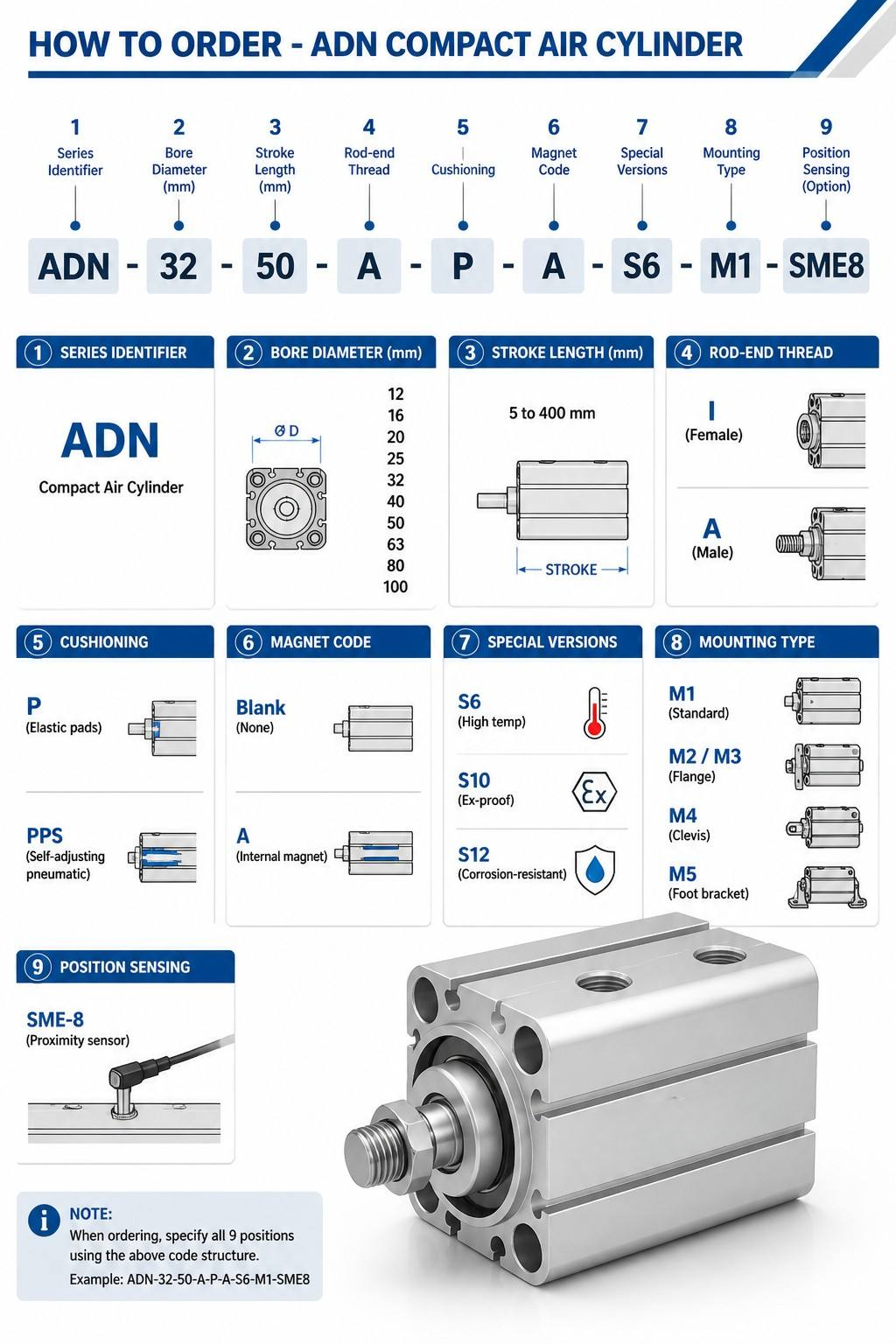

How to order
Specification
Parameter | 12-25 mm Bore | 32-63 mm Bore | 80-100 mm Bore |
Action Type | Double-acting | ||
Operating Pressure Range | 0.06~1.0 MPa (0.6~10 bar) | ||
Proof Pressure | 1.5 MPa (15 bar) | ||
Fluid | Filtered compressed air (ISO 8573-1:2010 Class 7:4:4) | ||
Temperature Range (Standard) | -5~80°C (non-freezing) | ||
Temperature Range (S6 Version) | -20~120°C | ||
Pneumatic Connection | M5 | G1/8 | G1/4 |
Theoretical Force at 6 bar (Advancing) | 68~295 N | 483~1870 N | 3016~4712 N |
Theoretical Force at 6 bar (Retracting) | 51~247 N | 415~1750 N | 2827~4524 N |
Material (Cylinder Tube) | Anodized aluminum | ||
Material (Piston Rod) | High-grade alloy steel | ||
