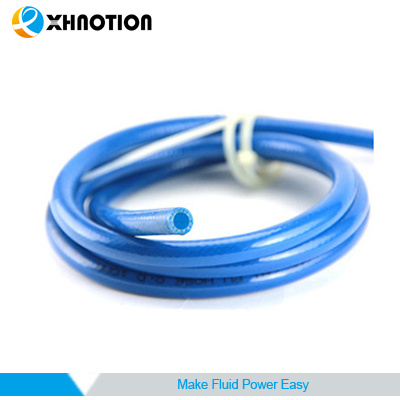

870psi High Pressure Bulk Packing PU Braided Tubes
Features 1. Greater pressure capability than non-reinforced polyurethane tubing.
2. Very ligh tweight and easy to handle.
3. The most abrasion resistant.
4. Resistant to weathering, tearing, impact, oils, greases and fuels.
5. Very flexible and used friendly, even in subzero temperatures.
6. For order production, we also supply hose with U.V stabilized for long service life.
7. For heavy duty pneumatic tools application.
8. Tube Color: Transparent with blue or other colors are available; regular tube color: blue, transparent, black.

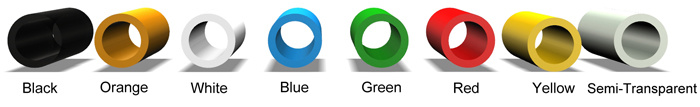

BK-Black O-Orange W-White B-Blue G-Green R-Red Y-Yellow C-Clear
Specification Technical Infomation Product Name | PU Braided Tube |
Material | Ester-or ether Based Polyurethane |
Fluid | Air, Water |
Burst Pressure(20ºC) | 60Bar |
Working Pressure(20ºC) | 20Bar |
Operating Temperature | -20~80 ºC |
Size Metric Size | O.D(mm) | I.D(mm) | Bending Radius(mm) | Standard Length | Net Weight(kg/roll) |
PBS0850 | 8 | 5 | 20 | 100m | 3.8 |
PBS1065 | 10 | 6.5 | 30 | 100m | 5.6 |
PBS1280 | 12 | 8 | 40 | 100m | 7.8 |
PBS-3/8 | 9.5 | 6.35 | 30 | 100m | 4.9 |
PBS-1/2 | 12.7 | 8.46 | 40 | 100m | 8.8 |

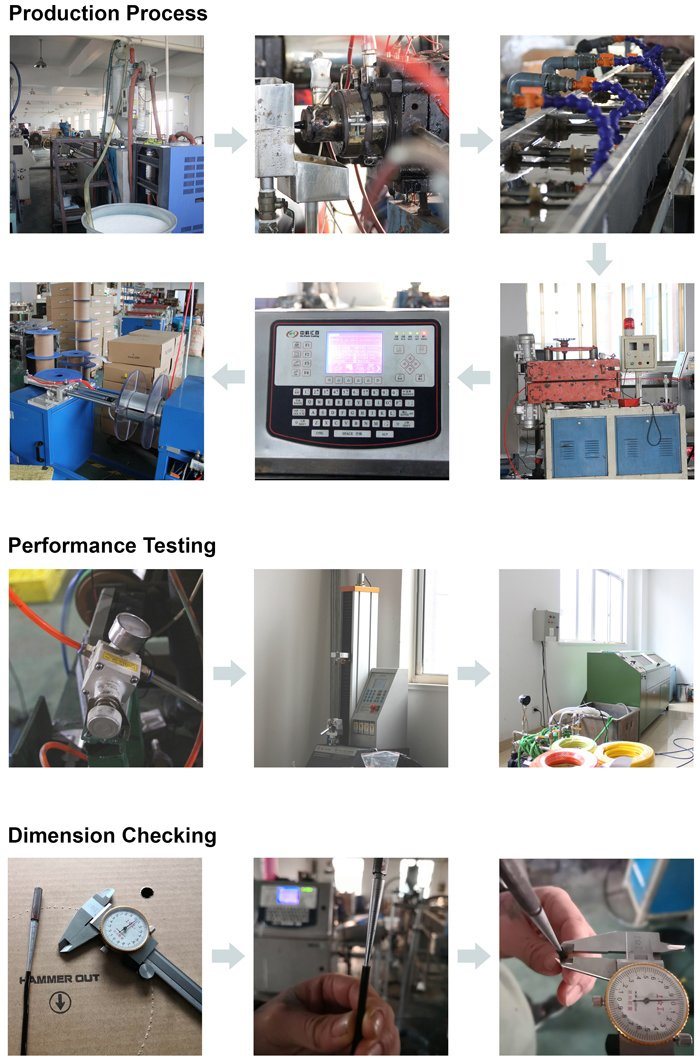

Procedure
Packing & Shipping

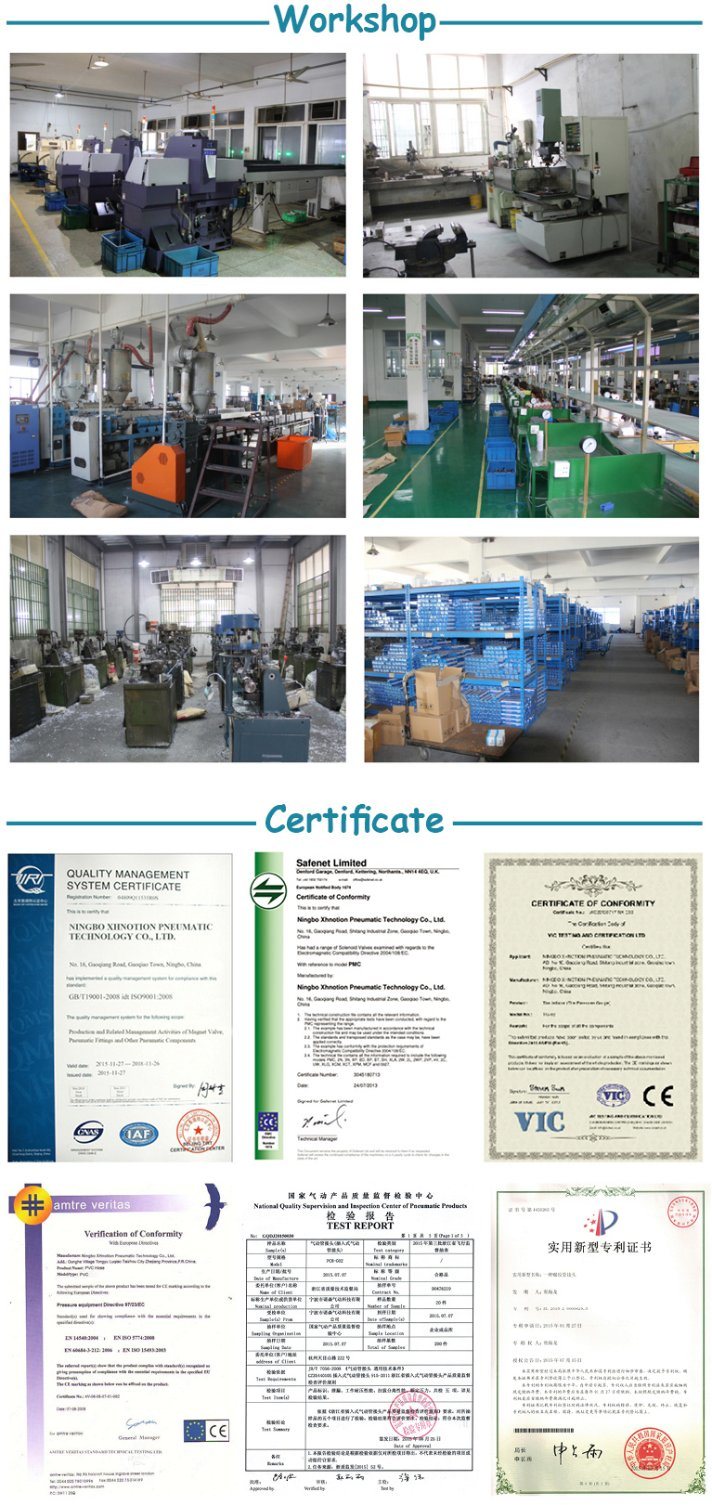

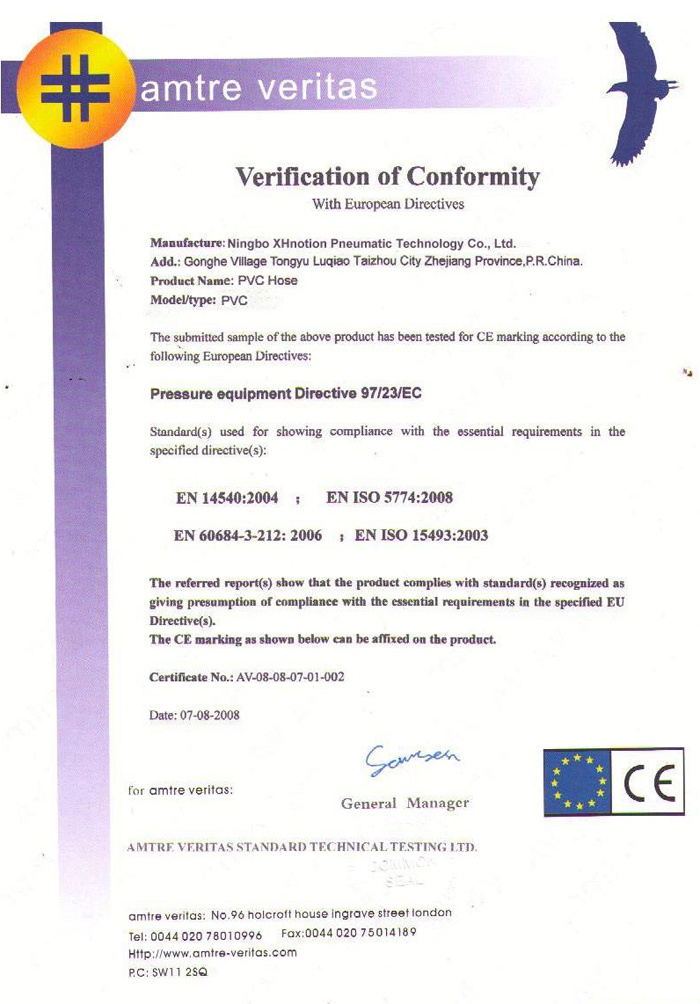

Certificate
Tubing Advantage 1. 100% fresh material.
2. Enough meters per roll and can mark meter on the tube as you request.
3. Print your logo above 3000 meter each size.
4. Conform to REACH, CE, ROHS certificate
5. Rich stock for every size and regular color.
6. 1 year quality assurance after shipment.

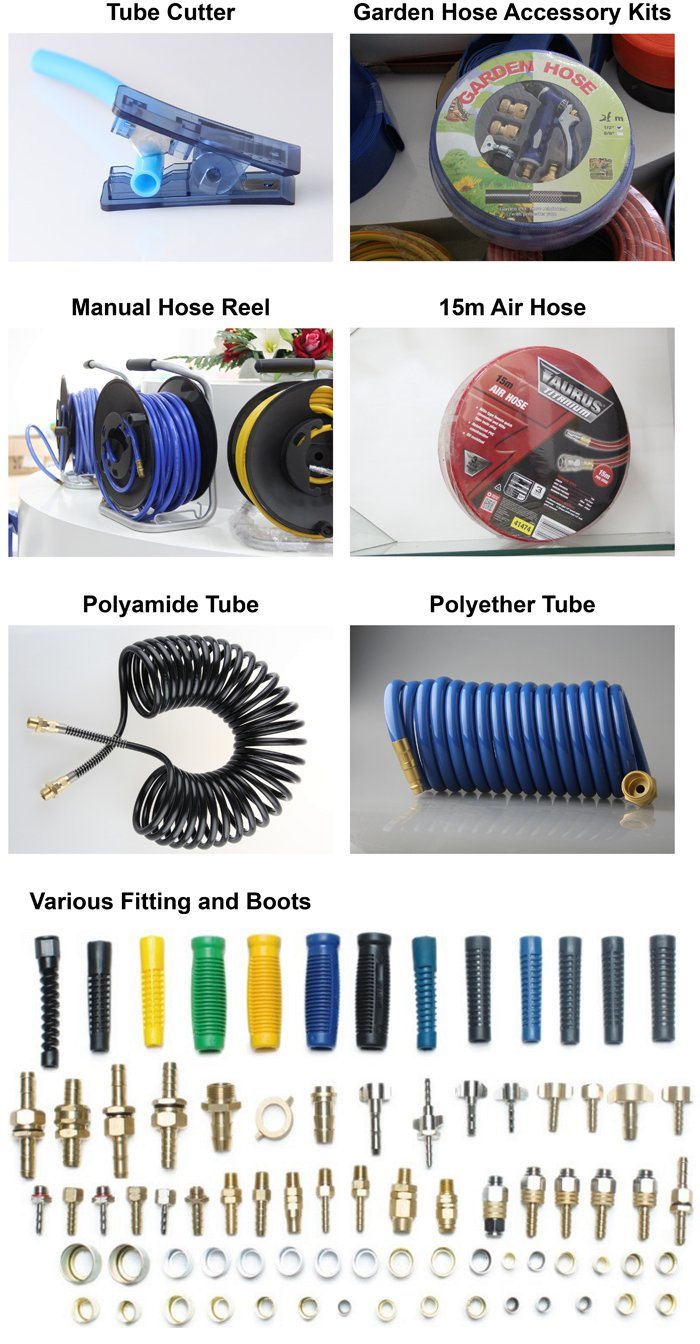

7. After-sales technique support. Related Products
Our Company
XHnotion originate from notion between pneumatic power and human.
(X stands for winds, H stands for human)
In Chinese, XHnotion stands for 'we do, we promise' we read it 'X-notion'.
The company XHnotion Pneumatic was founded in 2007 and has developed with a steadily growing success to a reliable partner for international established clients.
This success of the company XHnotion Pneumatic is based on:
High class quality standard
Customer satisfaction
Fair price policy
Flexibility
The high-class quality standard of the products of company XHnotion is reflected in our quality management system, certificated ISO 9001:2008. And we got CE, RoHS, REACH certificate for international market. XHnotion Pneumatic manufactures below products:
Pneumatic Components: air cylinder, solenoid valve, FRL
Solenoid Calve: standard solenoid valve, multipurpose solenoid valve, pneumatic angle valve
Pneumatic Fittings: plastic pneumatic fittings, mental pneumatic fittings, pneumatic muffler, water push in fittings
Air Gun & Couplers: pneumatic couplers, air guns, air tool kits
Air Hoses: air tubing, PTFE tubes, tube cutter, pipes
Why Choose US? 1. We offer one stop solution. PU hose, PE hose, Nylon tubes, PVC braid hoses, PTFE pipe,
silicone hose, rubber air hose are all available.
2. We have molds workshop, die-casting workshop, CNC workshop, plastic injection workshop to
make sure each part exactly as the drawing and good function.
3. We will reply you within 24 hours.
4. Whatever quantity you are requesting, we always offer you the best quality.
5. 3D drawing, CAD drawing service for custom fittings, hose, valve, cylinder. FAQ Payment Terms :
We accept T/T, L/C, Paypal, Western Union,etc.
Samples Policy :
For regular tube, free samples against your courier account or you pick up from us.
For custom items, we will discuss by email.
Return Policy:
We assure you 1 year policy after shipment.
If there is any problem during this period, please contact us for support.
