8-50mm Watermeter Cartridge Check Valve with RoHS Certificate

Quantity:
  • Ningbo, China

  • 50000 PCS Per Month

  • L/C, T/T, Western Union, Paypal, Money Gram

  • OV40

  • Reversing

  • ANSI

  • Household Usage

  • SGS(RoHS) Reach FDA LFGB Acs

  • XHnotion

  • Plastic Bag

  • ROHS, REACH, CE, ACS, FDA

  • China

  • 8481804090

  • Acetal

  • Cartridge

  • Tubular

  • Low Pressure

  • Only Allows Water to Flow in One Direction and Pre

  • Seals

Product Description

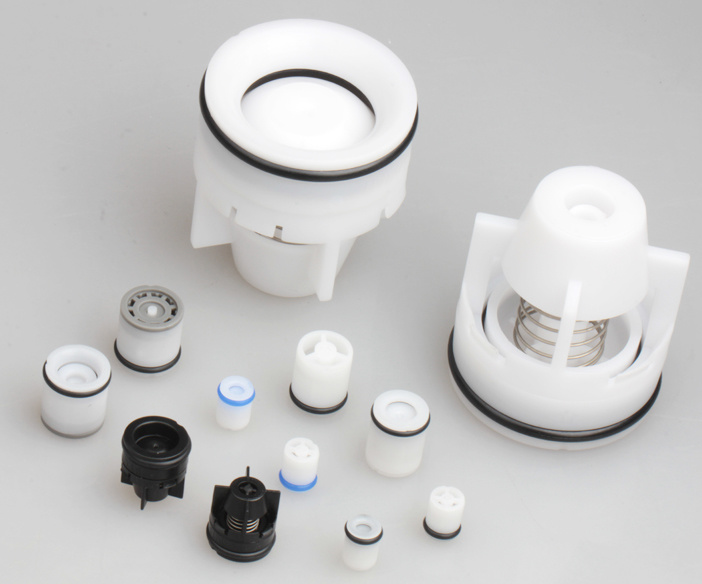

8-50mm Watermeter Cartridge Check Valve with RoHS Certificate

8-50mm Watermeter Cartridge Check Valve with RoHS Certificate








Features
1. Zero leak at low and high pressure and temperature.
2. Generous flow structure promise the lowest headloss.
3. Compact, easy installation, 8mm-50mm diameter to meet all the system.
4. No thread connection to avoid potential leakage.






Specifications
Product Name Cartridge Check Valve
Model DN8
Material Acetal, EPDM, POM, SS304
Type

Cartridge Style, Insert Style, Constant Flow Style,High Temperature Style, High Pressure Style

Medium Clear Water
Size/Diameter 8mm-50mm
Cracking Pressure 0.23Psi
Max. Pressure 230Psi
Max. Temperature 100°C / 212ºF






Material Construction
External Seal EPDM
Housing POM
Internal Seal EPDM
Core POM
Spring SS304
Cover POM

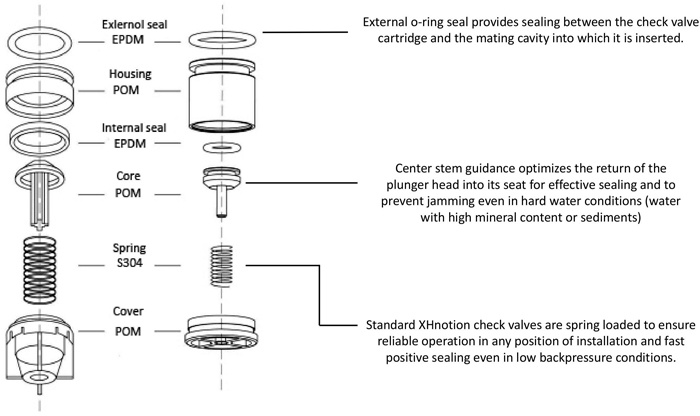

Structure

8-50mm Watermeter Cartridge Check Valve with RoHS Certificate





Advantages

1. High precision automatic lathe to make the claws not hurt tube surface.
2. 5% tested by water at 10 bar, 100% tested by air and appearance test.
3. Easy to push in and put out on the basis of working pressure assured
4. 1 year quality assurance after shipment.
5. Custom fitting as your drawing or we make drawing as your sample.








Packing & Shipping

Packing:
Plastic Bag + White Box + Carton
Custom packaging are available, XHnotion brand packaging are available

Shipping:
Method:Air, Sea, Courier
Export port:Ningbo or Shanghai, China
Delivery time:3 days to 30 days depends on actual orders.
Express:TNT, UPS, DHL, FedEx, SF Express.


8-50mm Watermeter Cartridge Check Valve with RoHS Certificate
