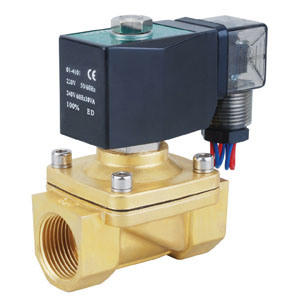

410 Coil DIN Standard IP65

Model NO.: 410Pressure: Ordinary PressureValve Structure: Direct Action Diaphragm StructurePower Supply: DC Solenoid ValveUsage: Flow ControlStandard: DINApplication: Industrial Usage, Water Industrial UsageRegular Voltage: 12VDC, 24VDC, 110VAC, 220VACTrademark: XHnotionTransport Package: Paper BoxSpecification: ROHS, REACH, CEOrigin: ChinaHS Code: 8481804090Media: WaterTemperature: Ordinary TemperatureActuator: ElectricConnection Form: ThreadType: Direct ActingMaterial: Brass

Availability:

Quantity:



Inquire Add to Basket

Model:
410 Coil
Brand:
XHNOTION
Payment Terms:
L/C, T/T, Western Union, Paypal, Money Gram
Port:
Ningbo, China
Production Capacity:
10000 PCS Per Month
Transport Package:
CARTONS
Model NO.:
410
Pressure:
Ordinary Pressure
Valve Structure:
Direct Action Diaphragm Structure
Power Supply:
DC Solenoid Valve
Usage:
Flow Control
Standard:
DIN
Application:
Industrial Usage, Water Industrial Usage
Regular Voltage:
12VDC, 24VDC, 110VAC, 220VAC
Trademark:
XHnotion
Transport Package:
Paper Box
Specification:
ROHS, REACH, CE
Origin:
China
HS Code:
8481804090
Media:
Water
Temperature:
Ordinary Temperature
Actuator:
Electric
Connection Form:
Thread
Type:
Direct Acting
Material:
Brass

Product Description

Hole: 16mm

Length: 54mm
Width: 38.5mm
Height: 40mm

IP65

Regular voltage: 12VDC, 24VDC, 220VAC, 110VAC. ,

Model	Thread size (G)	Orifice (mm)	CV value	Working pressure (Bar)
				AC			DC
				air, gas	water	oil	air, gas	water	oil
2N030-06H	1/8	3	0.3	0-7	0-7	0-6	0-6	0-6	0-4
2N030-08H	1/4	3	0.3	0-7	0-7	0-6	0-6	0-6	0-4
2N040-08H	1/4	4	0.58	0-4	0-4	0-3	0-3	0-3	0-2
2N050-08H	1/4	5	0.65	0-3	0-3	0-2	0-2	0-2	0-1
2N060-08H	1/4	6	0.8	0-5	0-5	0-3	0-3	0-3	0-3
2N150-10H	3/8	15	4.6	0-5	0-5	0-3	0-3	0-3	0-3
2N150-15H	1/2	15	4.6	0-5	0-5	0-3	0-3	0-3	0-3
2N200-20H	3/4	20	8.5	0-5	0-5	0-3	0-3	0-3	0-3
2N250-25H	1	25	12	0-5	0-5	0-3	0-3	0-3	0-3
2N320-35H	1 1/4	32	24	0-5	0-5	0-3	0-3	0-3	0-3
2N400-40H	1 1/2	40	29	0-5	0-5	0-3	0-3	0-3	0-3
2N500-50H	2	50	48	0-5	0-5	0-3	0-3	0-3	0-3
2N250-25FH	4 holes flange		12	0-5	0-5	0-3	0-3	0-3	0-3
2N320-35FH		32	24	0-5	0-5	0-3	0-3	0-3	0-3
2N400-40FH		40	29	0-5	0-5	0-3	0-3	0-3	0-3
2N500-50FH		50	48	0-5	0-5	0-3	0-3	0-3	0-3
2N030-06BH	1/8	3	0.3	0-5	0-5	0-3	0-3	0-3	0-3
2N030-08BH	1/4	3	0.3	0-5	0-5	0-3	0-3	0-3	0-3
2N040-08BH	1/4	4	0.58	0-5	0-5	0-3	0-3	0-3	0-3
2N050-08BH	1/4	5	0.65	0-5	0-5	0-3	0-3	0-3	0-3
2N060-08BH	1/4	6	0.8	0-5	0-5	0-3	0-3	0-3	0-3
2N150-10BH	3/8	15	4.6	0-5	0-5	0-3	0-3	0-3	0-3
2N150-15BH	1/2	15	4.6	0-5	0-5	0-3	0-3	0-3	0-3
2N200-20BH	3/4	20	8.5	0-5	0-5	0-3	0-3	0-3	0-3
2N250-25BH	1	25	12	0-5	0-5	0-3	0-3	0-3	0-3
2N320-35BH	1 1/4	32	24	0-5	0-5	0-3	0-3	0-3	0-3
2N400-40BH	1 1/2	40	29	0-5	0-5	0-3	0-3	0-3	0-3
2N500-50BH	2	50	48	0-5	0-5	0-3	0-3	0-3	0-3
2N250-25FBH	4 holes flange		12	0-5	0-5	0-3	0-3	0-3	0-3
2N320-35FBH		32	24	0-5	0-5	0-3	0-3	0-3	0-3
2N400-40FBH		40	29	0-5	0-5	0-3	0-3	0-3	0-3
2N500-50FBH		50	48	0-5	0-5	0-3	0-3	0-3	0-3
