40 Bar High Pressure Air Compressor Silencer, Air Dryer Muffler, Vacuum Pump Filter, Diaphragm Pump, Exhaust Muffler

Port: Ningbo, ChinaProduction Capacity: 5000 PCS Per MonthPayment Terms: L/C, T/T, D/P, Western Union, Paypal, Money GramModel NO.: XYOrigin: ChinaCustomized: Non-CustomizedType: MufflerUsage: Air CompressorWork Temperature: Normal TemperatureMaterial: Sound-Absorbing Ultrafine Glass Wool with High-Tem
Availability:
Quantity:
  • PGXY

  • XHNOTION

  • L/C, T/T, D/P, Western Union, Paypal, Money Gram

  • Ningbo, China

  • 5000 PCS Per Month

  • PLASTIC BAG AND CARTON

  • GXY

  • China

  • Non-Customized

  • Muffler

  • Air Compressor

  • Normal Temperature

  • Sound-Absorbing Ultrafine Glass Wool with High-Tem

  • 10 Bar

Product Description

Made in China XHNOTION (GXY) 40 Bar High Pressure Air Compressor Silencer, Air Dryer Muffler, Vacuum Pump Filter, Diaphragm Pump, Exhaust Muffler


GXY SERIES MUFFLERS

Based on researching&absorbing products of American Allied Witan company, we produced a new type muffler suitable for domestic market.Main materials are ultra-fine sound-absorbing glass fiber,which have good performance on sound-absorption and high temperature resistance , as well as sound filter media by special treatment imported from American This new type products are suitable for adsorption dryer with 1.0Mpa working pressure.

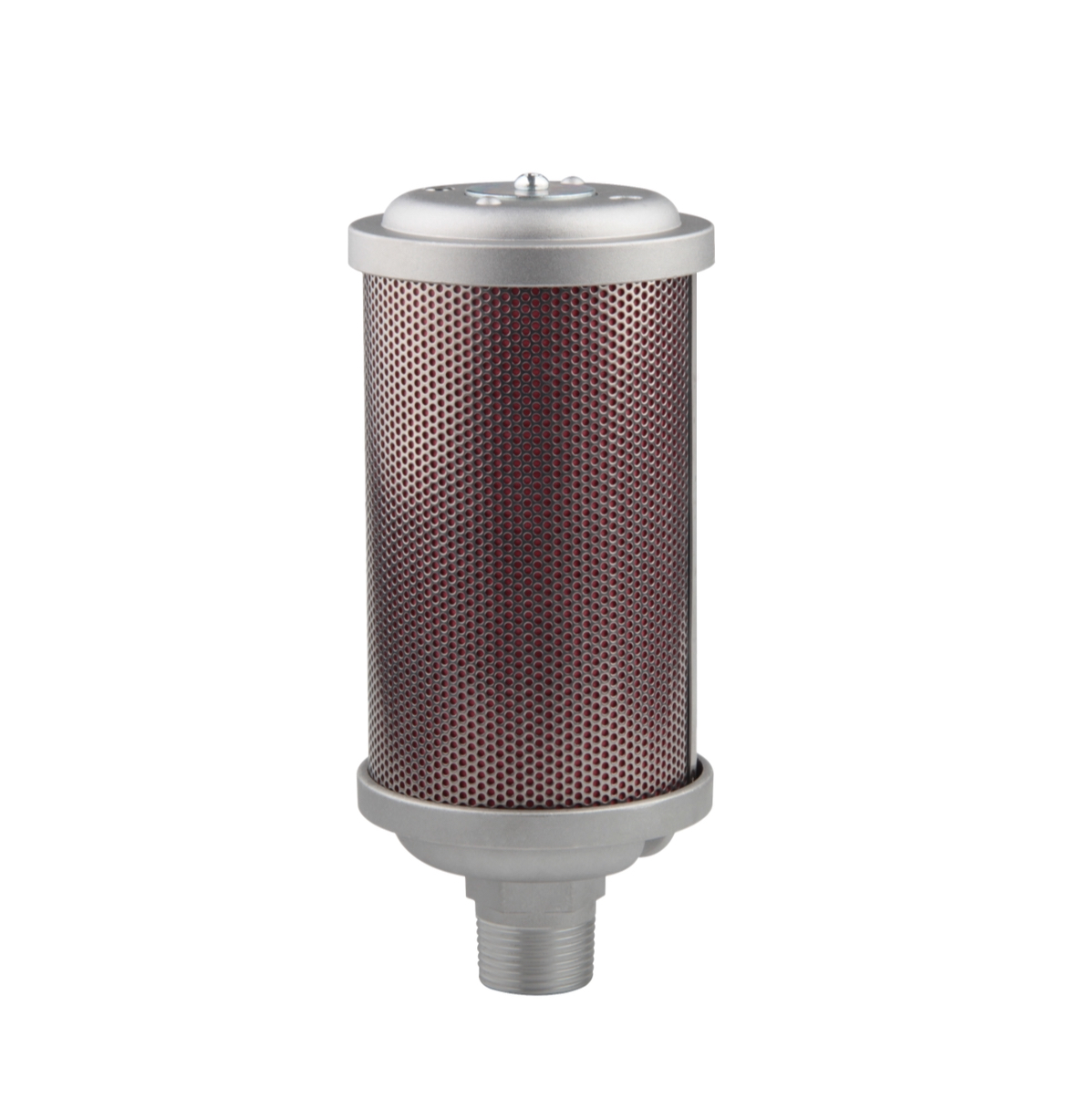

561F07879D754DC5B93D60D7681FE7AC
B8F0F03A8B6BE376A2E95F3273CCC461
B68C843F73E5015E0CBEEB84D626A4E1




TECHINICAL PARAMETERS


1.Application:exhaust mufflers for adsorption dryer
2.Material:sound-absorbing ultrafine glass wool with high-temperature resistance
3.Noise reduction:30db above
4.Opening pressure of by-pass safety valve:2.0~2.2 kgf/cm
5.Operating temperature:≤65ºC
6.Max.operating pressure:10 bar


40 bar XY air compressor muffler (7)

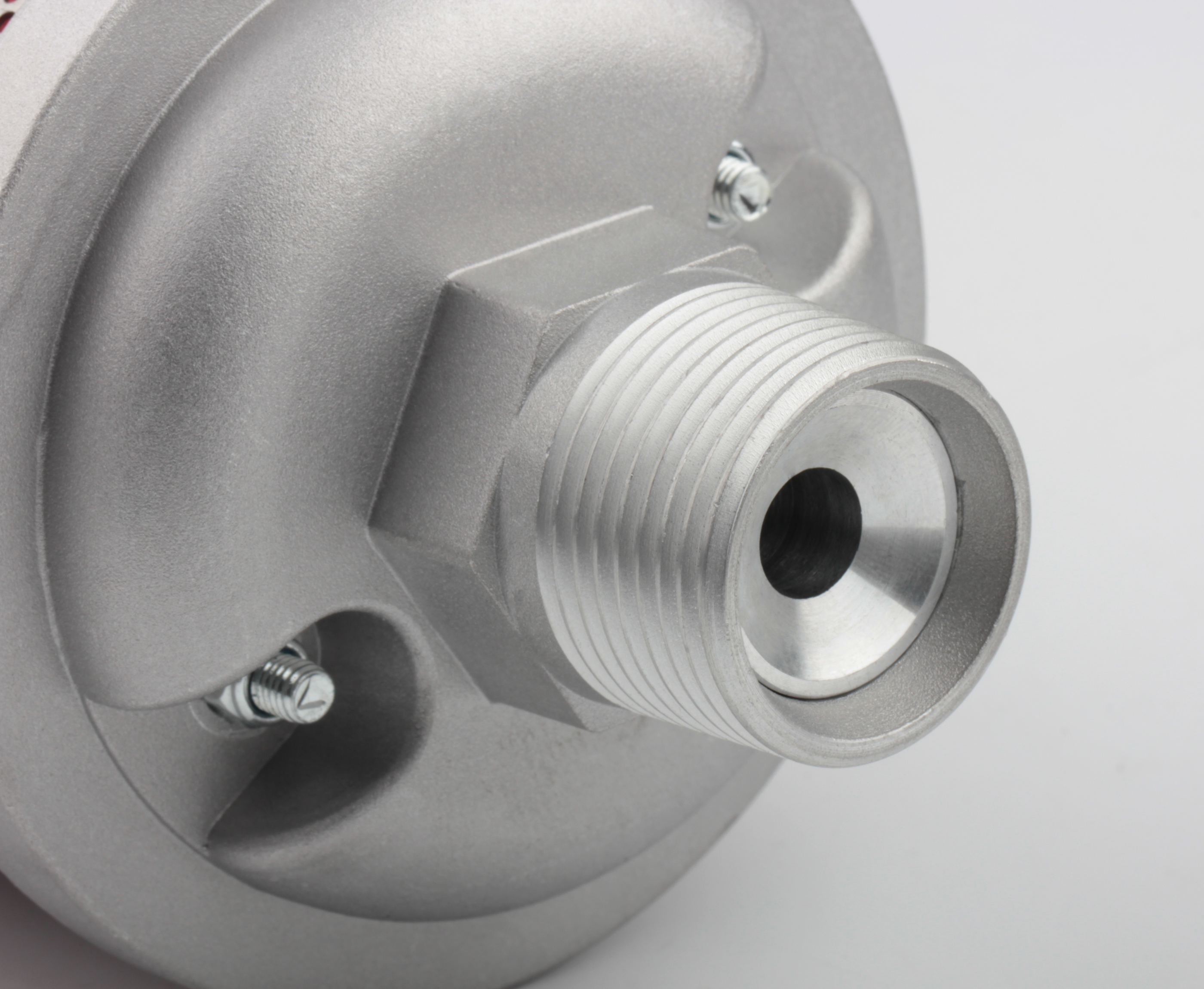

40 bar XY air compressor muffler (3)

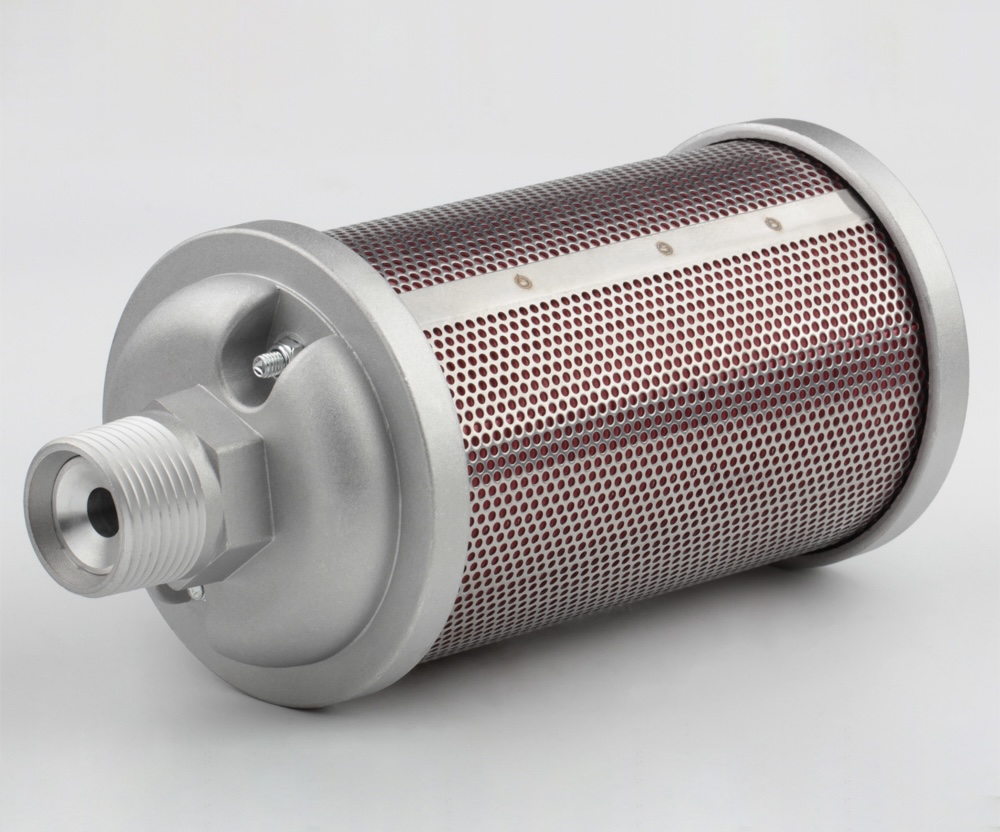

365CE1B6A86F8A17E1E66089F09BBE9C




STRUCTURE







DRAWING


QQ图片20231211094319QQ图片20231211101147 QQ图片20231211105303



MODEL T H h D
(G)XY-01 1/8 83 68 46.5
(G)XY-02 1/4 112 92 46.5
(G)XY-03 3/8 132 110 66
(G)XY-05 1/2 150 125 80
(G)XY-07 3/4 181 156 87
(G)XY-10 1 219 183 99
(G)XY-12 1-1/4 219 183 99
(G)XY-15 1-1/2 340 299 133
(G)XY-20 2 476 432 133
(G)XY-30 3 593 472 173*173
(G)XY-40 4 599 472 199*199
(G)XY-60 6 790 611 277*277



MODEL R H h D d
PGXY-01 1/8 74.4 60 46.5 5
PGXY-02 1/4 104 84 66 9
PGXY-03 3/8 122 100 66 9
PGXY-05 1/2 142.5 117.5 80 12.4
PGXY-07 3/4 172.5 147.5 87 14
PGXY-10 1 207.5 171.5 87 14
PGXY-12 1-1/4 210.5 171.5 99 30
PGXY-15 1-1/2 324.5 283.5 133 34
PGXY-20 2 455.5 414.5 133 44.5



SPECIFICATION




XY Series GXY Series
Filter mateiral Fiber Paper High Polymer
Max Tempearture 65 C 120 C
Water contact Not good Good




MUFFLER NOISE TEST REPORT


Test pressure (Mpa) Model Noise reduction value (db)
- XY GXY-01 -
- XY GXY-02 -
- XY GXY-03 -
0.5 XY-05 75
0.5 GXY-05 84
0.5 XY-07 75
0.5 GXY-07 83
0.7 XY-10 83.4
0.7 GXY-10 87
0.7 XY-15 86.5
0.7 GXY-15 87
0.7 XY-20 88.5
0.7 GXY-20 99
- XY GXY-30 -
- XY GXY-40 -
- XY GXY-60 -




FAQ

Packing
Transparent plastic bag + white small box + neutral carton + pallet
Custom packaging are available, XHnotion brand packaging are available

Shipping :
Export port: Ningbo or Shanghai, China
Shipping way: by sea, by air, by courier
Delivery time 3 days to 30 days depends on actual orders.

Payment Terms
We accept T/T, L/C, Paypal, western union,etc.

Samples Policy
For regular fittings below 20 pcs, free samples against your courier account or you pick up from us.
For custom items, we will discuss by email.

Return Policy
We assure you 1 year policy after shipment. If there is any problem during this period, please contact us for support.
