3c Series Drinking Water Solenoid Valve

Quantity:
  • Ningbo, China
  • 10000 PCS Per Month
  • L/C, T/T, Western Union, Paypal, Money Gram
  • 3C-02, 3C-01, 2C-10
  • Ordinary Pressure
  • Direct Action Diaphragm Structure
  • DC Solenoid Valve
  • Flow Control
  • DIN
  • Industrial Usage, Water Industrial Usage, Household Usage
  • 12VDC, 24VDC, 110VAC, 220VAC
  • Water, Ozone
  • XHnotion
  • Paper Box
  • ROHS, REACH, CE
  • China
  • 8481804090
  • Water
  • Ordinary Temperature
  • Electric
  • Thread
  • Direct Acting
  • Stainless Steel
Product Description
FEATURES

1. This series can be used for drinking water, materials get ROHS certificate.

2. Seal material is EPDM or Silicone, which is used for hot water or Ozone.

3. Directing acting, pilot acting, and 3 ways are available.

4. Connection way: thread 1/8, 1/4; tubes 1/4"; Silicone tubes I.D. 1/4";

5. Orifice: 3-10mm , Max pressure: 10 Bar.

6. Conforming to CE certificate.



SPECIFICATIONS
Model 2C-10 3C-01 3C-02
Type 2 WAY NC 3 WAY DIRECTIONAL VALVE 3 WAY DIRECTIONAL VALVE
Workign pressure (Bar) 0-4 Bar 0-1 Bar 0-4 Bar
Medium temp. (ºC) 0-100ºC
Environment temp.?ºC) -10-40ºC
Orifice (mm) 4 4 4
Body material POM POM POM
Seals material EPDM / SILICONE EPDM / SILICONE EPDM / SILICONE
Connection size 1/4 I.D. Silicone tubes 1/4 I.D. Silicone tubes 1/4 I.D. Silicone tubes
Power consumption 8W 8W 8W
Voltage 6VDC, 12VDC, 24VDC


ADVANTAGE

1) Raw Material conforms to China industry standard, bought from famous factory.

2) Insulation grade: H class, good resistance to high temperature;

3) Machined by CNC to make sure the tolerance as the drawing

4) 100% leakage testing under low pressure and high pressure.

5) All kinds of valve and seals material to meet custom requirement.

6) 1 year quality assurance after shipment.

7) After sales technique support



WHY CHOOSE US?

1) We offer one stop solution. Over 5000 items for you to save efforts and costs.

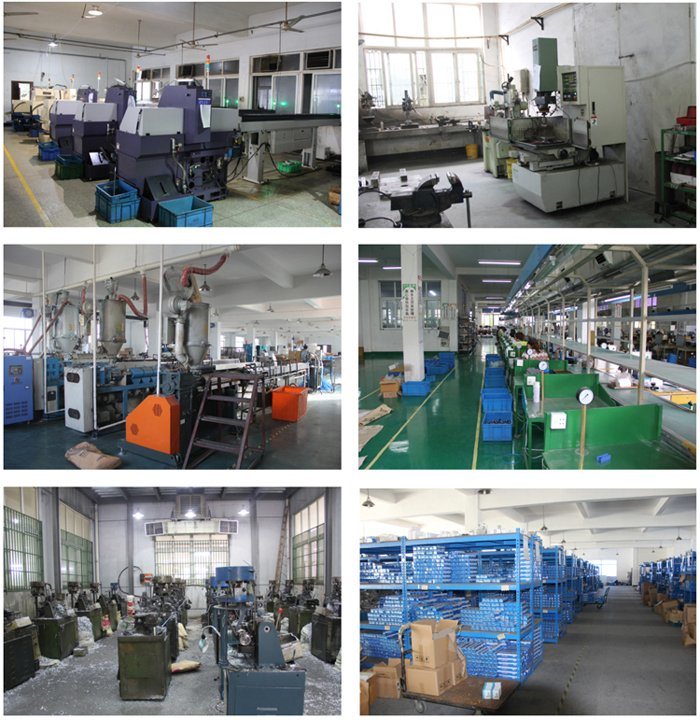

2)We have molds workshop, die-casting workshop, CNC workshop, plastic injection workshop to make sure each part exactly as the drawing and good function.

3) We will reply you within 24 hours.

4) Whatever quantity you are requesting, we always offer you the best quality.

5)3D drawing, cad drawing service for custom fittings, hose, valve, cylinder





FAQ

Packing
Transparent plastic bag + white small box + neutral carton + pallet
Custom packaging are available, XHnotion brand packaging are available

Shipping :
Export port: Ningbo or Shanghai, China
Shipping way: by sea, by air, by courier
Delivery time 3 days to 30 days depends on actual orders.

Payment Terms
We accept T/T, L/C, Paypal, western union,etc.

Samples Policy
For regular fittings below 20 pcs, free samples against your courier account or you pick up from us.
For custom items, we will discuss by email.

Return Policy:
We assure you 1 year policy after shipment. If there is any problem during this period, please contact us for support.


============================================================
We have thousands of solenoid valve in the stock. If you do not know how to order our valve, please tell us some necessary information, we will recommend you the most economical solenoid valve.

1. valve material
2. working pressure
3. temperature range
4 working environment
5. quantity

You can choose as below

Body Material: Plastic, brass, SS304, SS306, Steel.
Seal Material: NBR, VITON, PTFE, EPDM, SILICONE
Voltage: 12VDC, 24VDC, 24VAC, 220VAC, 280VAC
Size: M5-2", Flange connection
