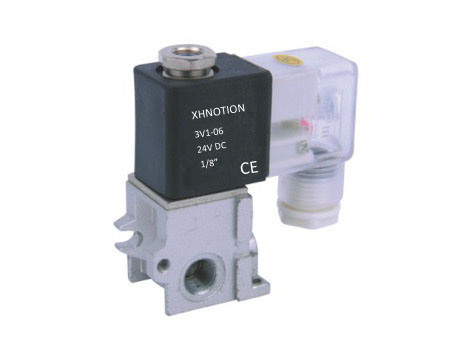

3V Series 2/3 Air Control Solenoid Valve

Quantity:
  • Ningbo, China
  • 10000 PCS Per Month
  • L/C, T/T, Western Union, Paypal, Money Gram
  • 3V1-06A
  • Ordinary Pressure
  • Direct Action Diaphragm Structure
  • DC Solenoid Valve
  • Flow Control
  • DIN
  • Industrial Usage, Water Industrial Usage, Household Usage
  • 1/8
  • 0.23
  • XHnotion
  • Box
  • ROHS, REACH, CE
  • China
  • 8481804090
  • Gas
  • Ordinary Temperature
  • Electric
  • Thread
  • Direct Acting
  • Aluminum
Product Description
FEATURES
Operation Direct
Working Medium Filtered Air
Ambient Temperature -10~60 ºC
Air Outlet Diameter 1mm
Working Pressure 0-0.8 Mpa
Max Pressure 1.2 Mpa
Power Consumption IP 65
Wiring/Connector Cable/Lead Wire or DIN Connector
Body Material Aluminum Alloy
Switching Frequency 10 Cycles/Sec
Insulation F Class
Operating Voltage Tolerance +/- 10%
Response Time 0.05Sec
Flow Aperture ¦Õ1mm

SPECIFICATIONS

Model Description Thread Flow (Cv) Voltage
3V1-06A-DC12 1F-20F 1/8 0.23 DC 12V
3V1-06A-DC24 1F-20F 1/8 0.23 DC 24V
3V1-06A-AC24 1F-20F 1/8 0.23 AC 24V
3V1-06A-AC110 1F-20F 1/8 0.23 AC 110V
3V1-06A-AC220 1F-20F 1/8 0.23 AC 220V




SOLENOID VALVE ADVANTAGE

1) Valve body is machined by Japan automatic CNC to make sure all the dimensions accurate.

2) Aluminum Surface is polished and hard anodized.

3) To import Germany grease to provide firm less-friction support

4) O-ring is imported from Taiwan.

5) 100% leakage testing under low pressure and high pressure.

6) 1 year quality assurance after shipment.

7) After sales technique support


WHY CHOOSE US?

1) We offer one stop solution. Over 5000 items for you to save efforts and costs.

2)We have molds workshop, die-casting workshop, CNC workshop, plastic injection workshop to make sure each part exactly as the drawing and good function.

3) We will reply you within 24 hours.

4) Whatever quantity you are requesting, we always offer you the best quality.

5)3D drawing, cad drawing service for custom fittings, hose, valve, cylinder.

FAQ

Packing
Transparent plastic bag + white small box + neutral carton + pallet
Custom packaging are available, XHnotion brand packaging are available

Shipping :
Export port: Ningbo or Shanghai, China
Shipping way: by sea, by air, by courier
Delivery time 3 days to 30 days depends on actual orders.

Payment Terms
We accept T/T, L/C, Paypal, western union,etc.

Samples Policy
For regular valve 1 pcs, free samples against your courier account or you pick up from us.
For custom items, we will discuss by email.

Return Policy:
We assure you 1 year policy after shipment. If there is any problem during this period, please contact us for support.


==========================================================


Meanwhile, we also manufacture below items.


pneumatic fittings, plastic, brass, stainless steel push in fittings

pneumatic quick coupling, air tool kits, air blow gun

pneumatic muffler, silencer, filter

air hose- PU tubes, nylon tube, PE tube, PTFE tubes, etc

air cylinder, air preparation, 2 way solenoid valve

modular hose, water push in fitting

Ball valve, brass connector

=========================================================
