3 Way Micro Solenoid Valve for Textile Knitting Machine

Quantity:
  • 10000 PCS Per Month
  • Bluk Packing or Blister Packing
  • L/C, T/T, Paypal, Money Gram, Western Union

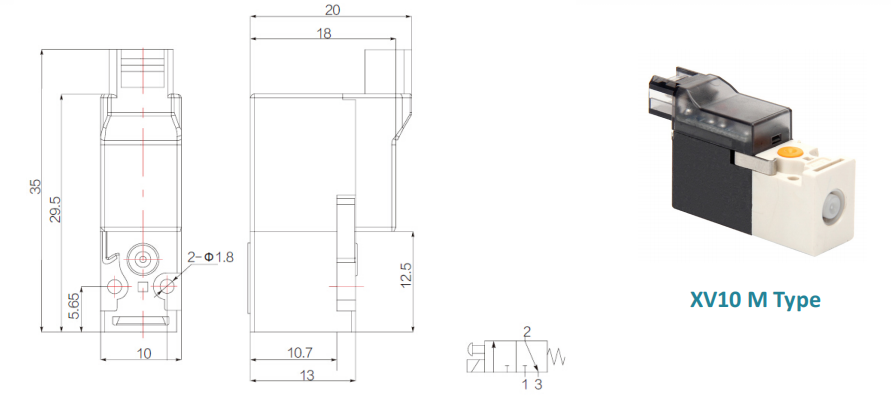

  • XV10 M Type
  • DC Solenoid Valve
  • Directional
  • DIN
  • Industrial Usage, Water Industrial Usage, Household Usage
  • 1/4,1/8
  • 12VDC, 24VDC, 110VAC, 220VAC
  • XHnotion
  • CE
  • China
  • 8481804090
  • Electric
  • Thread
  • Pilot Operated
  • Aluminum
  • Low Pressure
  • Pilot Piston Structure
Product Description
FEATURES
Small size & Convenient installaton
It is ideal for installation in confined space, which can be either installed on a single base or on the manifolds. It can replace the majority of similar products at home and abroad for its great compatibility in installation size and also can be used as the pilot control valve for SY series and 4V series solenoid valve.

Energy -saving & Environment friendly
The power consumption of the standard type is only 1w, And the energy -saving type is only 0.3w.

Large flow& Wide application
It has large flow rate which can be used not only for compact cylinder, swing cylinder and other slider series, but also for the pilot control of processing valve. The large flow type can especially meet different needs, because it increase the flow rate by 50% on the basis of the standard type.

Quick Response & Multi-functional

It can response within10ms, realizing vacuum function easily.

Multi-specifications & All models
Distinguished by voltage, there are AC220V,AV110V,DC24V,DC12V,DC6V and DC3V. Distinguished by
interface mode, there are vertical type(L type), the horizontal type (M type) and direct line type(G type) etc.
It can response within10ms, realizing vacuum function easily.

Long life & More sustainable
Super safe even in the situation of 24-hour continuous work and 100% on-load factor.
SPECIFICATIONS
GENERAL DATA
Model XV10
Operation Type 3/2 N.C.; 3/2 N.O.; 2/2 N.C.
Working Medium Filtered Air/Inert gases
Ambient Temperature -10~80 ºC
Working Pressure 0-7bar
Orifice size φ0.75mm(P),/φ1.0mm(R)
Flow rate at 6 bar(Δp1bar) 16NL/min(P1→P2), 23NL/min(P2→P3)


COIL DATA
Electrical Connector Vertical type(L)/Horizontal type(M)/Direct line type(G)
Stand Voltage DC24V/12V/6V/3V; AC220V/110V
Power 1W/1.2W double power
Insulation H Class
Service life > 50 million times
Duty Cycle ED 100%
Max Operating Frequency 30Hz
Operating Voltage Tolerance +/- 10%
Response Time Less than 10ms
Degree of pretection IP65


ADVANTAGE

1 ) Valve body is m achined by Japan automatic CNC to make sure all the dimensions accurate.

2) Aluminum Surface is polished and hard anodized.

3) To import Germany grease to provide firm less-friction support

4) O-ring is imported from Taiwan.

5) 100% leakage testing under low pressure and high pressure.

6) 1 year quality assurance after shipment.

7) After sales technique support


WORKSHOP SHOW
3 Way Micro Solenoid Valve for Textile Knitting Machine

3 Way Micro Solenoid Valve for Textile Knitting Machine
3 Way Micro Solenoid Valve for Textile Knitting Machine
WHY CHOOSE US?

1) We offer one stop solution. Over 5000 items for you to save efforts and costs.

2)We have molds workshop, die-casting workshop, CNC workshop, plastic injection workshop to make sure each part exactly as the drawing and good function.

3) We will reply you within 24 hours.

4) Whatever quantity you are requesting, we always offer you the best quality.

5)3D drawing, cad drawing service for custom fittings, hose, valve, cylinder .

FAQ

Packing
Transparent plastic bag + white small box + neutral carton + pallet
Custom packaging are available, XHnotion brand packaging are available

Shipping :
Export port: Ningbo or Shanghai, China
Shipping way: by sea, by air, by courier
Delivery time 3 days to 30 days depends on actual orders.

Payment Terms
We accept T/T, L/C, Paypal, western union,etc.

Samples Policy
For regular valve 1 pcs, free samples against your courier account or you pick up from us.
For custom items, we will discuss by email.

Return Policy:
We assure you 1 year policy after shipment. If there is any problem during this period, please contact us for support.
