3/8 1/2 M16*1.5 M22*1.5 Pneumatic Truck Gate Nylon Air Brake Tubing

Availability:
Quantity:
  • QS-15

  • Xhnotion or no brand

  • 39174000

  • L/C, T/T, Western Union, Paypal, Money Gram

  • Ningbo, China

  • 20000 PCS Per Month

  • QS-15

  • Round

  • Socket

  • 85mm, 105mm

  • XHnotion

  • Box

  • REACH

  • CHINA

  • 39174000

  • Medium Temperature Piping

  • Medium Pressure Piping

  • Nylon

  • ASTM

  • 85mm, 105mm

  • Air

Product Description





3/8 1/2  M16*1.5  M22*1.5 Pneumatic Truck Gate Nylon Air Brake Tubing






FEATURES

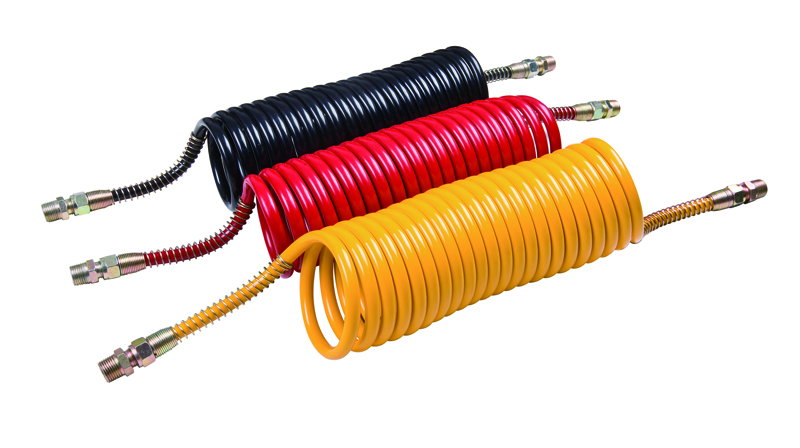

air brake tubing (5)

1. Can be continuously used under -60ºF ~ 200ºF temperature.


2. Excellent elasticity, arc resistance, corona resistance, high pressure resistant, resistance to ozone, high tear resistance etc.


3. Environment friendly, non-toxic, tasteless, safe and reliable, good physical stability etc.


4. Standard color: Black, Red, Blue, White, Gray, Green, Transparent etc.


5. Used for many industries, such as aviation, electron, oil, chemical industry, machinery, electrical equipment, medical treatment etc.

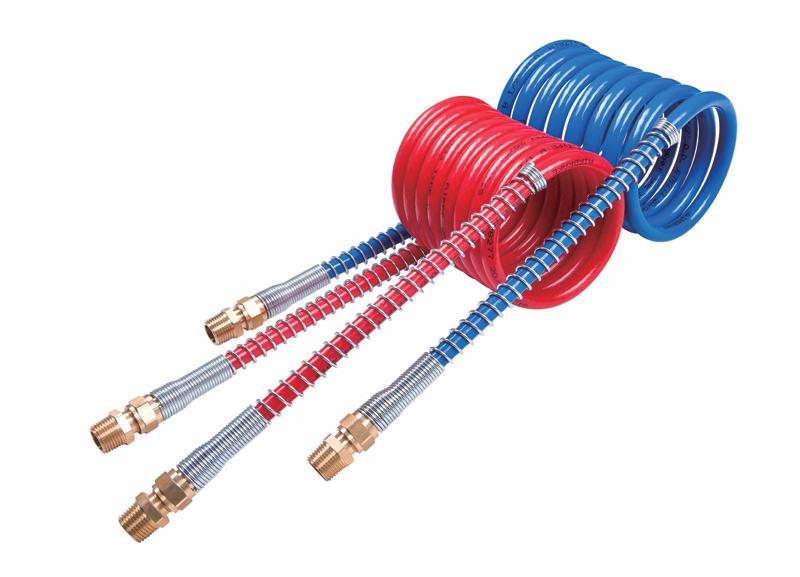

air brake tubing (8)

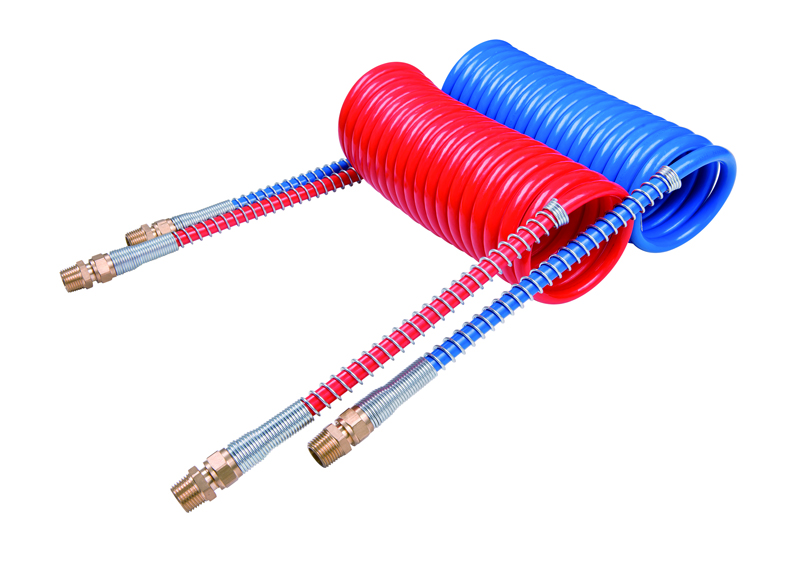

air brake tubing (7)






SPECIFICATIONS






Technical Information Nylon Tubing (Polyamide Tube)
Material PA12, PA11, PA6
Fluid Air, Water, Oil
Burst Pressure ( 20 oC) 870 Psi
Working Pressure ( 20 oC) 0-360 Psi
Operating Temperature -40~120 ºC
Density 1.04 g/cc
Size Tolerance 3-8mm, +/-0.10 mm
10-20mm, +/-0.15 mm





Model Coils Number Coil Outer Diameter(mm) Working Length(mm) Fittings
QS-15 15 105 2.5 M18X1.5   M22X1.5
QS-18 18 85 2.5
105 3
QS-20 20 85 2.75
105 3.25
QS-22 22 85 3
105 3.5
QS-24 24 85 3.25
105 3.75
QS-26 26 85 3.5
105 4
QS-28 28 105 4.25
QS-30 30 105 4.5

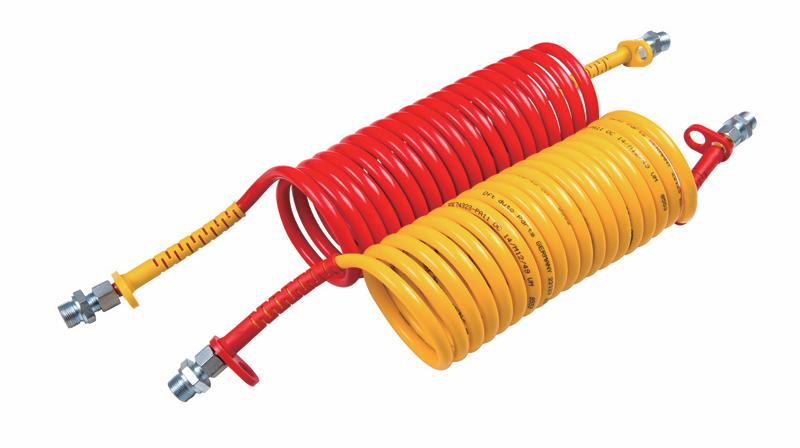

air brake tubing (4)
air brake tubing (5)
air brake tubing (6)





TUBE ADVANTAGES





air brake tubing (7) 1) 100% fresh material.



2) Enough meters per roll and can mark meter on the tube as you request.



3) Print your logo above 3000 meter each size.



4) Conform to REACH, CE, ROHS certificate.



5) Rich stock for every size and regular color.



6) 1 year quality assurance after shipment.



7) After sales technique support.

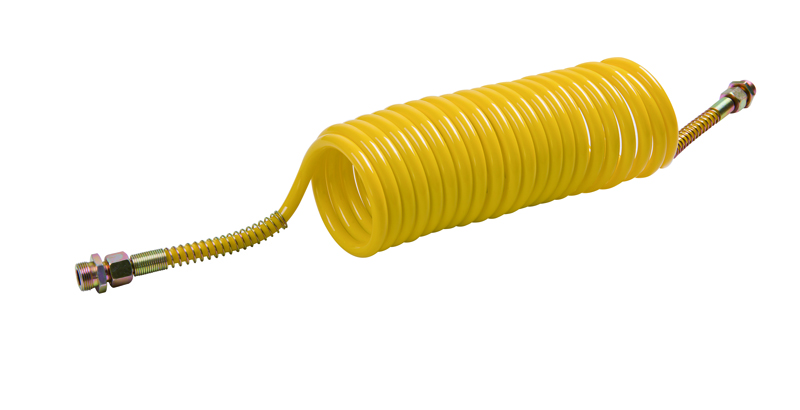

air brake tubing (1)

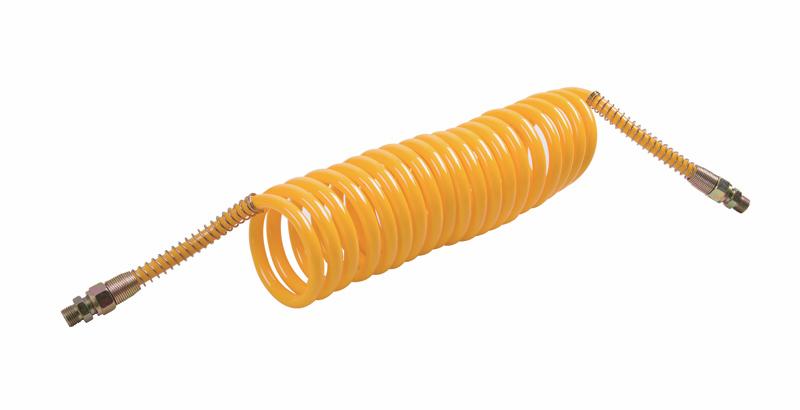

air brake tubing (2)

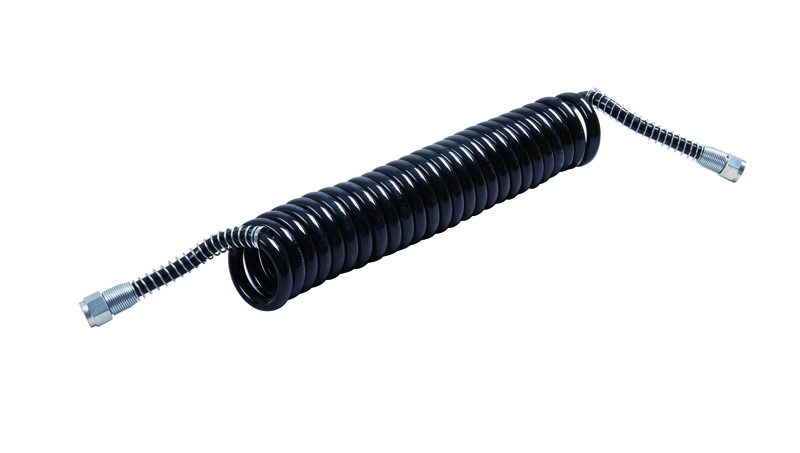

air brake tubing (3)

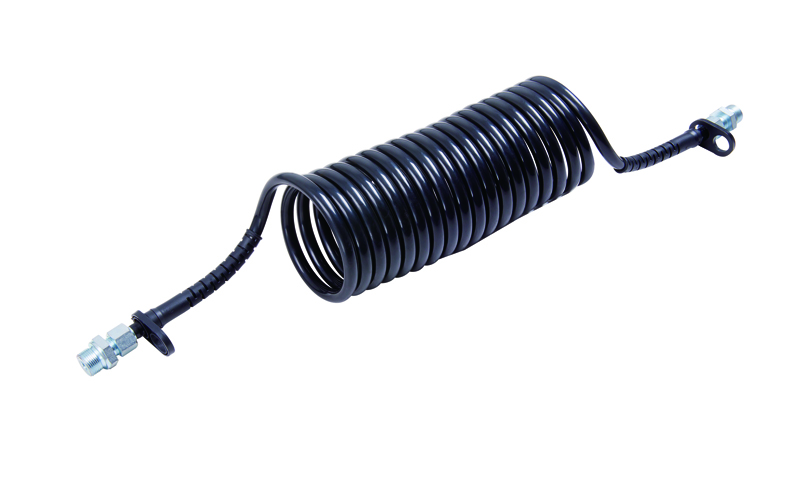

DSC_7284





FAQ





Packing
neutral carton + big carton
Custom packaging are available, XHnotion brand packaging are available

Shipping :
Export port: Ningbo or Shanghai, China
Shipping way: by sea, by air, by courier
Delivery time 3 days to 30 days depends on actual orders.

Payment Terms
We accept T/T, L/C, Paypal, western union,etc.

Samples Policy
Free samples against your courier account or you pick up from us.
For custom items, we will discuss by email.

Return Policy:
We assure you 1 year policy after shipment. If there is any problem during this period, please contact us for support.
