2n Series Compact Solenoid Valve

Model NO.: 2N100-08Power Supply: DC Solenoid ValveUsage: Flow ControlStandard: DINApplication: Industrial Usage, Water Industrial Usage, Household UsageRegular Voltage: 12VDC, 24VDC, 110VAC, 220VACFluid: Air, Water, Oil, Diesel, Ozone, SteamTrademark: XHnotionSpecification: CEOrigin: NingboHS Code: 8481804090Actuator: ElectricConnection Form: ThreadType: Direct ActingMaterial: BrassPressure: Low PressureValve Structure: Direct Action Diaphragm Structure
Availability:
Quantity:
  • 2N100-08
  • XHNOTION
  • L/C, T/T, Paypal, Money Gram, Western Union
  • Ningbo, China
  • 10000 PCS Per Day
  • Plastic Bag
  • 2N100-08
  • DC Solenoid Valve
  • Flow Control
  • DIN
  • Industrial Usage, Water Industrial Usage, Household Usage
  • 12VDC, 24VDC, 110VAC, 220VAC
  • Air, Water, Oil, Diesel, Ozone, Steam
  • XHnotion
  • CE
  • Ningbo
  • 8481804090
  • Electric
  • Thread
  • Direct Acting
  • Brass
  • Low Pressure
  • Direct Action Diaphragm Structure
Product Description

FEATURES

1. Compact volume, large flow, widely use

2. Protection class: IP65, dust proof and water proof, can be used for outdoors

3. DIN connector and wire leads are available

4. Insulation grade: H class, good resistance to high temperature;

5. NBR, VITON, EPDM, SILICONE seals are available

6. Normally closed and normally open


SPECIFICATIONS

Model Thread      Size (G) Orifice (mm) CV Working Pressure (Bar) Body Material Seals Voltage
AC DC
air, gas water ≤20cst oil air, gas water ≤20cst oil
2N100-08 3/8" 10 1.9 0-20 0-20 0-20 0-16 0-16 0-16 Brass NBR, VITON 220VAC    110VAC     24VDC
2N100-10 1/2" 10 1.9 0-20 0-20 0-20 0-16 0-16 0-16
2N100-15 3/4" 10 1.9 0-20 0-20 0-20 0-16 0-16 0-16


SOLENOID VALVE ADVANTAGE

1) Raw Material conforms to China industry standard, bought from famous factory.

2) Insulation grade: H class, good resistance to high temperature;

3) Machined by CNC to make sure the tolerance as the drawing

4) 100% leakage testing under low pressure and high pressure.

5) All kinds of valve and seals material to meet custom requirement.

6) 1 year quality assurance after shipment.

7) After sales technique support

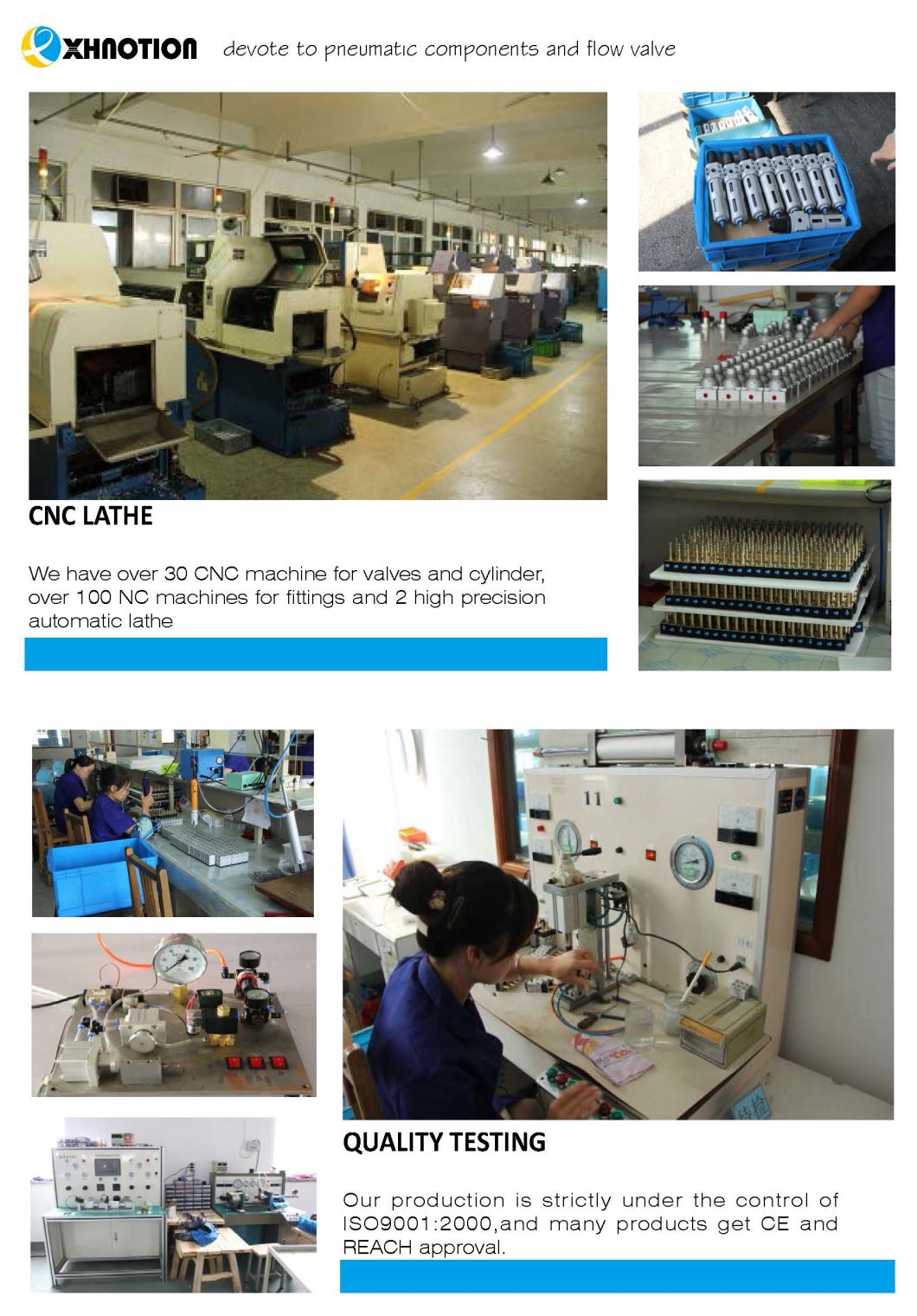

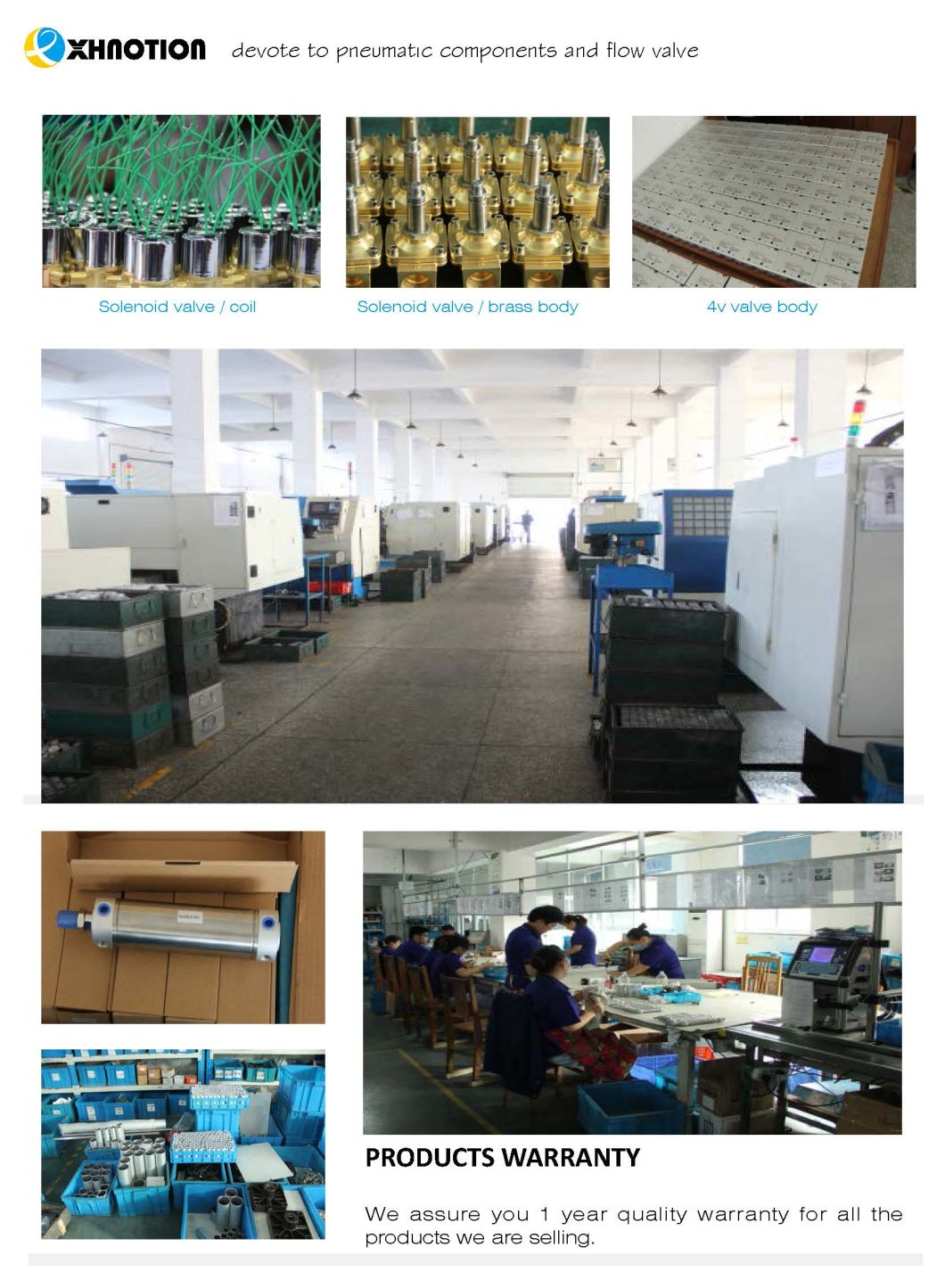

WORKSHOP SHOW
2n Series Compact Solenoid Valve
2n Series Compact Solenoid Valve


WHY CHOOSE U S?


1) We offer one stop solution. Over 5000 items for you to save efforts and costs.

2)We have molds workshop, die-casting workshop, CNC workshop, plastic injection workshop to make sure each part exactly as the drawing and good function.

3) We will reply you within 24 hours.

4) Whatever quantity you are requesting, we always offer you the best quality.

5)3D drawing, cad drawing service for custom fittings, hose, valve, cylinder.



FAQ

Packing
Transparent plastic bag + white small box + neutral carton + pallet
Custom packaging are available, XHnotion brand packaging are available

Shipping :
Export port: Ningbo or Shanghai, China
Shipping way: by sea, by air, by courier
Delivery time 3 days to 30 days depends on actual orders.

Payment Terms
We accept T/T, L/C, Paypal, western union,etc.

Samples Policy
For regular fittings below 20 pcs, free samples against your courier account or you pick up from us.
For custom items, we will discuss by email.

Return Policy:
We assure you 1 year policy after shipment. If there is any problem during this period, please contact us for support.
