| Quantity: | |
|---|---|
2W500-50
XHNOTION
L/C, T/T, Western Union, Paypal, Money Gram
Ningbo, China
10000 PCS /Month
CARTONS
2W500-50
Ordinary Pressure
Direct Action Diaphragm Structure
DC Solenoid Valve
Flow Control
DIN
Industrial Usage, Water Industrial Usage
12VDC, 24VDC, 110VAC, 220VAC
Air, Water, Oil, Diesel, Ozone, Steam
XHnotion
Paper Box
ROHS, REACH, CE
Ningbo
8481804090
Water
Ordinary Temperature
Electric
Thread
Direct Acting
Brass
FEATURES
1. Compact volume, large flow, widely use
2. Steel shell, good heat dissipation
3. IP54, low cost.
4. Body material: brass, stainless steel
5. NBR, VITON, EPDM, SILICONE seals are available
6. Normally closed and normally open.
SPECIFICATIONS

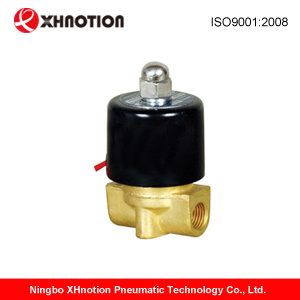

Specification for 2W Series Normally Closed Solenoid Valve
| Model | 2W025-06 | 2W025-08 | 2W040-10 | 2W160-10 | 2W160-15 | 2W200-20 | 2W250-25 | 2W350-35 | 2W400-40 | 2W500-50 |
| 2W025-06B | 2W025-08B | 2W040-10B | 2W160-10B | 2W160-15B | 2W200-20B | 2W250-25B | 2W350-35B | 2W400-40B | 2W500-50B | |
| Working Type | Normally Closed | |||||||||
| Medium | Air, Water, Light Oil, Gas | |||||||||
| Acting Motion | Direct Acting | |||||||||
| Orifice(mm) | 2.5mm | 4mm | 16mm | 20mm | 25mm | 35mm | 40mm | 50mm | ||
| CV Value | 0.23 | 0.6 | 4.8 | 7.6 | 12 | 24 | 29 | 48 | ||
| Pipe Size | 1/8" | 1/4" | 3/8" | 3/8" | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" |
| Working Pressure | Water, Air 0-120 Psi, Oil 0-70 Psi | |||||||||
| Working Temperature | -5-80 ºC | |||||||||
| Viscosity | Under 20CST | |||||||||
| Seal Material | NBR, EDPM, VITON | |||||||||
| Body Material | Brass, Stainless steel | |||||||||
| Voltage | 220VAC, 110VAC, 24VDC, 12VDC | |||||||||
Specification for 2W Series Normally Open Solenoid Valve
| Model | 2W025-06H | 2W025-08H | 2W040-10H | 2W160-10H | 2W160-15H | 2W200-20H | 2W250-25H | 2W350-35H | 2W400-40H | 2W500-50H |
| 2W025-06BH | 2W025-08BH | 2W040-10BH | 2W160-10BH | 2W160-15BH | 2W200-20BH | 2W250-25BH | 2W350-35BH | 2W400-40BH | 2W500-50BH | |
| Working Type | Normally Open | |||||||||
| Medium | Air,Water,Light Oil,Gas | |||||||||
| Acting Motion | Direct Acting | |||||||||
| Orifice(mm) | 2.5mm | 4mm | 16mm | 20mm | 25mm | 35mm | 40mm | 50mm | ||
| CV Value | 0.23 | 0.6 | 4.8 | 7.6 | 12 | 24 | 29 | 48 | ||
| Pipe Size | 1/8" | 1/4" | 3/8" | 3/8" | 1/2" | 3/4" | 1" | 1-1/4" | 1-1/2" | 2" |
| Working Pressure | Water,Air 0-70 Psi,Oil 0-40 Psi | |||||||||
| Working Temperature | -5-80 ºC | |||||||||
| Viscosity | Under 20CST | |||||||||
| Seal Material | NBR, EDPM, VITON | |||||||||
| Body Material | Brass, Stainless steel | |||||||||
| Voltage | 220VAC, 110VAC, 24VDC, 12VDC | |||||||||
ADVANTAGE
1) Raw Material conforms to China industry standard, bought from famous factory.
2) Insulation grade: H class, good resistance to high temperature;
3) Machined by CNC to make sure the tolerance as the drawing
4) 100% leakage testing under low pressure and high pressure.
5) All kinds of valve and seals material to meet custom requirement.
6) 1 year quality assurance after shipment.
7) After sales technique support
WHY CHOOSE US?
1) We offer one stop solution. Over 5000 items for you to save efforts and costs.

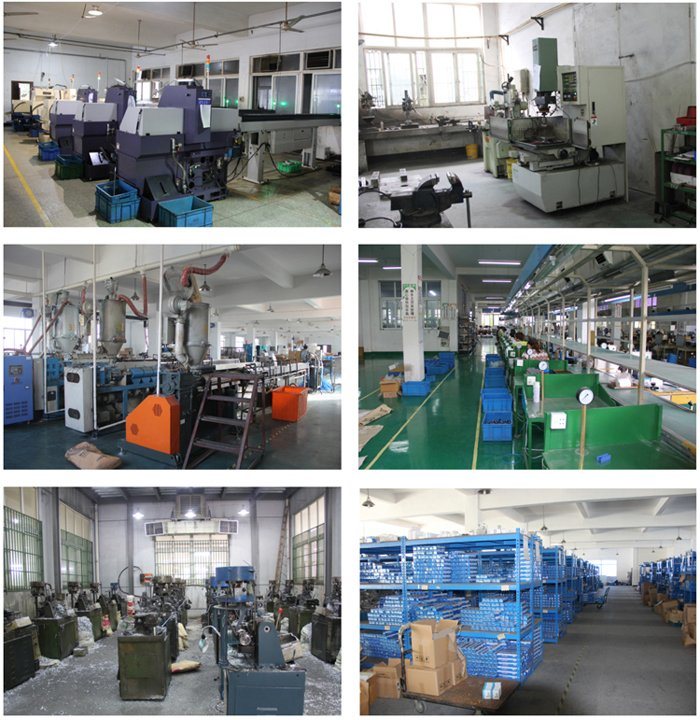

2)We have molds workshop, die-casting workshop, CNC workshop, plastic injection workshop to make sure each part exactly as the drawing and good function.
3) We will reply you within 24 hours.
4) Whatever quantity you are requesting, we always offer you the best quality.
5)3D drawing, cad drawing service for custom fittings, hose, valve, cylinder
FAQ
Packing
Transparent plastic bag + white small box + neutral carton + pallet
Custom packaging are available, XHnotion brand packaging are available
Shipping :
Export port: Ningbo or Shanghai, China
Shipping way: by sea, by air, by courier
Delivery time 3 days to 30 days depends on actual orders.
Payment Terms
We accept T/T, L/C, Paypal, western union,etc.
Samples Policy
For regular fittings below 20 pcs, free samples against your courier account or you pick up from us.
For custom items, we will discuss by email.
Return Policy:
We assure you 1 year policy after shipment. If there is any problem during this period, please contact us for support.
============================================================
We have thousands of solenoid valve in the stock. If you do not know how to order our valve, please tell us some necessary information, we will recommend you the most economical solenoid valve.
1. valve material
2. working pressure
3. temperature range
4 working environment
5. quantity
You can choose as below
Body Material: Plastic, brass, SS304, SS306, Steel.
Seal Material: NBR, VITON, PTFE, EPDM, SILICONE
Voltage: 12VDC, 24VDC, 24VAC, 220VAC, 280VAC
Size: M5-2", Flange connection
