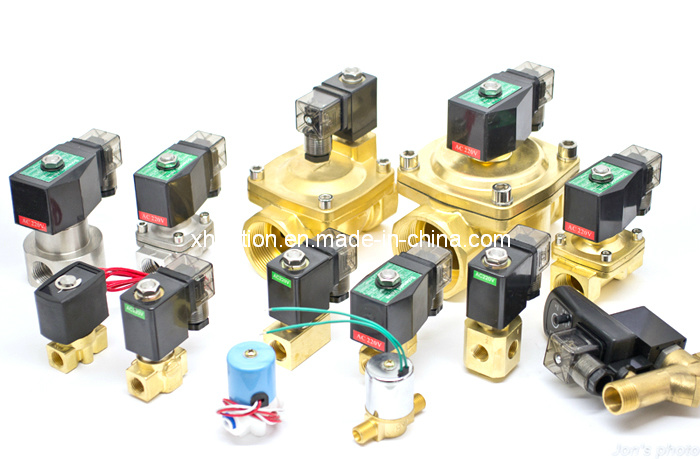

2W Series Flange Connection Solenoid Valve

Model NO.: 2W350-35FPressure: Ordinary PressureValve Structure: Direct Action Diaphragm StructurePower Supply: DC Solenoid ValveUsage: Flow ControlStandard: DINApplication: Industrial Usage, Water Industrial UsageRegular Voltage: 12VDC, 24VDC, 110VAC, 220VACFluid: Air, Water, Oil, Diesel, Ozone, SteamTrademark: XHnotionTransport Package: Paper BoxSpecification: ROHS, REACH, CEOrigin: NingboHS Code: 8481804090Media: GasTemperature: Ordinary TemperatureActuator: ElectricConnection Form: FlangeType: Direct ActingMaterial: Stainless Steel
Availability:
Quantity:
  • 2W350-35F

  • XHNOTION

  • L/C, T/T, Western Union, Paypal, Money Gram

  • Ningbo, China

  • 10000 PCS /Month

  • CARTONS

  • 2W350-35F

  • Ordinary Pressure

  • Direct Action Diaphragm Structure

  • DC Solenoid Valve

  • Flow Control

  • DIN

  • Industrial Usage, Water Industrial Usage

  • 12VDC, 24VDC, 110VAC, 220VAC

  • Air, Water, Oil, Diesel, Ozone, Steam

  • XHnotion

  • Paper Box

  • ROHS, REACH, CE

  • Ningbo

  • 8481804090

  • Gas

  • Ordinary Temperature

  • Electric

  • Flange

  • Direct Acting

  • Stainless Steel

Product Description

FEATURES

1. Compact volume, large flow, widely use

2. Steel shell, good heat dissipation

3. IP54, low cost.

4. Body material: brass, stainless steel

5. NBR, VITON, EPDM, SILICONE seals are available

6. Normally closed and normally open.



SPECIFICATIONS

Specification for 2W Series Normally Closed Solenoid Valve

Model 2W025-06 2W025-08 2W040-10 2W160-10 2W160-15 2W200-20 2W250-25 2W350-35 2W400-40 2W500-50
2W025-06B 2W025-08B 2W040-10B 2W160-10B 2W160-15B 2W200-20B 2W250-25B 2W350-35B 2W400-40B 2W500-50B
Working Type Normally Closed
Medium Air, Water, Light Oil, Gas
Acting Motion Direct Acting
Orifice(mm) 2.5mm 4mm 16mm 20mm 25mm 35mm 40mm 50mm
CV Value 0.23 0.6 4.8 7.6 12 24 29 48
Pipe Size 1/8" 1/4" 3/8" 3/8" 1/2" 3/4" 1" 1-1/4" 1-1/2" 2"
Working Pressure Water, Air 0-120 Psi, Oil 0-70 Psi
Working Temperature -5-80 ºC
Viscosity Under 20CST
Seal Material NBR, EDPM, VITON
Body Material Brass, Stainless steel
Voltage 220VAC, 110VAC, 24VDC, 12VDC


Specification for 2W Series Normally Open Solenoid Valve

Model 2W025-06H 2W025-08H 2W040-10H 2W160-10H 2W160-15H 2W200-20H 2W250-25H 2W350-35H 2W400-40H 2W500-50H
2W025-06BH 2W025-08BH 2W040-10BH 2W160-10BH 2W160-15BH 2W200-20BH 2W250-25BH 2W350-35BH 2W400-40BH 2W500-50BH
Working Type Normally Open
Medium Air,Water,Light Oil,Gas
Acting Motion Direct Acting
Orifice(mm) 2.5mm 4mm 16mm 20mm 25mm 35mm 40mm 50mm
CV Value 0.23 0.6 4.8 7.6 12 24 29 48
Pipe Size 1/8" 1/4" 3/8" 3/8" 1/2" 3/4" 1" 1-1/4" 1-1/2" 2"
Working Pressure Water,Air 0-70 Psi,Oil 0-40 Psi
Working Temperature -5-80 ºC
Viscosity Under 20CST
Seal Material NBR, EDPM, VITON
Body Material Brass, Stainless steel
Voltage 220VAC, 110VAC, 24VDC, 12VDC




ADVANTAGE

1) Raw Material conforms to China industry standard, bought from famous factory.

2) Insulation grade: H class, good resistance to high temperature;

3) Machined by CNC to make sure the tolerance as the drawing

4) 100% leakage testing under low pressure and high pressure.

5) All kinds of valve and seals material to meet custom requirement.

6) 1 year quality assurance after shipment.

7) After sales technique support



WHY CHOOSE US?

1) We offer one stop solution. Over 5000 items for you to save efforts and costs.

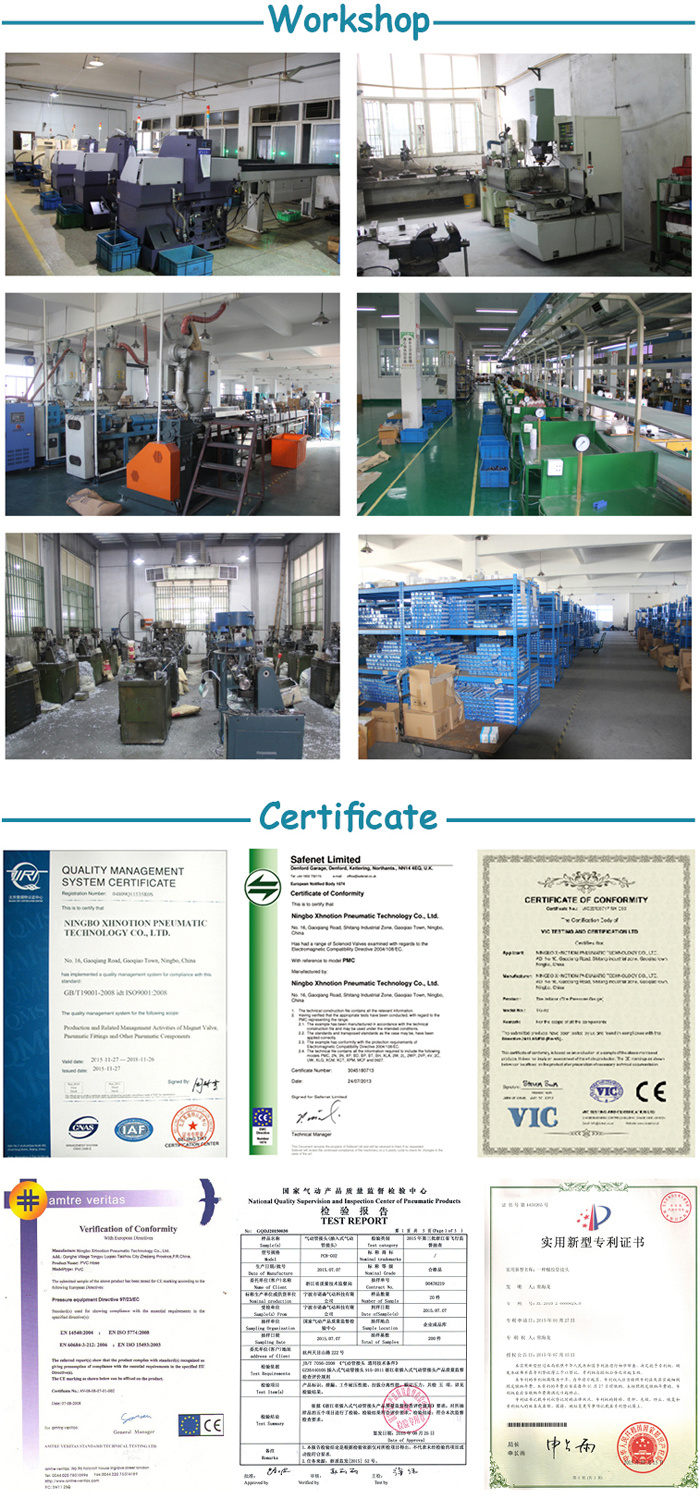

2)We have molds workshop, die-casting workshop, CNC workshop, plastic injection workshop to make sure each part exactly as the drawing and good function.

3) We will reply you within 24 hours.

4) Whatever quantity you are requesting, we always offer you the best quality.

5)3D drawing, cad drawing service for custom fittings, hose, valve, cylinder




FAQ

Packing
Transparent plastic bag + white small box + neutral carton + pallet
Custom packaging are available, XHnotion brand packaging are available

Shipping :
Export port: Ningbo or Shanghai, China
Shipping way: by sea, by air, by courier
Delivery time 3 days to 30 days depends on actual orders.

Payment Terms
We accept T/T, L/C, Paypal, western union,etc.

Samples Policy
For regular fittings below 20 pcs, free samples against your courier account or you pick up from us.
For custom items, we will discuss by email.

Return Policy:
We assure you 1 year policy after shipment. If there is any problem during this period, please contact us for support.



==========================================================
XHnotion, is a leading manufacturer of pneumatic components and fluid valve in China. Our solenoid valve include below items

Fluid assortment

Air solenoid valve
Diesel solenoid valve
Chemical solenoid valve
We have different solenoid valve for different fluid

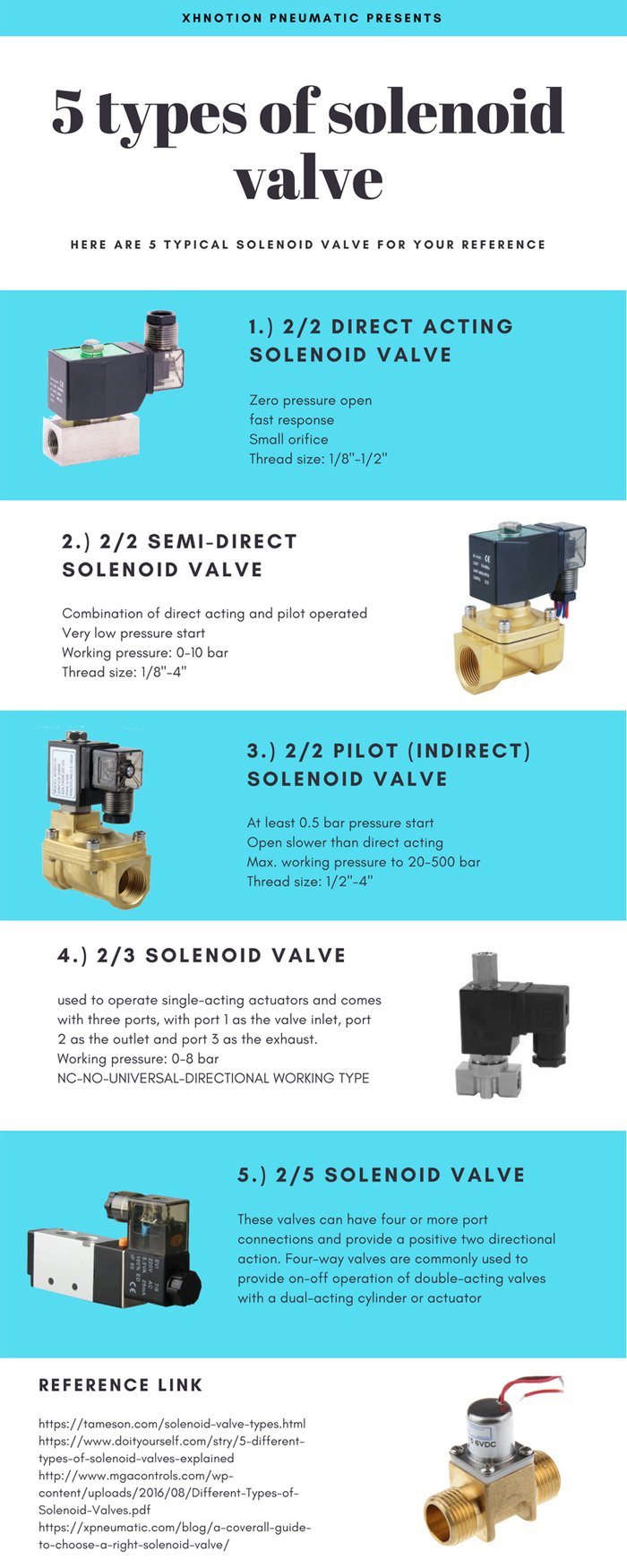

Structure assortment

2 way solenoid valve
3 way solenoid valve
4 way solenoid valve
5 way solenoid valve


Acting assortment

Direct acting solenoid valve
Pilot acting solenoid valve


Function assortment

common solenoid valve for air, water
High pressure solenoid valve
Steam solenoid valve
Irrigation solenoid valve
Underwater solenoid valve
Drinking water solenoid valve
Auto drain solenoid valve
Pneumatic angle valve
Pulse jet solenoid valve
Bi-stable solenoid valve
Throttle solenoid valve
Miniature steam solenoid valve




Material assortment

Brass solenoid valve
Plastic solenoid valve
Stainless steel solenoid valve
PTFE solenoid valve
PVC solenoid valve
POM solenoid valve

Meanwhile, we also manufacture below items.


pneumatic fittings, plastic, brass, stainless steel push in fittings

pneumatic quick coupling, air tool kits, air blow gun

pneumatic muffler, silencer, filter

air hose- PU tubes, nylon tube, PE tube, PTFE tubes, etc

air cylinder, air preparation, pneumatic directional valve

modular hose, water push in fitting

Ball valve, brass connector
