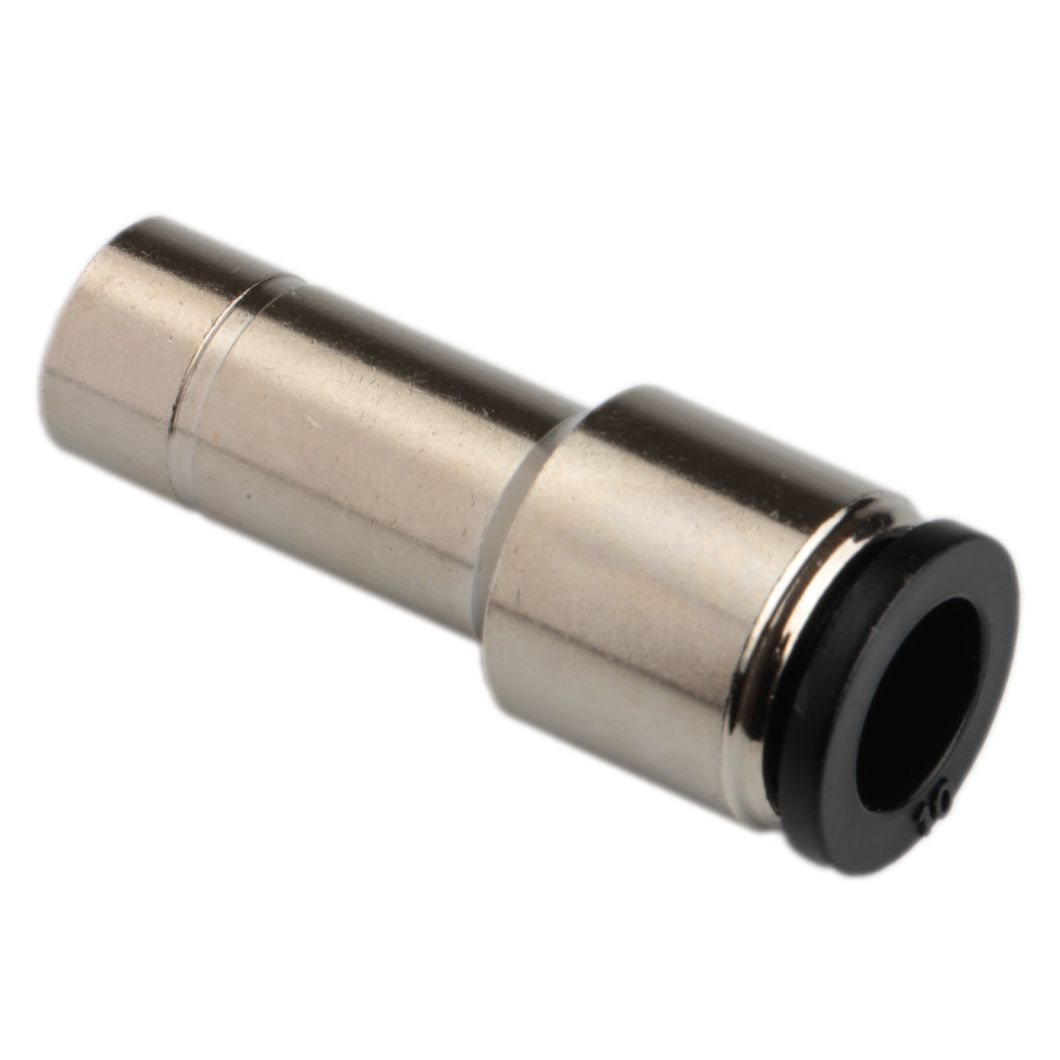

20 Bar Brass Push in Fitting Plug in Reducer

Port: Ningbo, ChinaProduction Capacity: 10000 PCS Per MonthPayment Terms: L/C, T/T, Western Union, PaypalModel NO.: BPGJ 6-4Origin: ChinaHS Code: 7412209000Material: BrassConnection: FemaleSurface Treatment: Nickel-PlatedHead Type: RoundTransport Package: CartonTrademark: XHnotion
Availability:
Quantity:
  • BPGJ 6-4

  • XHNOTION

  • L/C, T/T, Western Union, Paypal

  • Ningbo, China

  • 10000 PCS Per Month

  • PLASTIC BAG AND CARTON

  • BPGJ 6-4

  • China

  • 7412209000

  • Brass

  • Female

  • Nickel-Plated

  • Round

  • Carton

  • XHnotion

Product Description

20 Bar Brass Push in Fitting Plug in Reducer
20 Bar Brass Push in Fitting Plug in Reducer






For other size, please refer to below table.

Model [ΦD1-ΦD2]
Tube(Metric) Tube(Inch)
BPGJ 6-4 BPGJ 1/4-5/32
BPGJ 8-4 BPGJ 5/16-5/32
BPGJ 8-6 BPGJ 5/16-1/4
BPGJ 10-6 BPGJ 3/8-1/4
BPGJ 10-8 BPGJ 3/8-5/16
BPGJ 12-8 BPGJ 1/2-3/8
BPGJ 12-10
FEATURES

1. Fluid Type: compressed air (For other fluid, please contact us).
2. Working Pressure: -0.8~15 bar.
3. Application Tube: PU, PE, PA tubes.
4. Working Temperature: -10~60ºC.

MATERIAL CONSTRUCTION
Metal Body Nickel Plated Brass or Brass
Release Button Nickel Plated Brass or Brass
Thread Sealant Teflon
O-Ring NBR or Viton
SPECIFICATIONS
Operating Pressure -0.8~15 bar
Operating Temperature -10 ~ 60°C
Application Air
Recommended Tubing Material Polyurethane, Nylon, Polyenthylee, and Polypropylene
Types Straight
Capacity Over 1000000pcs/month
Marketing Area All over the world
FITTINGS ADVANTAGE

1. Raw Material is HPB 59-1, conforms to country standard.
2. High precision automatic lathe to make the claws not hurt tube surface.
3. 5% tested by water at 10 bar, 100% tested by air and appearance test.
4. Easy to push in and put out on the basis of working pressure assured
5. 1 year quality assurance after shipment.
6. Custom fitting as your drawing or we make drawing as your sample.



WORKSHOP SHOW
20 Bar Brass Push in Fitting Plug in Reducer
20 Bar Brass Push in Fitting Plug in Reducer




WHY CHOOSE US?

1) We offer one stop solution. Over 5000 items for you to save efforts and costs.

2)We have molds workshop, die-casting workshop, CNC workshop, plastic injection workshop to make sure each part exactly as the drawing and good function.

3) We will reply you within 24 hours.

4) Whatever quantity you are requesting, we always offer you the best quality.

5)3D drawing, cad drawing service for custom fittings, hose, valve, cylinder
