2 Way 3 Position Aluminum Alloy Directional Solenoid Valve

Quantity:
  • Ningbo, China
  • 10000 PCS Per Month
  • L/C, T/T, Western Union, Paypal, Money Gram
  • 3V1
  • DC Solenoid Valve
  • Directional
  • DIN
  • Industrial Usage, Water Industrial Usage, Household Usage
  • 12VDC, 24VDC, 110VAC, 220VAC
  • XHnotion
  • Bulk Packing or Blister Packing
  • China
  • 8481804090
  • Electric
  • Thread
  • Pilot Operated
  • Plastic
  • Low Pressure
  • Pilot Piston Structure
Product Description

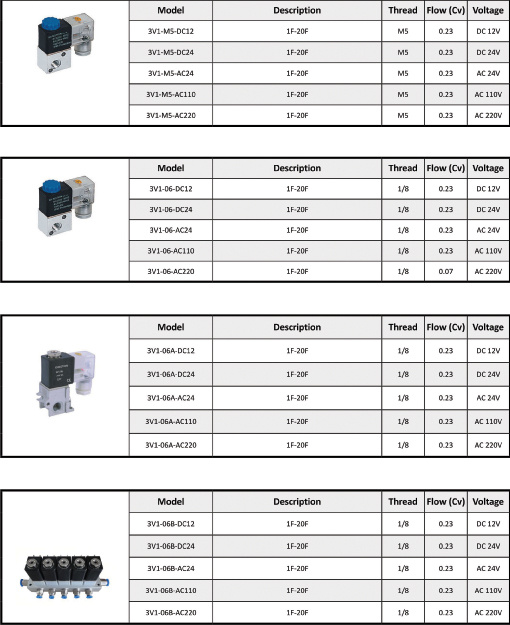

SPECIFICATION
Model 3V1-06, 3V1-M5
Operation Direct
Working Medium Filtered Air
Ambient Temperature -10~60ºC
Air Outlet Diameter 1mm
Working Pressure 0-0.8Mpa
Max Pressure 1.2Mpa
Power Consumption IP65
Wiring/Connector Cable/Lead Wire or DIN Connector
Body Material Aluminum Alloy
Switching Frequency 10Cycle/Sec
Insulation F Class
Operating Voltage Tolerance +/- 10%
Response Time 0.05Sec
Flow Aperture Φ1mm



2 Way 3 Position Aluminum Alloy Directional Solenoid Valve

2 Way 3 Position Aluminum Alloy Directional Solenoid Valve



OUR COMPANY


2 Way 3 Position Aluminum Alloy Directional Solenoid Valve

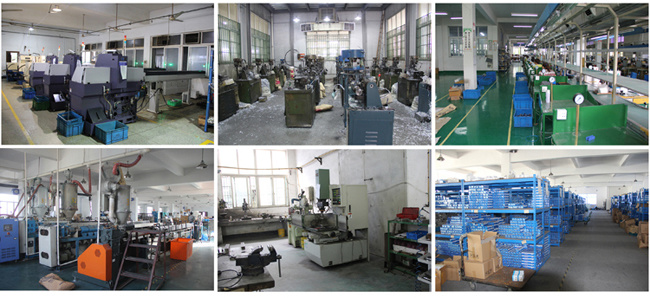

WORKSHOP
2 Way 3 Position Aluminum Alloy Directional Solenoid Valve


PACKAGE

2 Way 3 Position Aluminum Alloy Directional Solenoid Valve

CERTIFICATES

2 Way 3 Position Aluminum Alloy Directional Solenoid Valve


ADVANTAGE


1. Valve body is machined by Japan automatic CNC to make sure all the dimensions accurate.
2. Aluminum Surface is polished and hard anodized.
3. To import Germany grease to provide firm less-friction support
4. O-ring is imported from Taiwan.
5. 100% leakage testing under low pressure and high pressure.
6. 1 year quality assurance after shipment.

7. After sales technique support.




WHY CHHOSE US ?

1. We offer one stop solution. Over 5000 items for you to save efforts and costs.
2. We have molds workshop, die-casting workshop, CNC workshop, plastic injection workshop to
make sure each part exactly as the drawing and good function.

3
. We will reply you within 24 hours.
4. Whatever quantity you are requesting, we always offer you the best quality.
5. 3D drawing, CAD drawing service for custom fittings, hose, valve, cylinder.





FAQ

Packing:
Transparent plastic bag + white small box + neutral carton + pallet
Custom packaging are available, XHnotion brand packaging are available

Shipping :
Export port: Ningbo or Shanghai, China
Shipping way: by sea, by air, by courier
Delivery time: 3 days to 30 days depends on actual orders.

Payment Terms :
We accept T/T, L/C, Paypal, Western Union,etc.

Samples Policy :
For regular fittings below 20 pcs, free samples against your courier account or you pick up from us.
For custom items, we will discuss by email.

Return Policy:
We assure you 1 year policy after shipment. If there is any problem during this period, please contact us for support.
