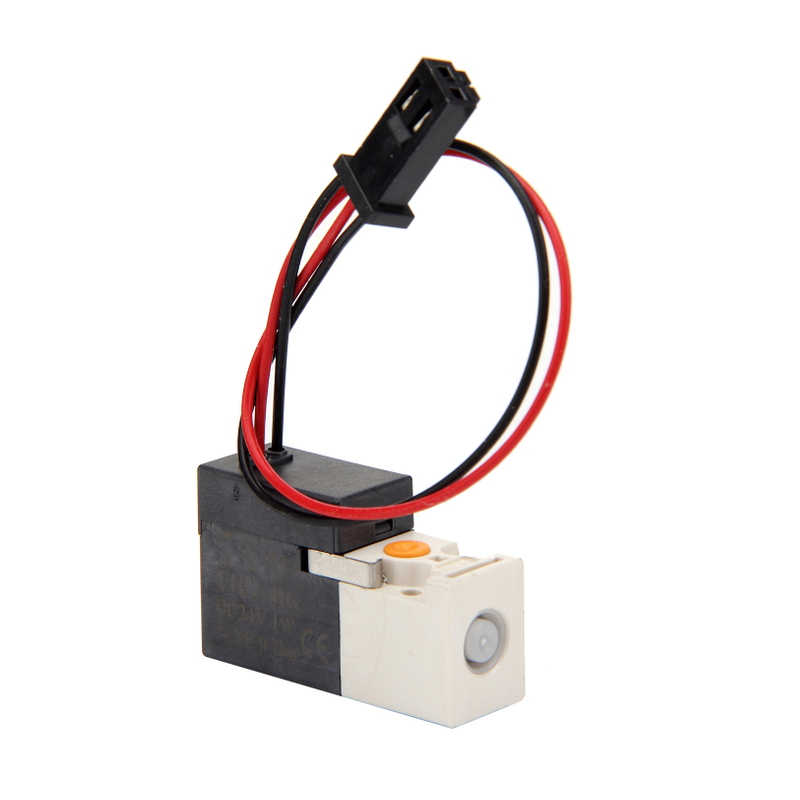

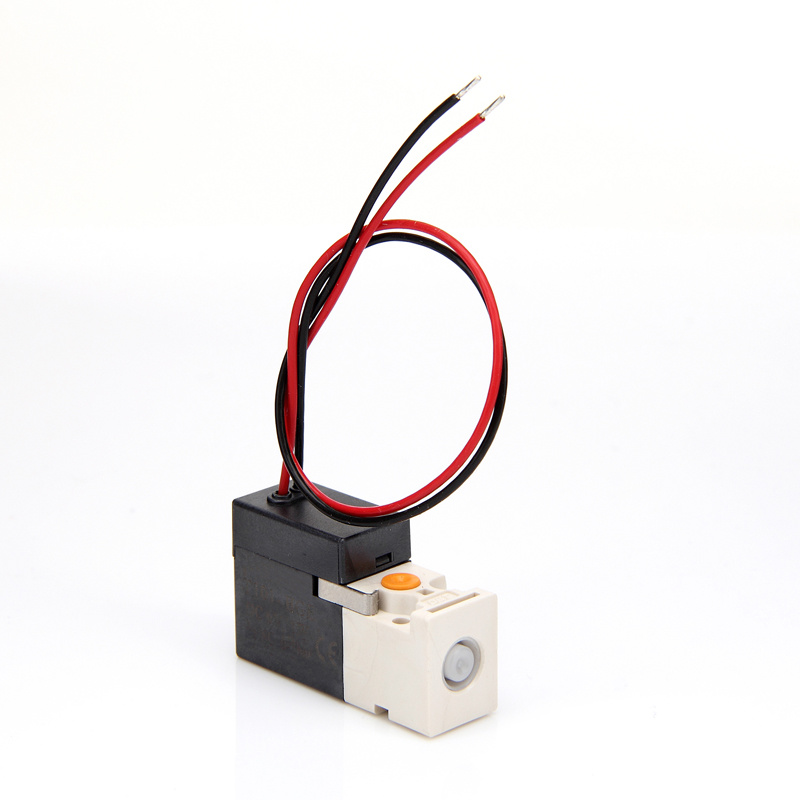

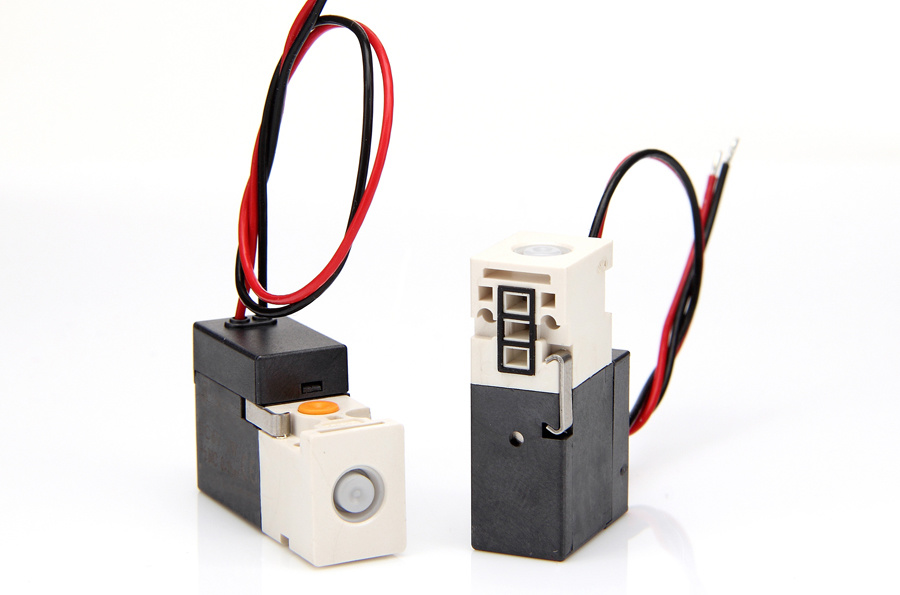

2 Position 3 Way Pilot Mini Solenoid Valve for LED Sorting Machine Supplier

Production Capacity: 10000 PCS Per MonthTransport Package: Bluk Packing or Blister PackingPayment Terms: L/C, T/T, Paypal, Money Gram, Western UnionModel NO.: XV10 G TypePower Supply: DC Solenoid ValveUsage: DirectionalStandard: DINApplication: Industrial Usage, Water Industrial Usage, Household UsageThread: 1/4,1/8Regular Voltage: 12VDC, 24VDC, 110VAC, 220VACTrademark: XHnotionSpecification: CEOrigin: ChinaHS Code: 8481804090Actuator: ElectricConnection Form: ThreadType: Pilot OperatedMaterial: AluminumPressure: Low PressureValve Structure: Pilot Piston Structure
Availability:
Quantity:
  • XV10 G Type

  • XHNOTION

  • L/C, T/T, Paypal, Money Gram, Western Union

  • Ningbo, China

  • 10000 PCS Per Month

  • Bluk Packing or Blister Packing

  • XV10 G Type

  • DC Solenoid Valve

  • Directional

  • DIN

  • Industrial Usage, Water Industrial Usage, Household Usage

  • 1/4,1/8

  • 12VDC, 24VDC, 110VAC, 220VAC

  • XHnotion

  • CE

  • China

  • 8481804090

  • Electric

  • Thread

  • Pilot Operated

  • Aluminum

  • Low Pressure

  • Pilot Piston Structure

Product Description

FEATURES


1. Small size & Convenient installaton

It is ideal for installation in confined space, which can be  either installed on a single base or on the manifolds. It can replace the  majority of similar products at home and abroad for its great compatibility in installation size and also can be used as the pilot control valve for SY series and 4V series solenoid valve.

2. Energy -saving & Environment friendly
The power consumption of the standard type is only 1w, And the energy -saving type is only 0.3w.

3. Large flow& Wide application
It has large flow rate which can be used not only for compact cylinder, swing cylinder and other slider series, but also for the pilot control of  processing valve. The large flow type can especially meet different needs, because it increase the flow rate by 50% on the basis of the  standard type.

4. Quick Response & Multi-functional
It can response within10ms, realizing vacuum function easily.

5. Multi-specifications & All models
Distinguished by voltage, there are AC220V,AV110V,DC24V,DC12V,DC6V and DC3V. Distinguished by
interface mode, there are vertical type(L type), the horizontal type (M type) and direct line type(G type) etc.
It can response within10ms, realizing vacuum function easily.

6. Long life & More sustainable

Super safe even in the situation of 24-hour continuous work and 100% on-load factor.

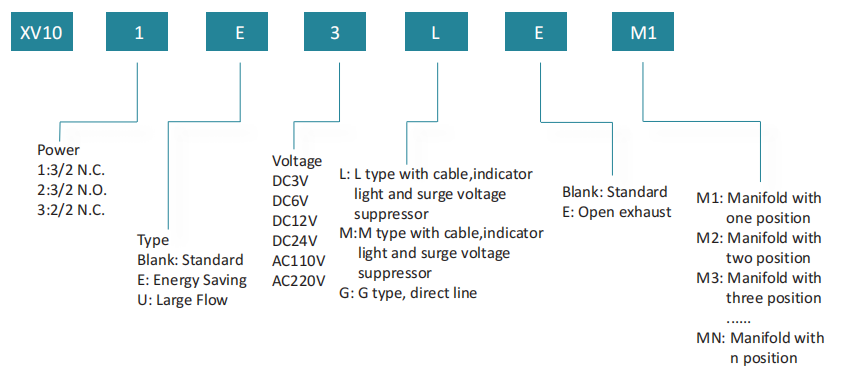

HOW TO ORDER


OM9B4%MR1SKIIWO0J7IX

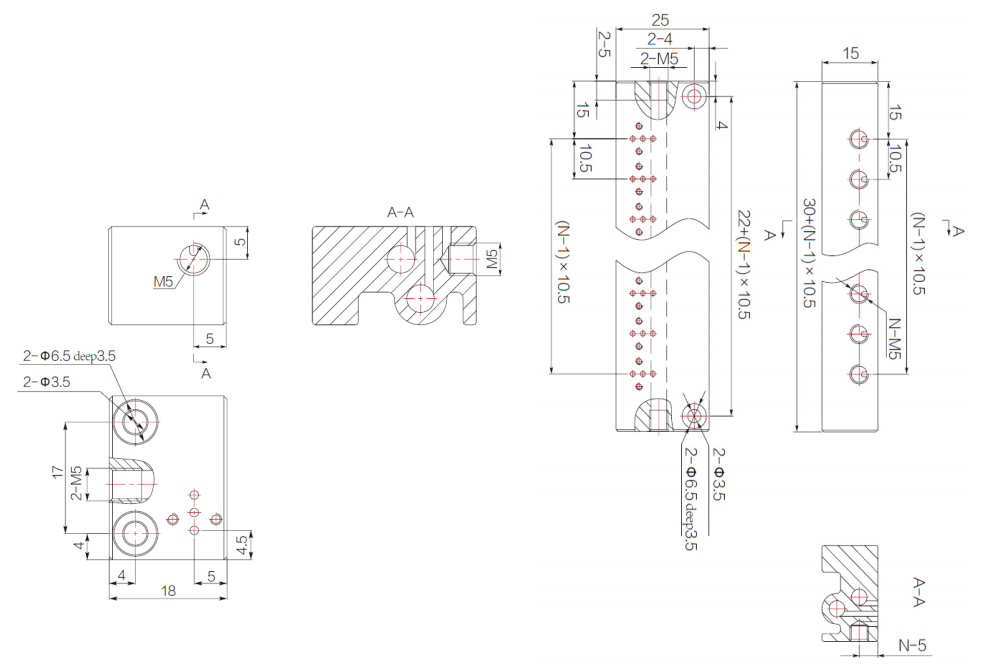

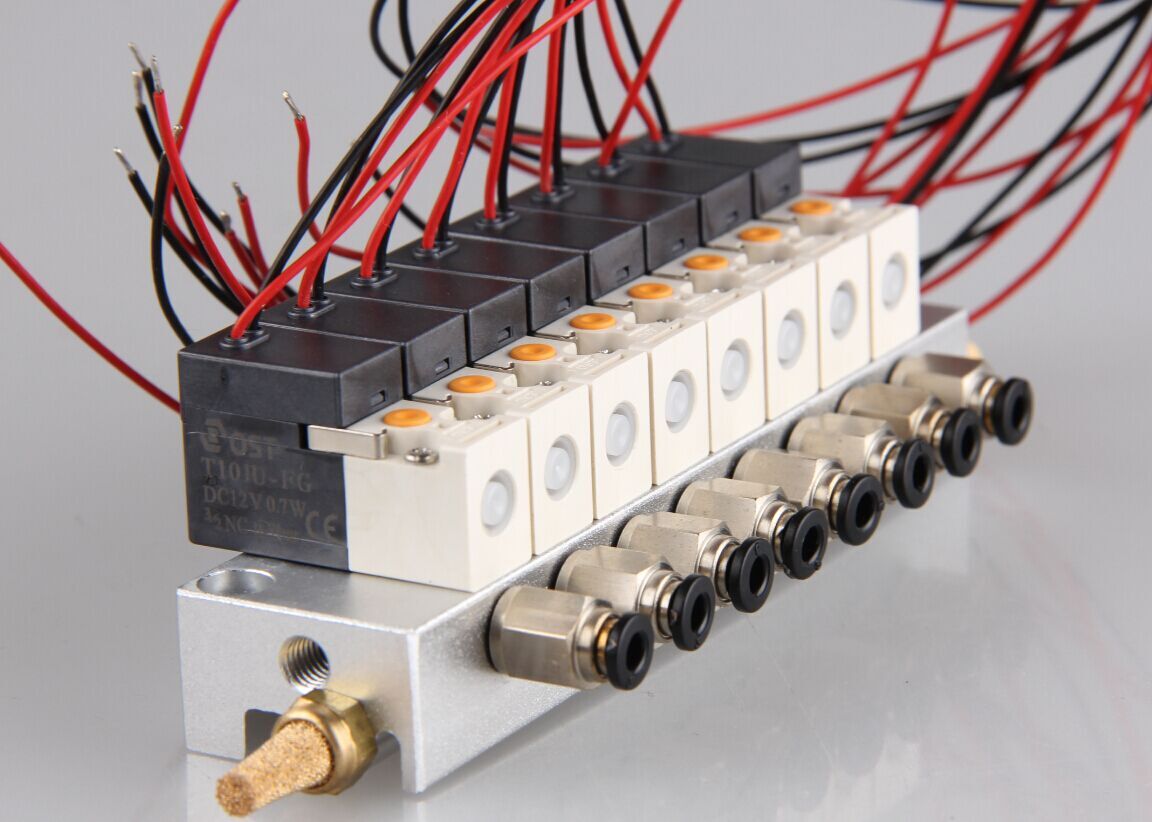

MANIFOLD OVERALL DRAWING


11

                                 Manifold For One Valve                                                                          Manifolds For N Valves

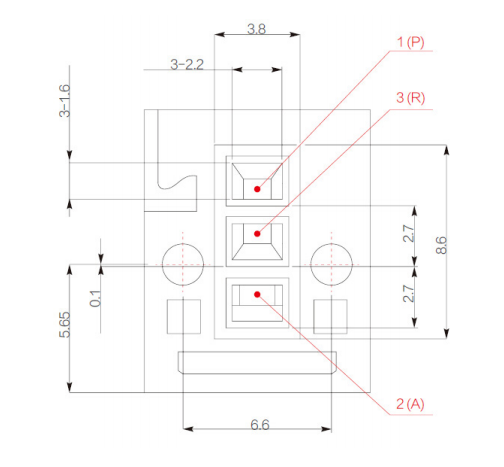

INSTALLATION DRAWING


TQFVQWG()0BOP`R61ZF



SPECIFICATIONS


XDSXF)`D9BYG3W9(1144



RECOMMENDED PRODUCTS


Characteristics of Large Flow Type

Large Flow Rate:  The flflow rate has promoted 50% above on the basis of  the standard type, can better meet your needs.

Energy-saving and Low Temperature Rise:  The power only reaches to 0.6W and the temperature  rise is very low even in an energized state for a long  time.


• Characteristics of the Energy-saving Type

Energy saving and low temperature rise:  The power only reaches to 0.3W and the temperature  rise is very low even in an energized state for a long time.

Under the energ-saving type, it can be divided into AC  type and direct exhaust type.



GENERAL DATA

Model XV10
Operation Type 3/2 N.C.; 3/2 N.O.; 2/2 N.C.
Working Medium Filtered Air/Inert gases
Ambient Temperature -10~80 ºC
Working Pressure 0-7bar
Orifice size φ0.75mm(P),/φ1.0mm(R)
Flow rate at 6 bar(Δp1bar) 16NL/min(P1→P2), 23NL/min(P2→P3)



COIL DATA

Electrical Connector Vertical type(L)/Horizontal type(M)/Direct line type(G)
Stand Voltage DC24V/12V/6V/3V; AC220V/110V
Power 1W/1.2W  double power
Insulation H Class
Service life > 50 million times
Duty Cycle ED 100%
Max Operating Frequency 30Hz
Operating Voltage Tolerance +/- 10%
Response Time Less than 10ms
Degree of pretection IP65



ADVANTAGE

1) Valve body is machined by Japan automatic CNC to make sure all the dimensions accurate.

2) Aluminum Surface is polished and hard anodized.

3) To import Germany grease to provide firm less-friction support

4) O-ring is imported from Taiwan.

5) 100% leakage testing under low pressure and high pressure.

6) 1 year quality assurance after shipment.

7) After sales technique support

Note:Do not reverse the direction when the plug line accesses to the circuit, the red wire   should be connected to the positive and the black is connected to the negative.
