2/3 3V Compact Pilot Solenoid Valve Plastic Xv10m with Manifold for Carpet Machine Valve

Port: Ningbo, ChinaProduction Capacity: 10000 PCS Per MonthPayment Terms: L/C, T/T, Western Union, Paypal, Money GramModel NO.: XV10 MPower Supply: DC Solenoid ValveUsage: DirectionalStandard: DINApplication: Industrial Usage, Water Industrial Usage, Household UsageRegular Voltage: 12VDC, 24VDC, 110VAC, 220VACTrademark: XHnotionTransport Package: Bulk Packing or Blister PackingOrigin: ChinaHS Code: 8481804090Actuator: ElectricConnection Form: ThreadType: Pilot OperatedMaterial: PlasticPressure: Low PressureValve Structure: Pilot Piston Structure
Availability:
Quantity:
  • XV10 M

  • XHNOTION

  • L/C, T/T, Western Union, Paypal, Money Gram

  • Ningbo, China

  • 10000 PCS Per Month

  • BOX AND CARTONS

  • XV10 M

  • DC Solenoid Valve

  • Directional

  • DIN

  • Industrial Usage, Water Industrial Usage, Household Usage

  • 12VDC, 24VDC, 110VAC, 220VAC

  • XHnotion

  • Bulk Packing or Blister Packing

  • China

  • 8481804090

  • Electric

  • Thread

  • Pilot Operated

  • Plastic

  • Low Pressure

  • Pilot Piston Structure

Product Description


GENERAL DATA

Model XV10
Operation Type 3/2 N.C.; 3/2 N.O.; 2/2 N.C
Working Medium Filtered Air/Inert gases
Ambient Temperature -10~80 ºC
Working Pressure 0-7bar
Orifice Pressure φ0.75mm(P),/φ1.0mm(R)
Flow Rate at 6 Bar(Δp1bar) 16NL/min(P1→P2), 23NL/min(P2→P3)




COIL DATA

Electrical Connector Vertical type(L)/ Horizontal type(M)/ Direct line type(G)
Stand Voltage DC24V/12V/6V/3V; AC220V/110V
Power 1W/1.2W double power
Insulation H Class
Service life > 50 million times
Duty Cycle ED 100%
Max Operating Frequency 30Hz
Operating Voltage Tolerance +/- 10%
Response Time Less than 10ms
Degree of pretection IP65

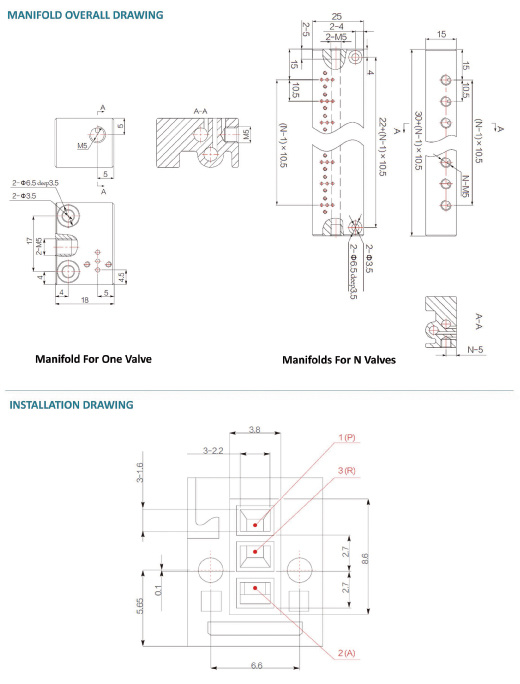

2/3 3V Compact Pilot Solenoid Valve Plastic Xv10m with Manifold for Carpet Machine Valve

2/3 3V Compact Pilot Solenoid Valve Plastic Xv10m with Manifold for Carpet Machine Valve
2/3 3V Compact Pilot Solenoid Valve Plastic Xv10m with Manifold for Carpet Machine Valve


FEATURES

1. Small size & Convenient installaton
It is ideal for installation in confined space, which can be either installed on a single base or on the manifolds.
It can replace the majority of similar products at home and abroad for its great compatibility in installation size and also can be used as the pilot control valve for SY series and 4V series solenoid valve.

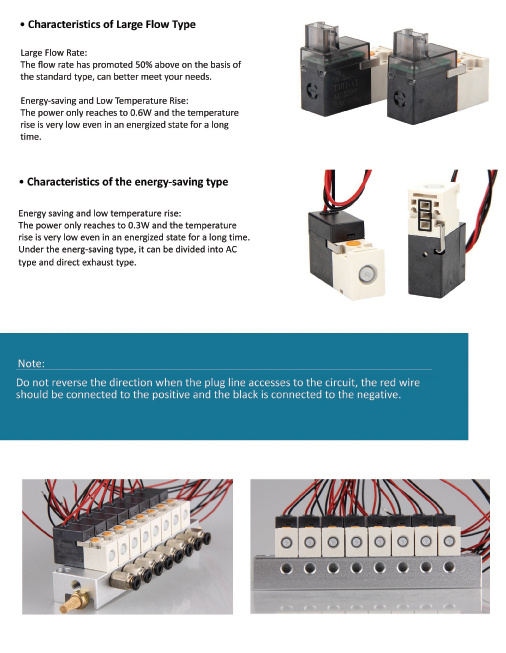

2. Energy-saving & Environment friendly
The power consumption of the standard type is only 1w, And the energy -saving type is only 0.3w.
3. Large flow& Wide application
It has large flow rate which can be used not only for compact cylinder, swing cylinder and other slider series, but also for the pilot control of processing valve. The large flow type can especially meet different needs, because it increase the flow rate by 50% on the basis of the standard type.
4. Quick Response & Multi-functional
It can response within10ms, realizing vacuum function easily.
5. Multi-specifications & All models

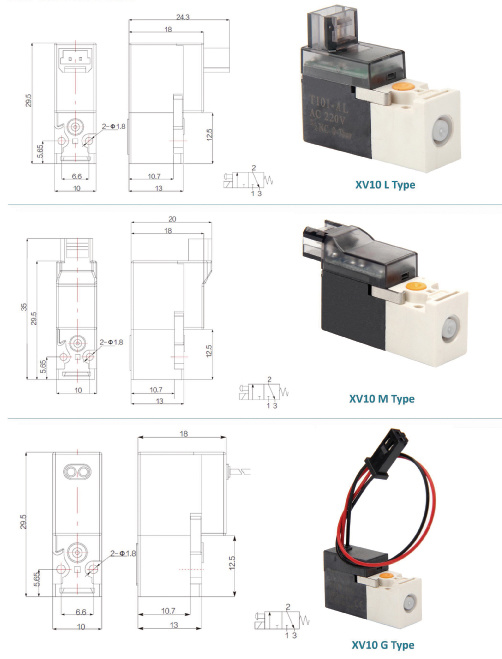

Distinguished by voltage, there are AC220V,AV110V,DC24V,DC12V,DC6V and DC3V. Distinguished by interface mode, there are vertical type(L type), the horizontal type (M type) and direct line type(G type) etc.
6. Long life & More sustainable
Super safe even in the situation of 24-hour continuous work and 100% on-load factor.
