1. Special construction low pressure;
2. High quality seals no leaking;
3. Capable of operating at zero pressure;
|Model ||XCM030-06 ||XCM050-08 ||XCM100-10 ||XCM150-15 ||XCM200-20 ||XCM250-25 ||XCM320-35 ||XCM400-40 ||XCM500-50 |
|Port size ||1/8 ||1/4 ||3/8 ||1/2 ||3/4 ||1 ||1-1/4 ||1-1/2 ||2 |
|Orifice(mm) ||3 ||5 ||10 ||15 ||20 ||25 ||32 ||40 ||50 |
|CV Value ||0.3 ||0.6 ||1.7 ||4.6 ||7.6 ||12 ||20 ||28 ||46 |
|Max. Pressure(bar) ||5 ||3 ||0.3 ||2.5 ||1 |
|Medium ||Gas, air, water |
|Seals ||NBR, VITON |
|Valve body ||Brass |
|Medium Temp. ||-5-60 degree Celsius |
|Voltage || |
AC: 220V 110V 36V 24V DC: 24V 12V
1) Raw Material conforms to China industry standard, bought from famous factory.
2) Insulation grade: H class, good resistance to high temperature;
3) Machined by CNC to make sure the tolerance as the drawing
4) 100% leakage testing under low pressure and high pressure.
5) All kinds of valve and seals material to meet custom requirement.
6) 1 year quality assurance after shipment.
7) After sales technique support
WHY CHOOSE US?
1) We offer one stop solution. Over 5000 items for you to save efforts and costs.
2)We have molds workshop, die-casting workshop, CNC workshop, plastic injection workshop to make sure each part exactly as the drawing and good function.
3) We will reply you within 24 hours.
4) Whatever quantity you are requesting, we always offer you the best quality.
5)3D drawing, cad drawing service for custom fittings, hose, valve, cylinder
Transparent plastic bag + white small box + neutral carton + pallet
Custom packaging are available, XHnotion brand packaging are available
Export port: Ningbo or Shanghai, China
Shipping way: by sea, by air, by courier
Delivery time 3 days to 30 days depends on actual orders.
We accept T/T, L/C, Paypal, western union,etc.
For regular fittings below 20 pcs, free samples against your courier account or you pick up from us.
For custom items, we will discuss by email.
We assure you 1 year policy after shipment. If there is any problem during this period, please contact us for support.
We have thousands of solenoid valve in the stock. If you do not know how to order our valve, please tell us some necessary information, we will recommend you the most economical solenoid valve.
1. valve material
2. working pressure
3. temperature range
4 working environment
You can choose as below
Body Material: Plastic, brass, SS304, SS306, Steel.
Seal Material: NBR, VITON, PTFE, EPDM, SILICONE
Voltage: 12VDC, 24VDC, 24VAC, 220VAC, 280VAC
Size: M5-2", Flange connection

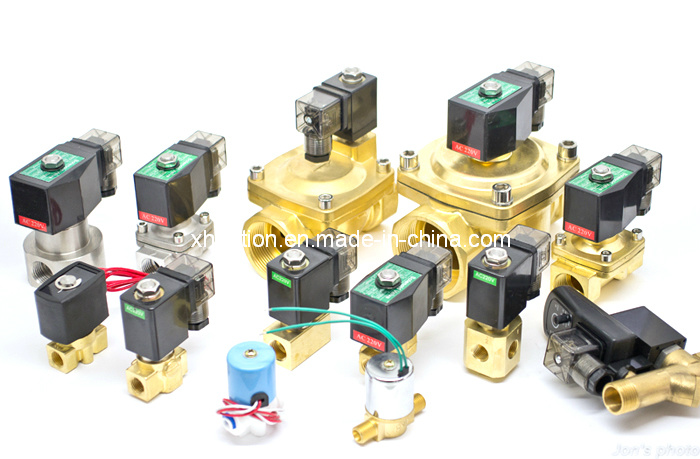

XHnotion, is a leading manufacturer of pneumatic components and fluid valve in China. Our solenoid valve include below items
Water solenoid valve
Air solenoid valve
Diesel solenoid valve
Chemical solenoid valve
We have different solenoid valve for different fluid
2 way solenoid valve
3 way solenoid valve
4 way solenoid valve
5 way solenoid valve
Direct acting solenoid valve
Pilot acting solenoid valve
common solenoid valve for air, water
High pressure solenoid valve
Steam solenoid valve
Irrigation solenoid valve
Underwater solenoid valve
Drinking water solenoid valve
Auto drain solenoid valve
Pneumatic angle valve
Pulse jet solenoid valve
Bi-stable solenoid valve
Throttle solenoid valve
Miniature steam solenoid valve
Brass solenoid valve
Plastic solenoid valve
Stainless steel solenoid valve
PTFE solenoid valve
PVC solenoid valve
POM solenoid valve
Meanwhile, we also manufacture below items.
pneumatic fittings, plastic, brass, stainless steel push in fittings
pneumatic quick coupling, air tool kits, air blow gun
pneumatic muffler, silencer, filter
air hose- PU tubes, nylon tube, PE tube, PTFE tubes, etc
air cylinder, air preparation, pneumatic directional valve
modular hose, water push in fitting
Ball valve, brass connector
