15mm Plastic Non Return Valve Spring Valve for Shower Faucet

Quantity:



Inquire Add to Basket

Port:
Ningbo, China
Production Capacity:
50000 PCS Per Month
Payment Terms:
L/C, T/T, Western Union, Paypal, Money Gram
Model NO.:
OV15
Flow Direction:
Reversing
Standard:
ANSI
Application:
Household Usage
Certification:
SGS(RoHS) Reach FDA LFGB Acs
Trademark:
XHnotion
Transport Package:
Plastic Bag
Specification:
ROHS, REACH, CE, ACS, FDA
Origin:
China
HS Code:
8481804090
Material:
Acetal
Connection Form:
Cartridge
Structure:
Tubular
Pressure:
Low Pressure
Function:
Only Allows Water to Flow in One Direction and Pre
Sealing Form:
Seals

Product Description

Features

1. Zero leak at low and high pressure and temperature.
2. Generous flow structure promise the lowest headloss.
3. Compact, easy installation, 8mm-50mm diameter to meet all the system.
4. No thread connection to avoid potential leakage.

Specifications

Product Name	Cartridge Check Valve
Model	DN8
Material	Acetal, EPDM, POM, SS304
Type	Cartridge Style, Insert Style, Constant Flow Style,High Temperature Style, High Pressure Style
Medium	Clear Water
Size/Diameter	8mm-50mm
Cracking Pressure	0.23Psi
Max. Pressure	230Psi
Max. Temperature	100°C / 212ºF

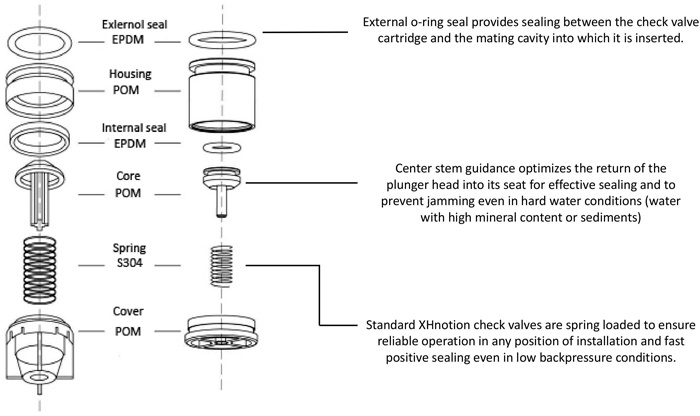

Material Construction

External Seal	EPDM
Housing	POM
Internal Seal	EPDM
Core	POM
Spring	SS304
Cover	POM

Structure

Advantages

1. High precision automatic lathe to make the claws not hurt tube surface.
2. 5% tested by water at 10 bar, 100% tested by air and appearance test.
3. Easy to push in and put out on the basis of working pressure assured
4. 1 year quality assurance after shipment.
5. Custom fitting as your drawing or we make drawing as your sample.

Packing & Shipping

Packing:
Plastic Bag + White Box + Carton
Custom packaging are available, XHnotion brand packaging are available

Shipping:
Method:Air, Sea, Courier
Export port:Ningbo or Shanghai, China
Delivery time:3 days to 30 days depends on actual orders.
Express:TNT, UPS, DHL, FedEx, SF Express.

15mm Plastic Non Return Valve Spring Valve for Shower Faucet

Our Company

XHnotion originate from notion between pneumatic power and human.
(X stands for winds, H stands for human)

In Chinese, XHnotion stands for 'we do, we promise' we read it 'X-notion'.
The company XHnotion Pneumatic was founded in 2007 and has developed with a steadily growing success to a reliable partner for international established clients.

This success of the company XHnotion Pneumatic is based on:

High class quality standard

Customer satisfaction

Fair price policy

Flexibility

The high-class quality standard of the products of company XHnotion is reflected in our quality management system, certificated ISO 9001:2008.And we got CE, RoHS, REACH certificate for international market.

XHnotion Pneumatic manufactures below products:

Pneumatic Components: Air cylinder, FRL

Solenoid Valve: Standard solenoid valve, multipurpose solenoid valve, pneumatic angle valve

Pneumatic Fittings: Plastic pneumatic fittings, metal pneumatic fittings, pneumatic muffler, water push in fittings

Air Gun & Couplers: Pneumatic couplers, air guns, air tool kits

Air Hoses: Air tubing, PTFE tubes, tube cutter, pipes

15mm Plastic Non Return Valve Spring Valve for Shower Faucet

Why Choose US?

1.We offer one stop solution.Over 5000 items for you to save efforts and costs.
2.We have molds workshop, die-casting workshop, CNC workshop, plastic injection workshop to
make sure each part exactly as the drawing and good function.
3.We will reply you within 24 hours.
4.Whatever quantity you are requesting, we always offer you the best quality.
5.3D drawing, CAD drawing service for custom fittings, hose, valve, cylinder.

FAQ

Payment Terms:
We accept T/T, L/C, PayPal, Western Union, Money Gram, etc.

Samples Policy:
For regular items, samples against your courier account or you pick up from us.
For custom items, we will discuss by email.

Return Policy:
We assure you 1 year policy after shipment.
If there is any problem during this period, please contact us for support.

check valve Plastic Valve Non Return Valve
