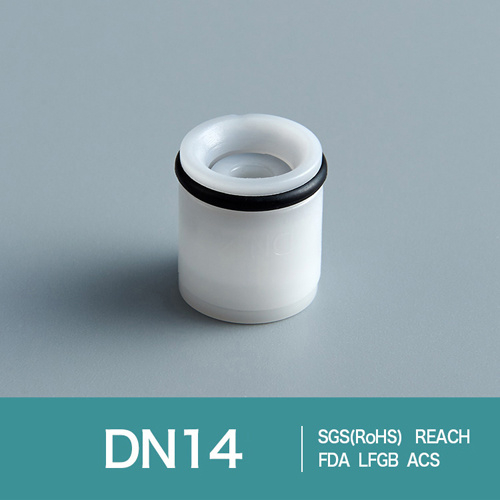

14mm EPDM Plastic Round Insert Style Non Return Valve

Quantity:
  • Ningbo, China

  • 50000 PCS Per Month

  • L/C, T/T, Western Union, Paypal, Money Gram

  • DN14

  • Reversing

  • ANSI

  • Household Usage

  • Stainless Steel AISI 304

  • SGS(RoHS) Reach FDA LFGB Acs

  • XHnotion

  • Plastic Bag

  • ROHS, REACH, CE, ACS, FDA

  • China

  • 8481804090

  • Acetal

  • Cartridge

  • Tubular

  • Low Pressure

  • Only Allows Water to Flow in One Direction and Pre

  • Seals

Product Description
14mm EPDM Plastic Round Insert Style Non Return Valve

14mm EPDM Plastic Round Insert Style Non Return Valve








Features

1. Zero leak at low and high pressure and temperature.
2. Generous flow structure promise the lowest headloss.
3. Compact, easy installation, 8mm-50mm diameter to meet all the system.
4. No thread connection to avoid potential leakage.







Specifications
Product Name Cartridge Check Valve
Model DN8
Material Acetal, EPDM, POM, SS304
Type

Cartridge Style, Insert Style, Constant Flow Style,High Temperature Style, High Pressure Style

Medium Clear Water
Size/Diameter 8mm-50mm
Cracking Pressure 0.23Psi
Max. Pressure 230Psi
Max. Temperature 100°C / 212ºF

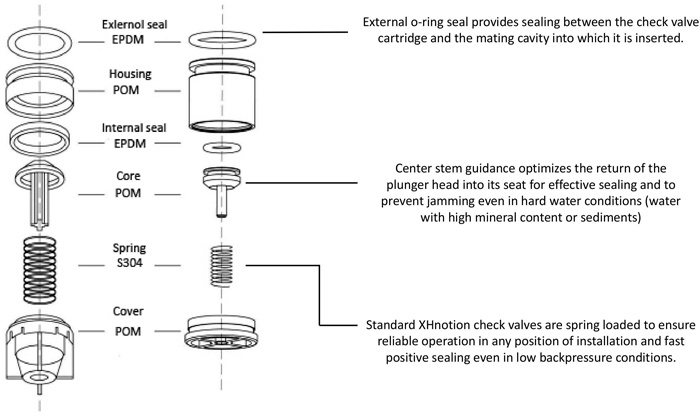

Material Construction
External Seal EPDM
Housing POM
Internal Seal EPDM
Core POM
Spring SS304
Cover POM







Structure

14mm EPDM Plastic Round Insert Style Non Return Valve







Advantages

1. High precision automatic lathe to make the claws not hurt tube surface.
2. 5% tested by water at 10 bar, 100% tested by air and appearance test.
3. Easy to push in and put out on the basis of working pressure assured
4. 1 year quality assurance after shipment.
5. Custom fitting as your drawing or we make drawing as your sample.








Packing & Shipping

Packing:
Plastic Bag + White Box + Carton
Custom packaging are available, XHnotion brand packaging are available

Shipping:
Method:Air, Sea, Courier
Export port:Ningbo or Shanghai, China
Delivery time:3 days to 30 days depends on actual orders.
Express:TNT, UPS, DHL, FedEx, SF Express.

14mm EPDM Plastic Round Insert Style Non Return Valve











Our Company

XHnotion originate from notion between pneumatic power and human.
(X stands for winds, H stands for human)

In Chinese, XHnotion stands for 'we do, we promise' we read it 'X-notion'.
The company XHnotion Pneumatic was founded in 2007 and has developed with a steadily growing success to a reliable partner for international established clients.

This success of the company XHnotion Pneumatic is based on:

High class quality standard

Customer satisfaction

Fair price policy

Flexibility


The high-class quality standard of the products of company XHnotion is reflected in our quality management system, certificated ISO 9001:2008.And we got CE, RoHS, REACH certificate for international market.

XHnotion Pneumatic manufactures below products:

Pneumatic Components: Air cylinder, FRL

Solenoid Valve: Standard solenoid valve, multipurpose solenoid valve, pneumatic angle valve

Pneumatic Fittings: Plastic pneumatic fittings, metal pneumatic fittings, pneumatic muffler, water push in fittings

Air Gun & Couplers: Pneumatic couplers, air guns, air tool kits

Air Hoses: Air tubing, PTFE tubes, tube cutter, pipes


14mm EPDM Plastic Round Insert Style Non Return Valve

14mm EPDM Plastic Round Insert Style Non Return Valve











Why Choose US?

1.We offer one stop solution.Over 5000 items for you to save efforts and costs.
2.We have molds workshop, die-casting workshop, CNC workshop, plastic injection workshop to
make sure each part exactly as the drawing and good function.
3.We will reply you within 24 hours.
4.Whatever quantity you are requesting, we always offer you the best quality.
5.3D drawing, CAD drawing service for custom fittings, hose, valve, cylinder.









FAQ

Payment Terms:
We accept T/T, L/C, PayPal, Western Union, Money Gram, etc.

Samples Policy:
For regular items, samples against your courier account or you pick up from us.
For custom items, we will discuss by email.

Return Policy:
We assure you 1 year policy after shipment.
If there is any problem during this period, please contact us for support.
