12VDC 10mm Miniature Pilot Solenoid Valve Large Flow Type Valve

Port: Ningbo, ChinaProduction Capacity: 10000 PCS Per MonthPayment Terms: L/C, T/T, Western Union, Paypal, Money GramModel NO.: XV10 LFPower Supply: DC Solenoid ValveUsage: DirectionalStandard: DINApplication: Industrial Usage, Water Industrial Usage, Household UsageRegular Voltage: 12VDC, 24VDC, 110VAC, 220VACTrademark: XHnotionTransport Package: Bulk Packing or Blister PackingOrigin: ChinaHS Code: 8481804090Actuator: ElectricConnection Form: ThreadType: Pilot OperatedMaterial: PlasticPressure: Low PressureValve Structure: Pilot Piston Structure

Availability:

Quantity:



Inquire Add to Basket

Model:
XV10 LF
Brand:
XHNOTION
Payment Terms:
L/C, T/T, Western Union, Paypal, Money Gram
Port:
Ningbo, China
Production Capacity:
10000 PCS Per Month
Transport Package:
BOX AND CARTONS
Model NO.:
XV10 LF
Power Supply:
DC Solenoid Valve
Usage:
Directional
Standard:
DIN
Application:
Industrial Usage, Water Industrial Usage, Household Usage
Regular Voltage:
12VDC, 24VDC, 110VAC, 220VAC
Trademark:
XHnotion
Transport Package:
Bulk Packing or Blister Packing
Origin:
China
HS Code:
8481804090
Actuator:
Electric
Connection Form:
Thread
Type:
Pilot Operated
Material:
Plastic
Pressure:
Low Pressure
Valve Structure:
Pilot Piston Structure

Product Description

FEATURES

Small size & Convenient installaton

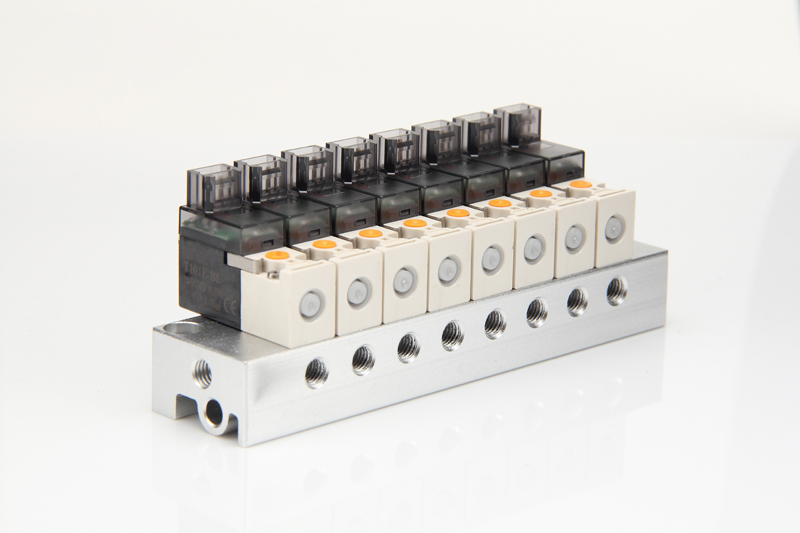

It is ideal for installation in confined space, which can be either installed on a single base or on the manifolds. It can replace the majority of similar products at home and abroad for its great compatibility in installation size and also can be used as the pilot control valve for SY series and 4V series solenoid valve.

Energy -saving & Environment friendly

The power consumption of the standard type is only 1w, And the energy -saving type is only 0.3w.

Large flow& Wide application

It has large flow rate which can be used not only for compact cylinder, swing cylinder and other slider series, but also for the pilot control of processing valve. The large flow type can especially meet different needs, because it increase the flow rate by 50% on the basis of the standard type.

Quick Response & Multi-functional

It can response within10ms, realizing vacuum function easily.

Multi-specifications & All models

Distinguished by voltage, there are AC220V,AV110V,DC24V,DC12V,DC6V and DC3V. Distinguished by

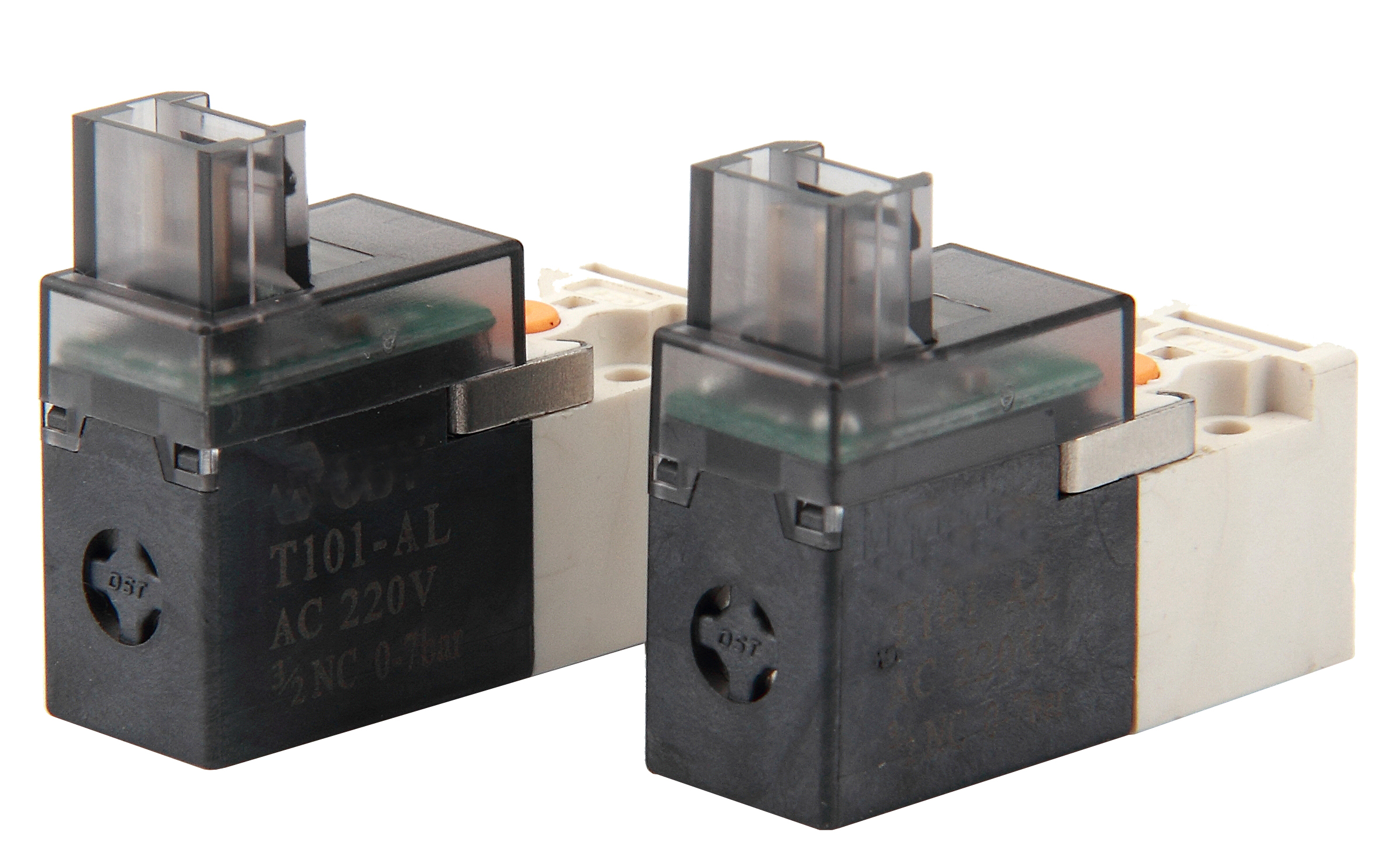

interface mode, there are vertical type(L type), the horizontal type (M type) and direct line type(G type) etc.

It can response within10ms, realizing vacuum function easily.

Long life & More sustainable

Super safe even in the situation of 24-hour continuous work and 100% on-load factor.

SPECIFICATIONS

GENERAL DATA

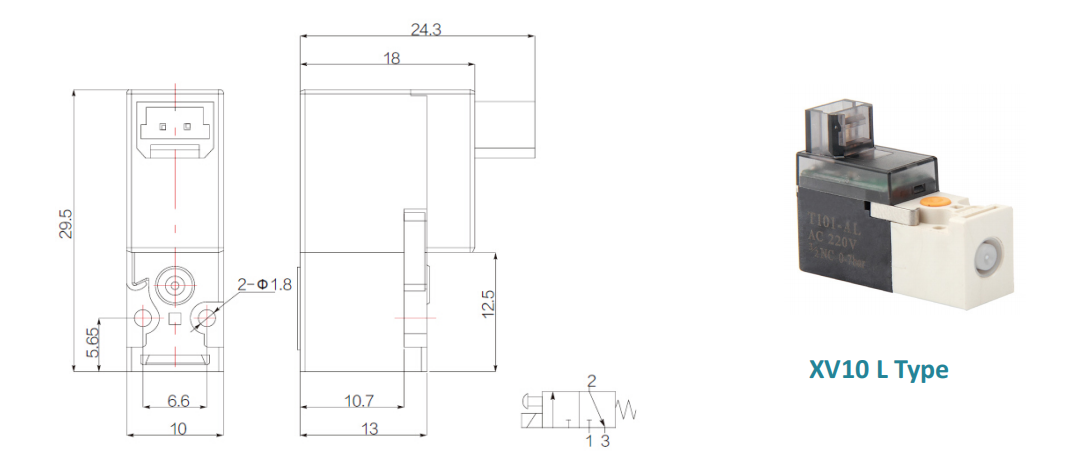

Model	XV10 L
Operation Type	3/2 N.C.; 3/2 N.O.; 2/2 N.C
Working Medium	Filtered Air/Inert gases
Ambient Temperature	-10~80 ºC
Working Pressure	0-7bar
Orifice Pressure	φ0.75mm(P),/φ1.0mm(R)
Flow Rate at 6 Bar(Δp1bar)	16NL/min(P1→P2), 23NL/min(P2→P3)

COIL DATA

Electrical Connector	Vertical type(L)/ Horizontal type(M)/ Direct line type(G)
Stand Voltage	DC24V/12V/6V/3V; AC220V/110V
Power	1W/1.2W double power
Insulation	H Class
Service life	> 50 million times
Duty Cycle	ED 100%
Max. Operating Frequency	30Hz
Operating Voltage Tolerance	+/- 10%
Response Time	Less than 10ms
Degree of pretection	IP65

ADVANTAGE

1) Valve body is machined by Japan automatic CNC to make sure all the dimensions accurate.

2) Aluminum Surface is polished and hard anodized.

3) To import Germany grease to provide firm less-friction support

4) O-ring is imported from Taiwan.

5) 100% leakage testing under low pressure and high pressure.

6) 1 year quality assurance after shipment.

7) After sales technique support
