10mm Multiple Air Hose Rack

Availability:
Quantity:
  • L/C, T/T, Paypal

  • Ningbo, China

  • 100000000PCS/Year

  • MTR-12

  • 3926909090

  • Nylon

  • Carton

  • PA66

  • XHNOTION

  • China

Product Description

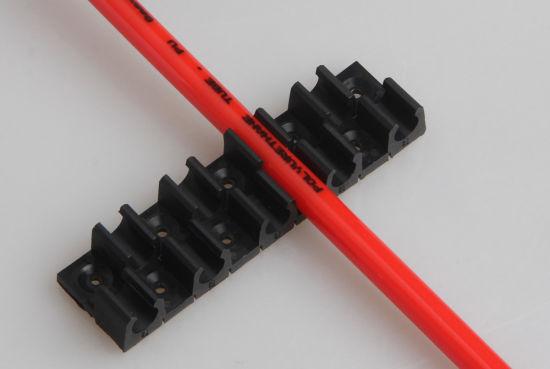

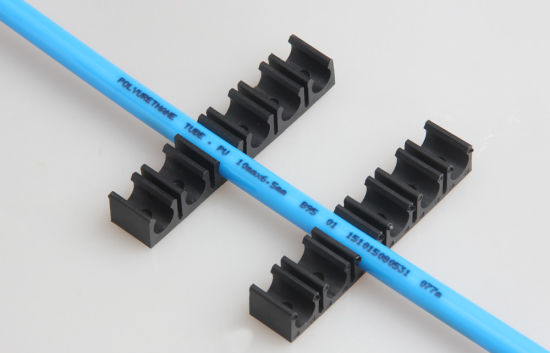

XHnotion's hose racks means also hose clips or hose holder. They will keep your pneumatic hoses and tubes neat and in order. The Slotted Design can hold tubes firmly and easy to install.

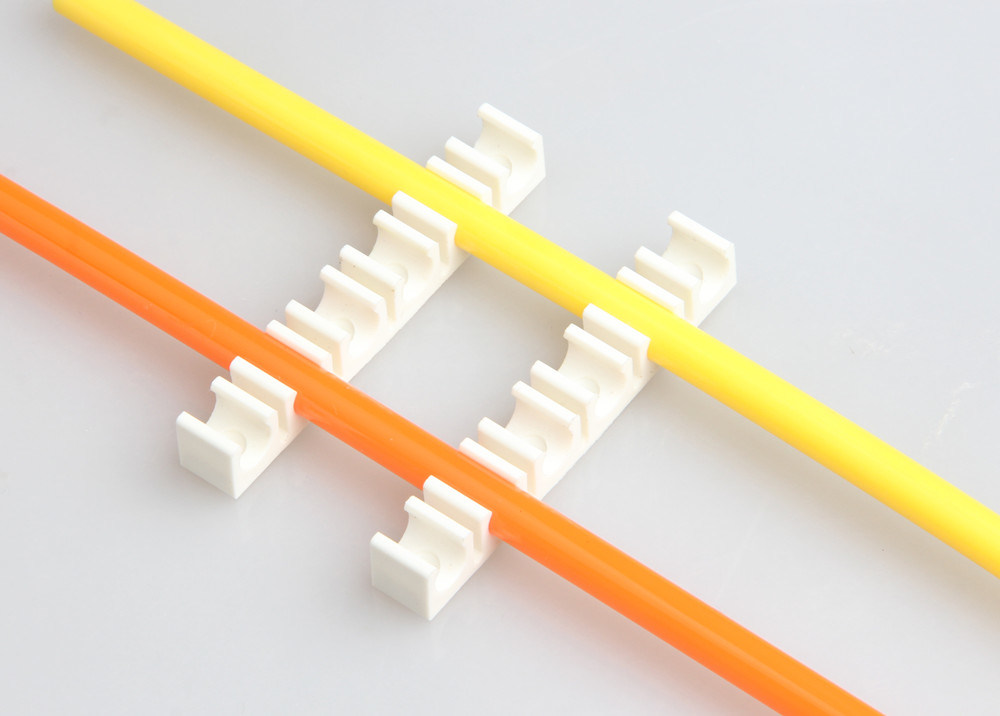

These sturdy plastic racks can hold 6, 8, 10, or 12mm hose with 6 channels. The channels are easily separated into smaller sections if necessary. Standard color is black, but other colors are available.
10mm Multiple Air Hose Rack

Features
√ Hose racks with visual number for easy to position.
√ Mounting Versatility
√ Molded Design Allows for Easy Customization
√ Material: PA66
√ Temperature Range: -20° C to 80° C



TYPE HOSE SIZE CHANNELS
MTR-6 6mm 6
MTR-8 8mm 6
MTR-10 10mm 6
MTR-12 12mm 6

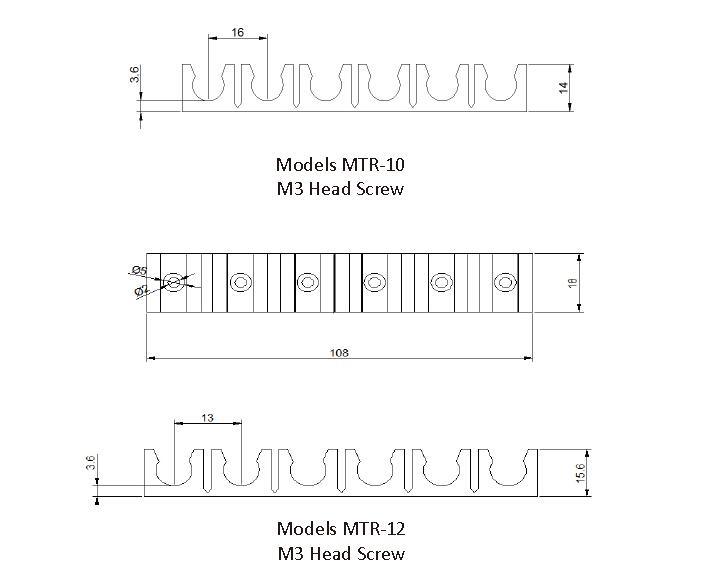

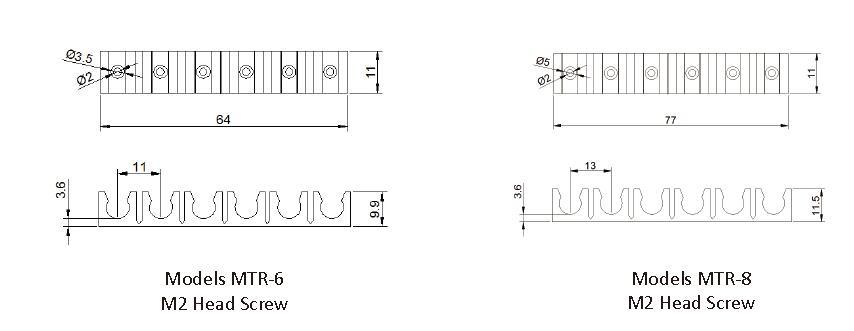

Drawing

10mm Multiple Air Hose Rack10mm Multiple Air Hose Rack

How to use

1. The Multiple Hose - Holder can be cut apart according to the number of hose to be connected.
2. Cut the Multiple Hose - Holder at a desired position and mount it on the equipment with the
countersunk tapping screws.
3. Align the hose with the holding position and push down to fit it into the holding part, then pull up a
hose to remove it from the holder.
