| Quantity: | |
|---|---|
SSFR
Xhnotion or no brand
L/C, T/T, Western Union, Paypal, Money Gram
Ningbo, China
10000 PCS Per Month
CARTONS
SSFR
Stainless Steel
1/4, 3/8, 1/2
New
XHnotion
Box
CE
China
8421999000
Non-Customized
Pressure Filtration
Oil and Gas Separation, Air Filter
Medicine, Oil, Chemical, Metallurgy
Xhnotion
-20 -150

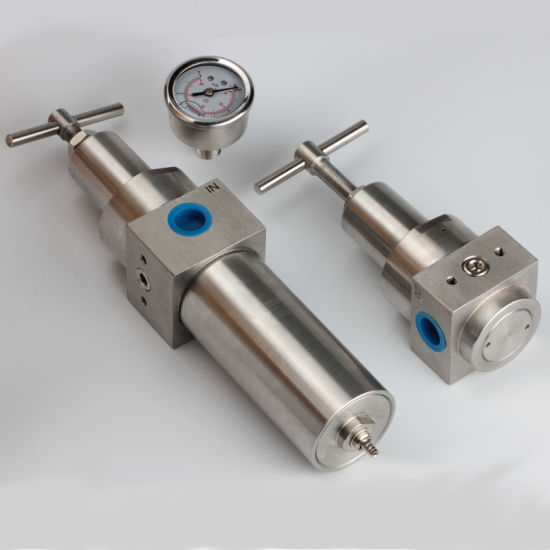

SS316 AIR FILTER REGULATOR
Filter and pressure regulator united in a space-saving model.
This filter pressure regulator has been developed specially for high-demanding applications.
Filter with bowl without sight glass, completely made of stainless steel, therefore extremely robust.
Suitable for compressed air, non-toxic gases and liquids.
Operating pressure (p2) from O up to 15 bar.
Application area: Chemical industry, mineral oil processing, apparatus engineering.
FEATURES
ADVANTAGES
• Easy replacement of the element
• The element and the bowl are in one piece. Replacement can be done with simple tool.
• Reduced required maintenance space: Max. 46% reduction.
• Better visibility & safer.
• All kinds of combination as you request.
HOW TO ORDER
SPECIFICATION
| Specification | ||||||||||||||||||||||||||||||||||||
| Model | SFR-200/400/600 | |||||||||||||||||||||||||||||||||||
| Port size | 1/4" 3/8" 1/2" 3/4" 1" | |||||||||||||||||||||||||||||||||||
| Fluid | Compressed air | |||||||||||||||||||||||||||||||||||
| Regulator construction | Piston | |||||||||||||||||||||||||||||||||||
| Body material | Stainless steel SUS316 | |||||||||||||||||||||||||||||||||||
| Bowl material | Stainless steel SUS316 | |||||||||||||||||||||||||||||||||||
| Pressure gauge material | Case:Stainless steel SUS304, Thread: Stainless steel SUS316. | |||||||||||||||||||||||||||||||||||
| Filter element material | Stainless steel SUS316 | |||||||||||||||||||||||||||||||||||
| Filtration accuracy | 5μm(Standard) 40μm(Option) | |||||||||||||||||||||||||||||||||||
| Operating pressure range | 0~20kgf/cm² | |||||||||||||||||||||||||||||||||||
| Proof pressure | 30kgf/cm² | |||||||||||||||||||||||||||||||||||
| Ambient temperature | -10°C~70°C | |||||||||||||||||||||||||||||||||||
| Standard drain | Semi-auto drain(Drains below 0.5kgf/cm²) | |||||||||||||||||||||||||||||||||||
| Accessories | Pressure gauge(0~10kg), Mounting bracket, Plug, Screw×2 | |||||||||||||||||||||||||||||||||||
| Accessories(Option) | Pressure gauge(0~25kg) | |||||||||||||||||||||||||||||||||||
| Model | Port size | Factory price |
| SFR-200-02 | 1/4 | 1400 | |
| SFR-400-03 | 3/8 | 2000 | |
| SFR-400-04 | 1/2 | 2000 | |
| SFR-600-06 | 3/4 | 3100 | |
| SFR-600-10 | 1" | 3100 |
DIMENSIONS
FAQ
Packing
Transparent plastic bag + neutral carton + neutral box + pallet
Custom packaging are available, XHnotion brand packaging are available
Shipping :
Export port: Ningbo or Shanghai, China
Shipping way: by sea, by air, by courier
Delivery time 3 days to 30 days depends on actual orders.
Payment Terms
We accept T/T, L/C, Paypal, western union,etc.
Samples Policy
For regular item1 piece, free samples against your courier account or you pick up from us.
For custom items, we will discuss by email.
Return Policy:
We assure you 1 year policy after shipment. If there is any problem during this period, please contact us for support.
