| Quantity: | |
|---|---|
SSF
Xhnotion or no brand
L/C, T/T, Western Union, Paypal, Money Gram
Ningbo, China
10000 PCS Per Month
CARTONS
SSF
Stainless Steel
1/4, 3/8, 1/2
New
XHnotion
Box
CE
China
8421999000
Non-Customized
Pressure Filtration
Oil and Gas Separation, Air Filter
Medicine, Oil, Chemical, Metallurgy
Xhnotion
-20 -150

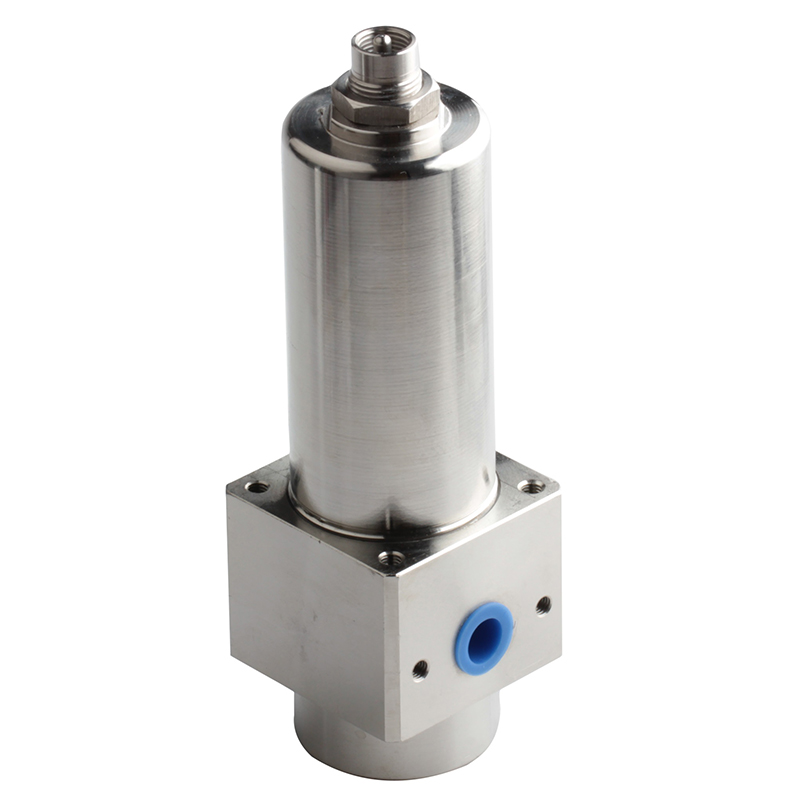

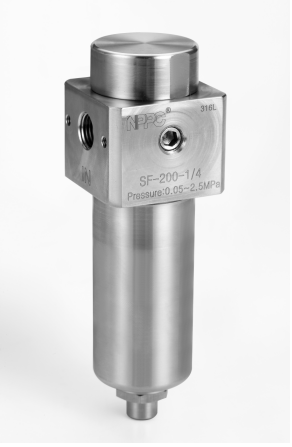

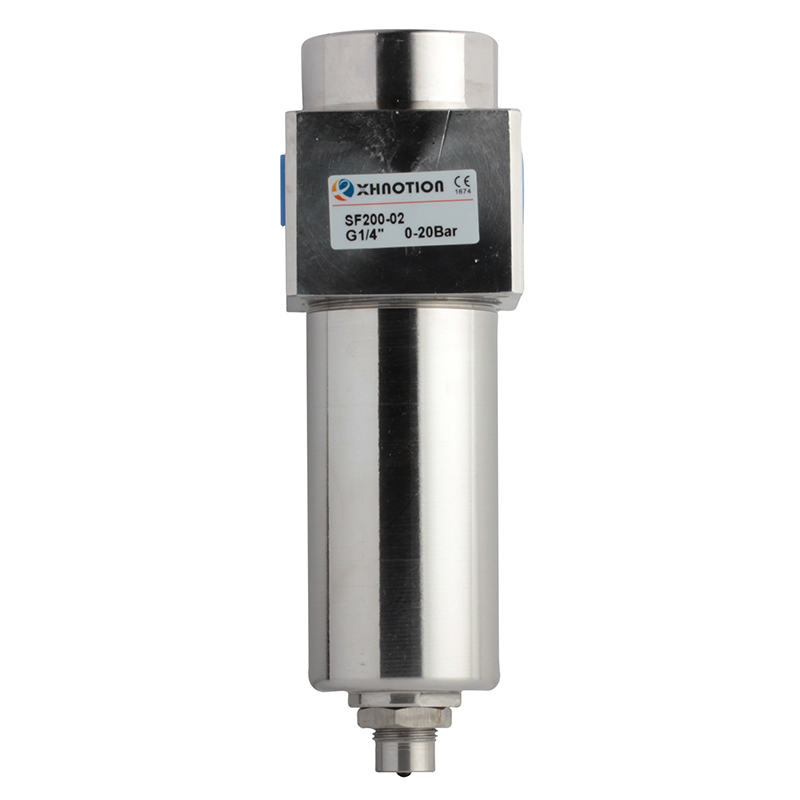

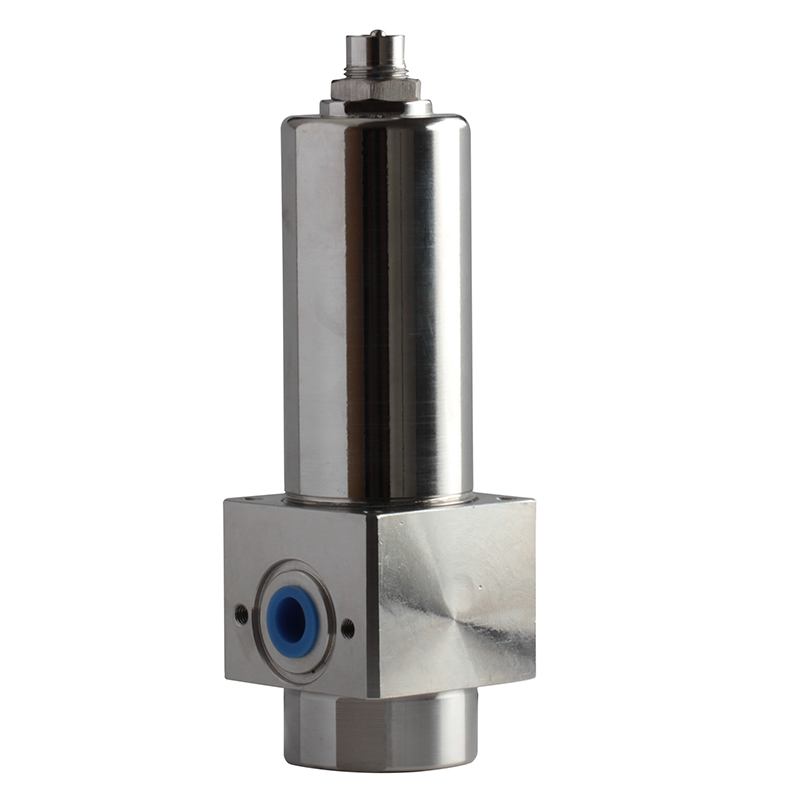

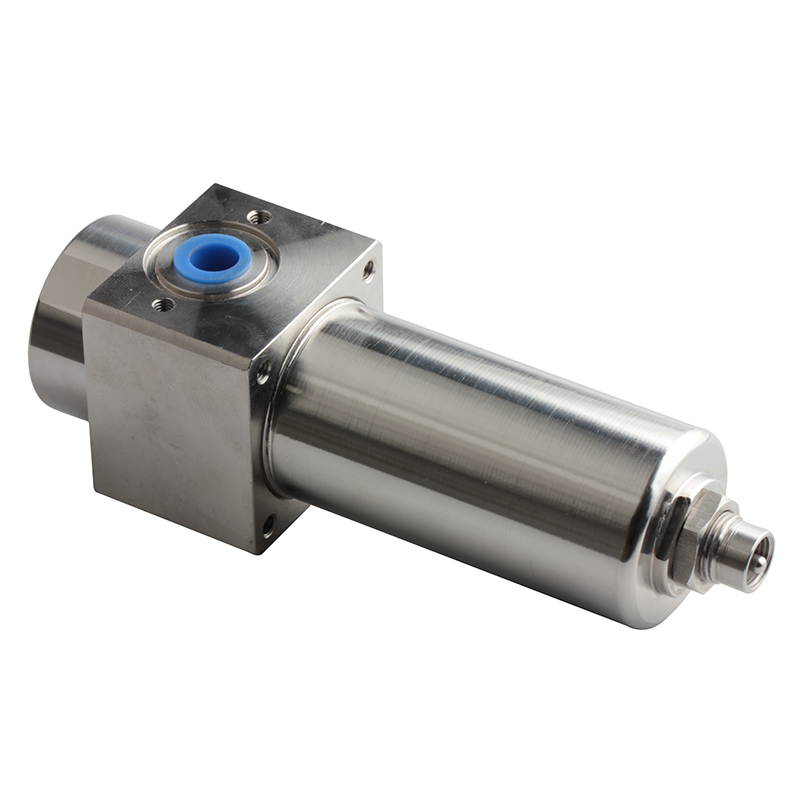

SS316L AIR FILTER
FEATURES
ADVANTAGES
• Easy replacement of the element
• The element and the bowl are in one piece. Replacement can be done with simple tool.
• Reduced required maintenance space: Max. 46% reduction.
• Better visibility & safer.
• All kinds of combination as you request.

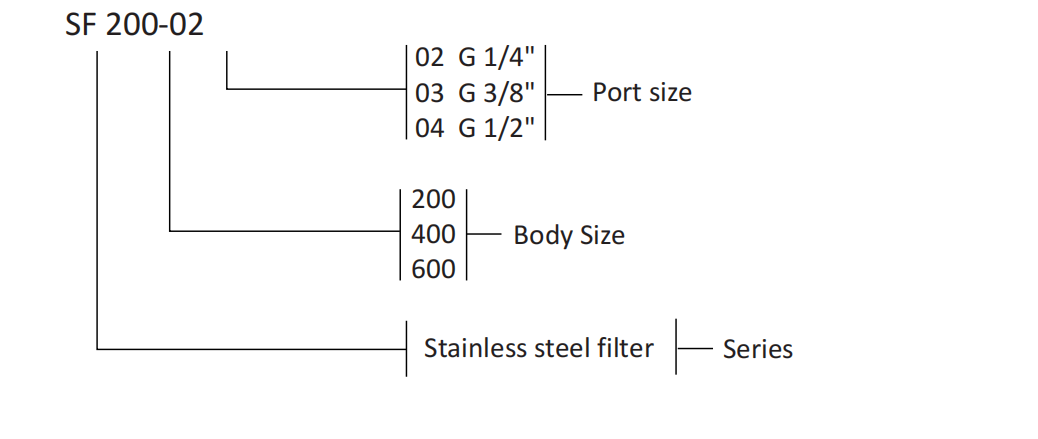

HOW TO ORDER
SPECIFICATION
| Specification | ||||||||||||||||||||||||||||||||||||
| Model | SF-200/400/600 | |||||||||||||||||||||||||||||||||||
| Port size | 1/4" 3/8" 1/2" 3/4" 1" | |||||||||||||||||||||||||||||||||||
| Fluid | Compressed air | |||||||||||||||||||||||||||||||||||
| Body material | Stainless steel SUS316 | |||||||||||||||||||||||||||||||||||
| Bowl material | Stainless steel SUS316 | |||||||||||||||||||||||||||||||||||
| Filter element material | Stainless steel SUS316 | |||||||||||||||||||||||||||||||||||
| Filtration accuracy | 5μm(Standard) 40μm(Option) | |||||||||||||||||||||||||||||||||||
| Operating pressure range | 0~20kgf/cm² | |||||||||||||||||||||||||||||||||||
| Proof pressure | 30kgf/cm² | |||||||||||||||||||||||||||||||||||
| Ambient temperature | -10°C~70°C | |||||||||||||||||||||||||||||||||||
| Standard drain | Semi-auto drain(Drains below 0.5kgf/cm²) | |||||||||||||||||||||||||||||||||||
| Accessories | Pressure gauge(0~10kg), Mounting bracket, Plug, Screw×2 | |||||||||||||||||||||||||||||||||||
| Model | Port size | Factory price |
| SF-200-02 | 1/4 | 800 | |
| SF-400-03 | 3/8 | 1200 | |
| SF-400-04 | 1/2 | 1200 | |
| SF-600-06 | 3/4 | 1800 | |
| SF-600-10 | 1" | 1800 |

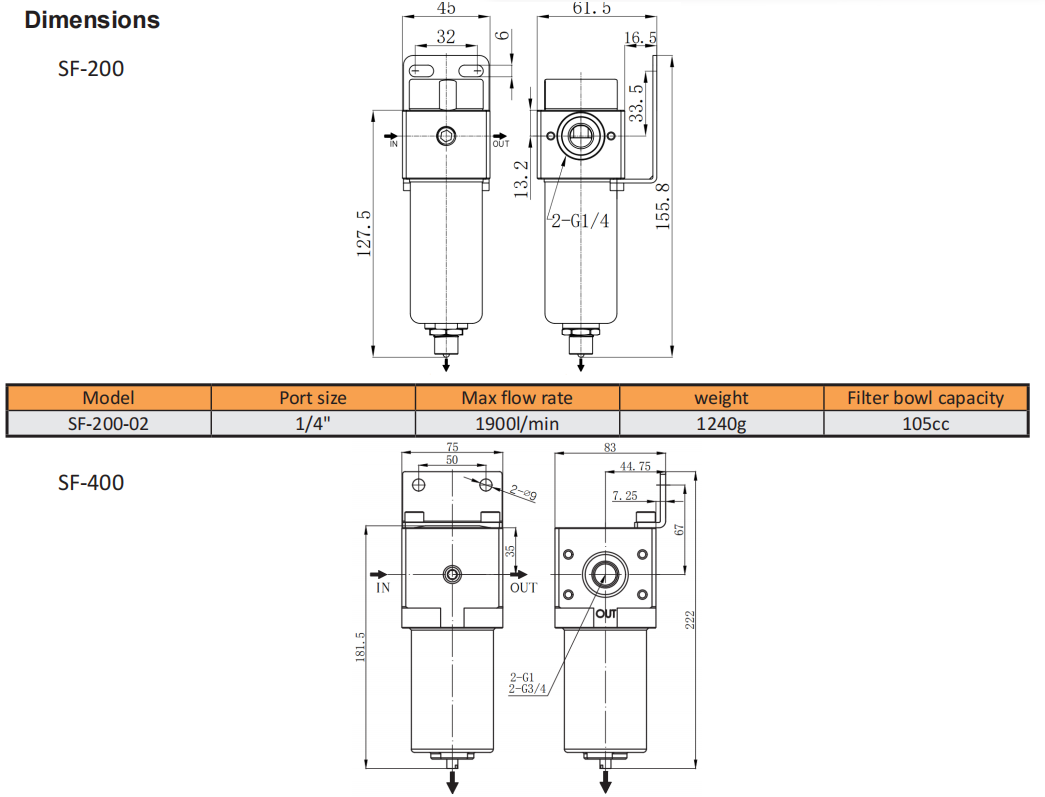

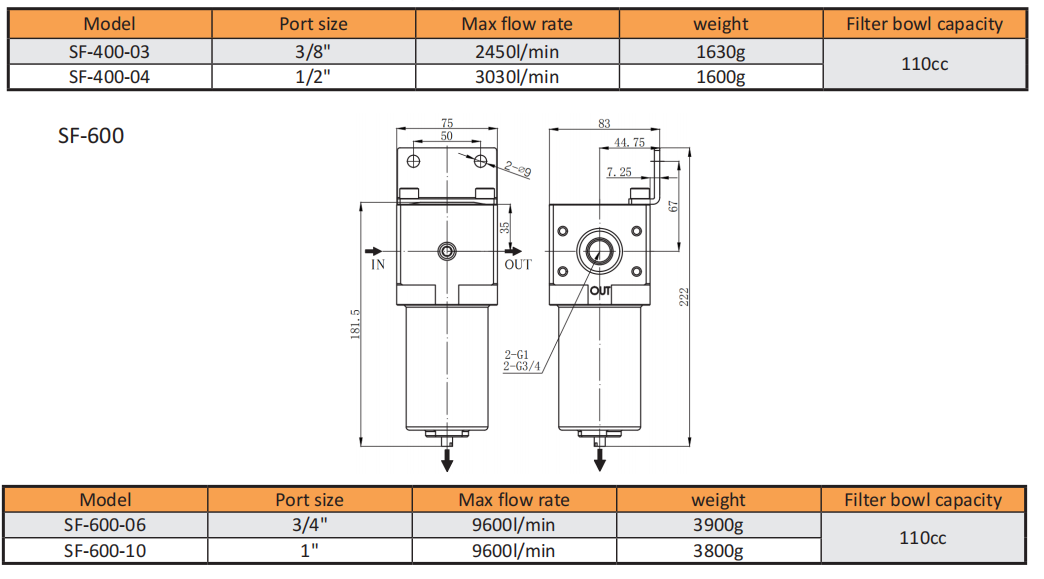

DIMENSIONS
FAQ
Packing
Transparent plastic bag + neutral carton + neutral box + pallet
Custom packaging are available, XHnotion brand packaging are available
Shipping :
Export port: Ningbo or Shanghai, China
Shipping way: by sea, by air, by courier
Delivery time 3 days to 30 days depends on actual orders.
Payment Terms
We accept T/T, L/C, Paypal, western union,etc.
Samples Policy
For regular item1 piece, free samples against your courier account or you pick up from us.
For custom items, we will discuss by email.
Return Policy:
We assure you 1 year policy after shipment. If there is any problem during this period, please contact us for support.
