SS316L Stainless Steel Air Source Preparation FRL Pneumatic Treatment Unit

Port Size: 1/4, 3/8, 1/2 Condition: New Trademark: XHnotion Transport Package: Box Specification: CE Origin: China HS Code: 8421999000 Customized: Non-Customized Principle: Pressure Filtration Usage: Oil and Gas Separation, Air Filter Application: Medicine, Oil, Chemical, Metallurgy Brand: Xhnotion Work Temperature: -20 -150

Availability:

Quantity:



Inquire Add to Basket

Model:
SSFRL
Brand:
Xhnotion or no brand
Payment Terms:
L/C, T/T, Western Union, Paypal, Money Gram
Port:
Ningbo, China
Production Capacity:
10000 PCS Per Month
Transport Package:
CARTONS
Model NO.:
SSFRL
Material:
Stainless Steel
Port Size:
1/4, 3/8, 1/2
Condition:
New
Trademark:
XHnotion
Transport Package:
Box
Specification:
CE
Origin:
China
HS Code:
8421999000
Customized:
Non-Customized
Principle:
Pressure Filtration
Usage:
Oil and Gas Separation, Air Filter
Application:
Medicine, Oil, Chemical, Metallurgy
Brand:
Xhnotion
Work Temperature:
-20 -150

Product Description

SS316L Stainless Steel air source preparation FRL pneumatic treatment unit

FEATURES

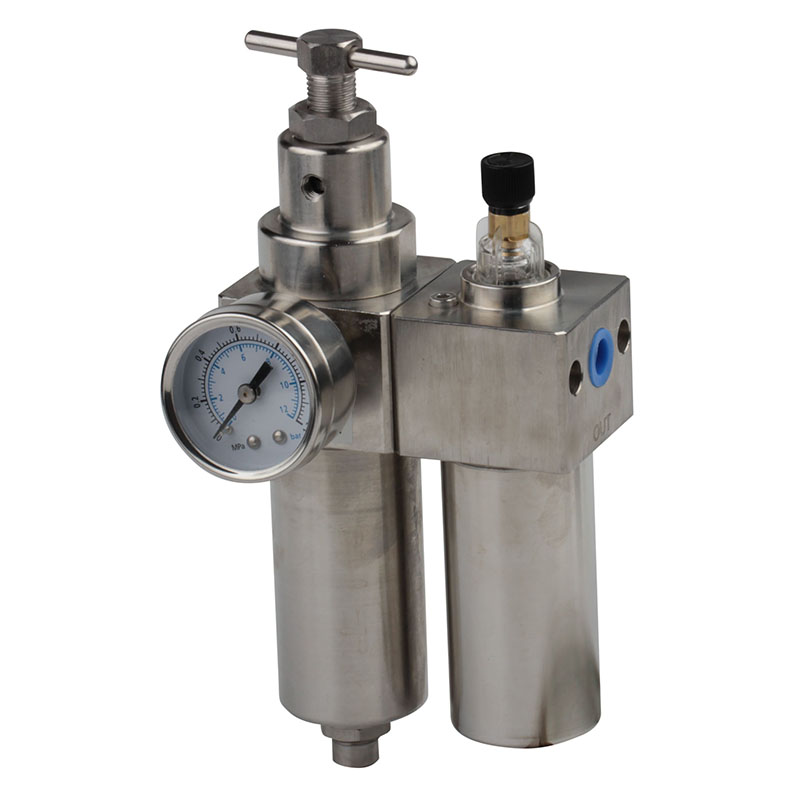

SS316 stainless steel air filter regulator treatment unit (24)

1.For high pressure use.

2.Corrosion and chemical resistance.

3.Good performance for outdoor facility.

4.Suitable for semi-conductor industry.

5.The product effectively removes water and particle.

6.Accurate and sensitive pressure setting.

7.Lubricator oil can be replenished without stopping air supply.

8.Oil spray in mist ensures good lubrication for machines.

9.Light weight, compact size for space saving.

10.High pressure resistant.

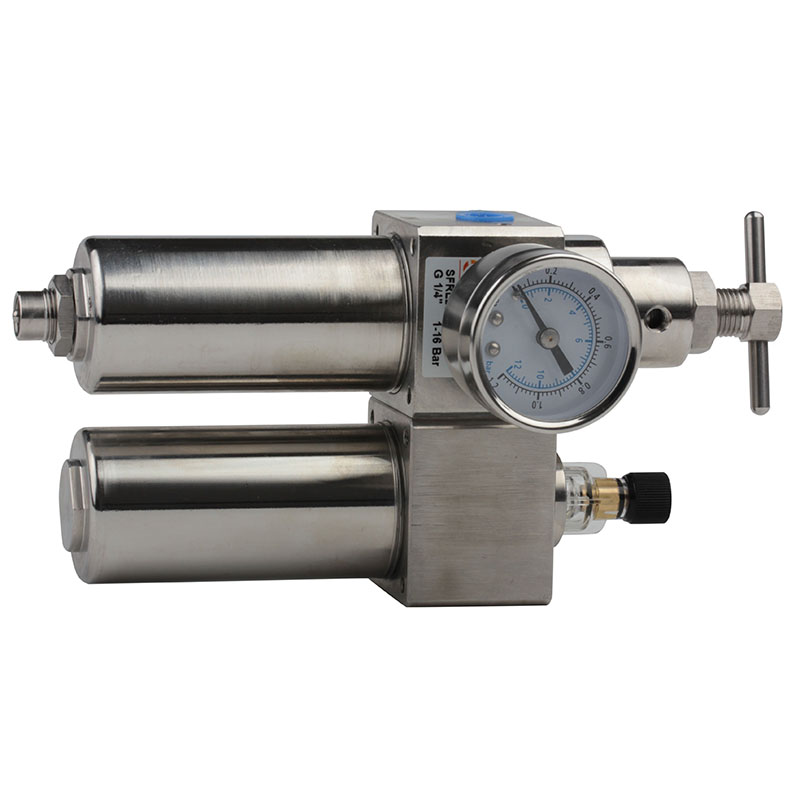

SS316 stainless steel air filter regulator treatment unit (22)

All 316L SS Construction

High Flow Capacity

Tapped Exhaust Port for Remote Venting

Minimal Air Consumption

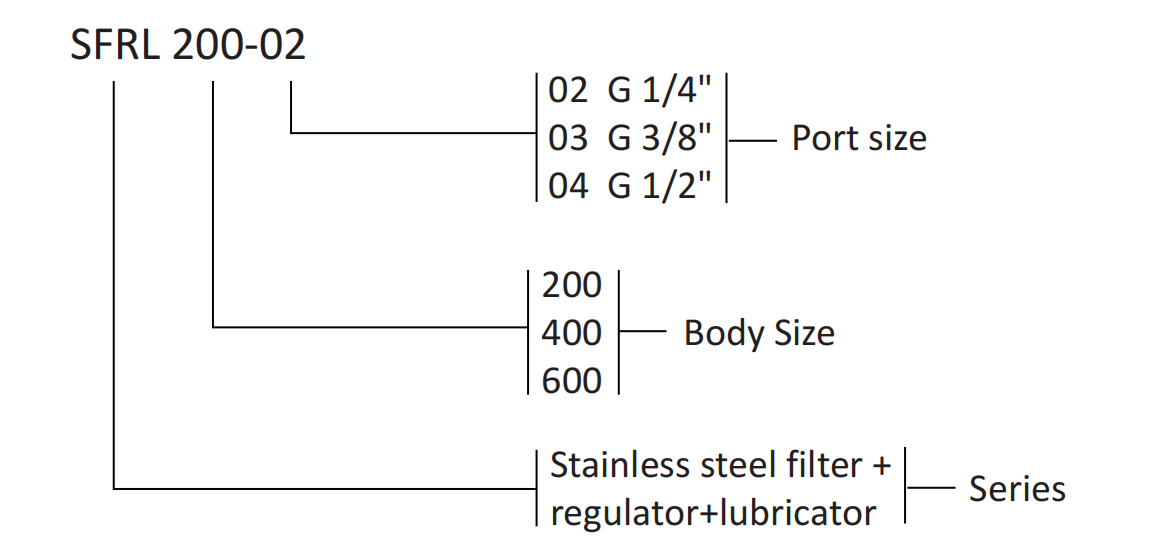

HOW TO ORDER

SS316 stainless steel air filter regulator treatment unit (19)

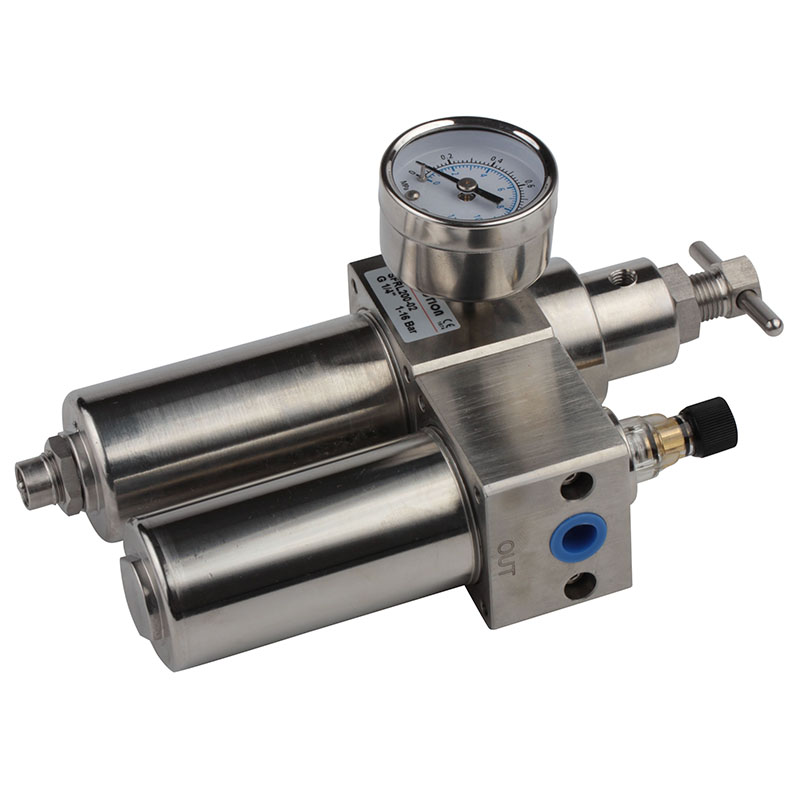

SS316 stainless steel air filter regulator treatment unit (20)

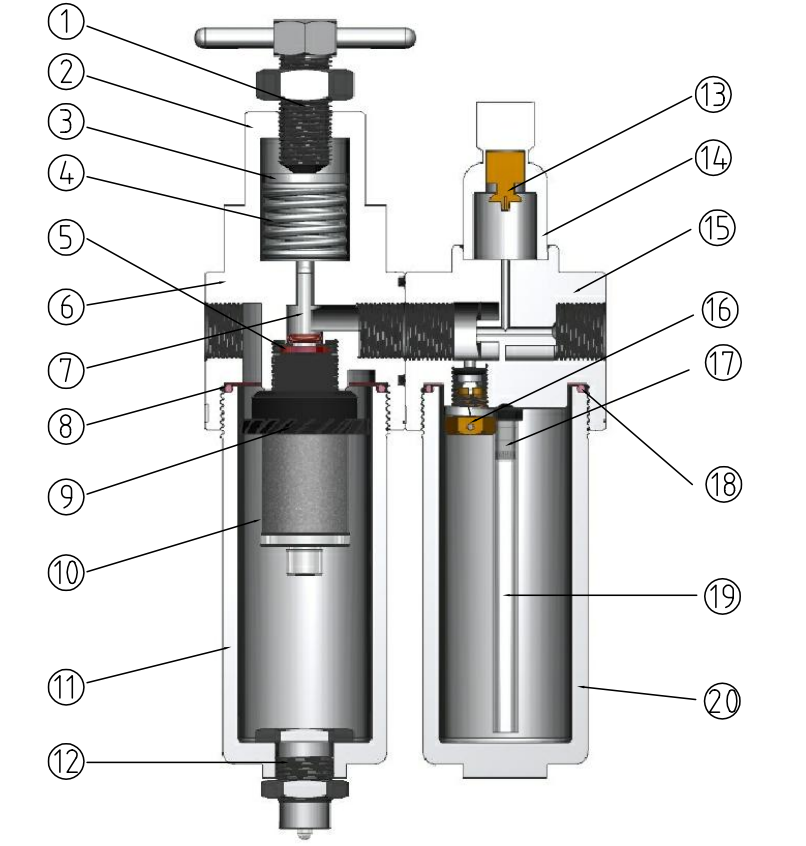

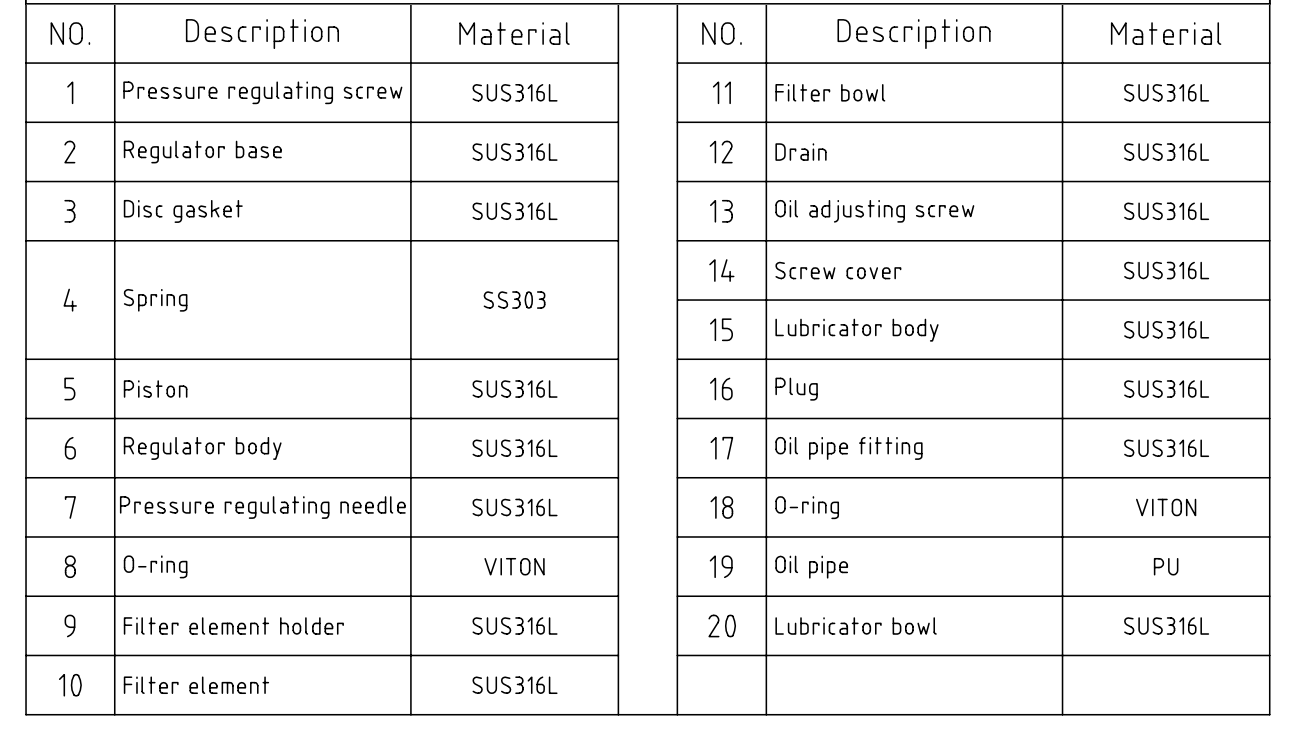

STRUCTURE

I_OIK)5YVE7MOU%9`ZP

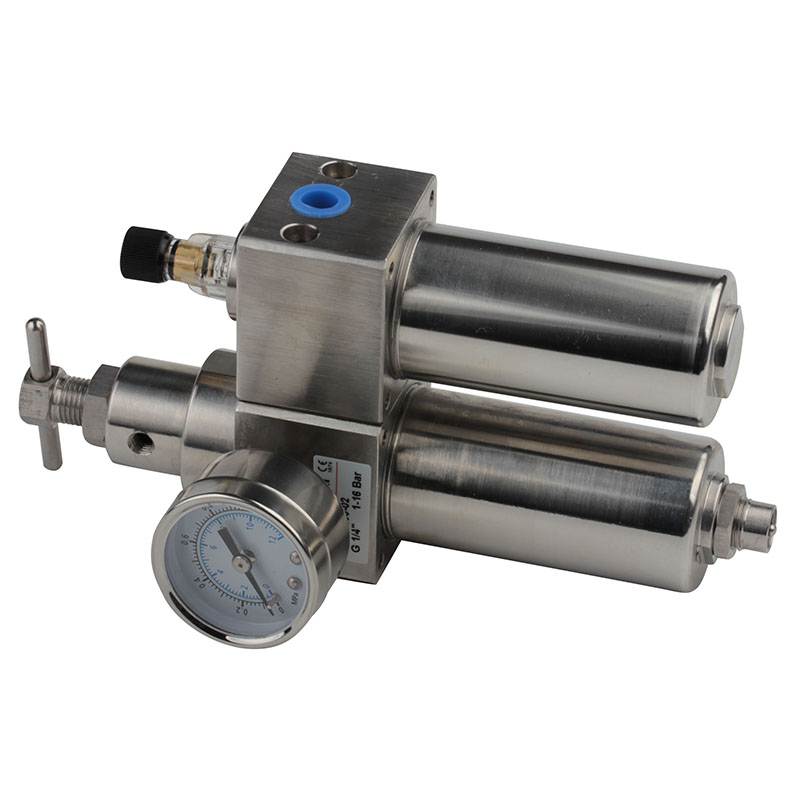

SS316 stainless steel air filter regulator treatment unit (21)

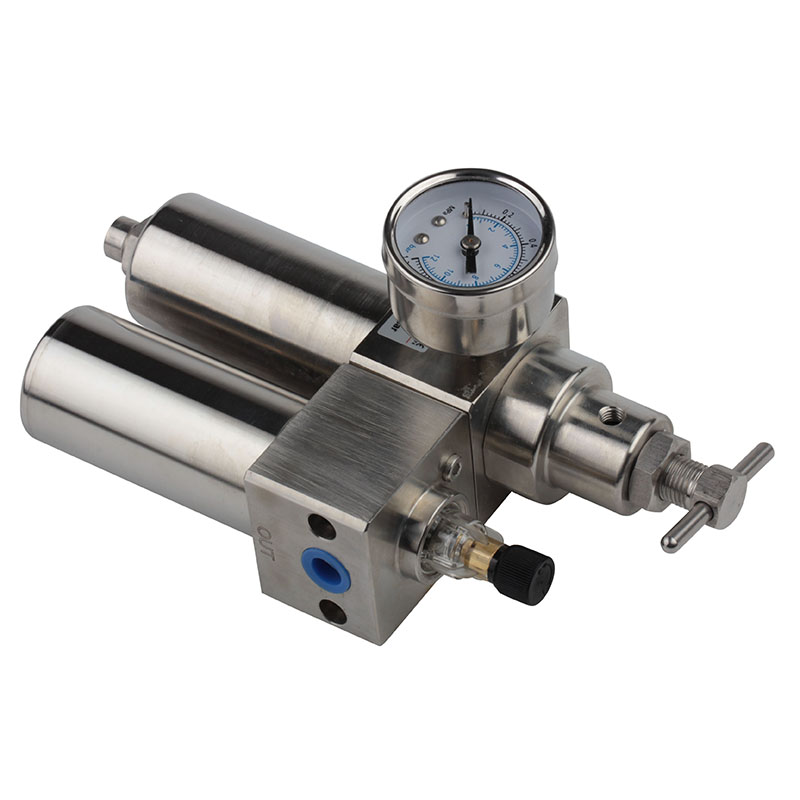

SS316 stainless steel air filter regulator treatment unit (23)

SPECIFICATION

Model	SFRL-200/400/600
Port size	1/4" 3/8" 1/2" 3/4" 1"
Fluid	Compressed air
Regulator construction	Piston
Body material	Stainless steel SUS316
Bowl material	Stainless steel SUS316
Pressure gauge material	Case:Stainless steel SUS304, Thread: Stainless steel SUS316.
Filter element material	Stainless steel SUS316
Filtration accuracy	5μm(Standard) 40μm(Option)
Operating pressure range	0~20kgf/cm²
Proof pressure	30kgf/cm²
Ambient temperature	-10°C~70°C
Standard drain	Semi-auto drain(Drains below 0.5kgf/cm²)
Accessories	Pressure gauge(0~10kg), Mounting bracket, Plug, Screw×2
Accessories(Option)	Pressure gauge(0~25kg)

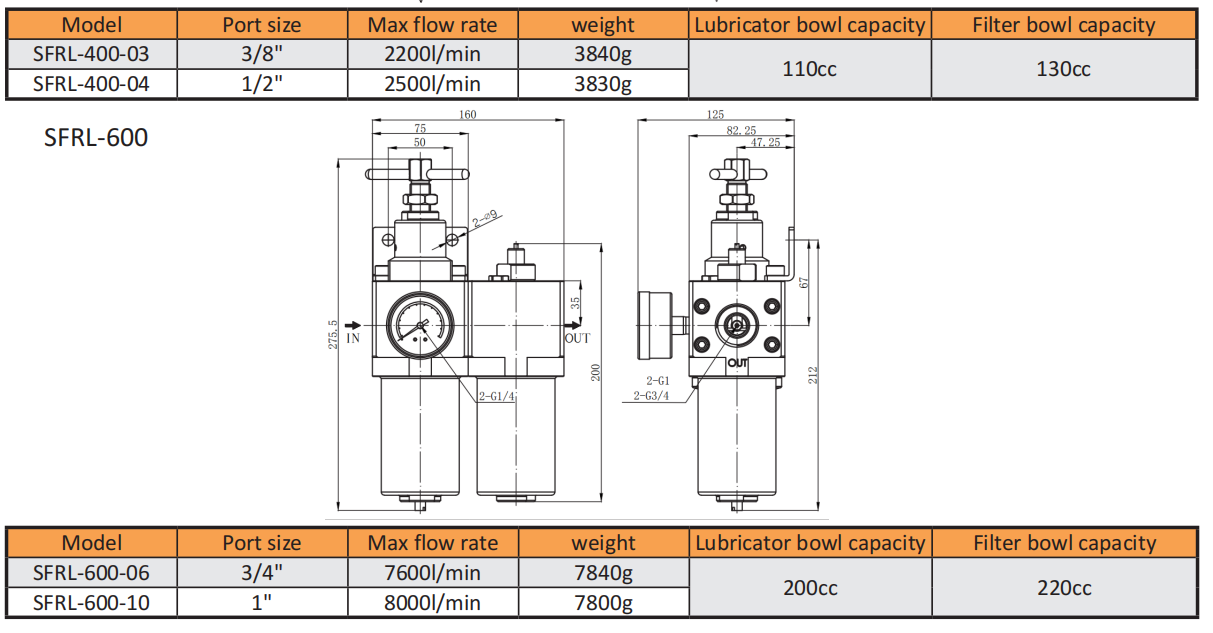

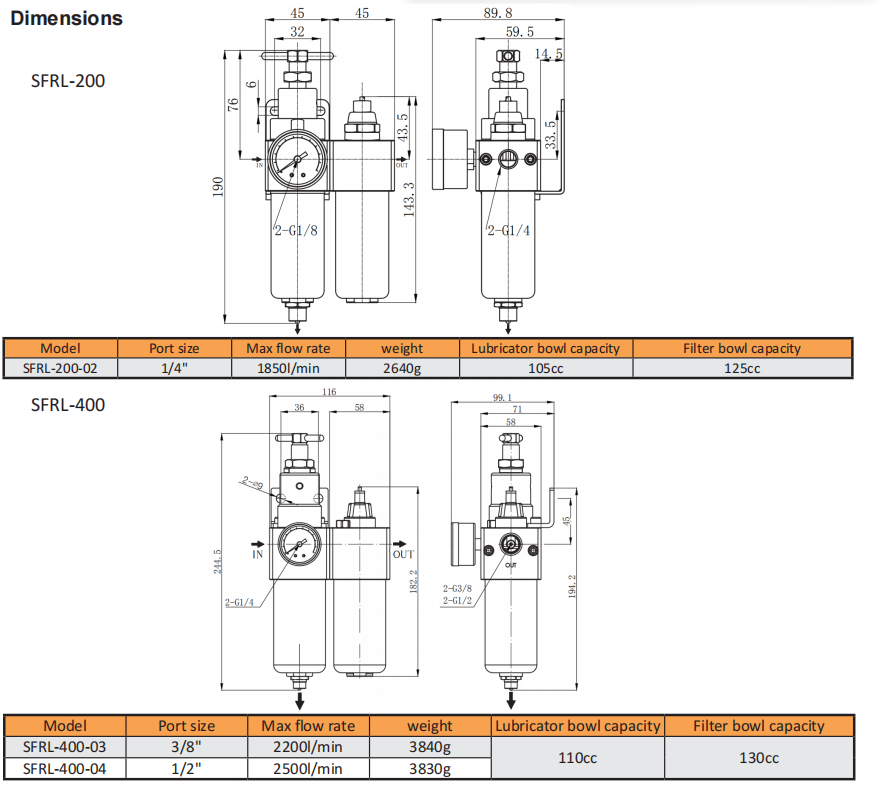

DIMENSIONS

46DSPOLG0VOFQ8BVX3(3H

UF5A%R)XCCDLE5S3PT9
