OV65 Plastic Back Flow Preventer Check Valve

Standard: ANSI Application: Household Usage Size: 10mm Seal Material: EPDM Trademark: XHnotion Transport Package: Plastic Bag Specification: ROHS, REACH, CE, ACS, FDA Origin: China HS Code: 8481804090 Media: Water Temperature: Low Temperature Material: Plastic Connection Form: Cartridge Structure: Tubular Pressure: Low Pressure

Availability:

Quantity:



Inquire Add to Basket

Model:
OV65
Brand:
XHNOTION
Payment Terms:
L/C, T/T, Western Union, Paypal
Port:
Ningbo, China
Production Capacity:
100 PCS Oer Month
Transport Package:
CARTONS

Product Description

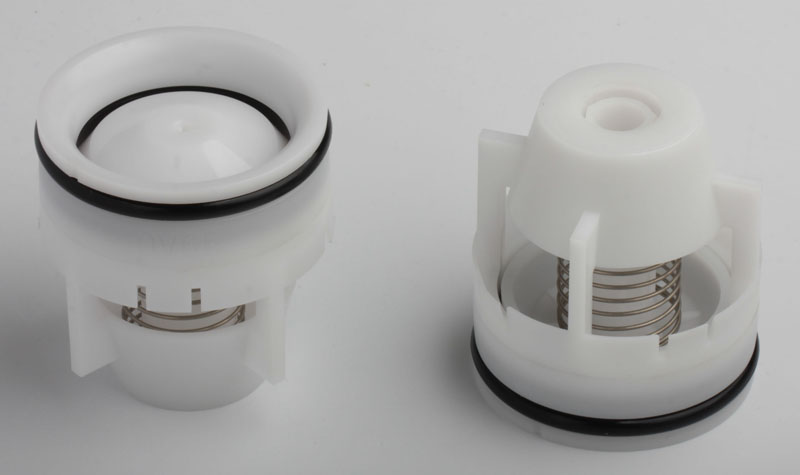

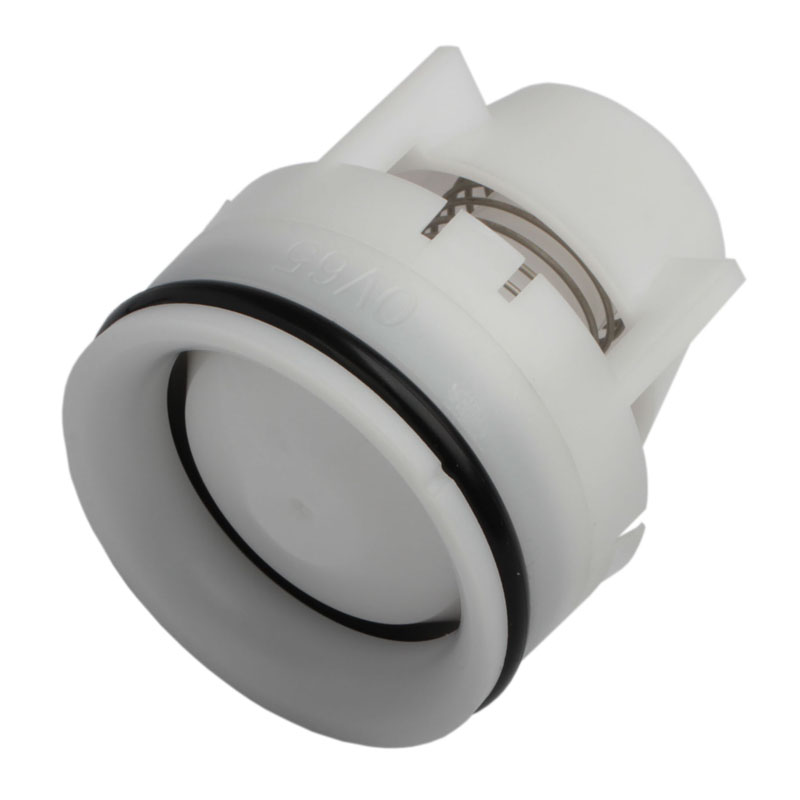

OV65 Plastic Back Flow Preventer Check Valve

OV65 CHECK VALVE

Cartridge check valves (also called non-return valves) are designed for simple installation and offer outstanding performance inside mating housing.

They are valves which only allows water to flow in one direction and prevents backflow.

XHnotion cartridge check valves are not only for water, also for air now.

Applications include faucets, showers, valves and heating systems for residential or commercial installations, as well as pumps.

All the models are 100% tested during production for drip tight operation.

Maximum temperature and pressure rating is for most models 200F(90C)/230psi.

The average cracking (opening) pressure of most valves is between 0.25and 0.33 of a psi.

OV inserts cover a size range from 15 mm to 50 mm and provide superior flow performance (reduced headloss).

They can only be inserted against the direction of flow but require no retainer in the direction of flow ("snap-fit" design with flexible tabs).

FEATURES AND BENEFITS

100% factory tested drip in operation.
Easy to insert into the application devive.
Spring loaded plunger: operates in any position.
Extra low headloss, extra low cracking pressure.

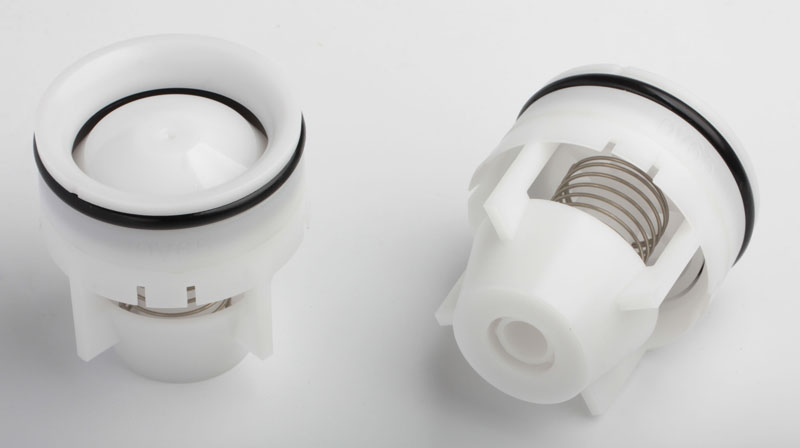

XHnotion 65mm plastic check valve (1)

SPECIFICATION

Material	Acetal housing, core, cover; EPDM O-Ring; SS304 Spring
Medium	water, air
Size	8mm to 50mm
Cracking Pressure	0.25Psi
Max Pressure	230 Psi
Max temperature	100 C (212F)
Production Capacity	1,000,000 pcs each month
Packing Details	Poly bag, outer carton and pallet.
Payment Term	T/T, PAYPAL, WESTERN UNION
Delivery Time	3-20 days after confirming the order
Minium Order Quantity	2000 pcs
Certificate	ROHS, ACS, FDA, REACH

STRUCTURE

External o-ring seal provides sealing between the check valve cartridge and the mating cavity into which it is inserted.

Center stem guidance optimizes the return of the plunger head into its seat for effective sealing and to prevent jamming

even in hard water conditions (water with high mineral content or sediments)

Standard XHnotion check valves are spring loaded to ensure reliable operation in any position of installation and fast

positive sealing even in low backpressure conditions.

CERTIFICATION

Option Available
Part	Housing	Closing system
OV	White	White

Materials
Name			OV15, OV20, OV25, OV32,OV40, OV50.
Housing			Acetal
Guide			Acetal
Core			Acetal
Spring			Stainless steel AISI 304
